Aluminum base solar mounting pv bracket roof hook for ramp rooftop

Share on:

Price in USD:Details


Product Overview


Aluminum base solar mounting pv bracket roof hook for ramp rooftop

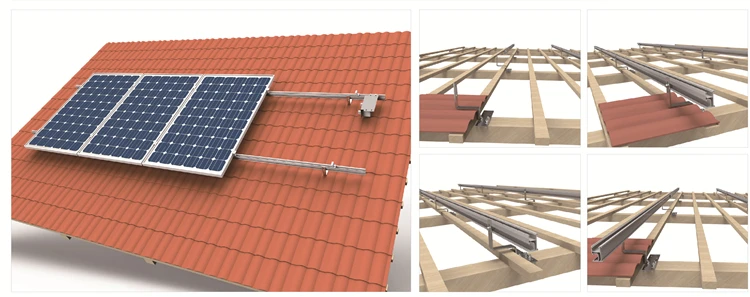

CHIKO Efficient Tile Roof Mounting

Designed as a modular unit assembly system with quality materials. Which enables an installer to install any module in almost any mounting situation or configuration.The components are easy to install and used for variety of tile roof types.

1. Product Showcase

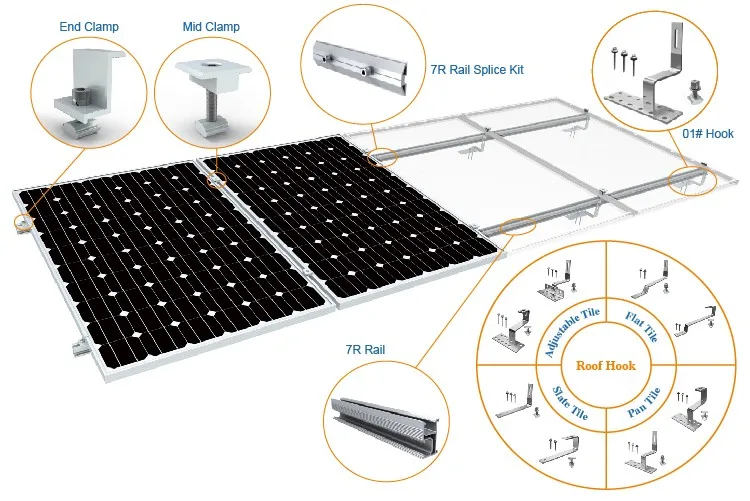

A. S Tile Roof Mounting

Give you different options for installation on rail (vertical or horizontal)

B. Adjustable S Tile Roof Mounting

Can be adjusted horizontally and vertically, which gives more versatility than regular S Tile Hook.

Adjustable S tile mount.png

2. Features

  • Easily adaptable to most tile roof types: Pan tile roof,Cement/Flat tile roof,Asphalt Shingles
  • Supports high wind and snow loads
  • Pre-assembled components designed for fast and easy installation
  • Available to match all kinds of solar panels
  • Available in portrait and landscape mounting solution
Roof pitch
 Rail lengths
Clamp colors
Splice kit
PV modules
0°- 45°& walls
2,3 and 4 modules
Pre-assembled & Al6005-T5
Silver or black
Aluminum, fastener-free installation
Suitable for all standard module

3. Advantages

  • Flexible system suitable for most pitched roof designs.
  • Fixed Chiko hooks or adjustable Chiko hooks for all type of tiles.
  • Complete range of stainless steel hooks and aluminum profiles.
  • Compatible with all Chiko profiles
4. CHIKO More Tile Roof solar Mounting Solution

5. CHIKO Project

S Tile roof Project.png

Our Service

1. CHIKO Service

For Solar Mounting Solution and Request Contact Info:
Terry Lynn
Email: chiko(@)
Phone:0086 13816459677


Please provide tile roof solar pv hook as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________

If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.

2. Packaging & Shipping

CHIKO Packaging: Put Warranty Chiko solar mounting products into CHIKO standard carton/ wooden pallet/ other customized packages for pitched roof/ tile roof solar mounting brackets/ solar racking/ solar installation/ solar instruction
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm.

Company Profile
Quality Control

1. Quality

With CHIKO, you will meet leading highest standard quality. All of our Aluminum profiles are made 6005 T5 with surface protection anodic oxidation 12-15 micron (µ), hooks and bolts are made of Stain- less steel 304.Ground mounting systems that made of Q235 steel will be hot dip galvanized with a averagethickness 80 micron (µ).

2.Production Certification

CHIKO Solar have obtained product certifications, and management system endorsement granted and approved by leading testing agencies including UL SGS Gamcorp MCS Intertek, SPAD etc. Our product designs are based on the following Australian Standards and sections of Building Code of Australia relevant to structural issues.
