Product Overview
Description

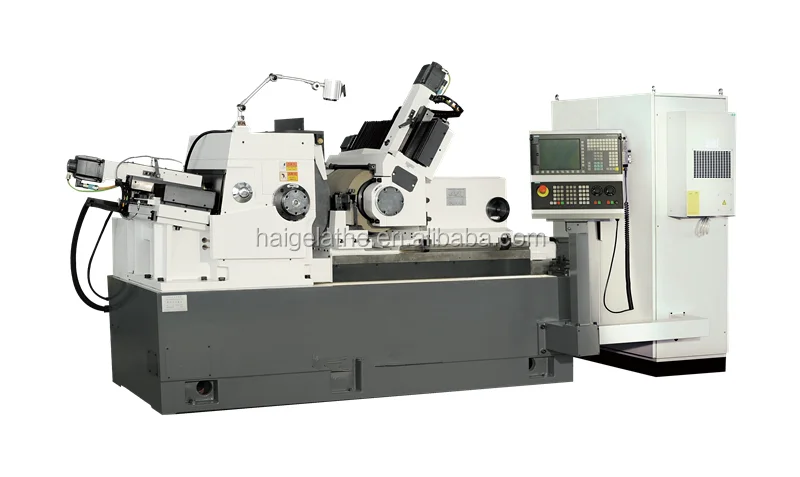

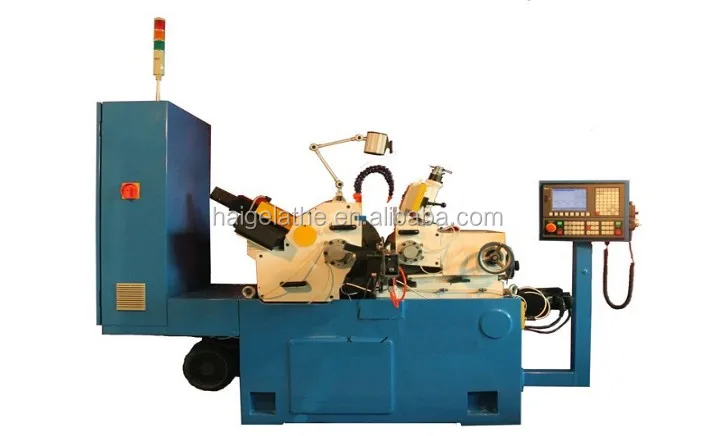

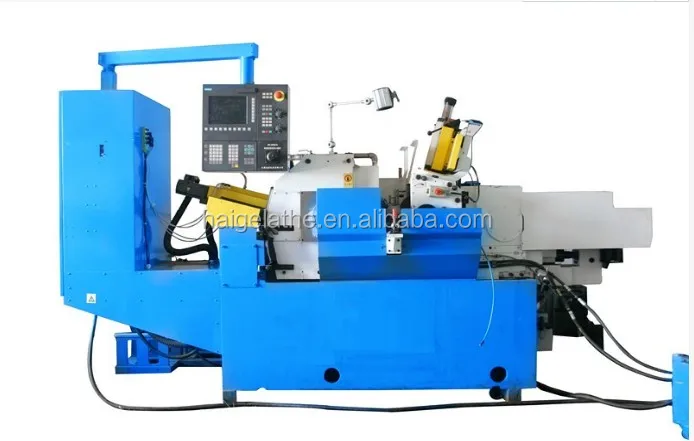

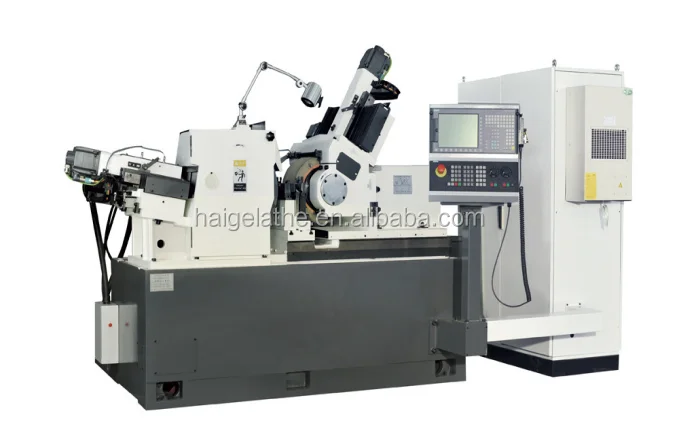

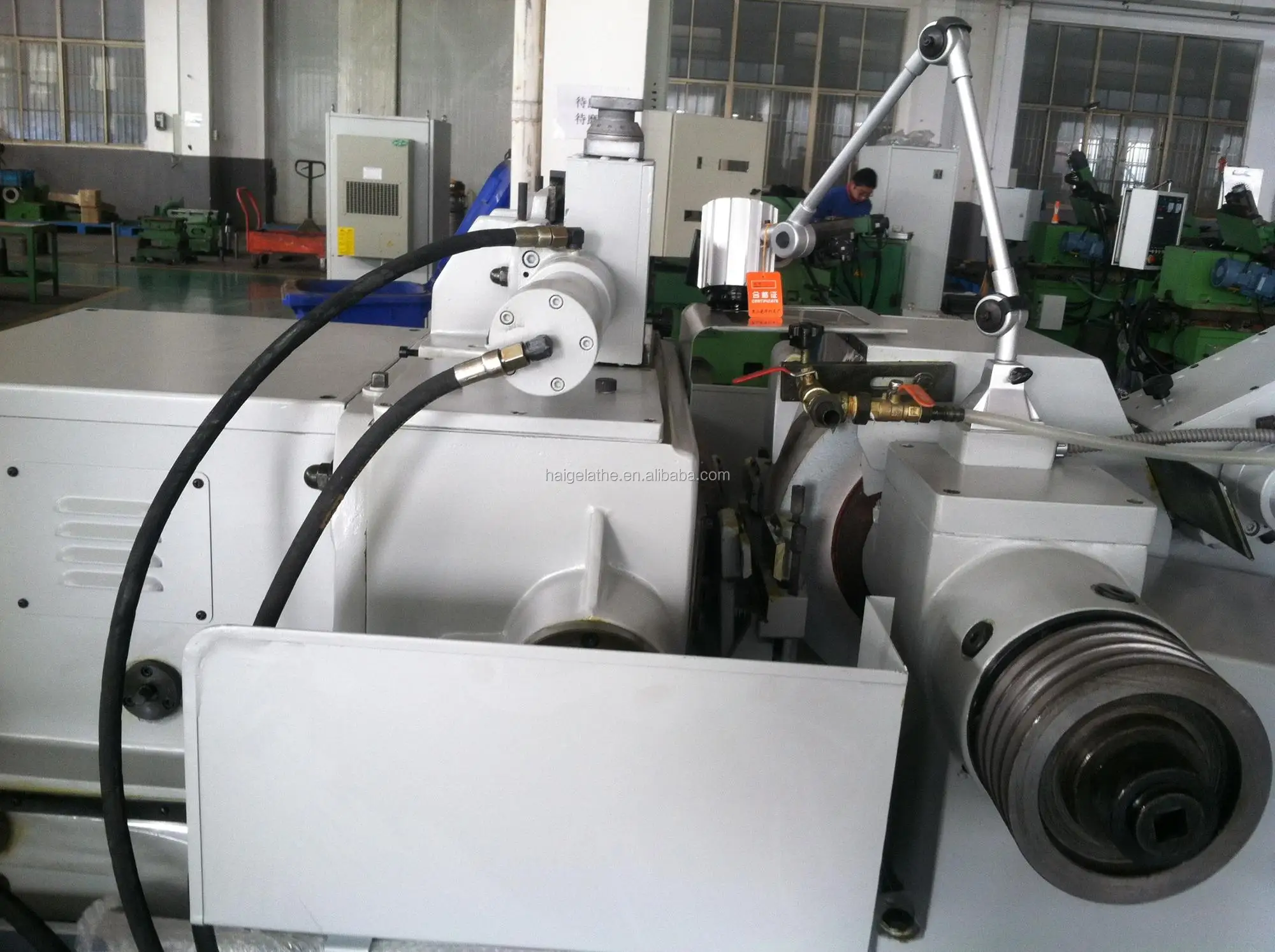

Centerless Grinder Grinding Machine

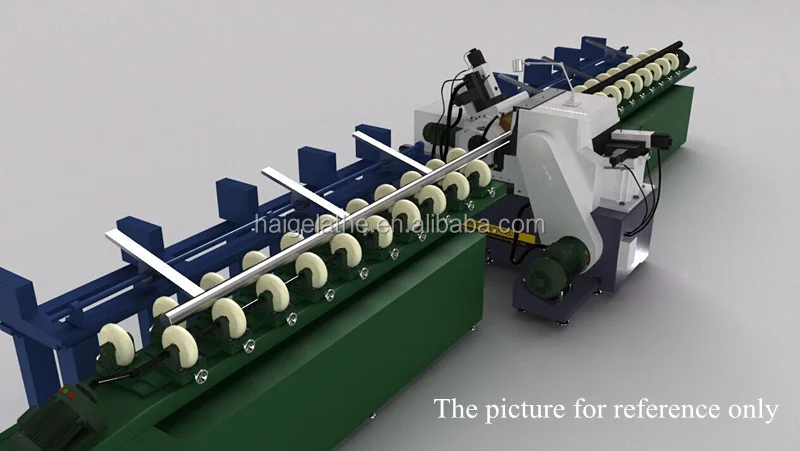

Whole process : Feeding racks → roller driving device → centerless grinder
→ blanking roller → receiving racks

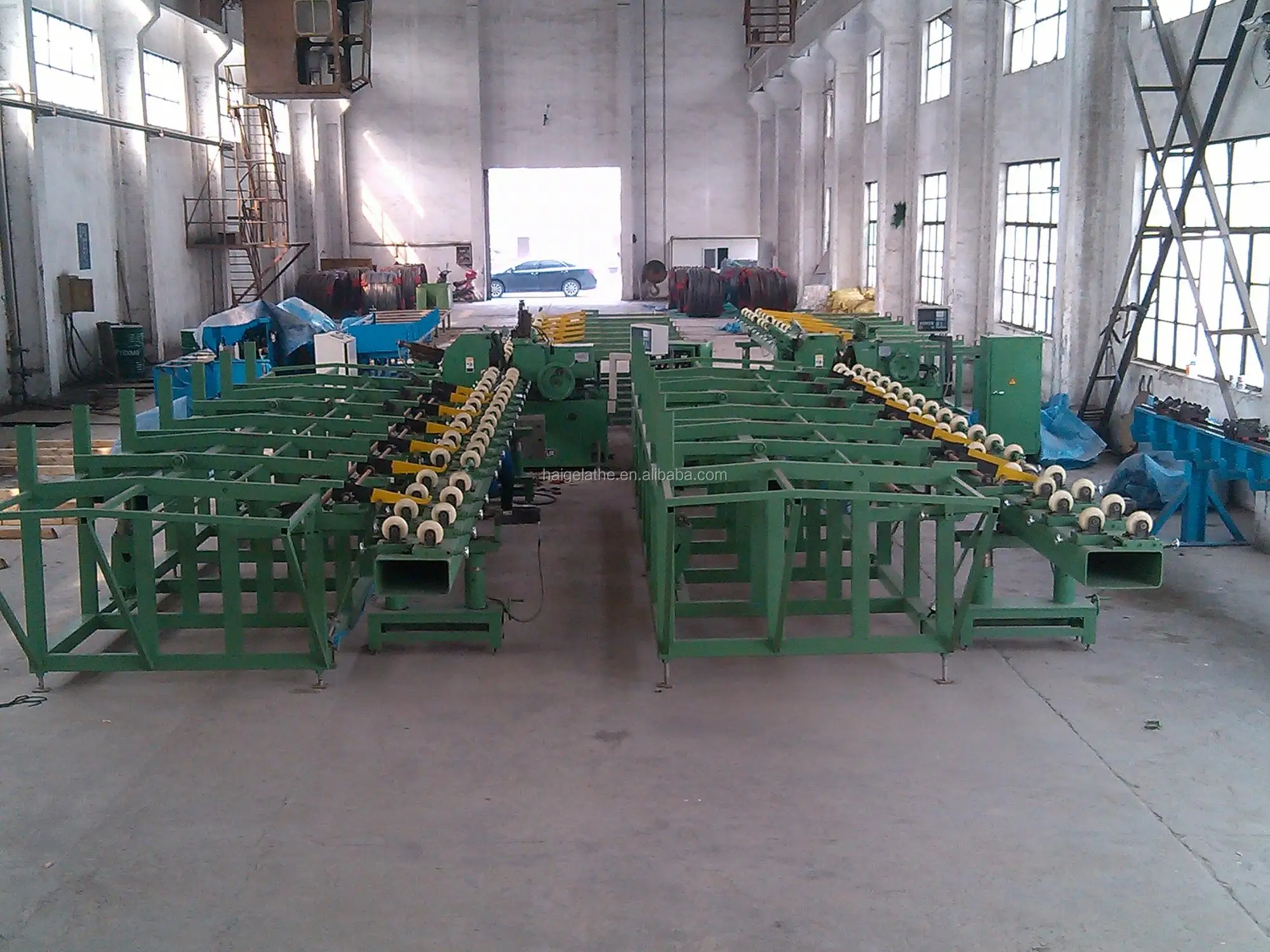

The automatic bar feeding and receiving machine for centerless grinder is made up of two parts: auto-feeding system and auto-receiving system. With the application of this machine, manpower and working intensity can be reduced and the bumping damage resulting from the grinding process can be avoided. So it improves production efficiency, lowers the production cost effectively, decreases the quantity of workers and realizes one worker multiple machine. It substantially cut the production cost of the products.
Technical Details (for reference only )
1. Plunge-feed (1) Grinding diameter (2) Max grinding length 2. Thru-feed (1) Grinding diameter (2) Max grinding length 3. Grinding wheel specification 4. Regulating wheel specification 5. Grinding wheel speed 6. Regulating wheel speed(stepless) 7. Regulating wheel frame swivel angle (1) in vertical (2) in horizontal 8. Regulating wheel min feed amount 9. Grinding wheel dresser min feed amount 10. Height from centerline of gri.wheel & reg.wheel to workrest 11. Cooling water flow 12. Total power (1) Grinding wheel motor (2) Regulating wheel motor (3) Water pump motor (4) Lubrication pump motor (5) Magnetic coolant separator Motor 13. Power supply 14. Machine dimension 15. Machine weight 16. Accuracy (1) Roundness (2) Cylindricity (3) Roughness |
2--80mm
3000--6000mm 2--80mm 3000--6000mm P500×200×305mm P350×200×203mm 1338r/min 10-200r/min
-2°~+5° -1°~+3° 0.001mm 0.001mm 200mm
50L/min 18.5KW 3KW 0.25KW 0.14KW 0.18KW
3 PHASE 50HZ 380V 2500×1610×1600mm APPROX 5000Kg
0.001mm 0.0018mm Ra0.16 |
