Share on (60736965109):


Price:5 000,00 $ - 35 000,00 $

Quantity:


Product Overview

Description



Recommend Products




Product Description




Specification




No.
main parameter of Sandwich panel forming machine line
1
Suitable to process
Color steel plate
2
Width of the plate
1000&1200mm
3
Rollers
17-44rows
4
Dimensions
38.0*2.25*2.5m
5
Power
30kw
6
Thickness of the plate
0.3-0.8mm
7
Productivity
2-6m/min
8
Diameter of the roller
Φ90mm
9
Weight
About 15 T
10
Voltage
380V 50Hz 3phases
11
Material of the cutting plate
Cr12
12
Processing precision
Within 1.00mm
13
Control system
PLC control


sandwich panel standards
Length
Min cut length: 3 m
Max stacker length: 15 m
raw material standards
Coil thickness
0.4~0.6mm (the coil surface should be flat,
no arch and the others surface trouble.)
Material coil yield strength
235MPa
Material coil max width
see detailed profile drawings.
Material coil max weight
5 T
Material coil inner diameter
Φ508,Φ610 mm
EPS core material
density
≥18Kg/m3
straight rate
≤1mm/m
arch degree
≤3mm/m
panel surface
shoule be flat
no flat degree is ≤1.5mm/m,
sandwich panel length
longer than 5 meters
wool material
fiber length
≥100mm
cubage density
≥100Kg/m3
sandwich panel length
≥3 meters

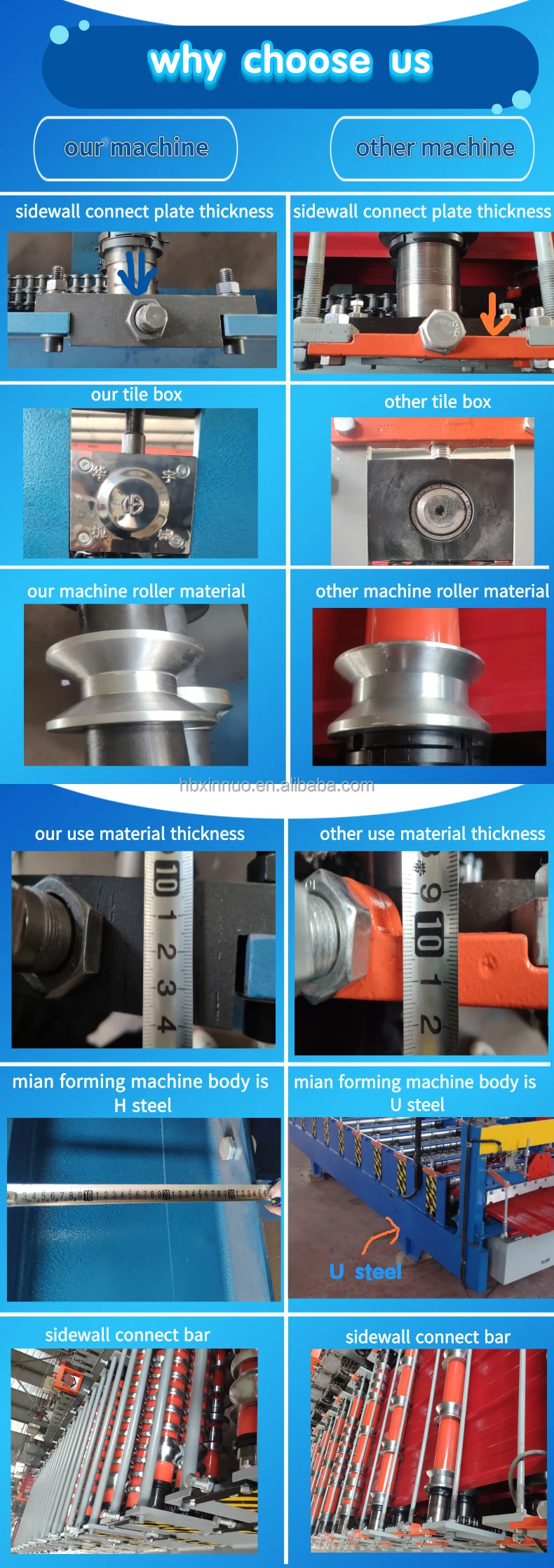

Why Choose Us




Customer Reviews




Packing & Delivery




Packaging Details:
Main machine is nude, the computer control box is packed with wooden frame.
Main machine is nude in the container, the computer control box is packed with wooden packaging.
Delivery Detail:
20 days


EPS rock wool rockwool corrugated roll forming machine sandwich panel making machine with ce


Our Advantages


LARGE CNC MILLING MACHINE
EPS rock wool rockwool corrugated roll forming machine sandwich panel making machine with ce a unique plant in Hebei Province.It directly mills the entire frame. The milling machine can make the machine's large surface smoother and the machine is more perfect. EPS rock wool rockwool corrugated roll forming machine sandwich panel making machine with ce


SHOT BLASTING MACHINE
EPS rock wool rockwool corrugated roll forming machine sandwich panel making machine with ce can handle the entire machine frame or parts,making the rusty surface clean and smooth The surface of the product increases adhesion. EPS rock wool rockwool corrugated roll forming machine sandwich panel making machine with ce


NEW CNC MILLING
EPS rock wool rockwool corrugated roll forming machine sandwich panel making machine with ce make the backboard of purlin machine, also make the holes on backboard. This milling machine can milling the backboard more level, hole place is more precious. This can make the roller more level after installing,and then the purlin will be more straight.
Mechanical process
EPS rock wool rockwool corrugated roll forming machine sandwich panel making machine with ce line, have high precious CNC grinders and milling machines，to make the rollers and shafts of the machine.After produce, have professional engineer to check if these are qualified.
From one roller to one machine, we do every step carefully to make sure the quality.


ELECTRICAL CONTROL
All the control system of our machines we
make by ourselves. we have a professional engineer to design and make the control system. EPS rock wool rockwool corrugated roll forming machine sandwich panel making machine with ce can make sure the after-sale service, when customer have problem with control, we can solve it timely.


ENVIRONMENT FRIENDLY SPRAYING EQUIPMENT
EPS rock wool rockwool corrugated roll forming machine sandwich panel making machine with ce electrostatic spraying equipment meets the environmental protection regulations of the Chinese government and guarantees the delivery time of the machine.


Company Profile

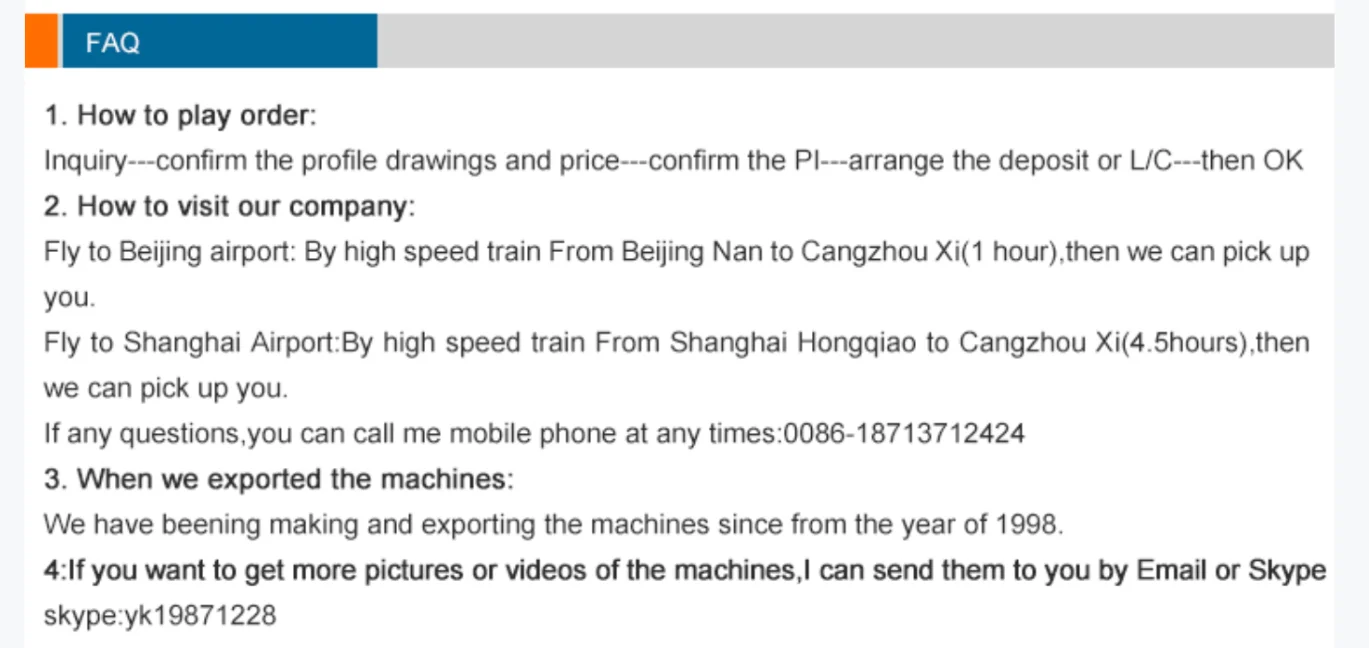

FAQ
