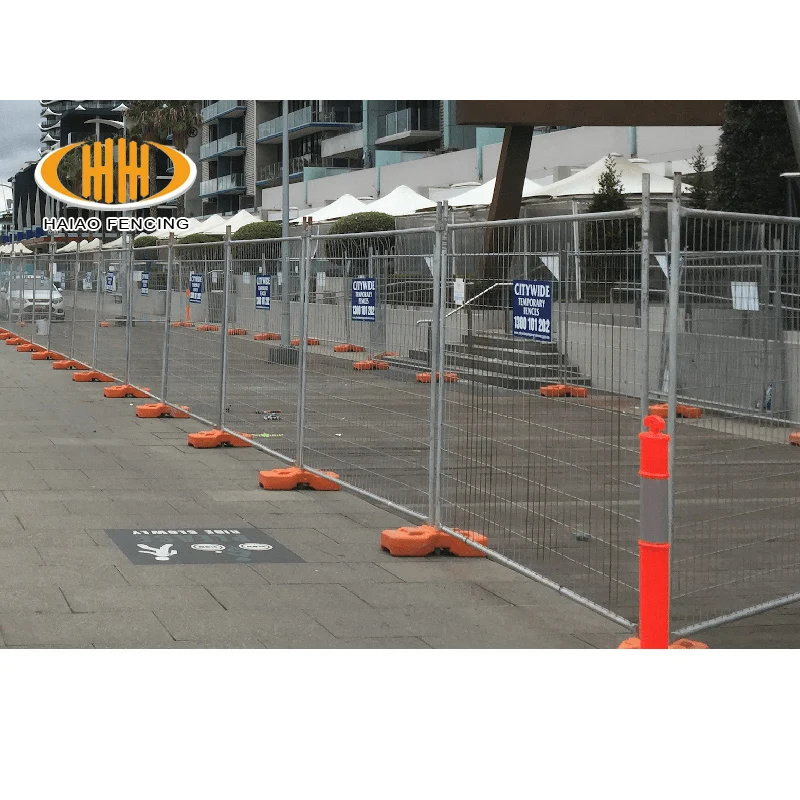

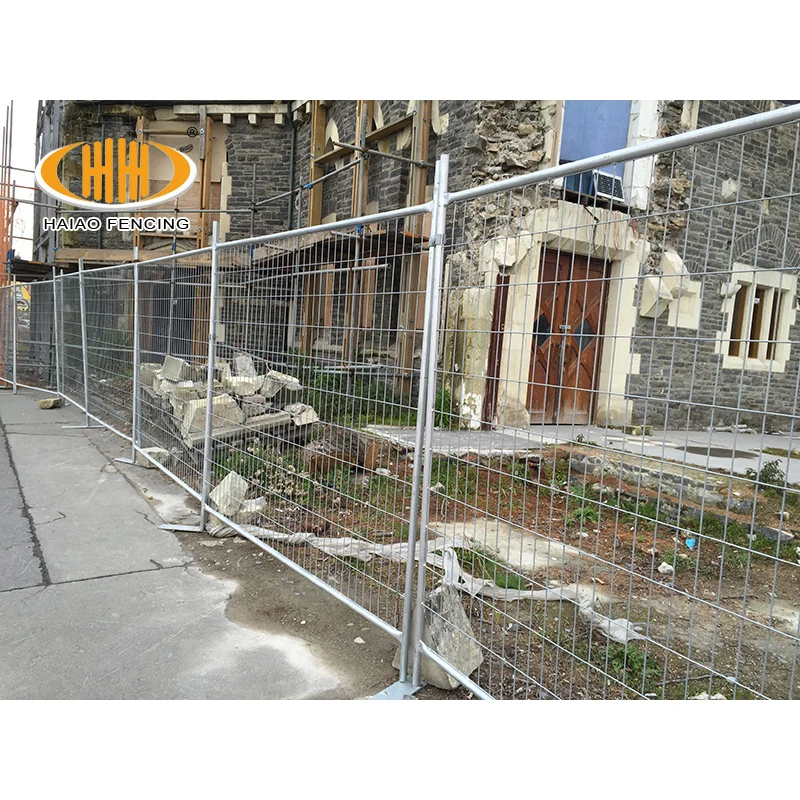

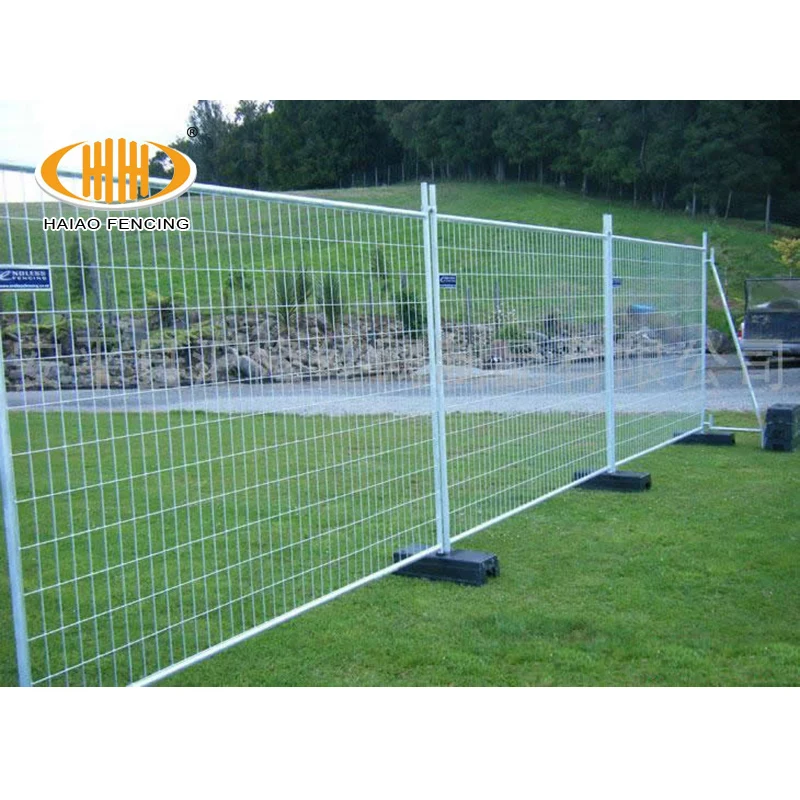

3.3m Heavy Duty Welded Mesh Maxi Temp Fence F Frame Brace Panel
- Category: >>>
- Supplier: Hebei Haiao Wire Mesh Products Co. Ltd.
Share on (60736990532):
Product Overview
Description
Product Description

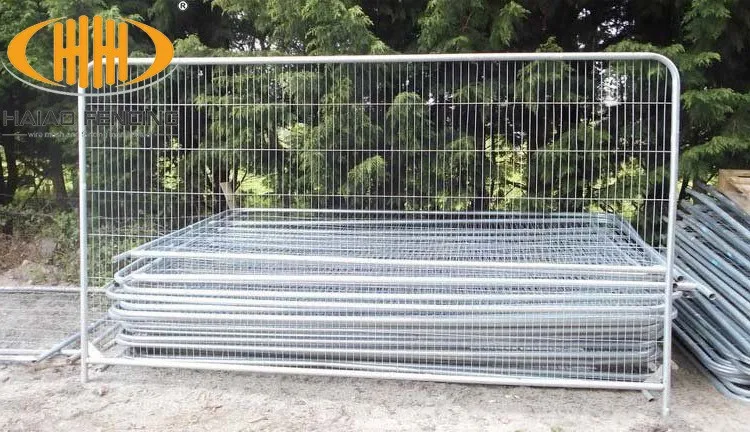

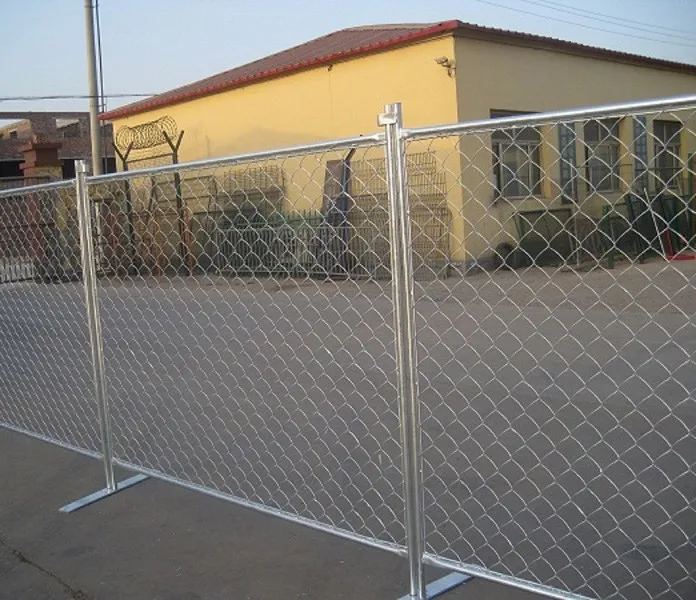

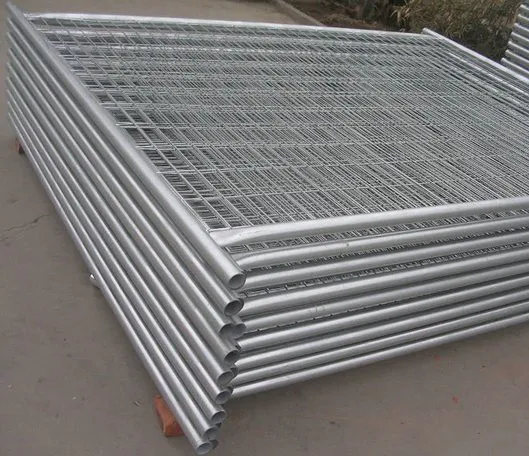

Temporary fence as the name suggests is a free standing, self-supporting fence panel, the panels are held together with clamps that interlock panels together making it portable and flexible for a wide range of applications. Fence panels are supported with counter-weighted feet, have a wide variety of accessories including gates, handrails, feet and bracing depending on the application. Fence panels are commonly constructed of either chain link or weld mesh.
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
1) Simple structure in linear type ,easy in installation and maintenance.
2) Renewable resource, could be used for several years.
3) All welding slag are cleared to insure fence smooth surface.
4) Whole panel (welded mesh panel and frame tube) will be silver spray painted after welding to protect all welding spots.
5) Customized fence shape or specification is also available.

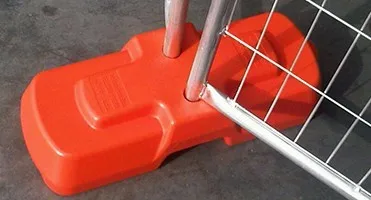

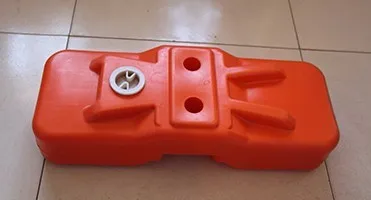

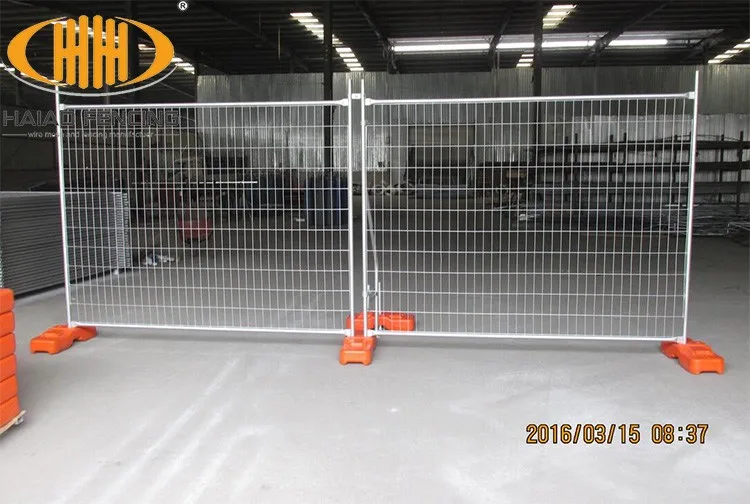

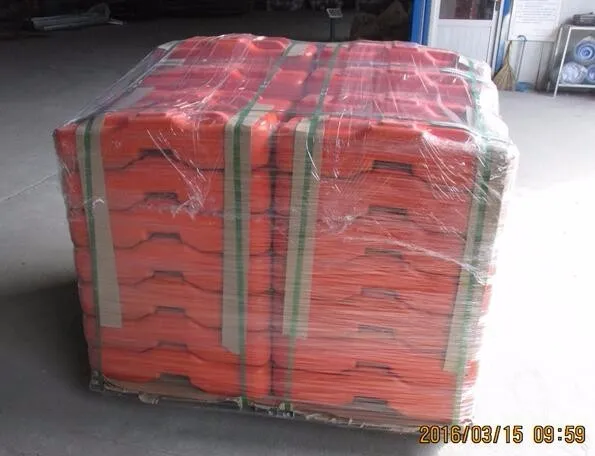

Fence Base

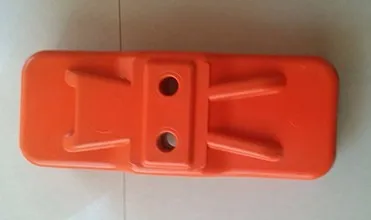

Base type 1:
Name: blow molded base
Material: UV resistant anti-aging plastic
Inside: filled with concrete
Weight: 26kgs
Size: 600x220x150mm
Color: orange, red, white, blue, etc
Base type 2:
Name: injection molded base
Material: UV resistant anti-aging plastic
Inside: filled with concrete
Weight: 30kgs
Size: 560x245x130mm
Color: orange, red, white, blue, etc

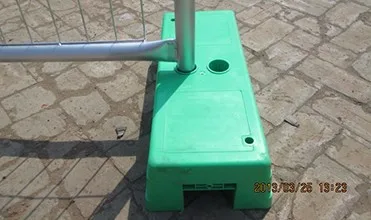

Base type 3:
Name: water filled base
Material: UV resistant anti-aging plastic
Inside: filled with water
Weight: 25kgs
Size: 600x220x150mm
Color: orange, red, white, blue, etc
Base type 4:
Name: customized blow molded base
Material: UV resistant anti-aging plastic
Inside: filled with concrete
Weight: 28kgs
Size: 600x228x150mm
Color: orange
Fence Accessory

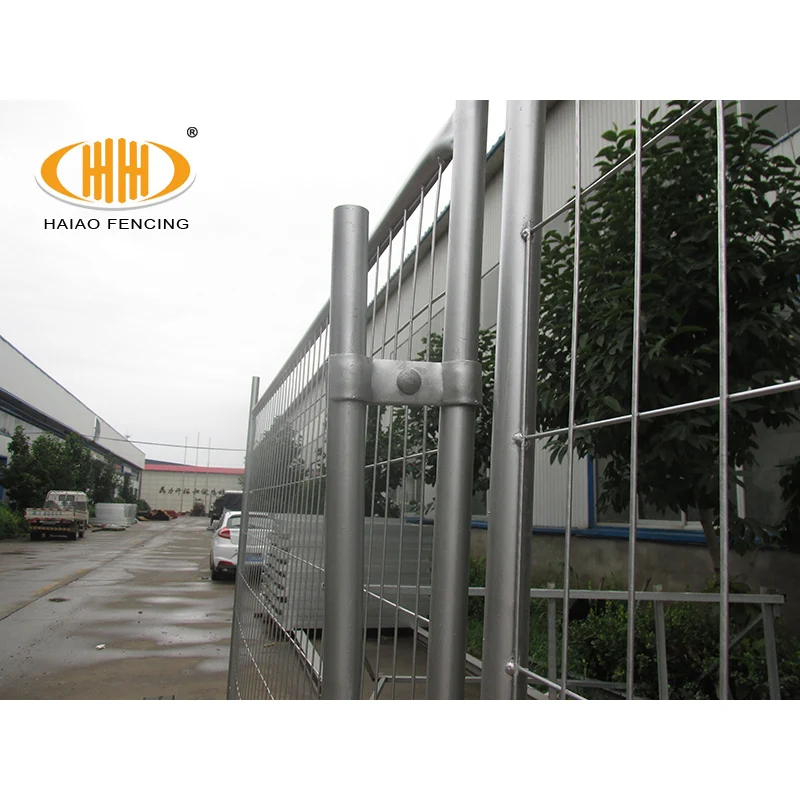

Fence Clamp:
Fully hot dipped galvanized
4mm thickness
75mm/80mm/100mm center space

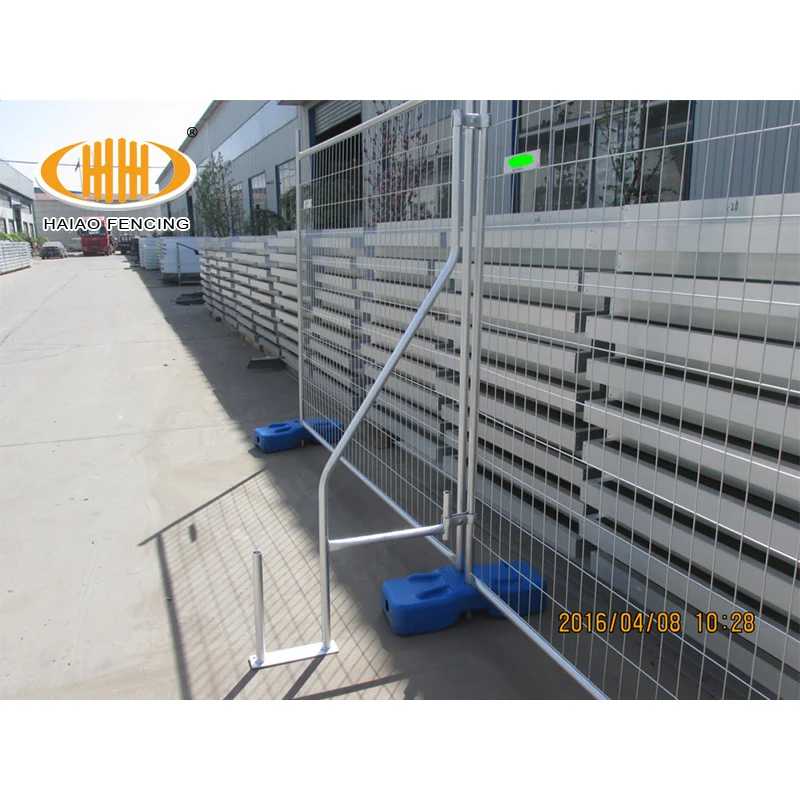

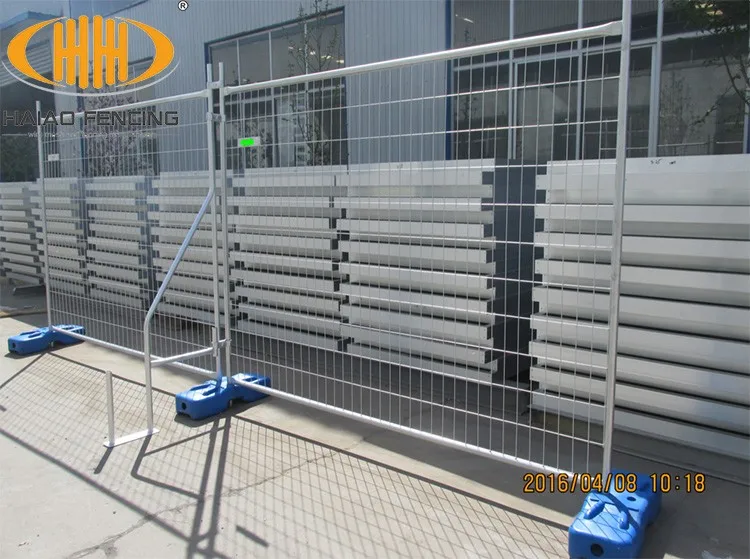

Extra Brace/Stay:
Height: 1.8mm
Surface: hot dipped galvanized
Quantity: usually 4 panels come with 1 brace

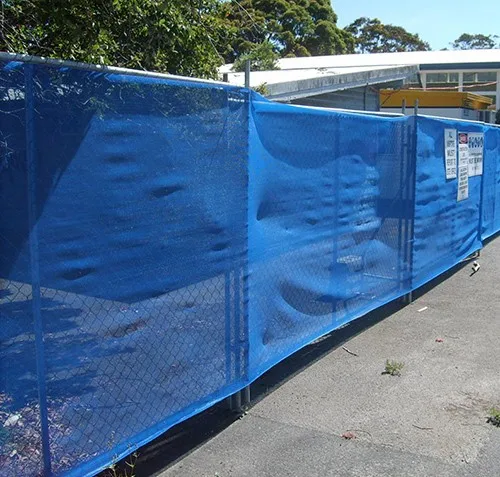

Shade cloth:
Shape: in pieces or in roll
Shade rate: 60%, 70%, 80%
Color: blue, black, green, etc
Fence Gate:
Gate shape or size could be made according to your request.
Hoarding Panel:
Thickness: 3.5/4mm
Height: 1716mm
Width: 2316mm
Logo Plate:
Logo plate with company information could be customized

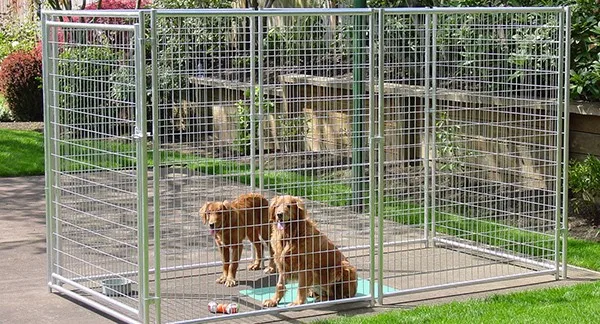

Fence panel without up&bottom 150mm tube will transform temporary fence panel to dog kennel panel.
Fence panel with 50x50mm opening, 48mm frame tube.
Welded wire mesh connect to tube by metal clips.
Our Service

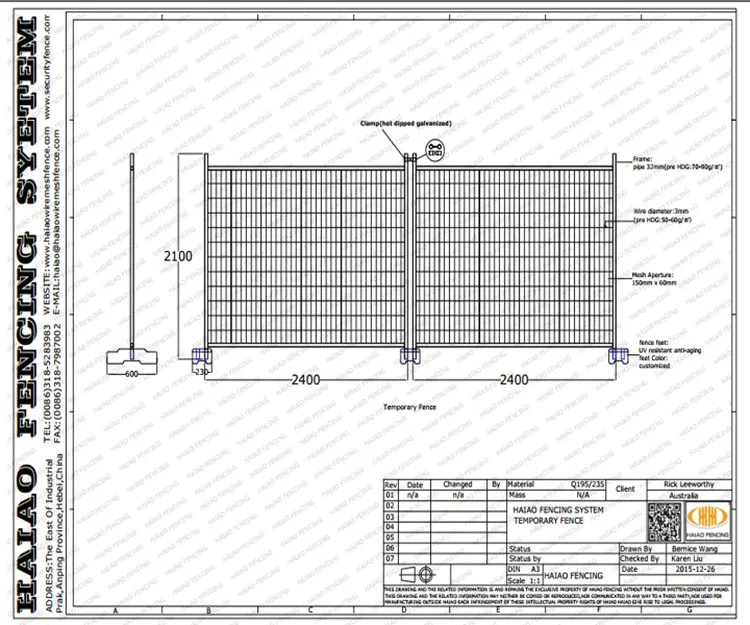

1. Exclusive drawing for customer when order is confirmed.
* Our engineer will make exclusive fence drawing for each customer.* Each client's drawing is secrete
* Free drawing could be provided during our negotiation

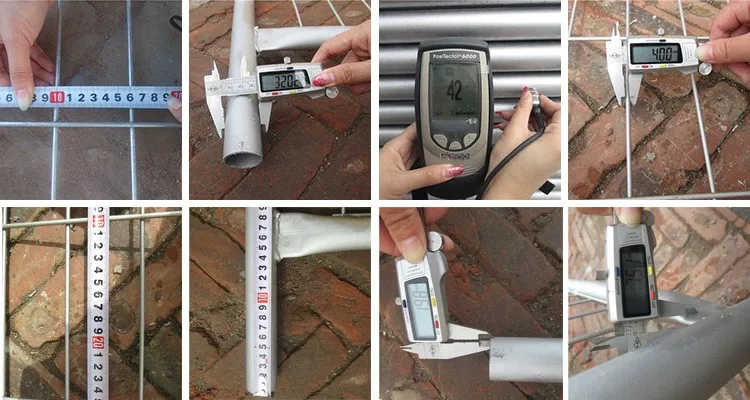

2. Size measurement for each temp fencing order, and these photos will be sent to our clients before shipment. The measurement will include wire diameter, welded mesh spacing, frame tube diameter and thickness, zinc coating mass, fence panel height and width.
3. And much more:
* On - time delivery
* Various trade terms: FOB, C&F, CIF, DDP, DDU, etc.
* Product test before shipment
* After-sale support, etc
Fence Application
Temporary fence is an alternative to its permanent counterpart when a fence is required on an interim basis when needed for storage, public safety or security, crowd control, or theft deterrence.
It is also known as construction hoarding when used at construction sites. Other uses for temporary fencing include venue division at large events and public restriction on industrial construction sites.
Temporary fence is also often seen at special outdoor events, parking lots, and emergency/disaster relief sites. It offers the benefits of affordability and flexibility.
* We keep in contact with our customers after they receive our fencing.
Answer their questions during installation or application, also listen to their advice and suggestion towards our product.
* Top fence quality and perfect after-sales service will help our customers as well as us to success in today's competitive fencing market.

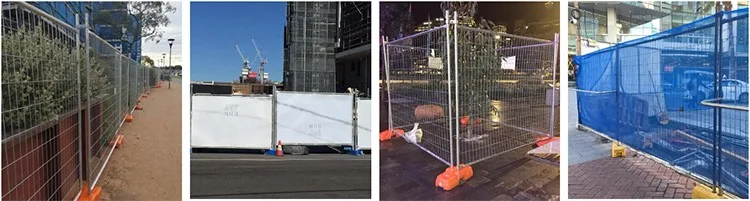

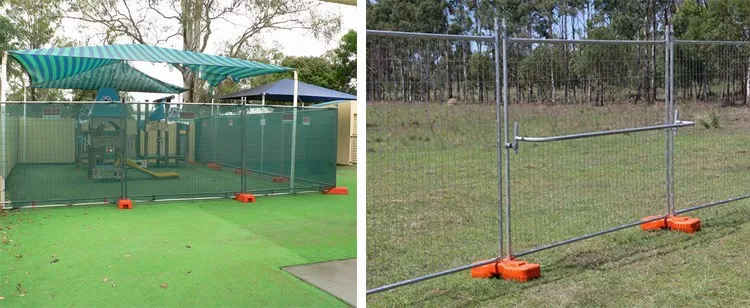

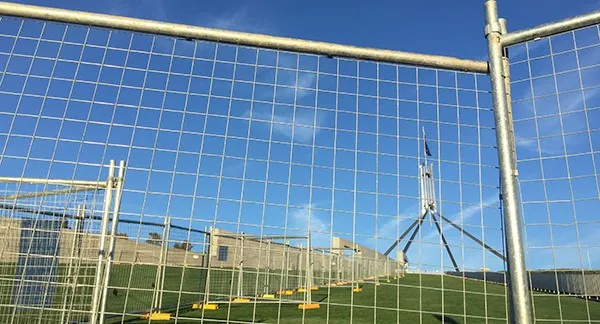

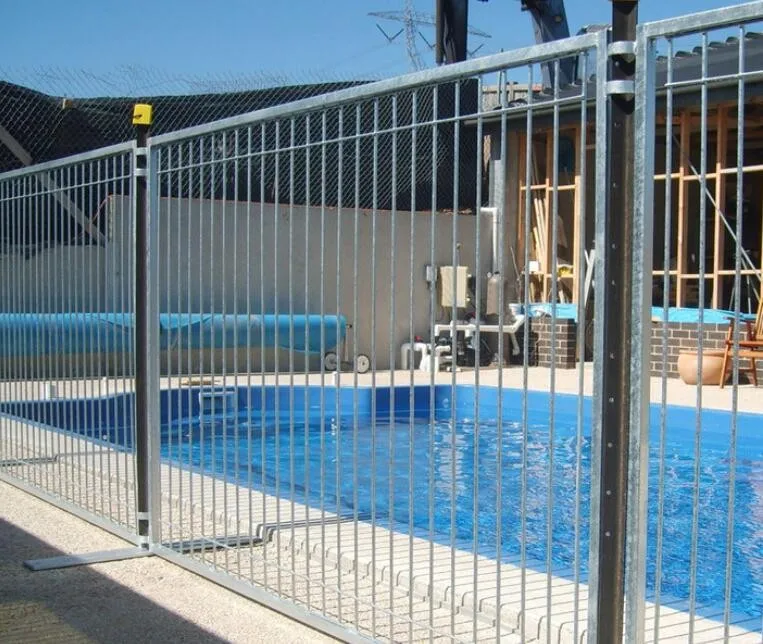

* Below are the temp fencing usage photos from our Australia, New Zealand and Europe customers.
