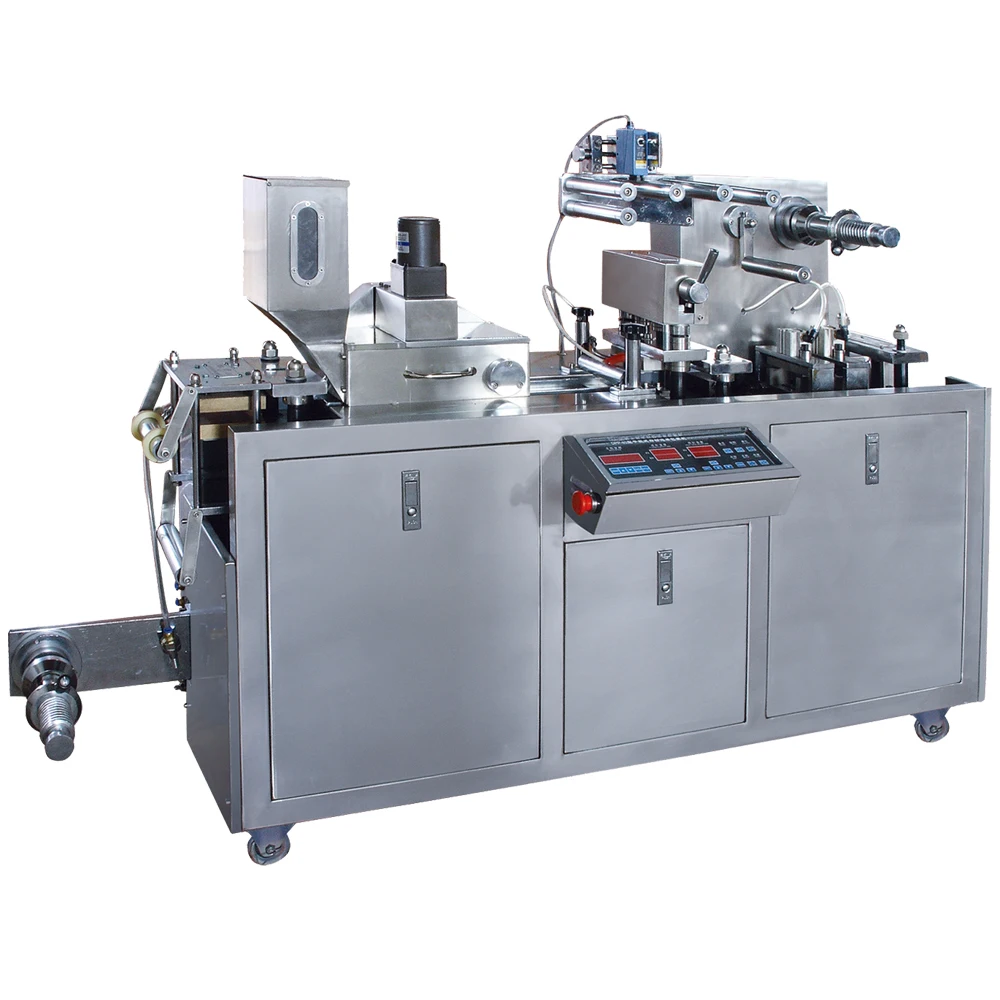

DPP 80 Factory Price Pharmaceutical Tablet Capsule Pill Aluminum Plastic Hot Forming Small Automatic Blister Packing Machine

Features:
1. Adopt newest type high-power transmission mechanism, low noise and high precision.
2. Imported controlling system make sure the machine running stable and good performance
3. High degree of automation, machine can realize blister forming, tablets/capsule feeding, ALU/PVC sealing, batch no. Embossing, perforation line impression and cutting at one time.
4. Widely application: suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for blister packing
5. Can equip with eye mark tracing system, water chiller and safety cover make the machine working in high performance.

Work process:

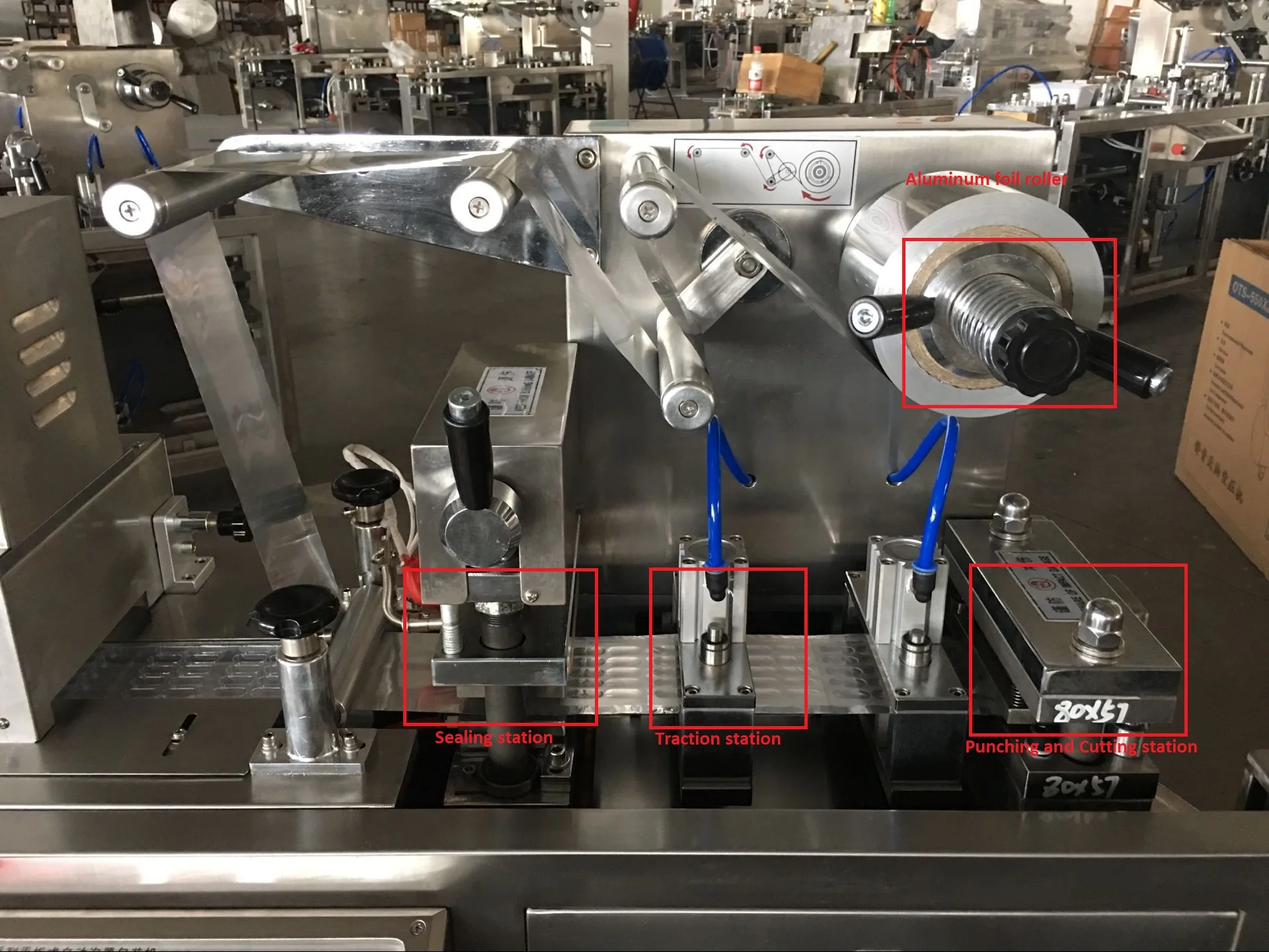

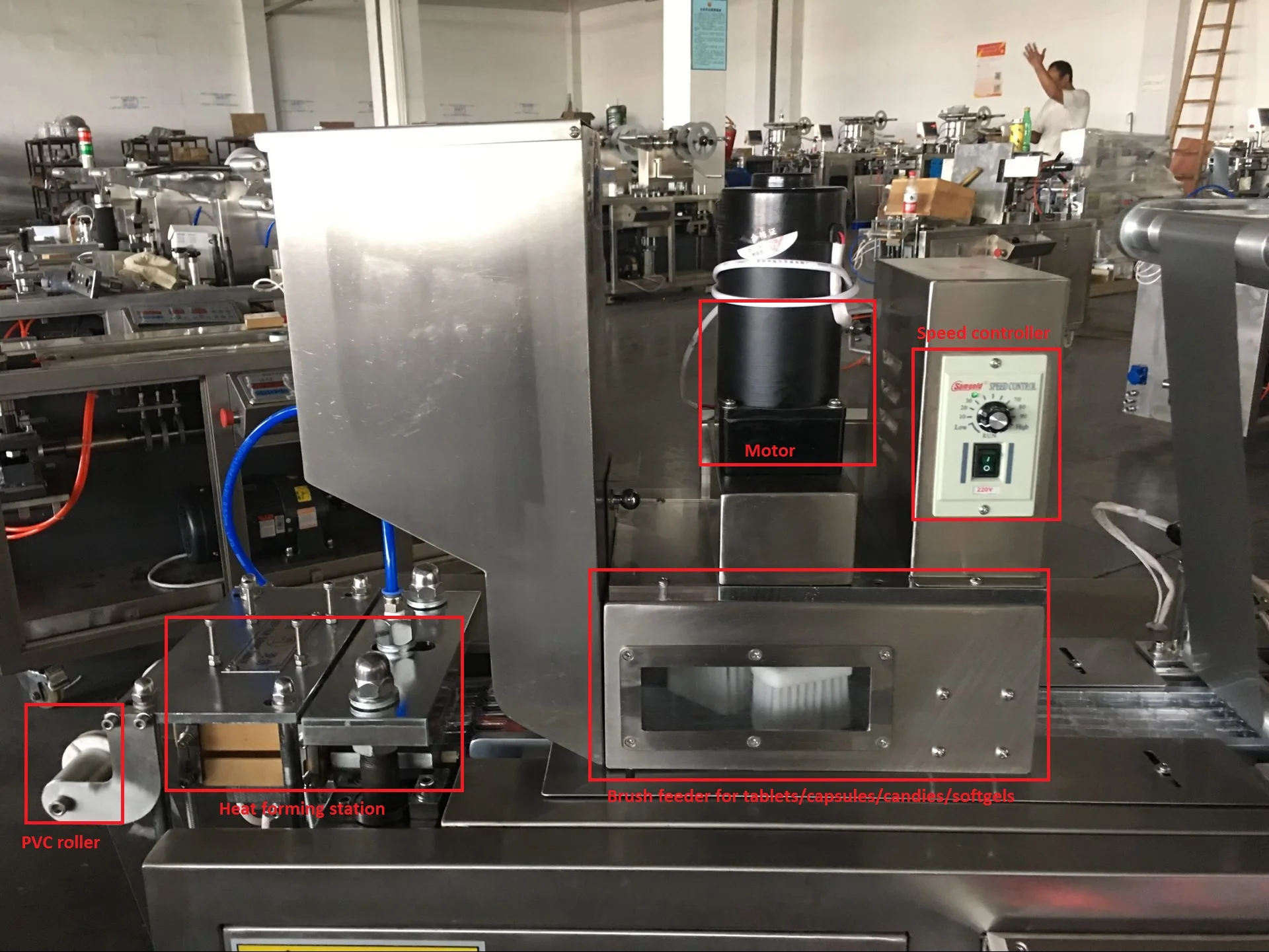

1.Blister Forming (up and down heating)—2.Feeding by brush feeder---3.Heat Sealing ( up heating)—4.Batch No. Embossing—5.Perforation line impression—6.Punching and cutting—7.Finish product output .

Optional device:

1·Eye marking tracing device, Function: Tracing the cursor point on the aluminum foil to make sure the logo & design always in the right place.

2·Flexi-glass Safety Cover (Between the sealing station and cutting station)

Function: Protect the operator and guard against the normal production be disturbed by outside.

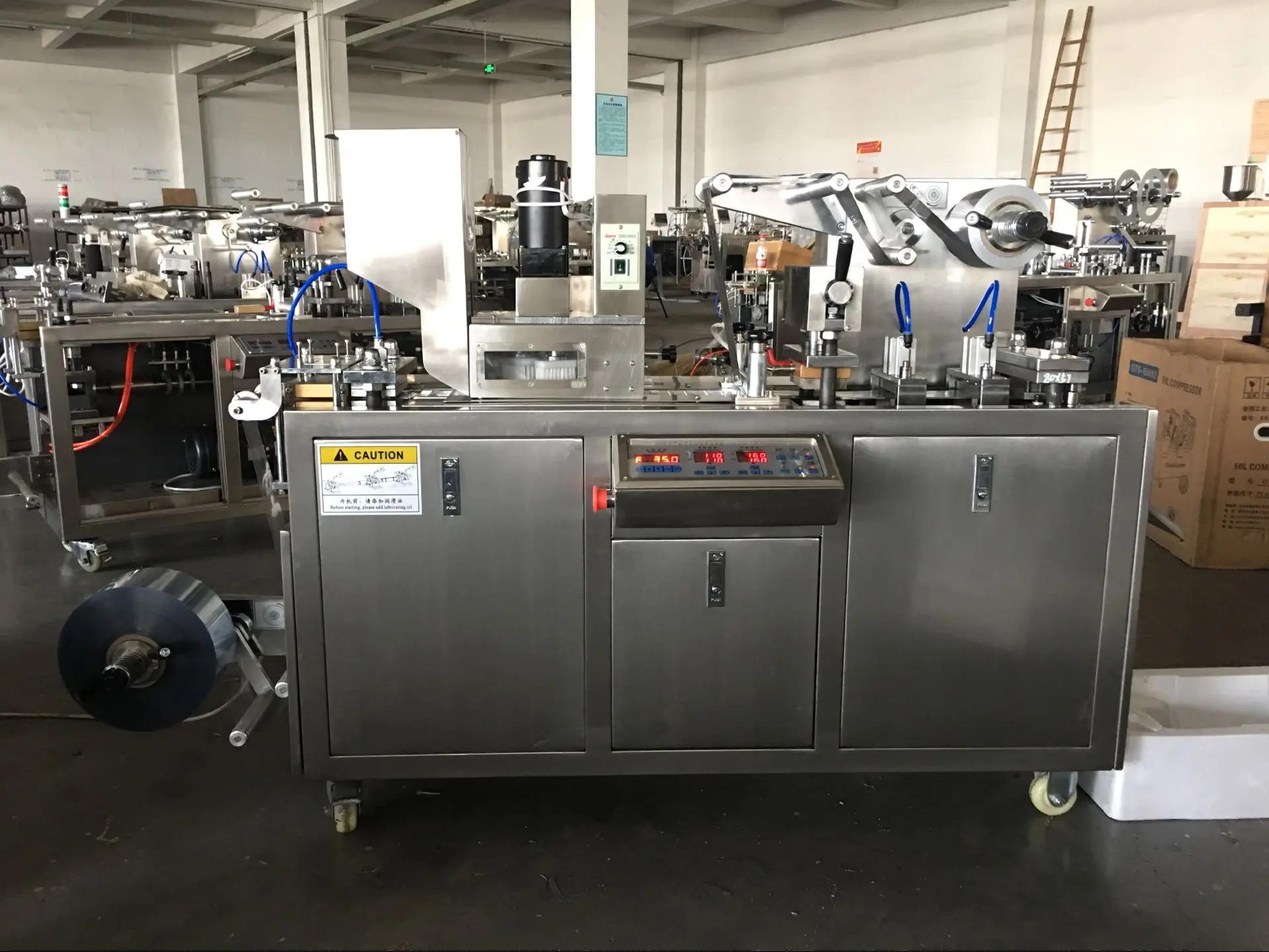

DPP80 with safety cover and PLC control.

3. Water chiller (Recycled water), function: cooling down the machine and mould timely to make sure the blister forming always in elegance condition. If machine overheat, the forming blister will become distorted.

Product Parameters:



Cutting Frequency(stroke/min)	10-40
Max. Production Capacity(blister/min)	40(According to standard plate 80*57)
Max. Forming Area and Depth(mm)	80*100*26 (Standard 70*90*14)
Travel Range(mm)	20-80 (Can be manufactured as use's requirements)
Air Pressure(Mpa)	0.4-0.6
Standard Plate(mm)	80*57 (Can be manufactured as user's requirements)
Total Power	380V/220V 50Hz 3.6kw
Main Motor Power (kw)	0.75
PVC Rigid Sheet(mm)	0.15-0.5*100
PTP Aluminum Foil(mm)	0.02-0.035*100
Dialysis Paper(mm)	50-100g*100
Mould Cooling	Tap Water Or Circulating Water
Overall Dimensions(mm)	1600*460*950(L*W*H)
Weight(kg)	450
