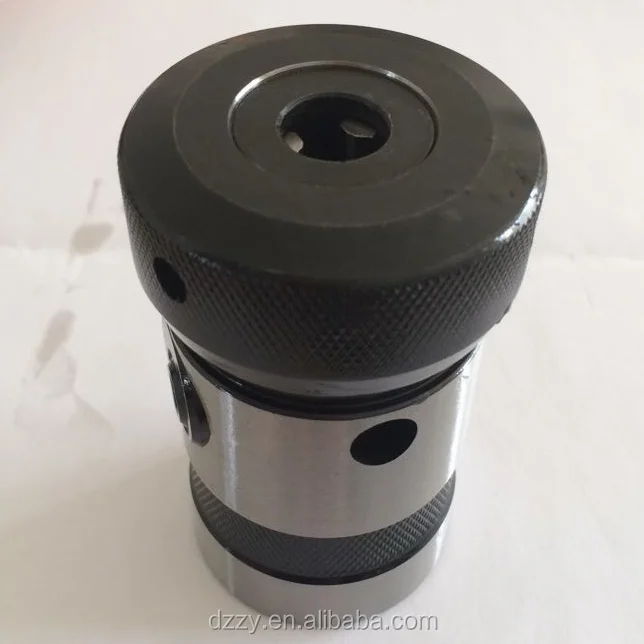

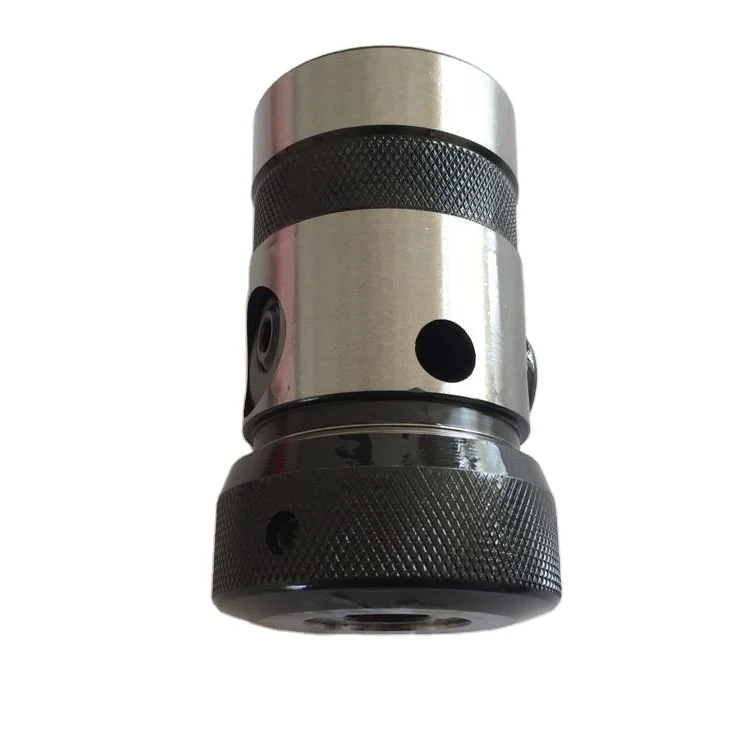

one piece multi purpose Tapping Chuck

Product Overview

Description

One-piece multi-purpose tapping chuck:



Product features:
1.High precision and good stability.

2.The clamping range can be adjusted freely.All tap include British,America,Metric or non-standand can be used.

3.Strong trosion rigidity tapping.

4.Quick change,easily loading and unloading.

5.Application:tapping machine,drilling machine,high speed lathe,CNC machining center and other main shaft which can be reversed.



Tap clamping method:

Rotating chuck front sleeve,the clamp claws stretch to the size larger slgightly than tap shank,mounted the tap,then turning the double-head screw,observation through the observation hole,the two eccentric screw of double-head screw clamp the square of tap slightly,then rotata the front sleeve,clamp the tap tightly and clamping more tightly by spanner,finally locking double-headed bolt  with hex-spanner to clamp tap square.

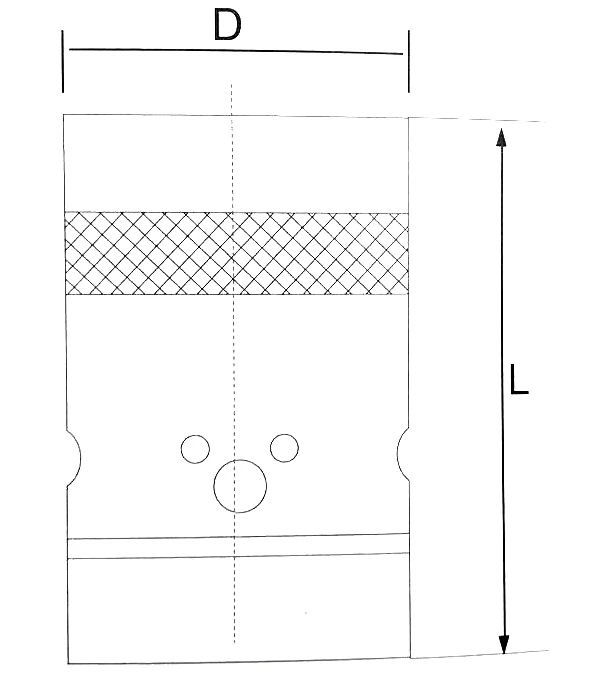

Model no.	Capacity	tap shank dia range	taper	D	L
TC13-B16	M2-M13 1/8"-1/2"	Ø2.5-10	B16	48	73
TC13-JT6	M2-M13 1/8"-1/2"	Ø2.5-10	JT6	48	73

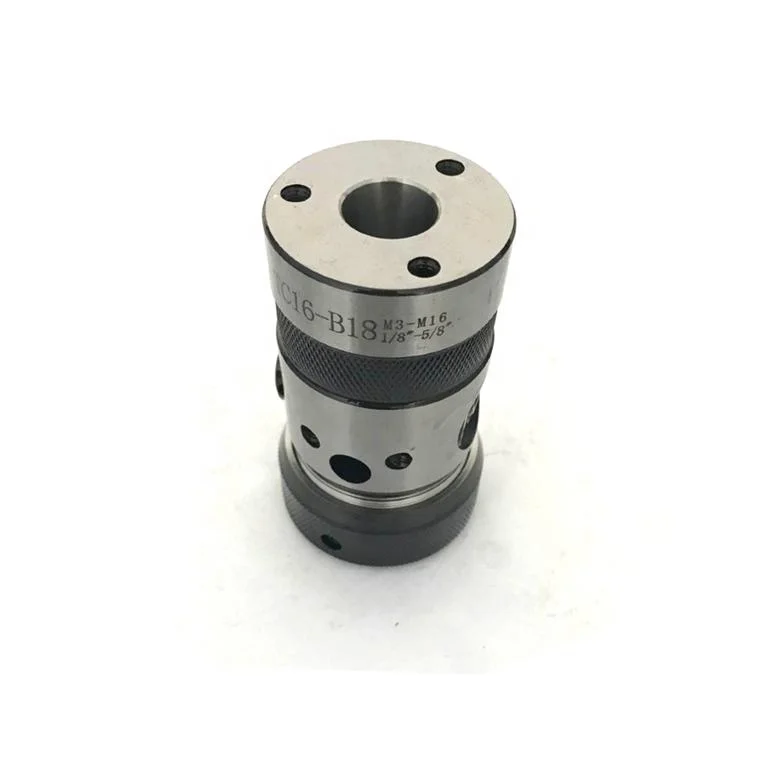

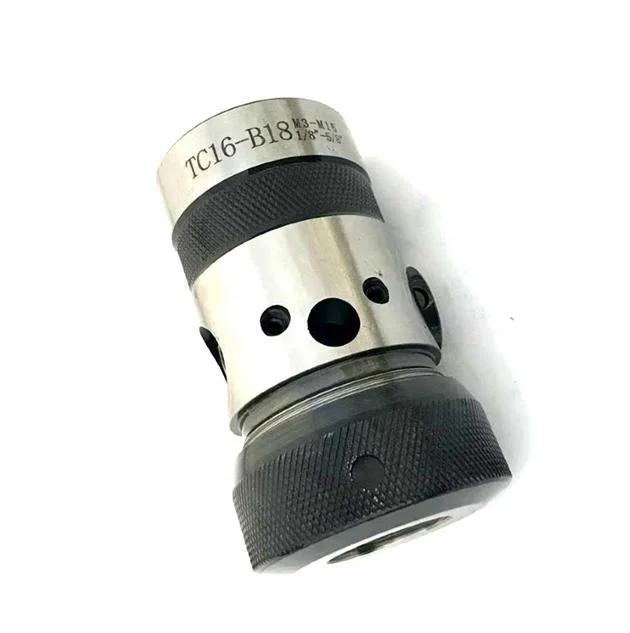

TC16-B18	M3-M16 1/8"-5/8"	Ø3-12.5	B18	54	85
TC16-JT6	M3-M16 1/8"-5/8"	Ø3-12.5	JT6	54	85
TC20-B18	M5-M20 3/16"-3/4"	Ø4.5-15	B18	54	85
TC20-JT6	M5-M20 3/16"-3/4"	Ø4.5-15	JT6	54	85
TC24-B22	M12-M24 1/2:-15/16"	Ø8.5-18	B22	60	95

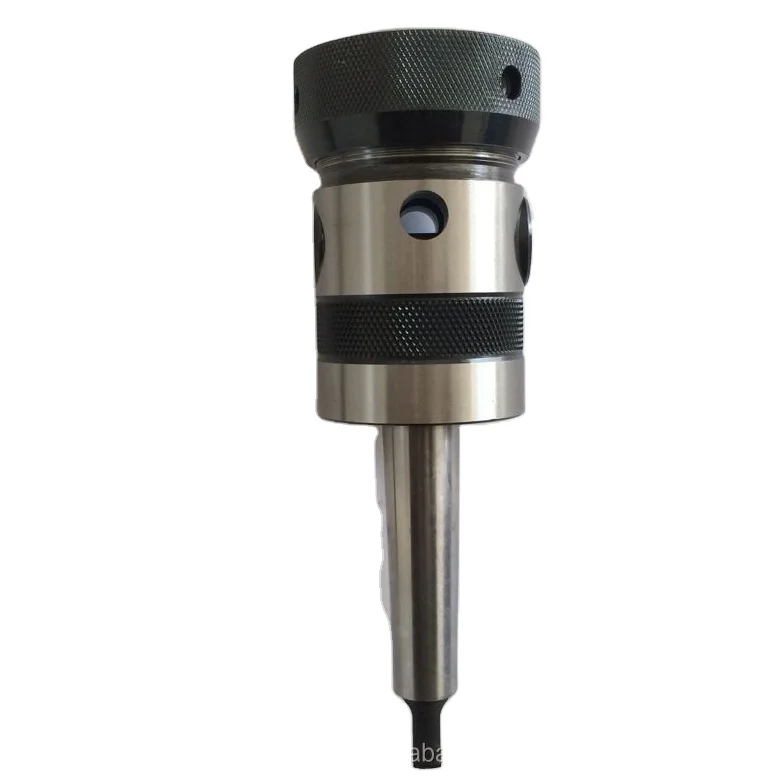

Model	Capacity	tap shank dia range	taper	D	L
TC13-MT2	M2-M13 1/8"-1/2"	Ø2.5-10	MT2	48	142
TC16-MT2	M2-M13 1/8"-1/2"	Ø2.5-10	MT2	48	155
TC16-MT3	M3-M16 1/8"-5/8"	Ø3-12.5	MT3	54	175
TC16-MT4	M3-M16 1/8"-5/8"	Ø3-12.5	MT4	54	195
TC20-MT3	M5-M20 3/16"-3/4"	Ø4.5-15	MT3	54	175
TC20-MT4	M5-M20 3/16"-3/4"	Ø4.5-15	MT4	54	195
TC24-MT3	M12-M24 1/2"-15/16"	Ø8.5-18	MT3	60	185
TC24-MT4	M12-M24 1/2"-15/16"	Ø8.5-18	MT4	60	205

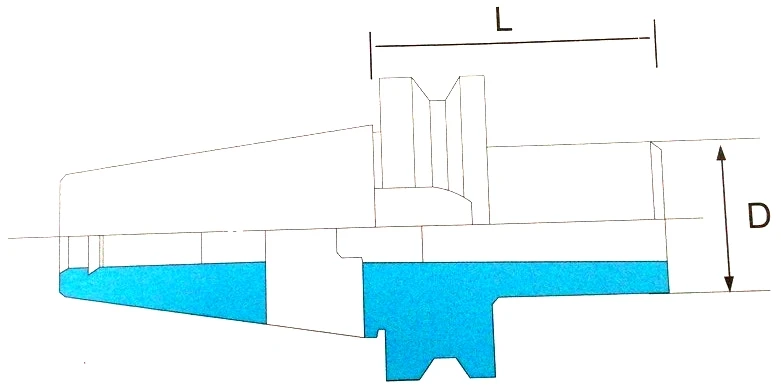

model	capacity	tap shank diameter	taper	D	L
TC13-C20	M2-M13 1/8"-1/2"	Φ2.5-Φ10	C20	48	88
TC13-BT40	M2-M13 1/8"-1/2"	Φ2.5-Φ10	BT40	48	78
TC16-C20	M3-M16 1/8"-5/8"	Φ3-Φ12.5	C20	54	98
TC16-BT40	M3-M16 1/8"-5/8"	Φ3-Φ12.5	BT40	54	88
TC20-BT40	M5-M20 3/16"-3/4"	Φ4.5-Φ15	BT40	54	88
