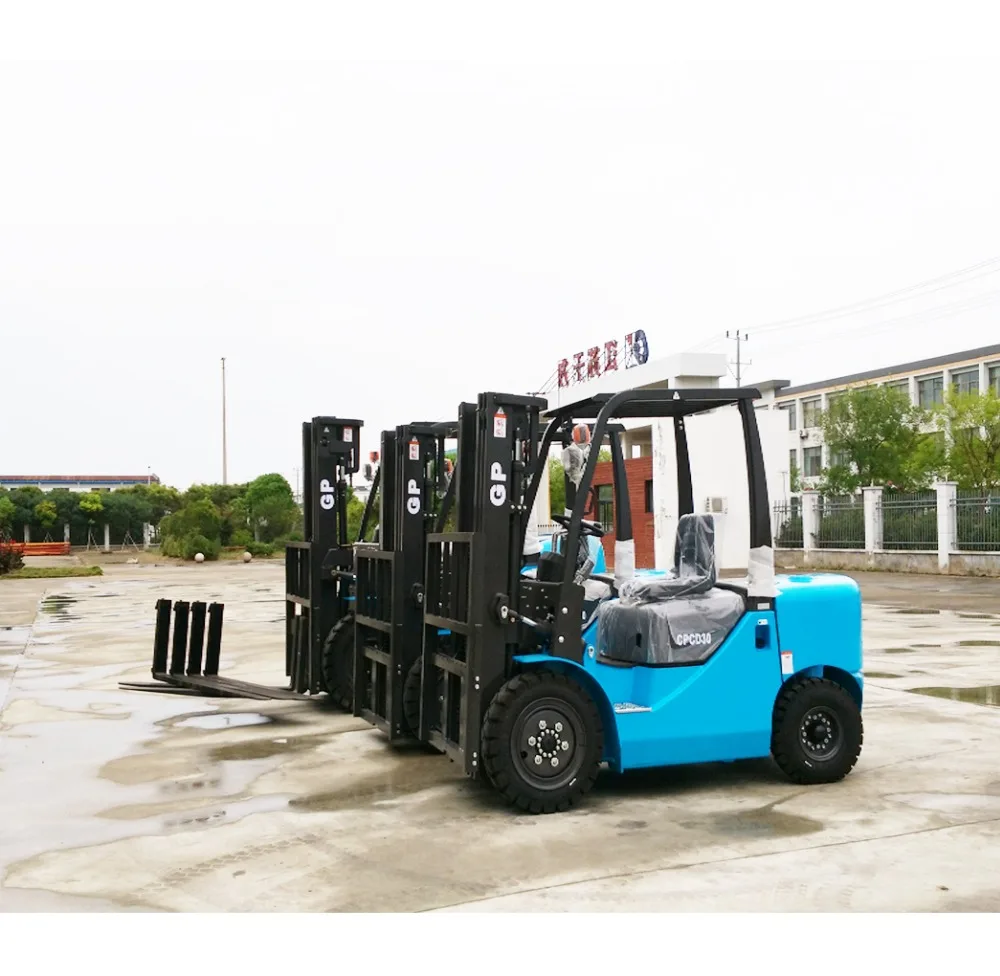

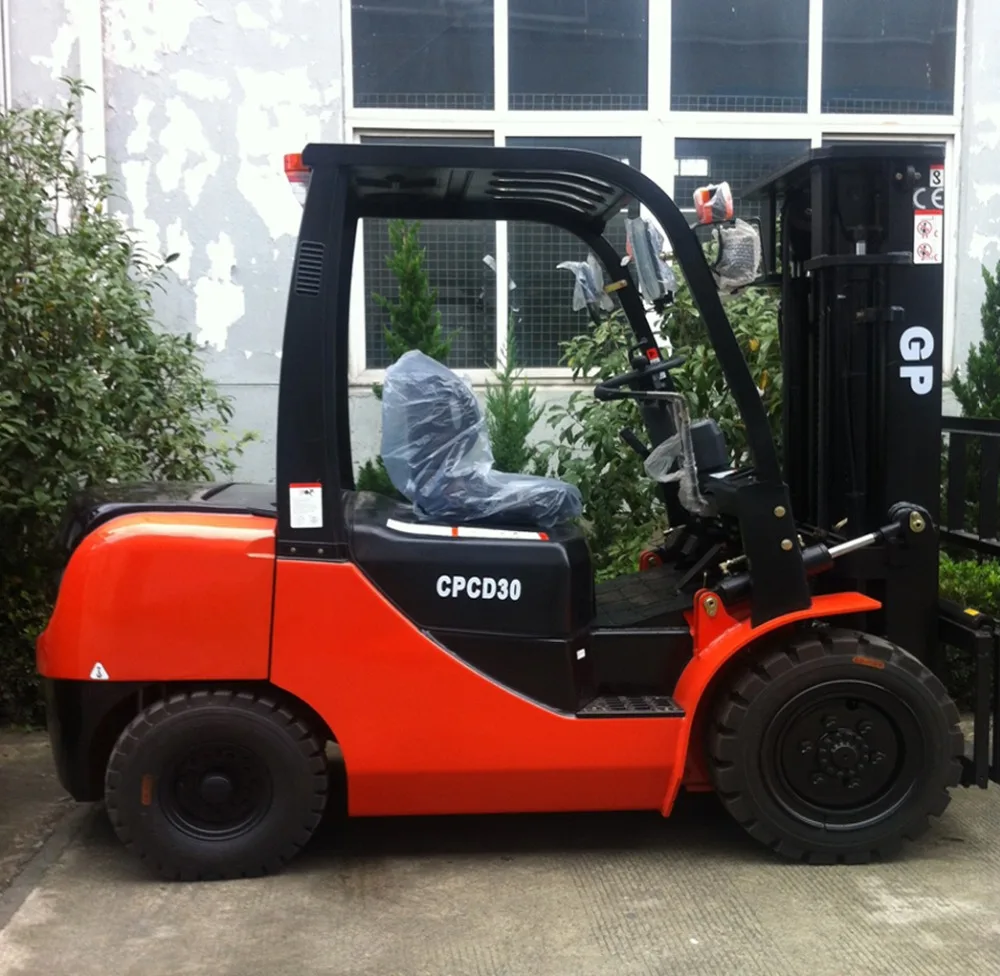

3 ton diesel forklift hydraulic forklift with spare parts for free CPCD30
3 ton diesel forklift hydraulic forklift with spare parts for free CPCD30
3 ton diesel forklift hydraulic forklift with spare parts for free CPCD30
3 ton diesel forklift hydraulic forklift with spare parts for free CPCD30
3 ton diesel forklift hydraulic forklift with spare parts for free CPCD30
3 ton diesel forklift hydraulic forklift with spare parts for free CPCD30

3 ton diesel forklift hydraulic forklift with spare parts for free CPCD30

Share on (60737012157):


Price:$7,500.00 - $8,000.00

Quantity:


Product Overview

Description


Product Description
\t
SPECIFICATIONS FOR  2-3.5 TON DIESEL FORKLIFT
\t
Model
\t

\t
CPCD20
\t
CPCD25
\t
CPCD30
\t
CPCD35
\t
Rated Capacity
\t
kg
\t
2000
\t
2500
\t
3000
\t
3500
\t
Load Center
\t
mm
\t
500
\t
Gearbox Change speed type
\t

\t
Hydraulic/ Mechanical
\t
Power type
\t

\t
Diesel
\t
Tire type
\t
front/rear
\t
Pneumatic
\t
Wheels
\t
front/rear
\t
2/2
\t
Lifting Height
\t
mm
\t
3000
\t
Free lift height
\t
mm
\t
140
\t
145
\t
Fork size                     L*W*T
\t
mm
\t
1070*120*40
\t
1070*120*45
\t
1070*125*45
\t
1070*130*45
\t
Fork size                Fwd/Bwd
\t
deg
\t
6/12
\t
Overall length(without fork)
\t
mm
\t
2510
\t
2580
\t
2720
\t
2775
\t
Overall width
\t
mm
\t
1150
\t
1225
\t
Mast height fork lowered
\t
mm
\t
2050
\t
2080
\t
2230
\t
Overall height fork raised
\t
mm
\t
4040
\t
4272
\t
Overall height(overhead guard)
\t
mm
\t
2060
\t
2090
\t
Turning radius(outside)
\t
mm
\t
2170
\t
2240
\t
2460
\t
2540
\t
Wheel base
\t
mm
\t
1650
\t
1700
\t
Tread     (Front)
\t
mm
\t
970
\t
1000
\t
Tread    (Rear)
\t
mm
\t
970
\t
 Min. Under-clearance  (full load/ no load)
\t
Bottom of mast
\t
85/105mm
\t
110/135mm
\t
Bottom of frame
\t
115/120mm
\t
135/140mm
\t
Travel speed(km/h)
\t
With load
\t
17
\t
18
\t
without load
\t
19.5
\t
19.5
\t
Lifting speed (mm/sec)
\t
With load
\t
470
\t
430
\t
400
\t
without load
\t
600
\t
500
\t
450
\t
Self weight
\t
kg
\t
3550
\t
3880
\t
4380
\t
4750
\t
Engine model for option
\t

\t
1.XINCHANG;    2.ISUZU;   3.YANMAR;  4.DEUTZ

Main Features

1) Intergrated overhead guard by punching

2) Energy-efficient hydrauic system

3) Buffer device for transverse steering axle

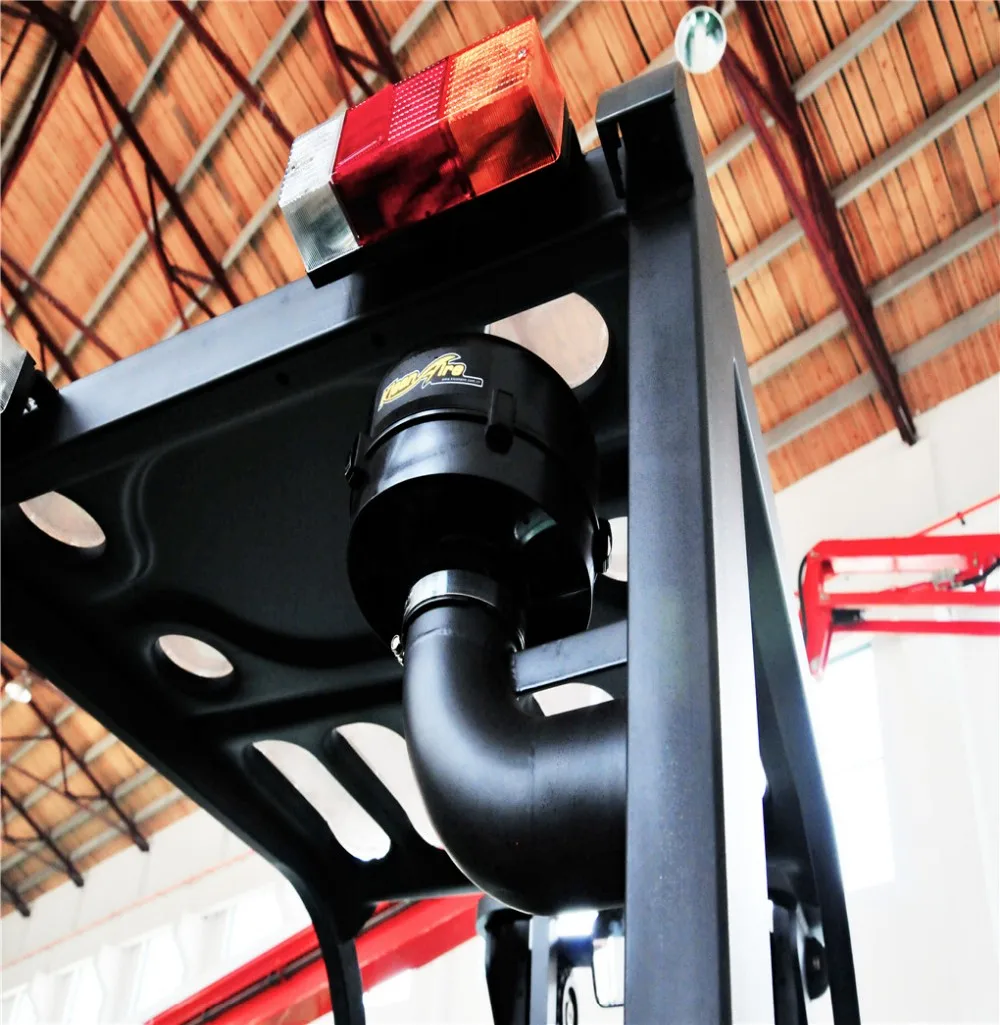

4) Overhead dual ail fliters

Detailed Images

Machine Parts


Brand: GP

Original: China

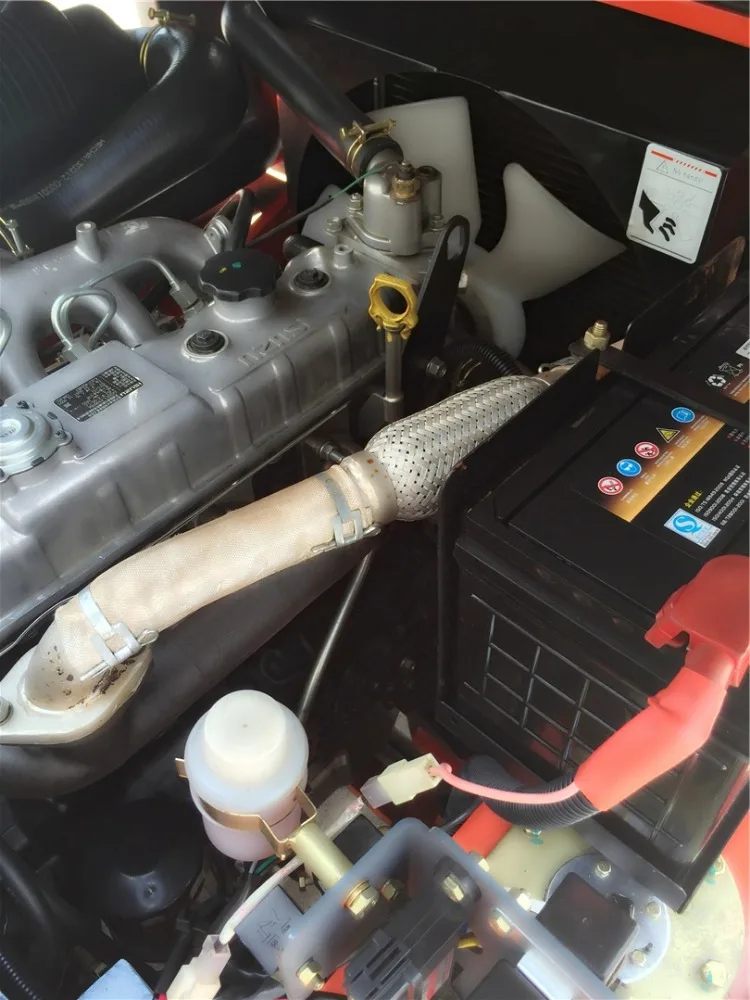

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Features


Brand: GP
Original: China

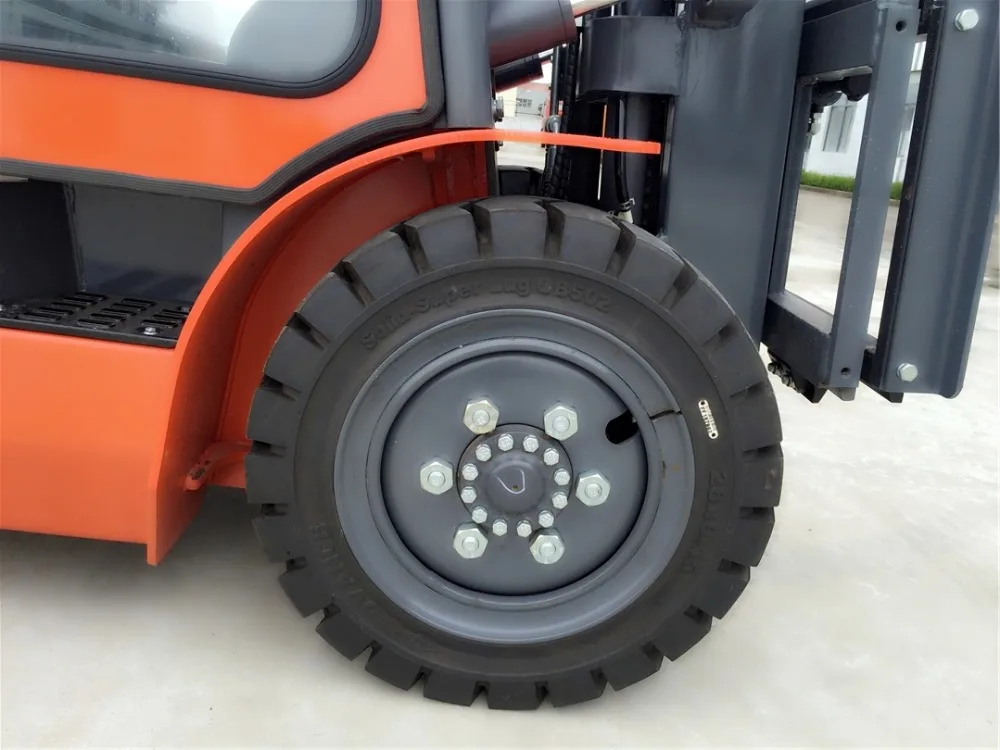

Suspended type wheel brake system and foot-step type brakesystem

Machine Parts


Brand: GP
Original:China

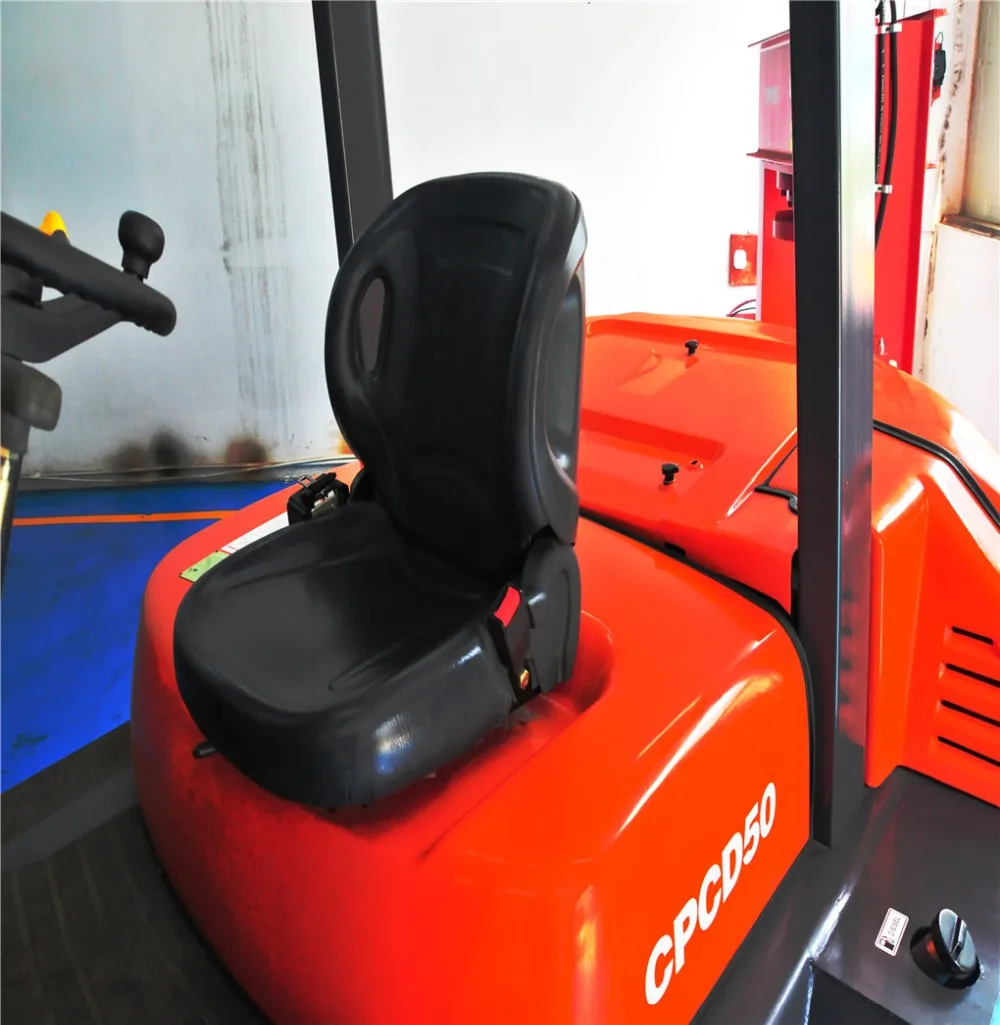

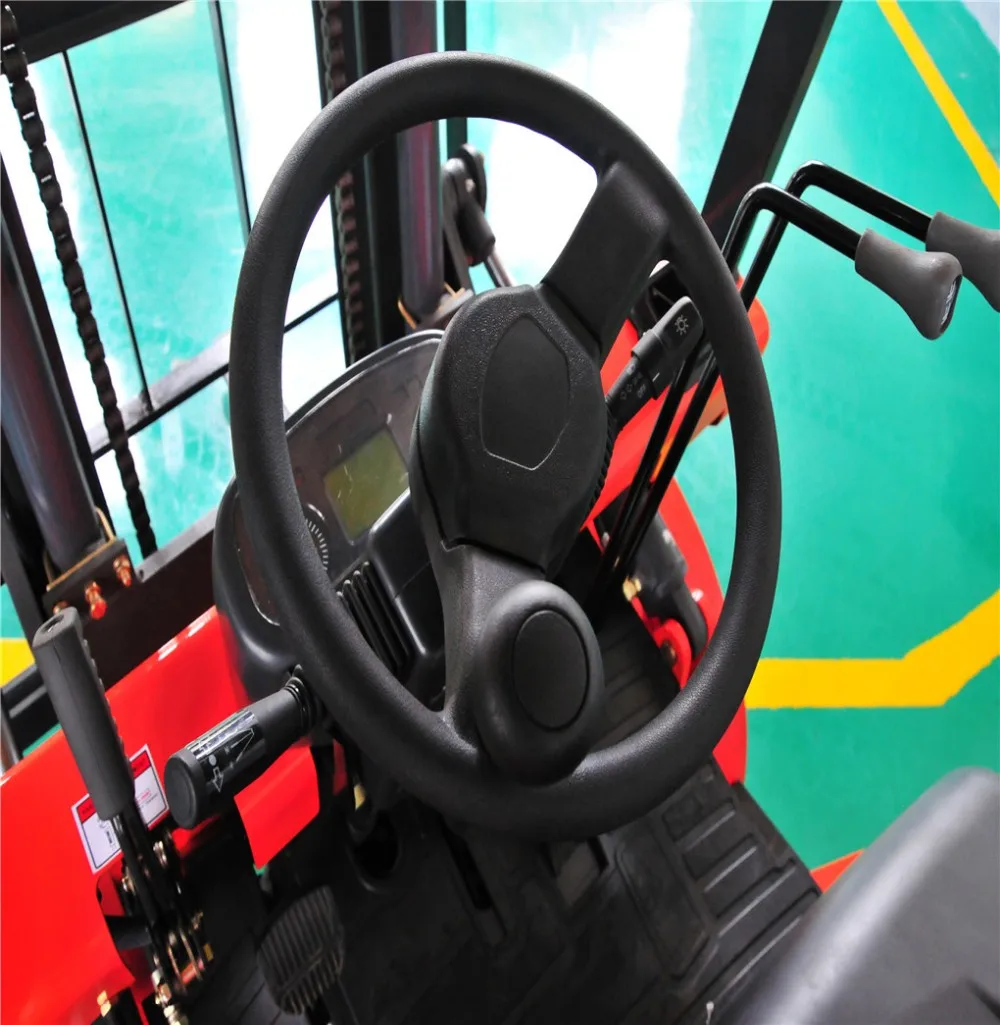

Ergonomic design ensure the best possible human interface.

Main Features


Brand: GP
Original:China
Streamlined and high-intensity integrated fram system.

Advantage



1.Low noise to operate in quiet work.

2.Steady moving ,efficient energy saving.
3.Excellent maneuverability
4.Utilize work space effectively

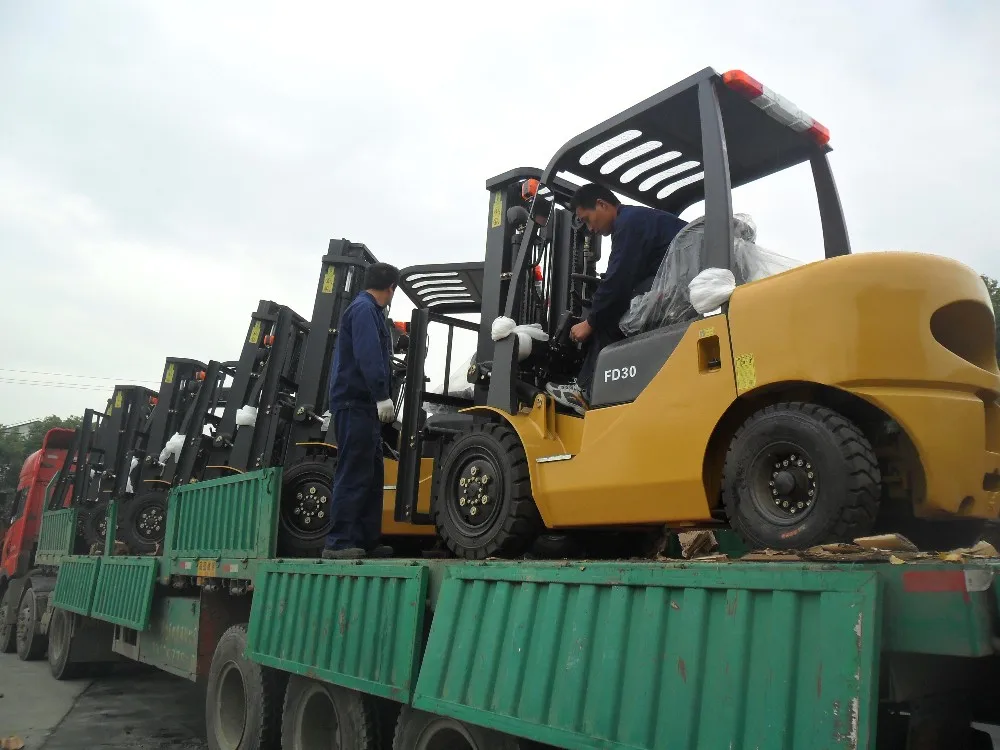

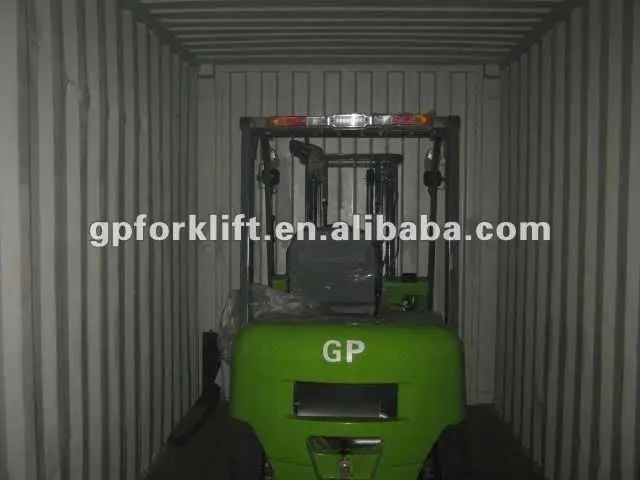

Packing & Delivery
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Team

Business partners from all over the world.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
