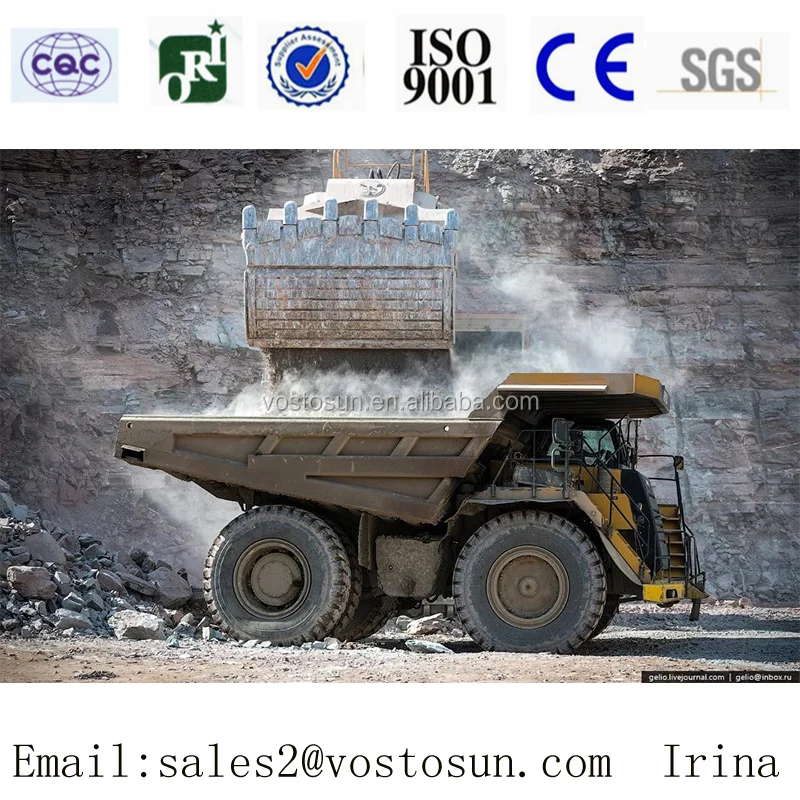

40t SAT 40 daewoo Mining Dump Truck
- Category: >>>
- Supplier: Shanghai Vostosun Industrial Co. Ltd.
Share on (60737015001):
Product Overview
Description
Product Description
Product Application

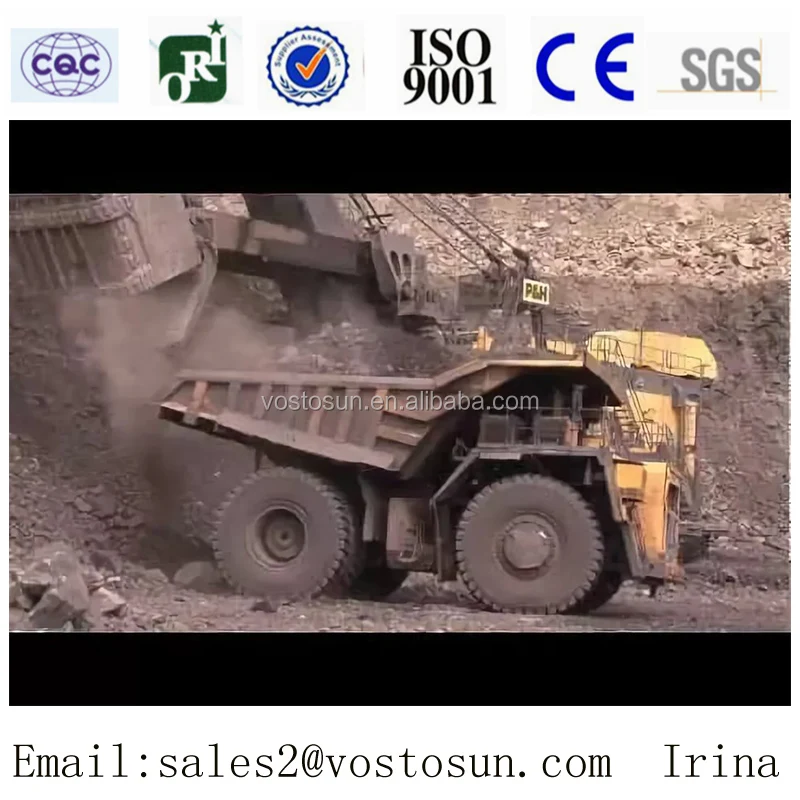

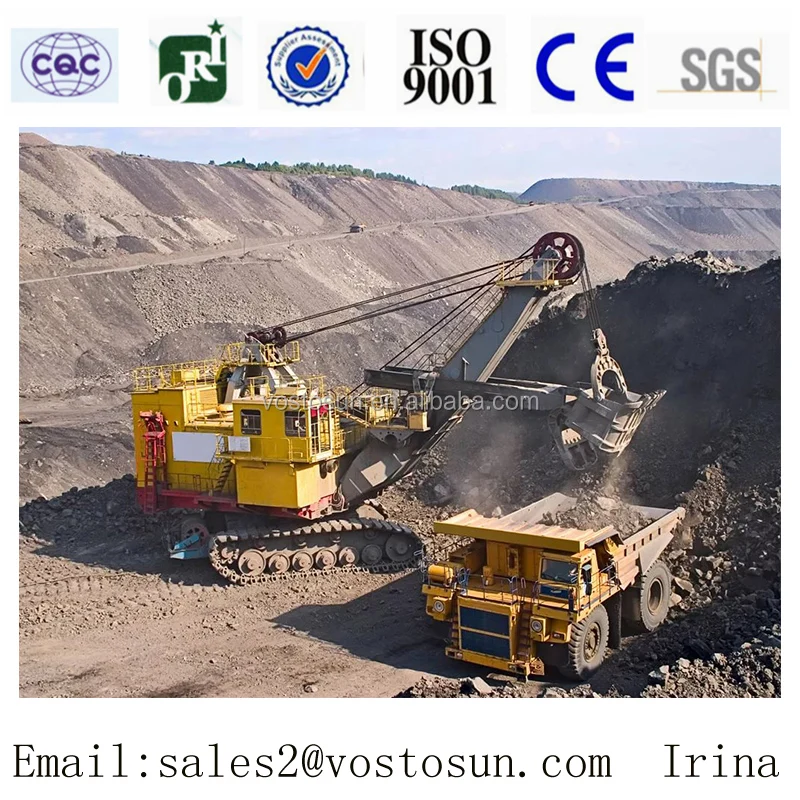

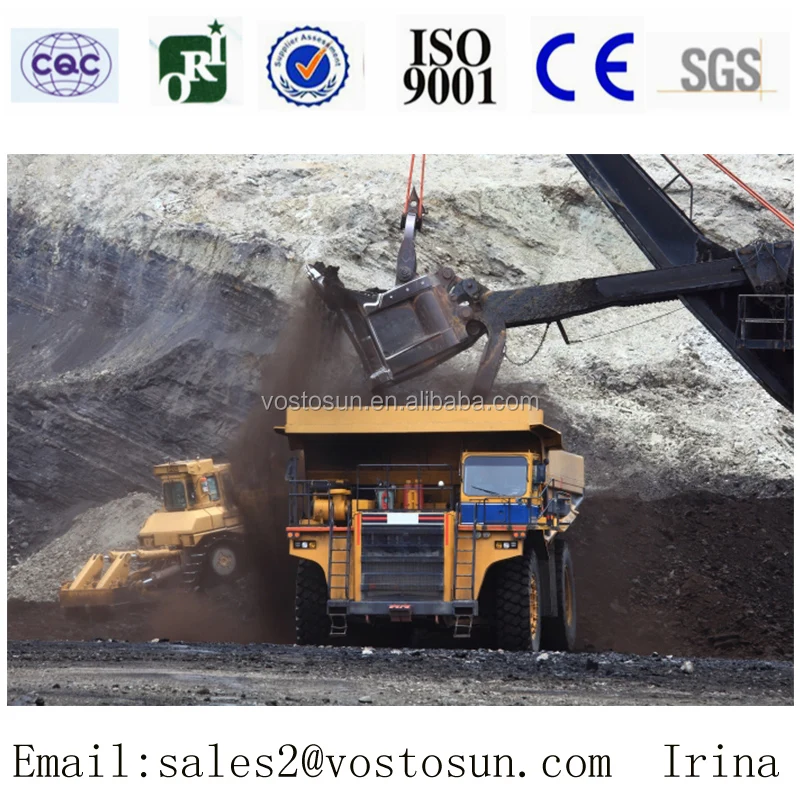

These products are popular with mass customers for their safety,reliability,intelligence,comfort,economicality and high efficiency.Currently,the products are widely applied in such foreign and domestic industries as coal, iron and steel, water conservancy,hydropower,construction materials,etc.
Model | SRT33 | SRT45 | SRT55D | SRT95C | SET230 | SET300 | SAT40 |
Engine model | Cummins M11-C350 | Cummins M11-C350 | CumminsQSK19-C700 | CumminsQST30-c1050 | CumminsQSK60-C2500 | CumminsQSK60-C2700 | Mercedes Benz OM502LA.E3A/5 |
Displacement | 10.8L(661in³） | 15L(915in³） | 19L(1,150in³） | 30.5L(1,846in³） | 60.2L(3,674in³） | 15.93L | |
Gear arrangement | 6 forward gears,1 reverse gear | 6 forward geas,1 reverse gear | 6 forward gears,2 reverse gears | 6 forward geas,1 reverse gear | 8 forward gears,4 reverse gears | ||
Transmission type of drive axle | First-stage spin chute gear main reducer+planetary wheel edge reducer | First-stage spin chute gear main reducer+planetary wheel edge reducer | First-stage spin chute gear main reducer+planetary wheel edge reducer | First-stage spin chute gear main reducer+planetary wheel edge reducer | |||
Brake type | Leading trailing shoe and cam type brake | Front dry disc brake,rear oil cooling disc brake | Front dry disc brake,rear oil cooling disc brake | Front dry disc brake,rear oil cooling disc brake | Front dry disc brake,rear oil cooling disc brake | Front dry disc brake,rear oil cooling disc brake | Engine exhaust brake+gearbox retarding+transmission shaft parking brake+axle oil cooling disc brake |
Tire | 18.00-25(36PR)E-3 | 21.00-35(36PR)E-4 | 24.00-35(42PR)E-4 | 27.00-49（48PR)E-4 | 40.00R57 | 53/80R63 | 29.5 R25 |
Rated dead weight capacity | 33t(72,600lb) | 45t(98,710lb) | 55t(121,000lb) | 95t(209,000lb) | 230t(507,000lb) | 290t(639,261 lb) | 39,000kg |
Heaped capacity(2:1) | 21.5m³（28yd³） | 29.5m³（38.6yd³） | 35m³（46yd³） | 60m³（79yd³） | 146m³（191yd³） | 211m³ | 24m³ |
Minimum turning radius | 7,400mm | 9,530mm | 9,540mm | 12,000mm | 14,200mm | 14,800mm | ±45° |
Maximum total weight of vehicle | 56,500kg(124,300lb) | 81,800kg(179,432lb) | 98,000(215,200 lb) | 160,000kg(352,000lb) | 393,000kg(866,000lb) | 530,000kg(1,167,888 lb)J | 68,000kg |

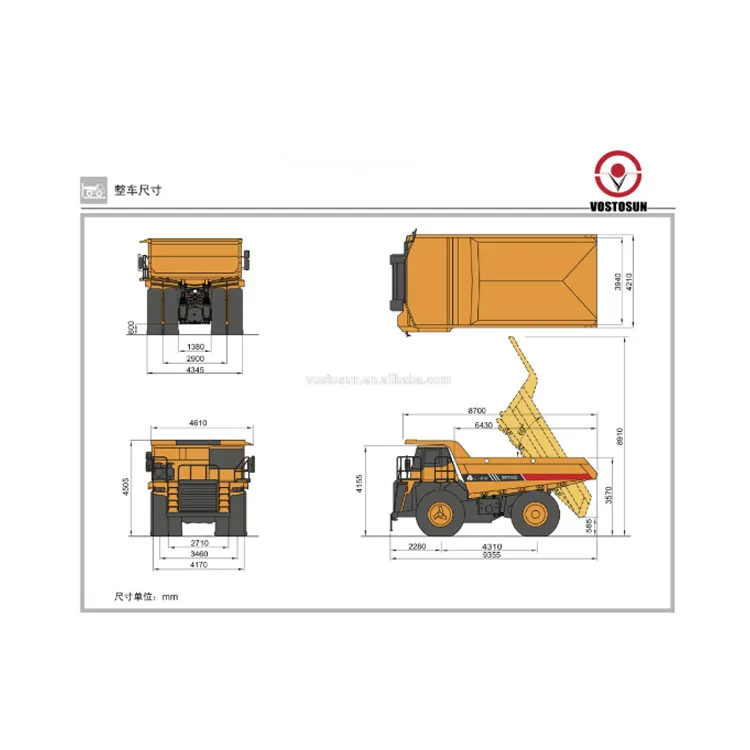

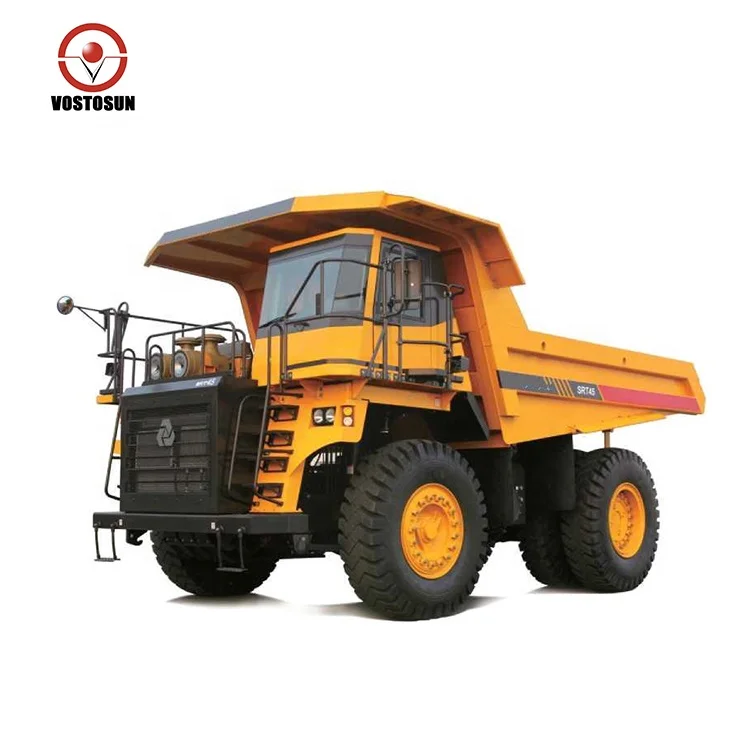

Detailed Images

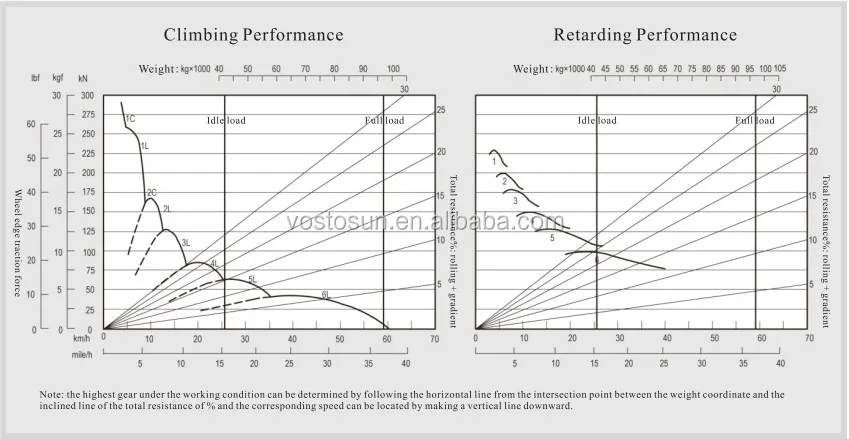

Operational Characteristics
The curve chart is prepared based on the rolling resistance of 0%
Note:the highest gear under the working condition can be determined by following the horizontal line from the intersection point between the weight coordinate and the inclined line of the total resistance of% and the corresponding speed can be located by making a vertical line downward.
Our Service
Pre-Sales Service
1>. Select proper equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Arrange for visiting our factory, assist them to handle relative procedure, such as visa.
4>. Make sure goods prepared within delivery time;
5>. Pre-check and accept products ahead of delivery;
6>. Prepare documents required to help customer pass customs clearance.
7>. Help clients to make Project evaluation and feasibility analysis and draft solving plans.
After-Sales Service
1>. Assist clients to prepare for the first construction scheme;
2>. Install, debug and examine the equipment
3>. Train technical personnel the first-line operators;
4>. Provide technical exchanging
5>. Offer spare parts at a best price for long term.
Our Company
Shanghai Vostosun Industrial Co., Ltd. has over 10 years experience of overseas centralized procurement and supply and customer service in construction, roads, mines and other engineering equipment, making consortiuming with the domestic high-quality business strategic investment cooperative partner, already established mature international marketing and after-sale service network system for worldwide various regions, having brance in Russia, Kazakhstan, United Arab Emirates and other places, having various euipment show and accessories warehouse in various places , our services across Eastern Europe, Central Asia, Africa, South America, Middle East, Southeast Asia and others which are more than 30 countries and regions.
A professional consulting team proficient in Chinese, English, Russian, Spanish and Portuguese etc.; Committing to providing a variety of industrial and engineering equipment for the supply chain system for engineering projects all over the world; Professional consulting service system of equipment optimizing configuration; Suppliers /manufacturers networking resources with reasonable price and reliable quality; Fast, in-time delivery, transportation, custom clearance etc logistic management system; On-site installation, training, technical support and spare parts supply management; Flexible and various international settlement system and international financing channels.
We pursue “integrity, expertise, efficiency, service, gratitude and achieve” as our core philosophy and committed to be a leading one-stop equipment procurement and overall solution service expertise in building, road, mining industrial.
A professional consulting team proficient in Chinese, English, Russian, Spanish and Portuguese etc.; Committing to providing a variety of industrial and engineering equipment for the supply chain system for engineering projects all over the world; Professional consulting service system of equipment optimizing configuration; Suppliers /manufacturers networking resources with reasonable price and reliable quality; Fast, in-time delivery, transportation, custom clearance etc logistic management system; On-site installation, training, technical support and spare parts supply management; Flexible and various international settlement system and international financing channels.
We pursue “integrity, expertise, efficiency, service, gratitude and achieve” as our core philosophy and committed to be a leading one-stop equipment procurement and overall solution service expertise in building, road, mining industrial.
International Bussiness

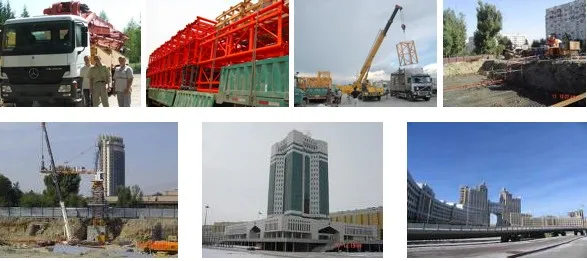

During 2005-2008, to build a new Kazakhstan’capital Astana, we provide hundreds of sets of equipment each year including tower crane, truck crane, concrete pump truck, concrete placing boom machine, concrete trailer pump, excavators, loaders, dump truck, etc.
