GUTE CNC Steel Rebar Shear Line
- Category: >>>
- Supplier: Chengdu Gute Machinery Works Co. Ltd.
Share on (60737140571):
Product Overview
Description
Product Description

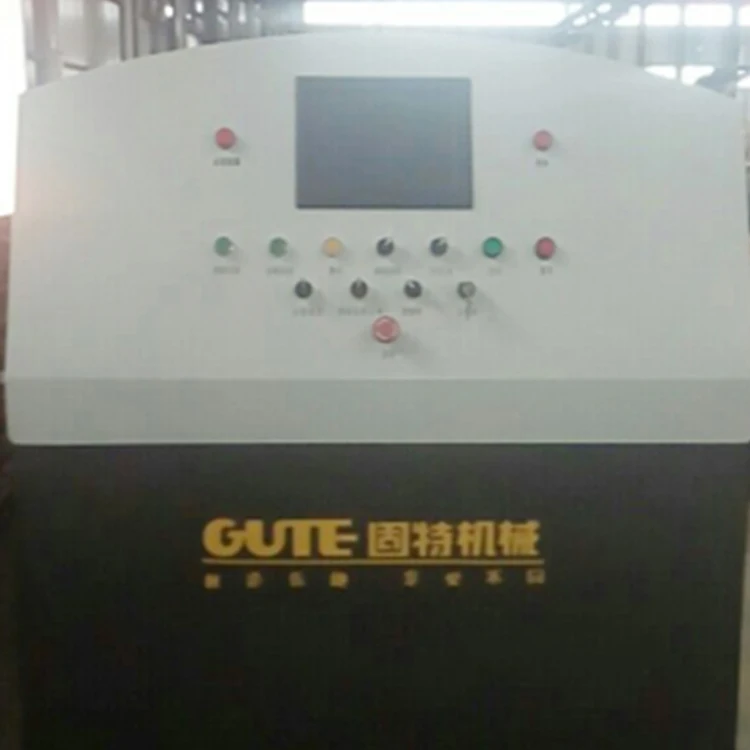

1. Controled by PLC system, cutting length can be setteg freely, and produce in a constant and efficientive way.
2. Fixing length accurately, using multi-level baffles abd automatic CNC removal equipment, which makes the operation much more easier.
3. Three-step storage bin cna satisfy th placement for various specifications of steel bar.
4. Extending easily, it can be blocked with BENDING CENTER and THREAD ROLLER.
5. Cutting strengh cna reach to 150t, max diameter is 50mm for cutting steel bar.
6. Can cut 6 pieces of screw thread steel bars by 32mm diameter each time.
Technical Parameters
| Cutting Frequency | ≤22n/min | Bin series | 3*1 | |||||||||
| Blade width | 300m | Rated Power | 25.5kw | |||||||||
| Roller speed | <50m/min | weight | 6.8T | |||||||||
| Max. cutting length | 12m | L*W*H | 28000*3000*2000mm | |||||||||
| Min. cutting length | 1.5m | Dia. | 10 | 12 | 16 | 20 | 22 | 25 | 28 | 32 | 35 | 38 |
| Root number | 10 | 8 | 6 | 4 | 3 | 3 | 2 | 1 | 1 | 1 | ||
