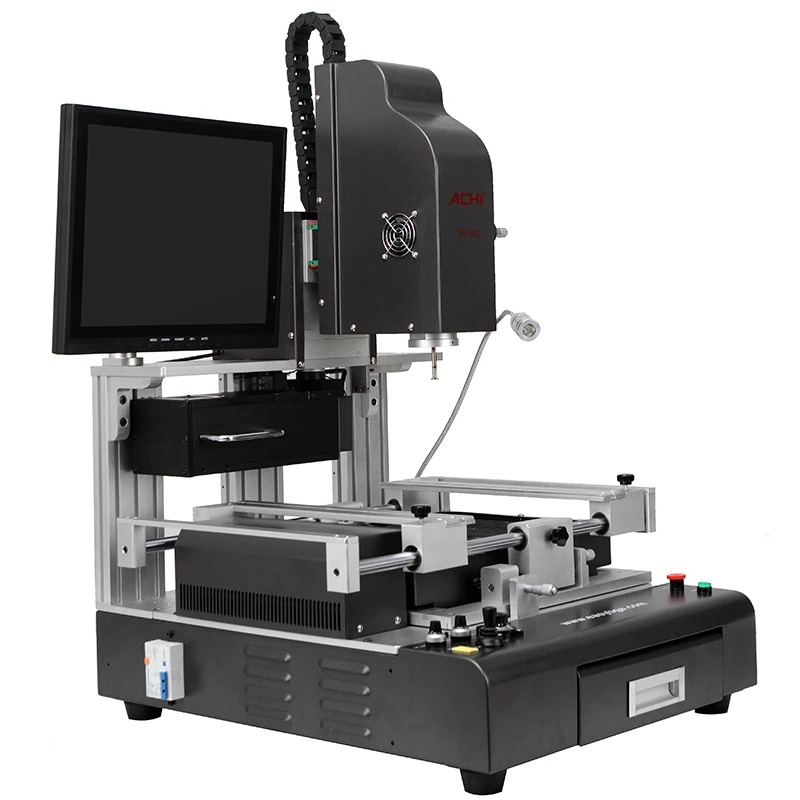

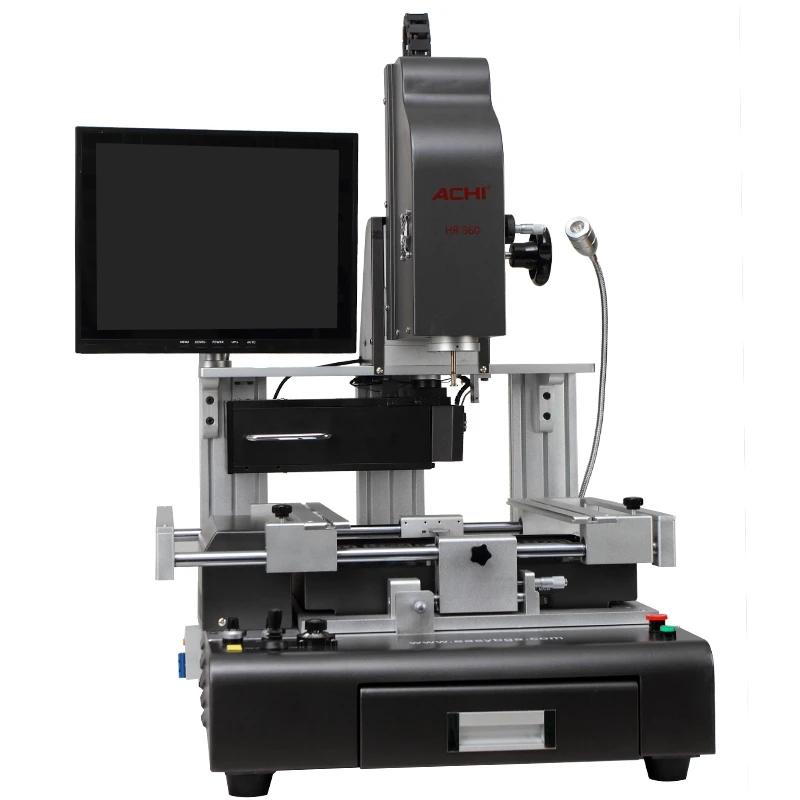

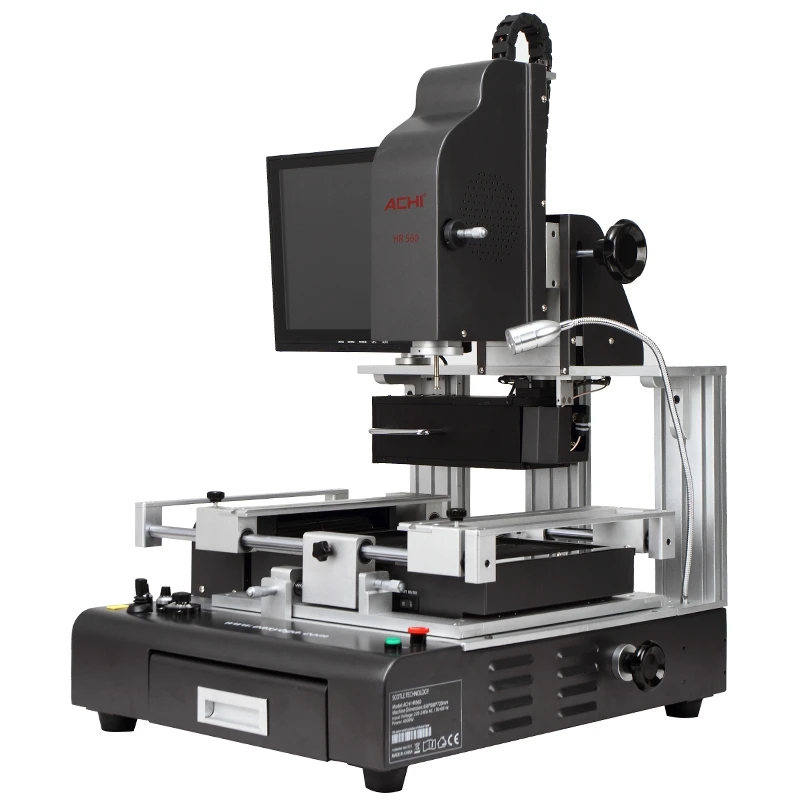

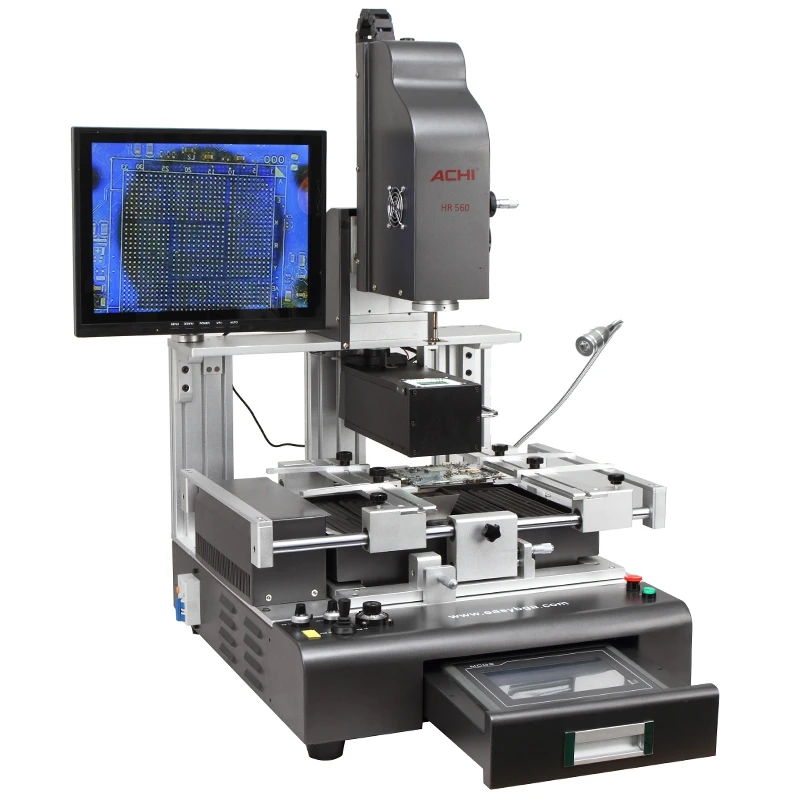

ACHI HR560 Hot Air BGA Rework Station Soldering Machine
Product Description
High lights of this Cost-effective ACHI HR560 Infrared Station Soldering
1. Latest New Optical Alignment System, easy to operate, success rate can be 100%.
2. with laser position.
3. Automatic identify BGA chips and mounting height.

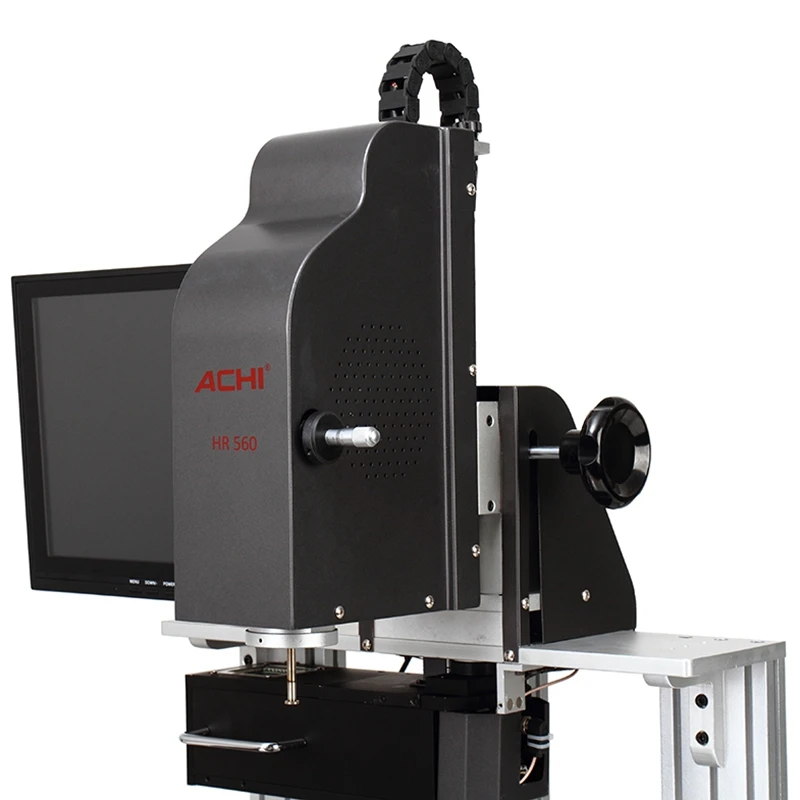

4. Top heater device and mounting head 2 in 1 design.
5. Semi amtomatic soldering and desoldering.

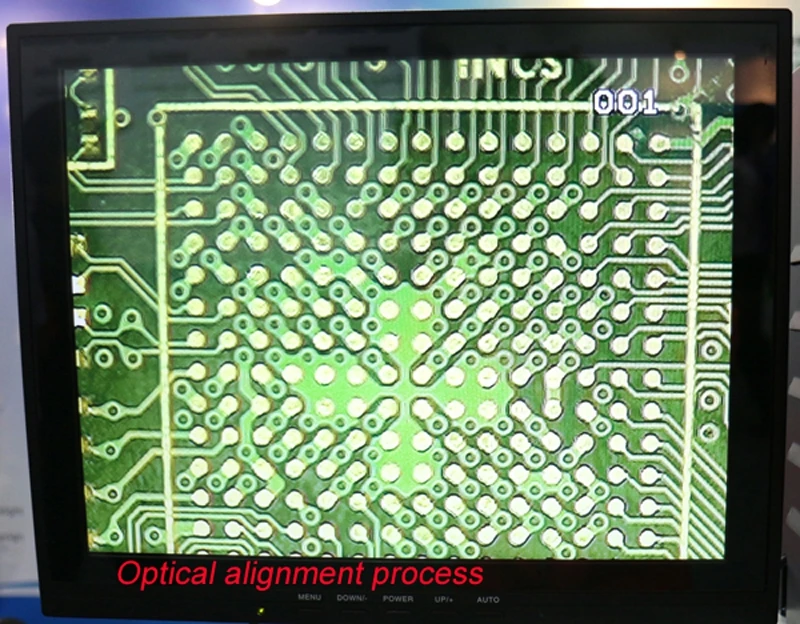

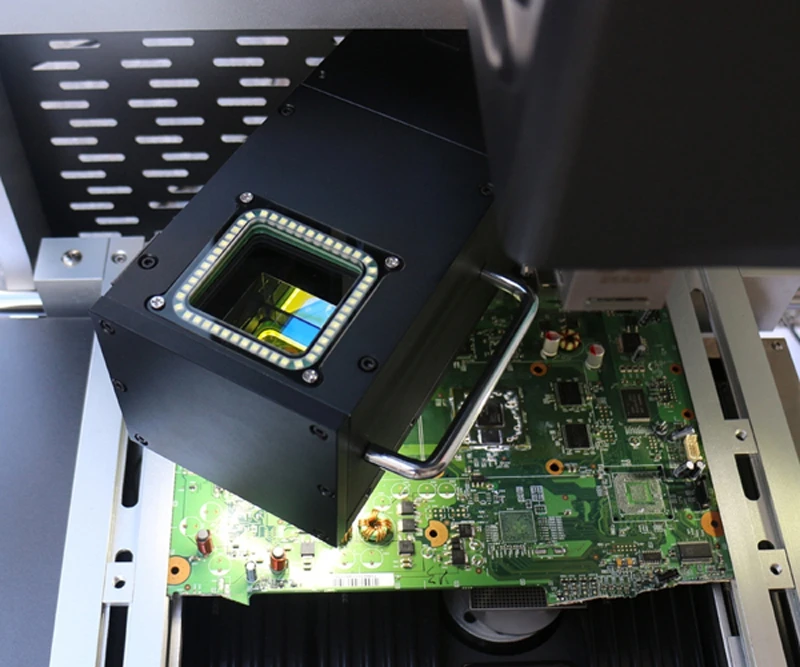

6. CCD System and Optical Alignment System combined, can change the screen by one button.
7. Automatic adjust chromatism resolution and brightness.
8. With laser position.

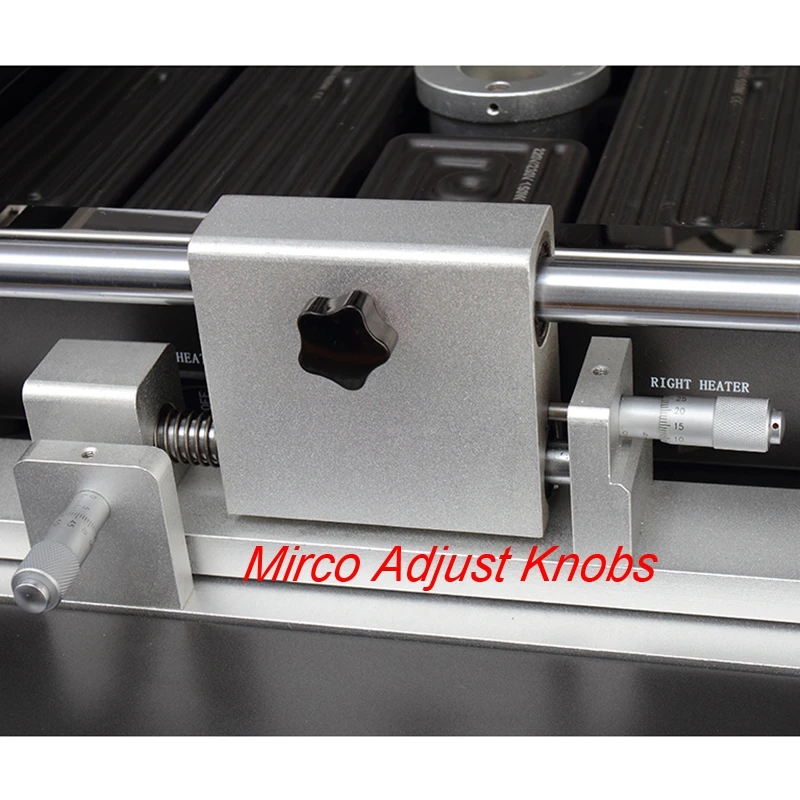

9. With Micrometer to do Micro adjust.
10. With a powerful cross-flow fan to cool PCB rapidly to prevent it from deformation.
11. With 3 temprature zones and 1 external temp sensor sockets.
Specifications of this Cost-effective ACHI HR560 Infrared Station Soldering
| Power voltage | 220V±10% VAC 50/60Hz |
| Total power | 5300W Max. |
| Top hot-air heater | 1200W |
| Bottom hot-air heater | 1200W |
| Bottom IR heater | 2700W |
| Size of buttom heater | 360*240mm |
| PCB Size | Max.500*400mm / Min.22*22mm |
| BGA Chip Size | Max.80*80mm / Min 2*2 mm |
| Positioning | V-type groove, with universal fixture |
| Temperature control | K-type thermocouple (Closed Loop) ±2℃ |
| Max.amplification | 230X |
| Surface mounting accuracy | within ±0.01mm |
| CCD and optical system | Zoom in And out,beam spilt, micro-asjust,Antomatic adjust chiromatism resolution and brightness |
| Machine dimension | 640x630x900mm |
| New Weight | 68 KG |
| Packing weight | 100kg |

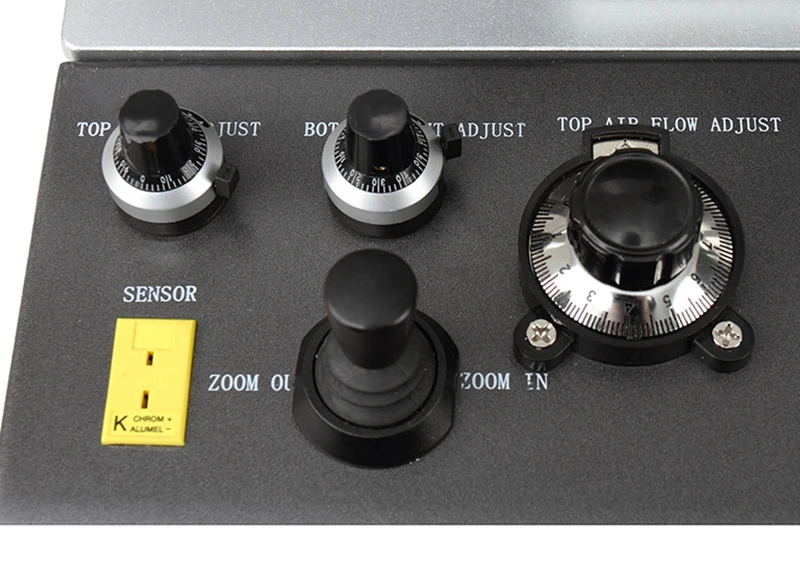

Detailed Image
Packaging & Shipping
Packing Method:
1. Carton box for small items and some machines.
2. Wood Carton for large heavy machines
Shipping Methods:
1. 1)Express(door to door):DHL/UPS/Fedex/TNT / EMS / HKEMS / Post Air Mail etc.
2)Air/Sea Shipment: Please provide us your air port information.
2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.
3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days will be needed for some remote place.
Shipment Time:
1. For samples within 1-2workdays
2. Wholesales Orders : 2-3workdays according to different quantities
3. OEM orders:7-10 days after receiving your sample confirmation and payment.
