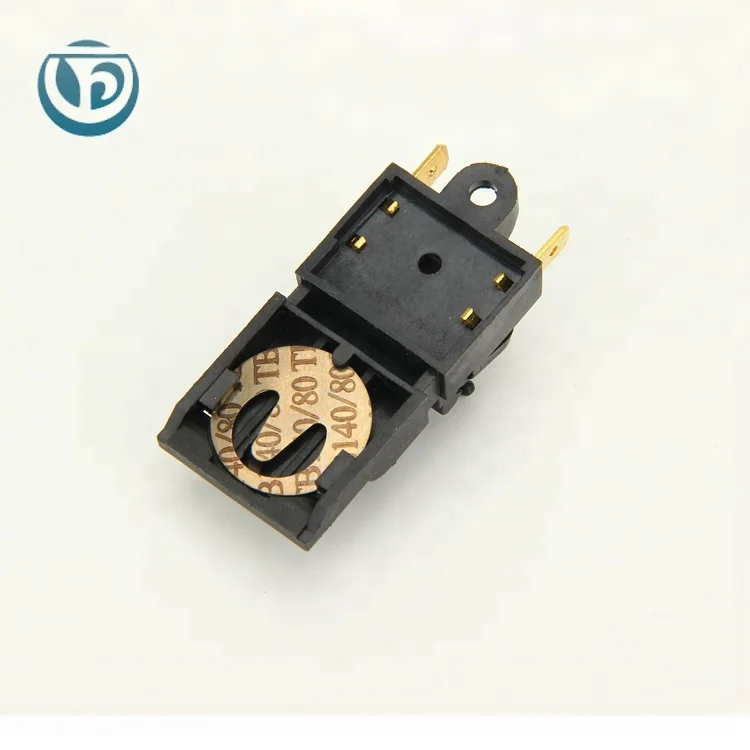

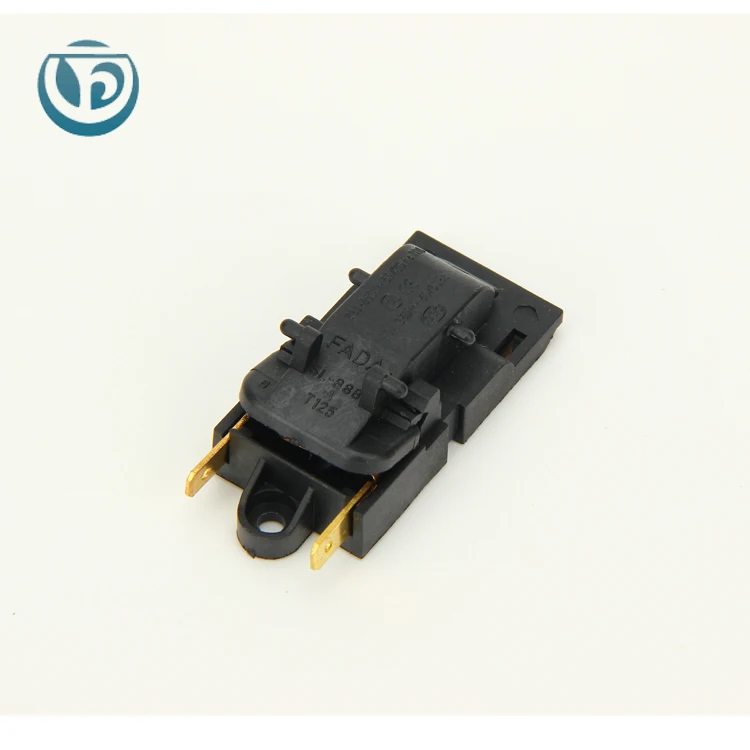

SL 888A bimetal thermostat switch thermostat assy for kettle
- Category: >>>
- Supplier: Yueqing Fada Electric Appliance Co. Ltd.
Share on (60737153566):
Product Overview
Description
INSTRUCTION
The electric kettle will generate heat after connect to the power. When water temperature rising gradually to 100 degrees, water begins to boil, steam impact steam switch bimetal, due to the double above heat bilges cold shrink role, bimetal expansion and deformation, propped switch contact disconnect the power supply. If the steam switch failure, water in kettle may have been burned down, until the water was dry up, heating elements temperature rising sharply, located at the bottom of the heating plate have two double sequins and heat transfer function for temperature rising sharply, inflation deformation, disconnect the power. Therefore electric safety protection device of electric kettle is very scientific and reliable on design
APPLICATION
Suitable for 360 degree rotational cordless temperature control kettle.
Kettle steam switch SL-888 series with360 degree rotational cordless temperature control used together.
The bimetal piece has high quality and acumen ;
The insulated plastic material could be ensured high temperature ;
Dry burn prevent protection for safer use ;
Reasonable configuration and easy assemble .
Specification
items | parameter |
Rated voltage | 110V-250V |
Rated current | 13A |
Max. Ambient temperature | T125 |
Operating life | 10000 cycle |
Temperature tolerance | ±5 ℃ |
Hi-pot | 2200V AC 1 minute |
Approval | CQC TUV CE CCC CB |
