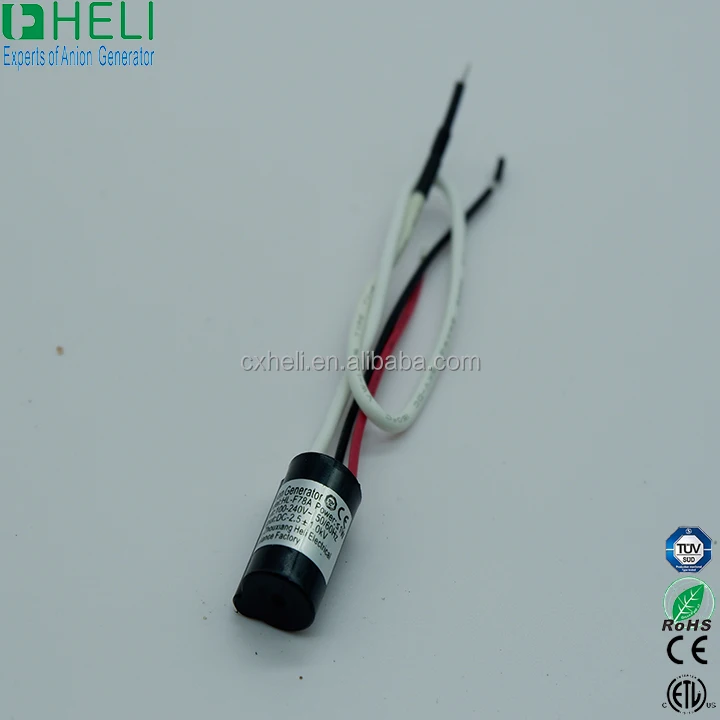

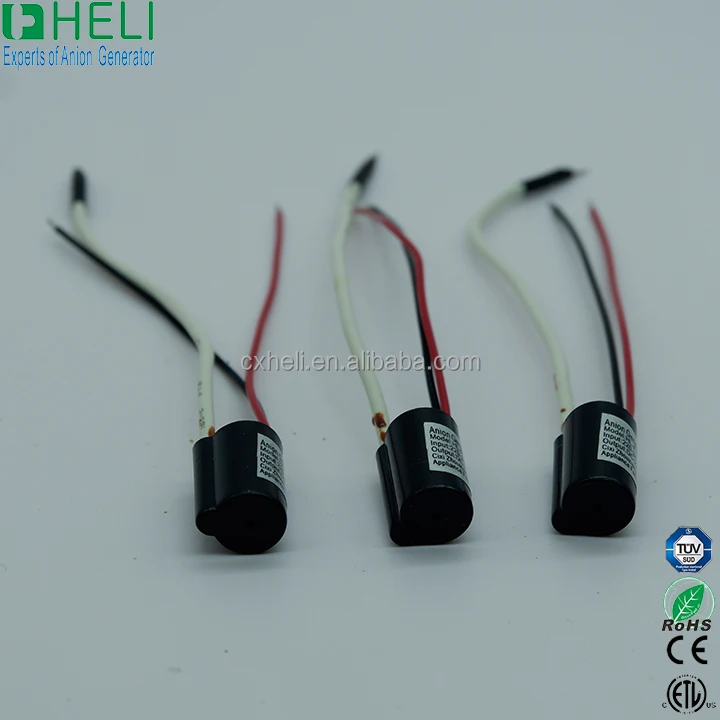

Small AC 220V Anion Generator Make Air Clear Parts For Fan And Hair Dryer
- Category: Air Purifier Parts >>>
- Supplier: Cixi Zhouxiang Heli Electric Appliance Factory
Share on (60737163668):
Product Overview
Description
Our Advantages
Negative ion generator Features:
1. Used for electronic fan,hair drier,air conditioner, saving lighting bulbs,LED light
2. Make active
3. Improves lung function
4. Also activate enzymes,fasten body metabolism
5. Improve anti-illness capacity
6. Improve sleep
7. Sterilization function
8. Make air clear
9. Make your hair wet
1. Used for electronic fan,hair drier,air conditioner, saving lighting bulbs,LED light
2. Make active
3. Improves lung function
4. Also activate enzymes,fasten body metabolism
5. Improve anti-illness capacity
6. Improve sleep
7. Sterilization function
8. Make air clear
9. Make your hair wet
TRANSACTION OVERVIEW
Products Description
Size | φ10*H18(mm) | Voltage In | AC 220-240V |
Color | Black | Voltage out | DC -2.5±1KV |
Anion Density | ≥3×106pcs/cm3 (60-100mm) | Certification | CE, RoHS,TUV,ETL |
Power | ≤1w | Warranty | 2 years |
Current In | ≤25mA | Ozone Density | ≤0.05ppm |
Temperature range | -15℃ ~ + 85℃ | MOQ | 1500 Piece |
Wet range | 35% ~ 85% | Applicable products | Hair dryer, air purifier, air conditioner, heater, electric fan, electric splint, refrigerator, etc. |
Storage temperature | -20℃~ +90℃ | Port | Ningbo/Shanghai |
Anion is a kind of electron (e-) which is discharged by corona generated by DC high voltage from the top of the carbon brush after the low voltage power is risen as DC negative HV through charge pumping circuit, electrons can’t stay in the air for long (the life is only nS level), and will be caught by O2 in the air and form anion. The work principle is the same as the anion generated from “lightning”.
1 | L1 | UL 3239/150℃/6KV/24AWG White high-pressure line is *****mm。（Line length can be customized according to customer requirements） | |||
2 | L2 | UL 1430/24AWG The full length of the red power supply line is *****mm, the end of the 100mm is the end of the strip.（Line length can be customized according to customer requirements） | |||
3 | L3 | UL 1430/24AWG The full length of the black power cord is*****mm, t the end of the 100mm is the end of the strip.（Line length can be customized according to customer requirements） | |||
4 | Test instruments: HG3830 type high pressure test bench, KEC-990 air ion concentration tester (distance negative ion generator 6-10cm test)Note: the product conforms to TUV, CE, ETL certification, EMC, ROHS, REACH test, the model is: HL-18(BAC100-130V) | ||||
Product Application
Negative ion generator circuits can be applied to these products:
Hair fashion: Hair dryer, hair flat iron, hair curler, hair brush.
Home Appliances&AUTO: Air purifier, humidifier, electric fan, air conditioner, electric heater, hand dryer, vacuum, fridge.
Medical and others: medical negative ion generator, computer case, lamp, led light.
Hair fashion: Hair dryer, hair flat iron, hair curler, hair brush.
Home Appliances&AUTO: Air purifier, humidifier, electric fan, air conditioner, electric heater, hand dryer, vacuum, fridge.
Medical and others: medical negative ion generator, computer case, lamp, led light.
Certifications
Company Profile
The Factory is one of the manufacturers specializing in the production of negative ion generators, plasma generators ,ozone generators and car air purifier. Its novel design, technological innovation, excellent quality and professional manufacturing. And It accepts OEM and ODM, can be customized.
Exhibition
Packing&Transport
FAQ
Q: What is a negative ion generator?
A: A negative ion is an electrically charged atom, or cluster of atoms, formed by gaining one or more electrons(since a positive ion is the atom formed by the loss of electrons). Generator is the small "factory" to produce plenty negative ions.
Q: Where can we use them?
A: Usually we use the negative ion generator in the industry which request air purify, water purify,Hairdryer beauty salon,
medical and health.
Q: Can I get technology support if I'm on designing or developing my own product?
A: Yes. Don't hesitate to CONTACT US, we have engineer for helping,At the same time, we can provide OEM / ODM services for you.
Q: Can I get a sample to check quality?
A: Sure you can. We can offer 1-5pcs sample for free, you only afford the shipping cost ok.
Q: How long can I receive the samples?
A: Samples will be ready in 3-5 days usually. Shipping time depends, usually we will offer faster way and normal way for choice.For example, to US, faster way Fedex/UPS is 3-6 workdays, normal way by Ali-express is 5-8 workdays.
Q: What is the payment terms?
A: For amount below $5000, we accept: T/T, PayPal, cash&carry, Alibaba assurance order.
For amount beyond $5000, we accept: T/T, L/C at sight, payment against B/L, Alibaba assurance order.
A: A negative ion is an electrically charged atom, or cluster of atoms, formed by gaining one or more electrons(since a positive ion is the atom formed by the loss of electrons). Generator is the small "factory" to produce plenty negative ions.
Q: Where can we use them?
A: Usually we use the negative ion generator in the industry which request air purify, water purify,Hairdryer beauty salon,
medical and health.
Q: Can I get technology support if I'm on designing or developing my own product?
A: Yes. Don't hesitate to CONTACT US, we have engineer for helping,At the same time, we can provide OEM / ODM services for you.
Q: Can I get a sample to check quality?
A: Sure you can. We can offer 1-5pcs sample for free, you only afford the shipping cost ok.
Q: How long can I receive the samples?
A: Samples will be ready in 3-5 days usually. Shipping time depends, usually we will offer faster way and normal way for choice.For example, to US, faster way Fedex/UPS is 3-6 workdays, normal way by Ali-express is 5-8 workdays.
Q: What is the payment terms?
A: For amount below $5000, we accept: T/T, PayPal, cash&carry, Alibaba assurance order.
For amount beyond $5000, we accept: T/T, L/C at sight, payment against B/L, Alibaba assurance order.
