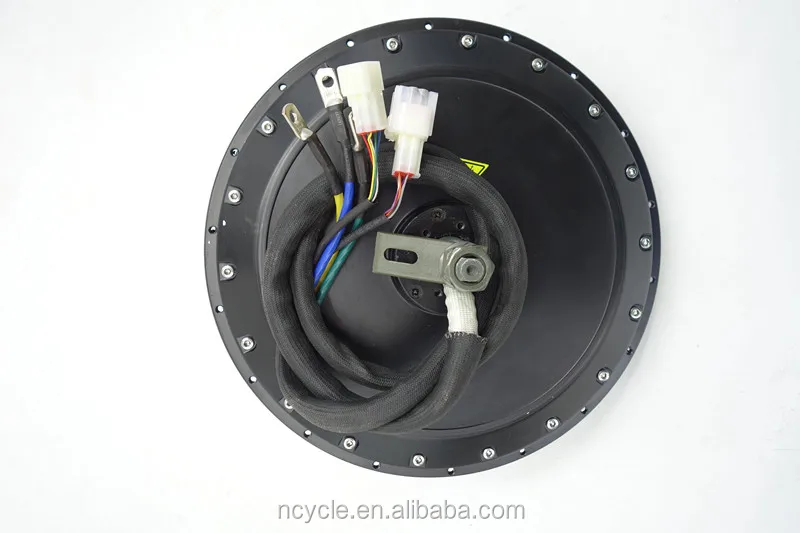

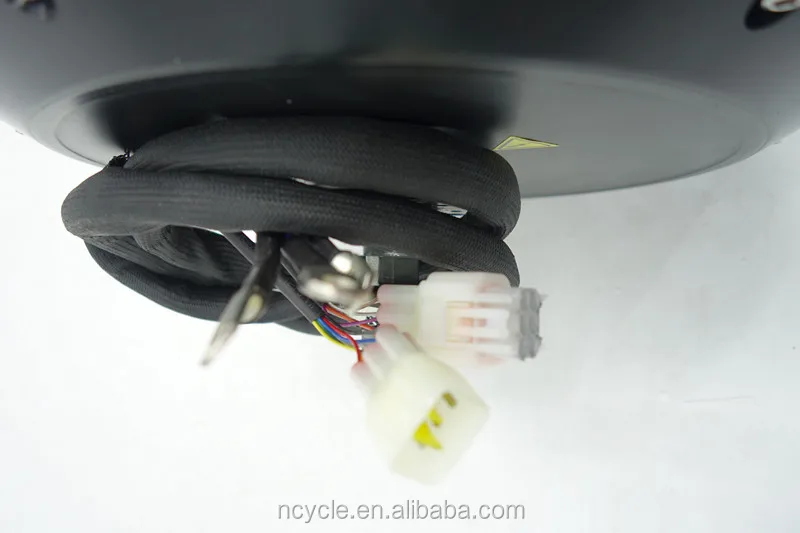

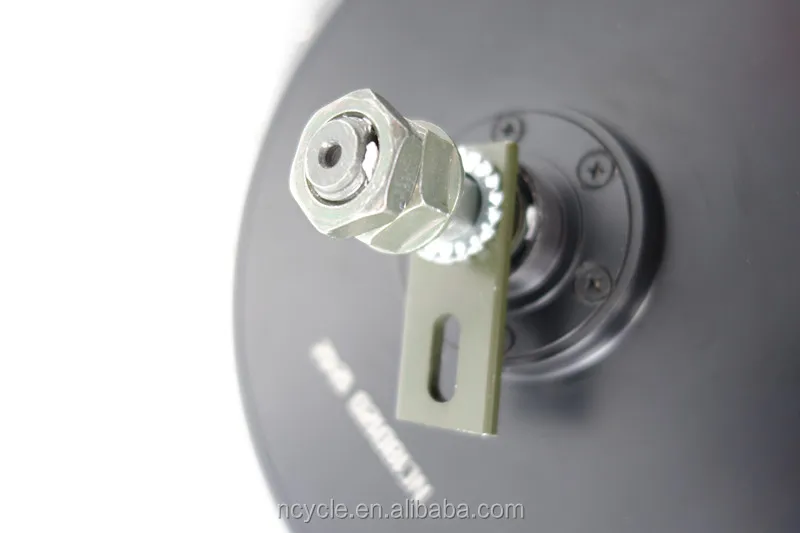

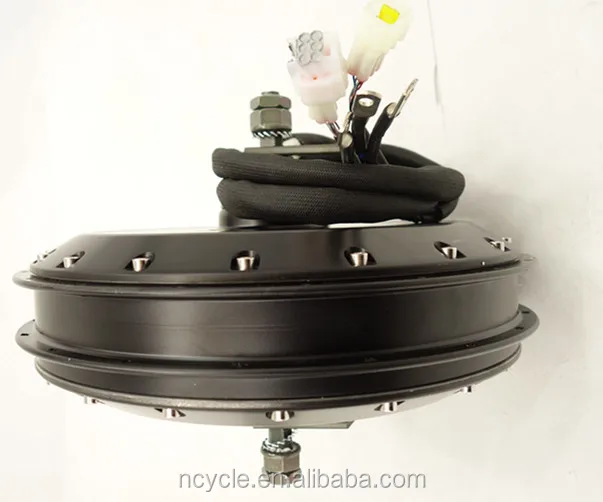

Electric motor 72v 8000w for electric bike and motorcycle

Motor Type

BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand

QS Motor,QSMOTOR

Motor Design

Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm

Matching Rim size

24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

Magnet Height

40mm, 16 pole pairs

Stator

Aluminmum Core

Rated Power

8000W

Rated Voltage·80KPH as default (24-120KPH, optional)

72V as default (48V-96V, optional)

Speed

80KPH as default (24-120KPH, optional)

KV

11.46/12.46/13.54/15.69/17.71etc.

Max Torque

approx 182N.m

Max Efficiency

86-91%

Working Temperature

70-120℃ , peak 150 ℃

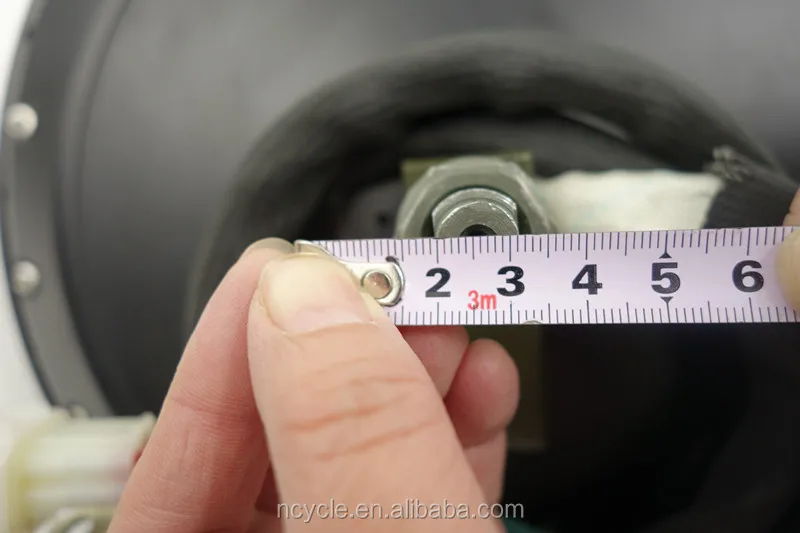

Drop-outs/Rear Fork Width for installation

155mm

N.W /G.W

18.2KGS/20KGS
