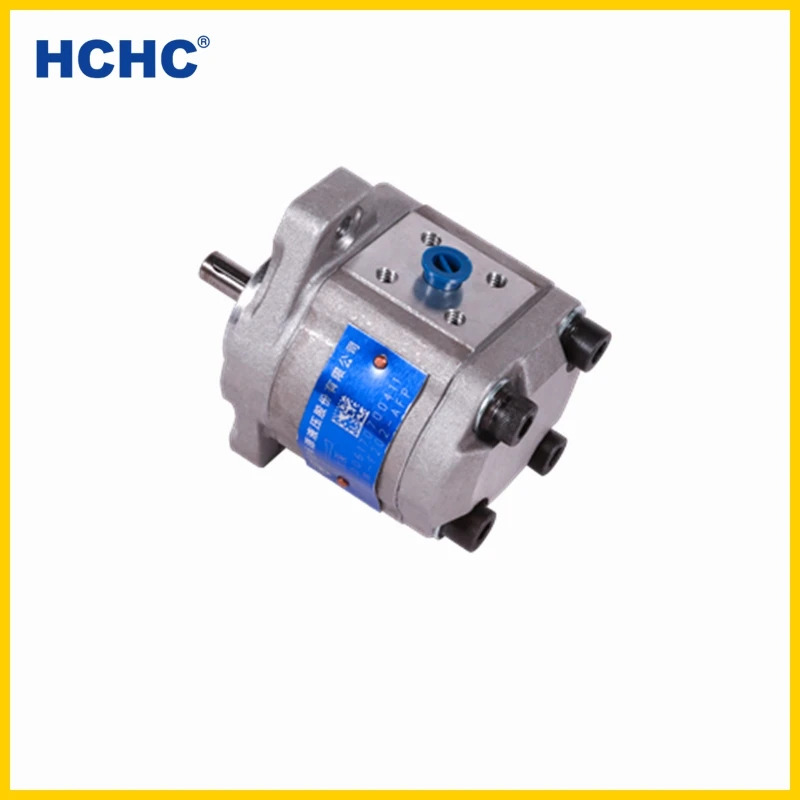

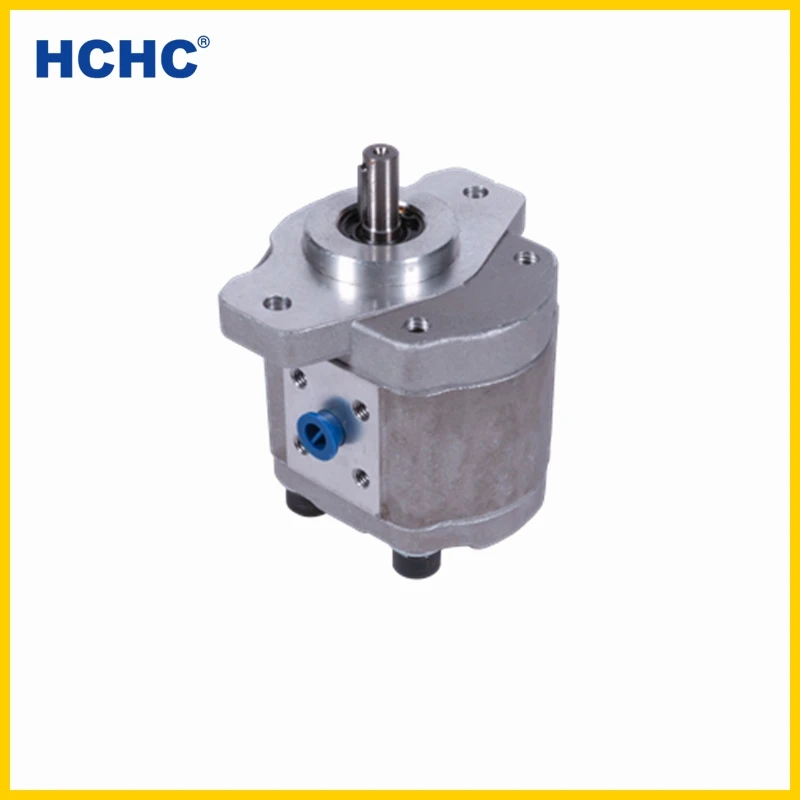

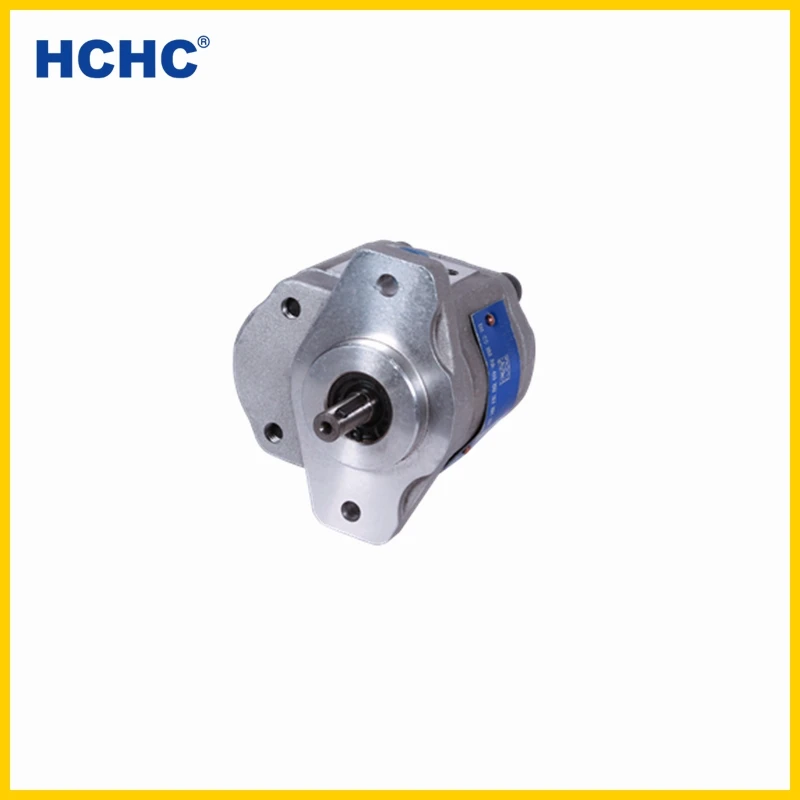

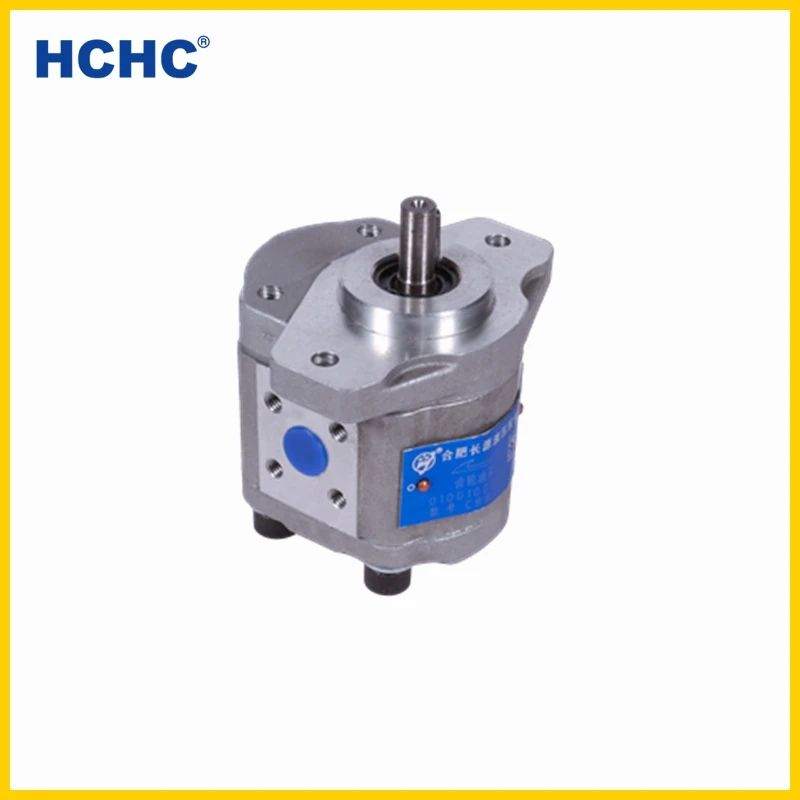

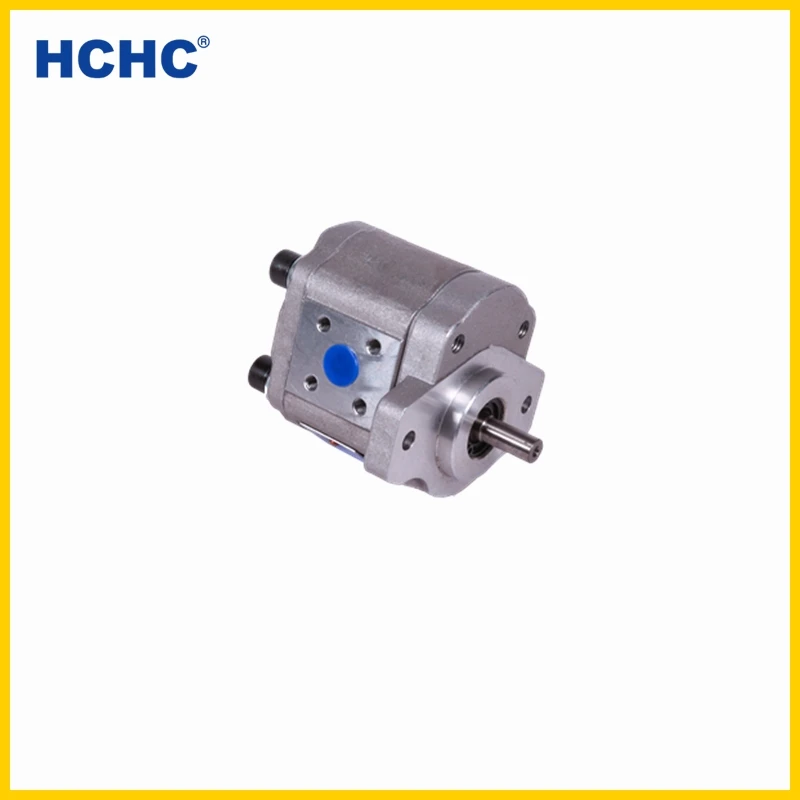

China manufacturer high speed small hydraulic gear pump CBW
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60737196690):
Product Overview
Description
Product Description
China manufacturer high speed small hydraulic gear pump CBW for excavator
Performance Characteristics:
★ High strength aluminum alloy housing.
★ The connection form of input shaft includes flat key, rectangle spline, involute spline and flat end.
★ The connection form of oil inlet and oil outlet has options of thread and flange.
★ The automatic compensation mechanism of axial clearance enables gear pump to maintain a long-time high efficiency work.
★ High working pressure and wide speed range.

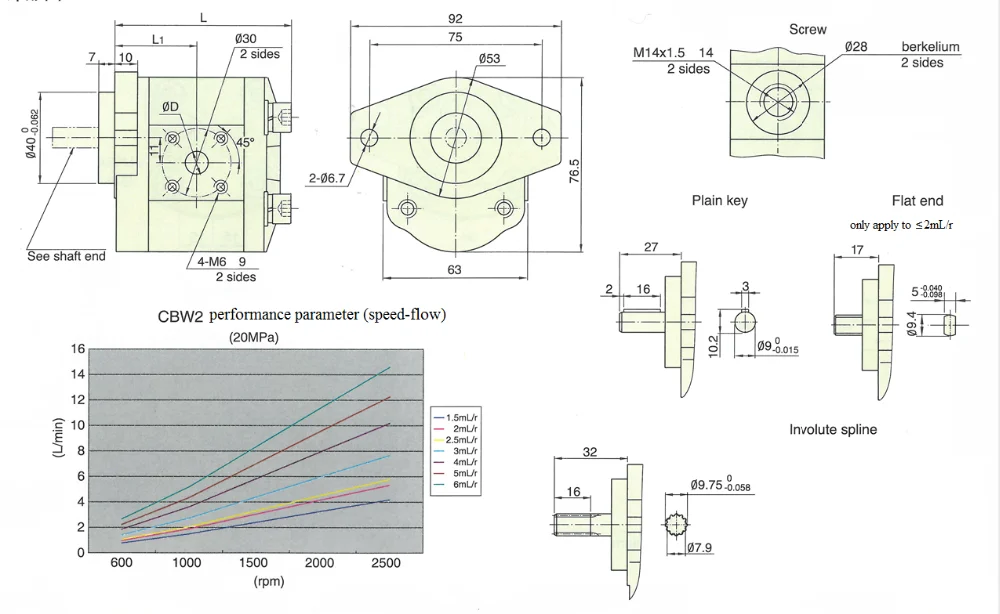

Specification
Model Code
CBW - F 202 - A F P
① ②③④ ⑤ ⑥ ⑦
①Product code
②Pressure grade: F=200bar
③Gear modulus: 2
④Nominal displacement(mL/r)
⑤Mounting type: A=rhombic flange
⑥Joining port type: F=flange
⑦Shaft extension type: P=plain key
②Pressure grade: F=200bar
③Gear modulus: 2
④Nominal displacement(mL/r)
⑤Mounting type: A=rhombic flange
⑥Joining port type: F=flange
⑦Shaft extension type: P=plain key
Model | Nominal Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volume Efficiency (≥%) | ||||||
Rated | Max. | Min. | Rated | Max. | ||||||
CBW-F202-AFP | 2.0 | 20 | 25 | 800 | 2500 | 3000 | 92 | |||
