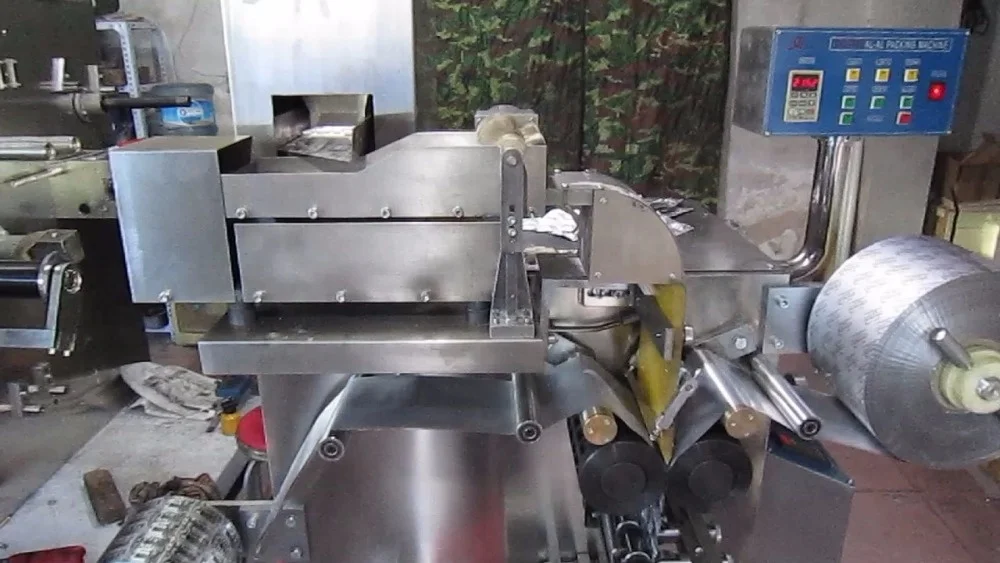

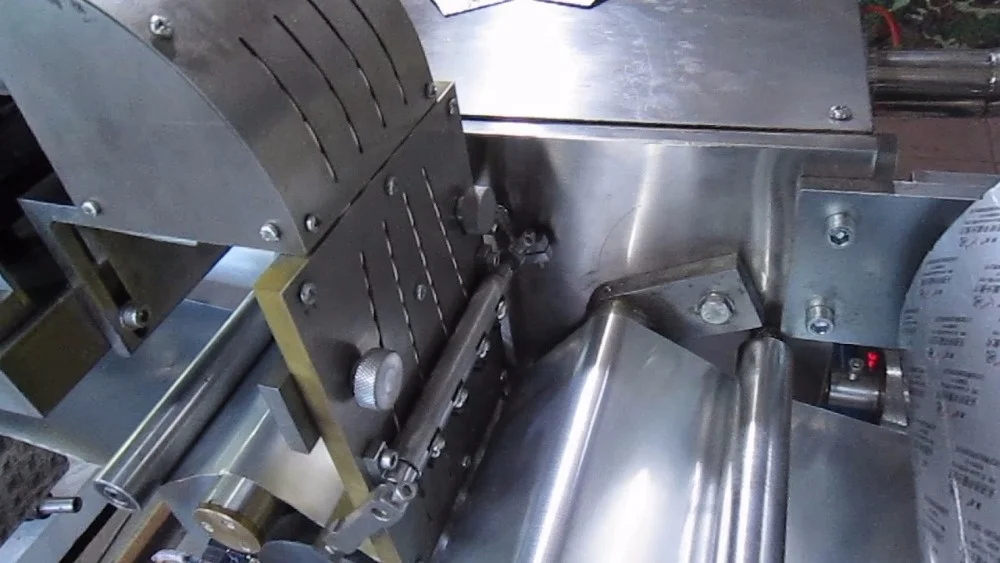

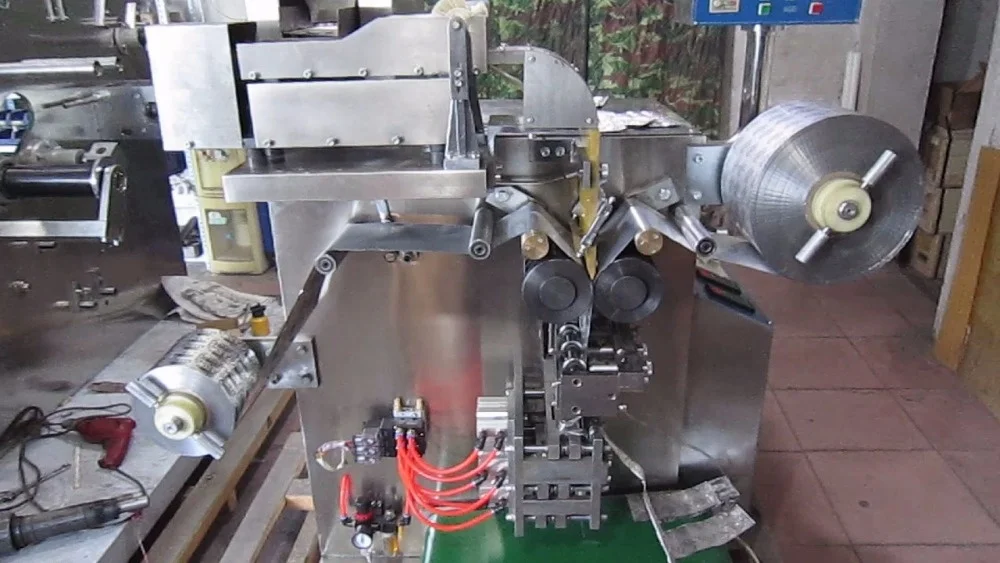

DL 160 Double Side Soft Aluminum Foil Tablet Capsule Blister packing machine

Product Overview

Description

DL-160 Double side Soft Aluminum Foil Blister packing machine



I .Descprition

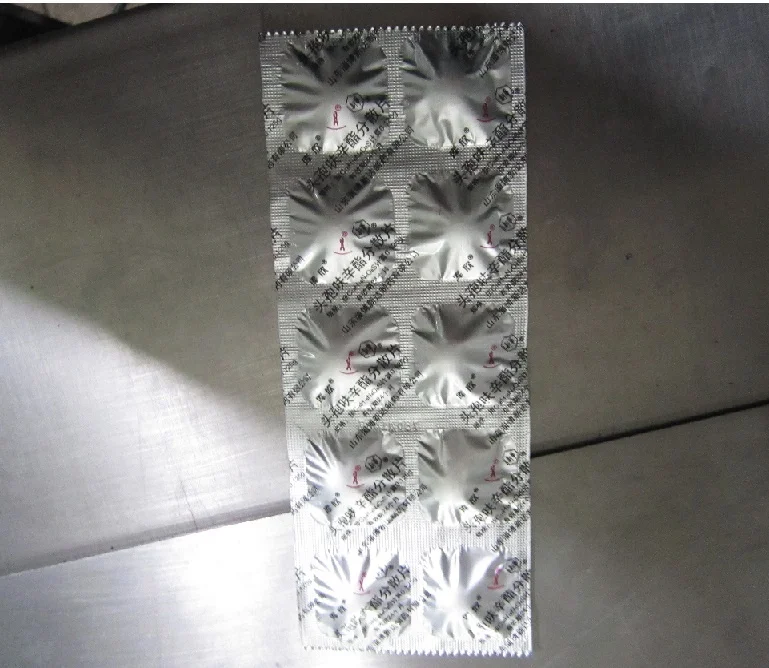

DL160 high-speed automatic aluminum foil packaging machine is a new generation of product as developed by our company, through introduction of external technology. The product is characterized by unique design, reasonable structure, easy operation, and very convenient maintenance. It is equipped with high-performance variable-frequency governor and vibrating entire column feeding device; it is capable of automatically feeding, heat-sealing, impressing (tearing line) large-sized foils, and cutting. Its feeding rate is adjustable as needed to achieve high-speed operation. This machine is suitable for double aluminum foil or paper / aluminum foil packaging, available in preventing from sun-slight and sealing, thus improving the appearance quality of packaged items



II. Main technical parameters



Power supply	Voltage: 220V	Frequency: 50Hz
Production capacity	10000- 30000pcs/h
Maximum packaging size (Width * length)	(Width * length) mm	158 *customizable
Roll (foil) maximum diameter Mm	250mm
Main motor power	0.55kw
Heating power	1.4kw
Cutting number	1-5Row
Compressed air	0.4 Mpa
Weight	400kg
Overall size	1300*900*1700mm
