Auto Screw Fastening Platform Automatic Screwdrivering Machine KS 2220
- Category: Power Screw Drivers >>>
- Supplier: Shenzhen Kingsom Electronics Business Firm
Share on (60737244792):
Product Overview
Description

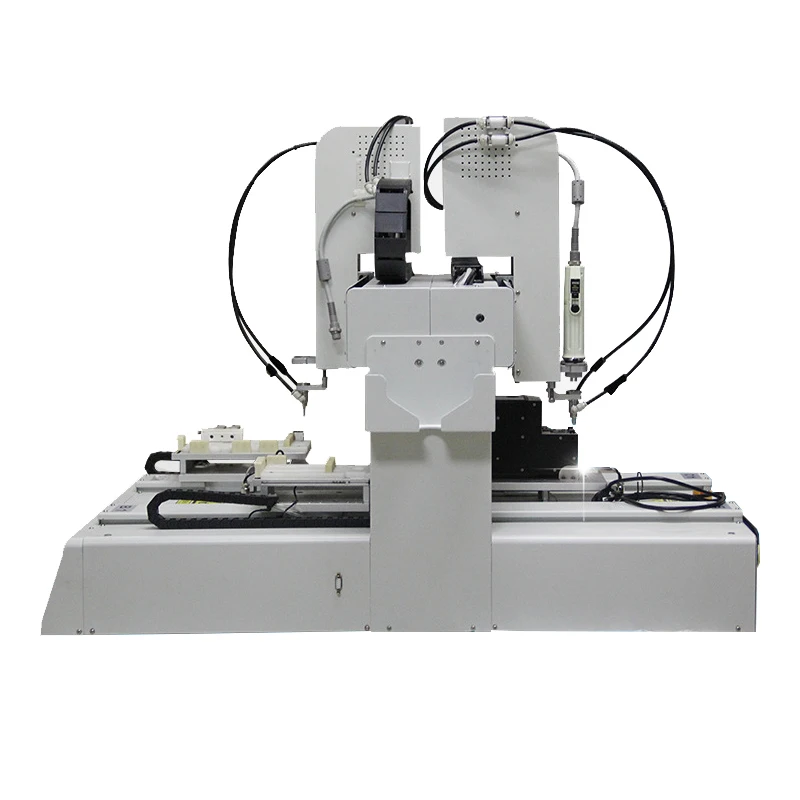

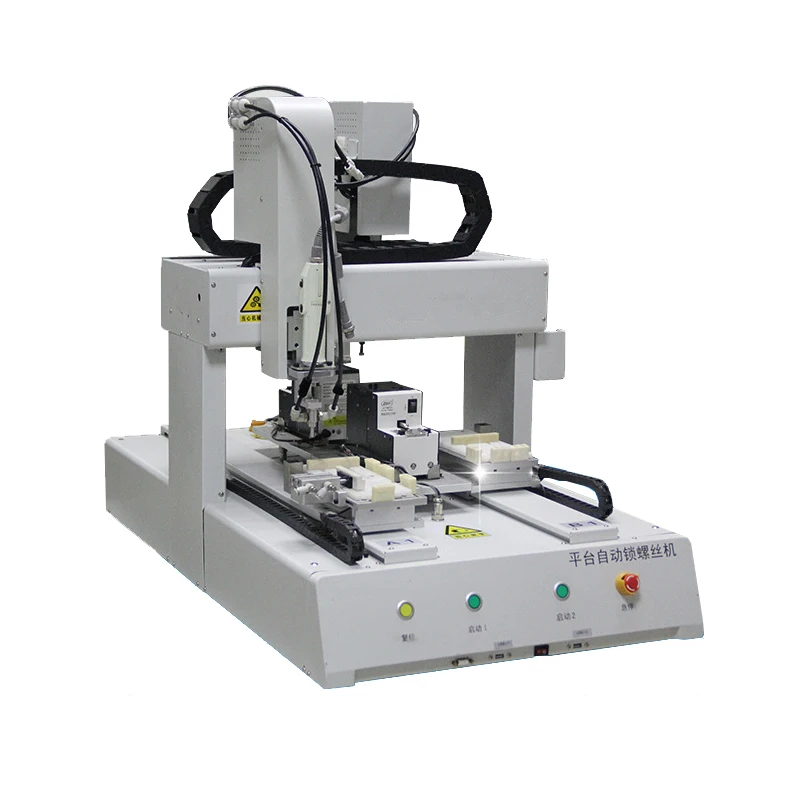

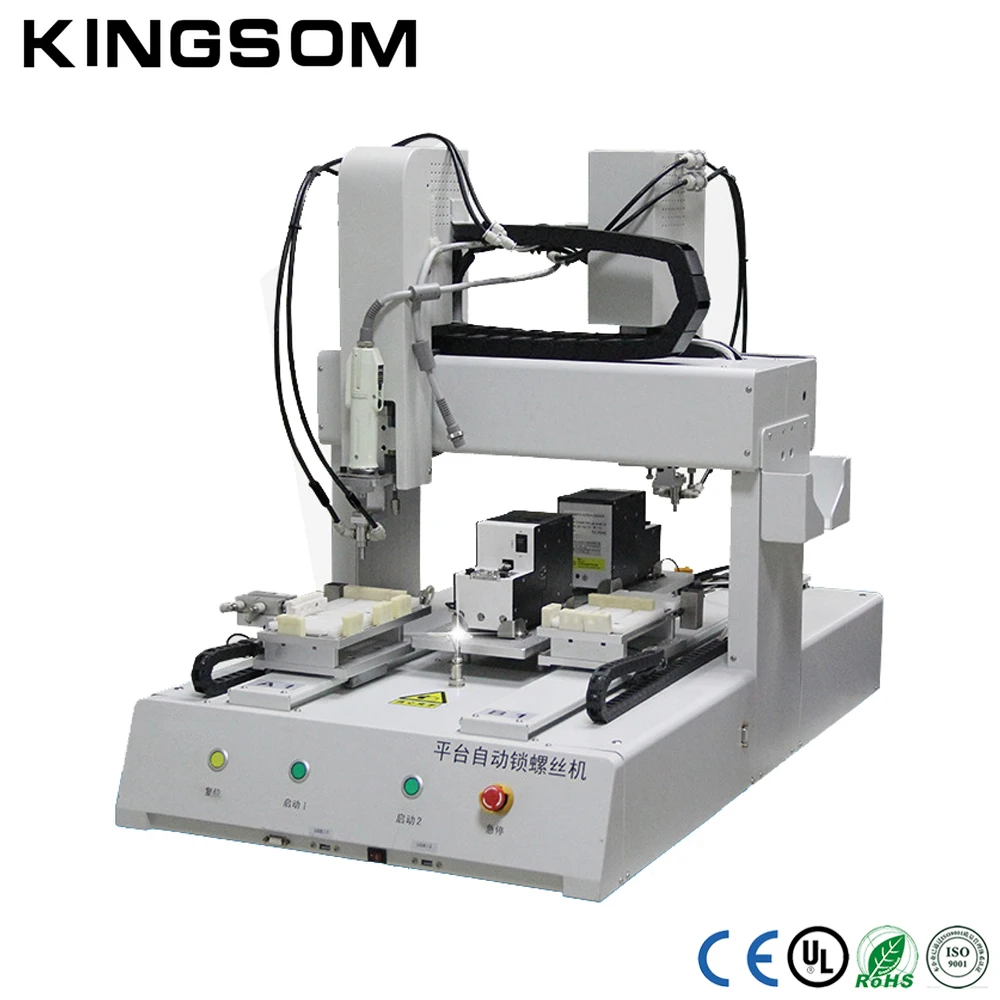

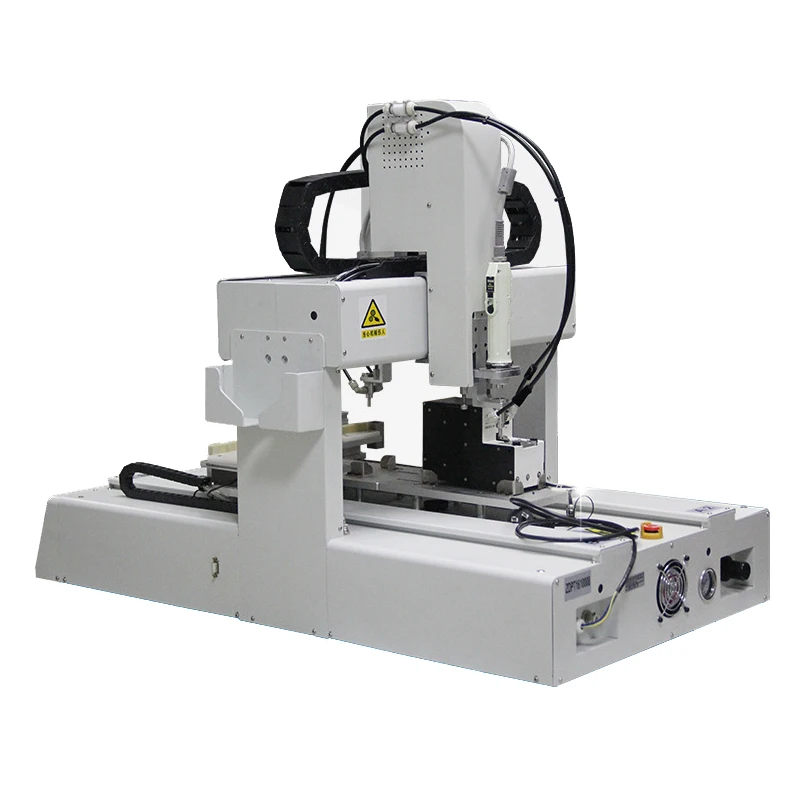

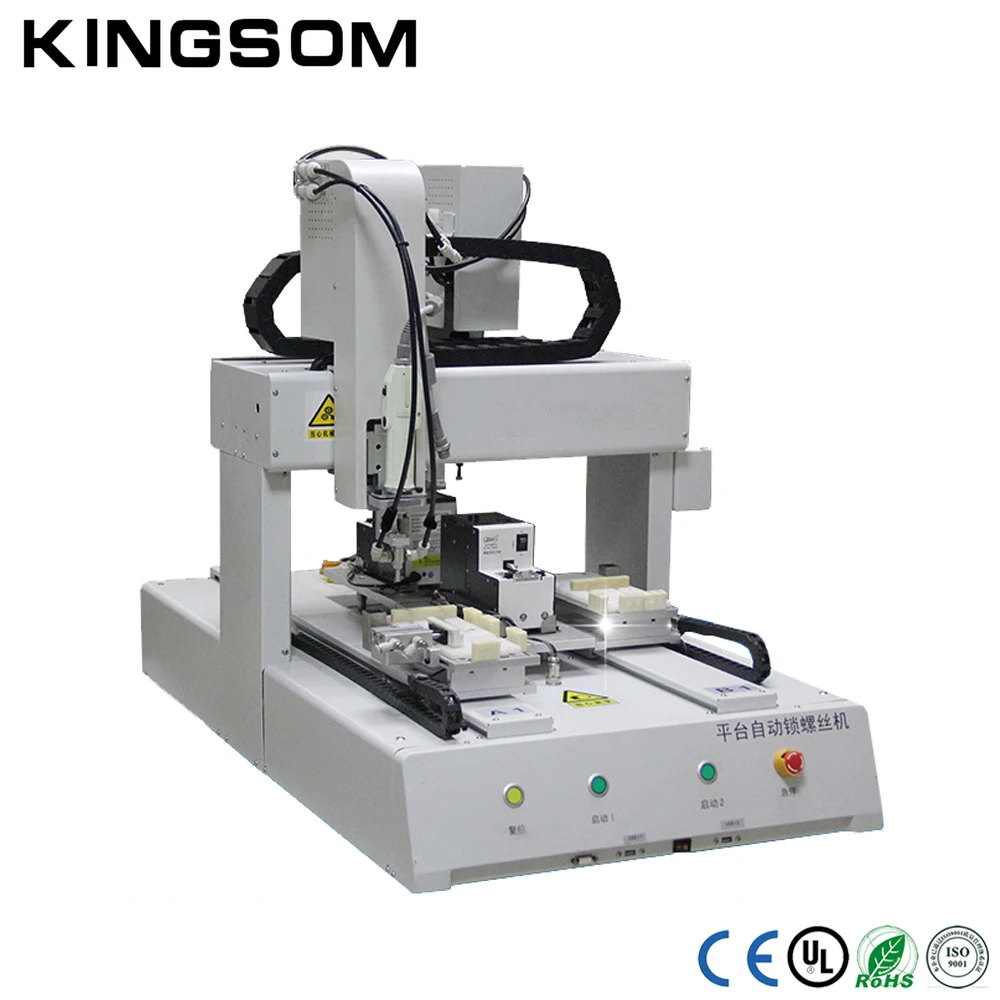

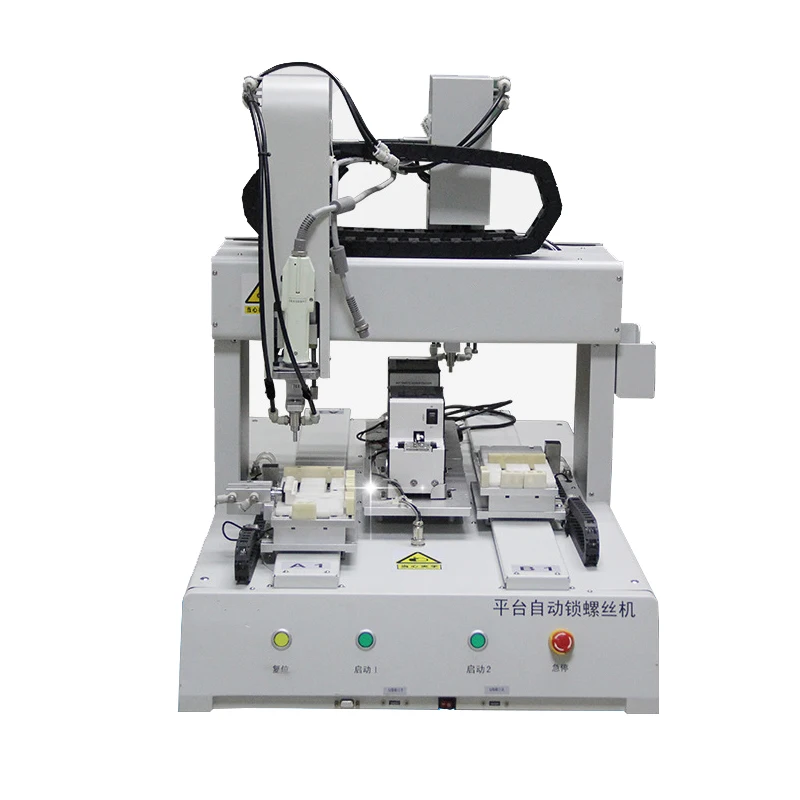

Auto Screw Fastening Platform KS-2220 Automatic Screwdrivering Machine
Related Products
Servo Motor Series |
Intelligent Counter Series |
Built-in Counter Series |
Economical Series |
Super Value Series |
Screw Feeder |
Screwdriving Machine |
Robot Arm |
Specifications
| Machine gross weight | About 120kg |
| Dimensions | 571*1010*695mm (L * H * W) |
| Power | AC 220V 50HZ |
| Machine Frame amterial | Aluminiun Alloy |
| Positioning accuracy | X, Y: ± 0.08mm Z: ± 0.01mm |
| Running speed: | 500mm/s |
| Effective travel area | 400*700*100(X*Y*Z) can be customized |
| Drive motor | 6-axis precision stepper motor |
| Alarm items | Floating,Screw wrong target,Leakage lock, bad screws |
| Moving guide | Slide rail |
| Control system | PLC + touch screen |
| Dynamic system | Stepper motor (servo motor to be customized) |
| Screw delivery method | Suction type |
| Screw feeder quantity | 2 groups |
| Working efficiency | 1.2S/pcs |
| Program storage: | 100 groups of programs, each of the maximum 100 points |
| Communication interface: | USB |
| Air source | 0.4-0.8Mpa (Oil free, dry) |
| Transmission: | Precision timing belt(ball screw to be customized) |
Product Description
1. It can work with two stations at the same time, one or two different screws, faster and more efficient.
2. Fully automated operation, save time, save labor, save costs, automatically tight screws.
3. At one product, the screw hole level can be different one the same side, it can do different settings according to product.
4. For air-suction screw fastening machine, ti will be more effective if work with the turntable-type screw feeder.
5. Suitable for conventional products such as mobile phones, electronic products, toys, cameras, digital products and so on.
6. Do not need to be equipped with an external computer, can do single operation, easy installation.
7. With intelligent detection, Floating, Screw wrong target, Leakage.
8. Versatility, replac the screw delivery module, suction nozzle, screw bit, ti can be adapted to M1.0~ M4.0 screw.
Detailed Images
Our Services
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM
4. Good quality paper box & carton packing
5. Double check before shipping
6. Safely Shipping method,such as DHL /EMS /FEDEX/TNT /UPS
7. Ocean Freight or cargo forwarder service
8. Sample order in small quantity is acceptable
For more detailed information or catalog, please kindly contact us!
