Machine Brief:

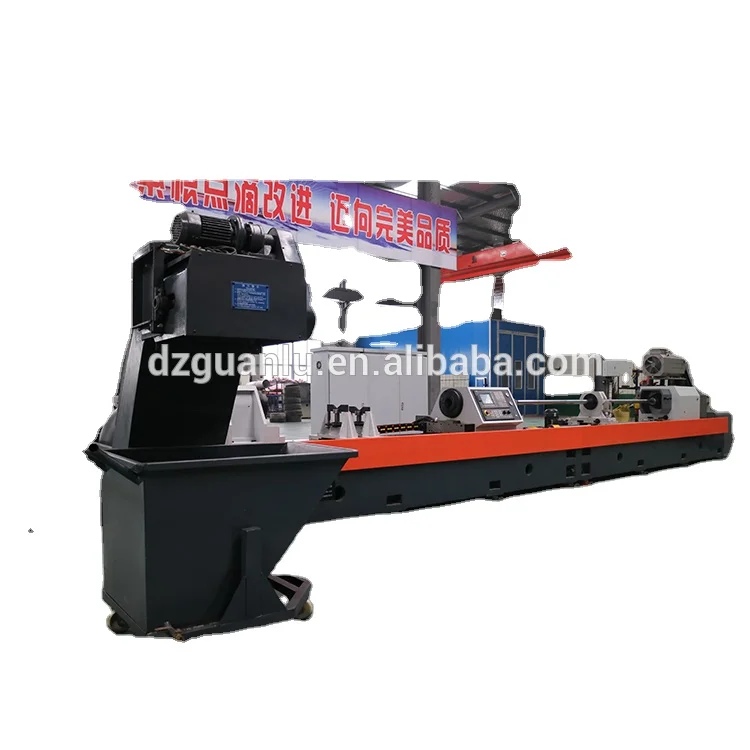

TG2115 is the machine that speciallized for small diameter hot steel pipe. The machine design refers to Sierra of USA,combined rough boring,precision skiving& burnishing into one process. High efficient and high precision.

Machine layout and details of each unit:

1. The machine consists of machine bed,machine head basement,job steady rest,hydrualic caliper,oil pressure head,oil pressure head carrier system,boring bar steady rest,high speed boring bar box,boring bar carrier infeeding system,coolant system,GSk electric system, auto lubrication system,motors and so on

2. Head frame basement,hydraulic caliper,oil pressure head,boring bar steady rest,boring bar box spindle concentricity  installed by hand, In the middle of the machine bed,one end install Φ63T leadscrew, parallelism  with guide rail is less than 0.05/1000mm,which drive oil press head move to adjust the length of the job. The other end install Φ80 ball screw,parallelism with guide rail is less than 0.05/1000mm,drive boring bar infeeding.

All turning parts support bearings all adopts NSK of Japan,which have long life span and high accuracy.

3. Coolant system is on side of the machine. Include chips convoryor,oil chamber and filtering system.  Coolant flow can get 50-200L/min,user can adjust by hole size. Coolant rated pressure is 0.36-3MPa.

4. Hydraulic system,which has independent hydraulic pump. One is for oil pressure head move,clamping and head frame job clamping pressure supply. The other is for tool tension and shrinkage. The tool use hydraulic driven system. Independent hydraulic pump,which makes hydraulic system working more steady,accuracy and more easy to maintain.

5.Lubricate system: Machine has completely lubricate system,boring bar box carrier,boring bar spindle box use high volume circulation lubrication,boring bar steady rest,oil pressure head,use manual lubricate. The lubricate hydraulic pum is independent installed. which is more steady and easy to maintain.

6. Electric control system; Electric control system adopts Siemens control,equips TFT screen. Machine operate can be manual and can be auto control. All low voltage appatus we use schneider brand. The electric cabinet meet  GB5226.1 standard.

7. Machine safety guard;Mostly parts of the machine,use half enclosure.machine safety meet  GB15760 standard.

Machine mainly parameters:

Machine accuracy :

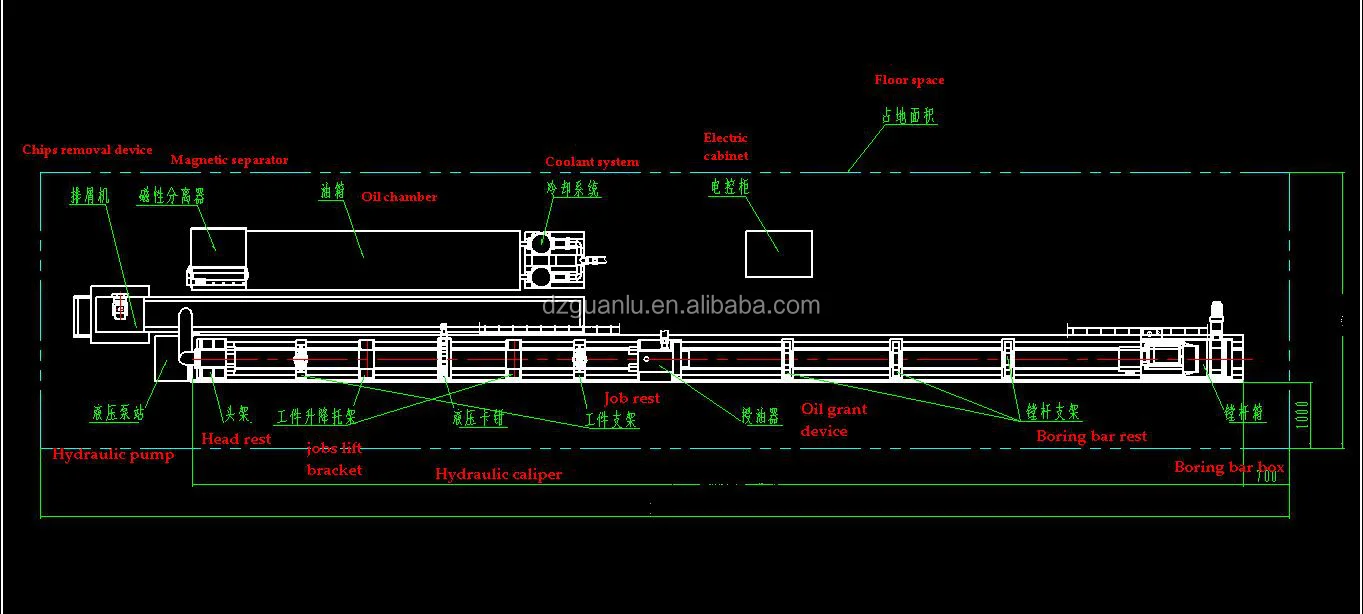

Machine sketch:

1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.

1. Q: How about the payment terms?

   A: We accept T/T 30% prepaid when ordering, the balance paid before shipping.

2. Q: How about the delivery time?

A: Normally, 4-6 months after the deposit.

3. Q: How about the after-sale services?

A: We supply on-site commissioning, operators training, and maintaining services.

4. Q: How about the technical supports?

A: While the customer is meeting the technical problems in processing, our engineer will try their best to give them suggestions and supporting. This is for free to our customers.
