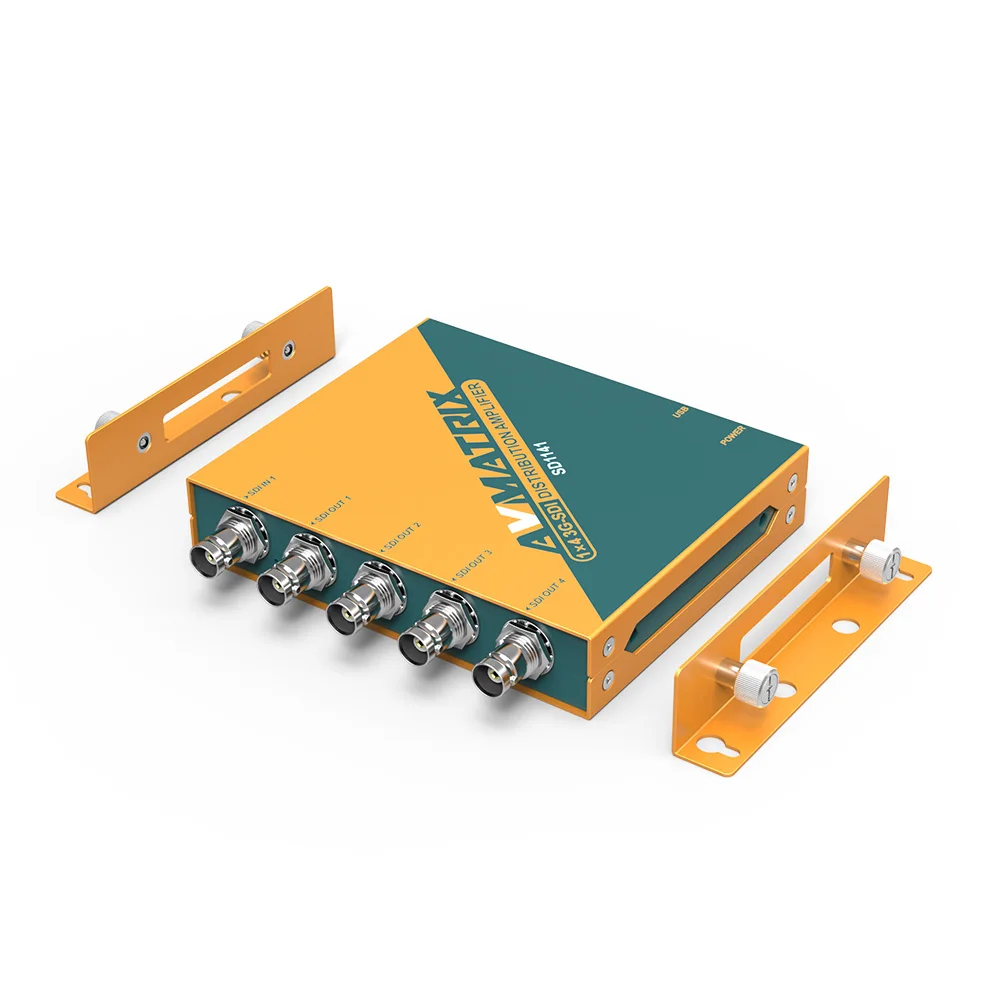

Avmatrix 1x4 SDI Video Distribution Amplifier with Reclocking
- Category: Other Surveillance Products >>>
- Supplier: Shenzhen Sunny Island Lilliput Electronic Co. Ltd.
Share on (60737259564):
Product Overview
Description

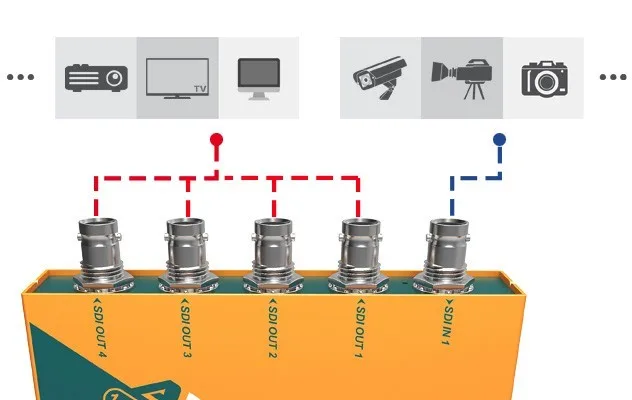

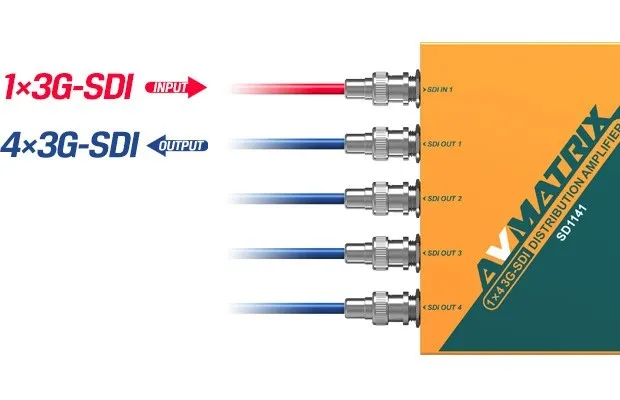

1x 4 Distribution
SD1141 is a compact, one input, four output distribution amplifier for SDI and multi-rate SDI video signals up to 1080P 60hz(2.97 Gbps). Output 2 & output 4 support DVB-ASI signal.
120m SDI Cable Distance at 3G-SDI
Re-clocking

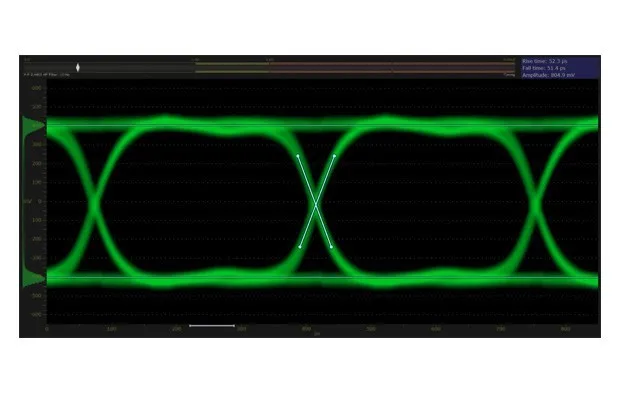

SD1141 include built-in SDI re-clocking and equalization. They will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter’s processing. This allows longer cable lengths(3G: 120m, HD: 200m, SD: 400m
Widespread Application
SD1141 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities., rental and staging, and other applications.
Techniacl Parameter

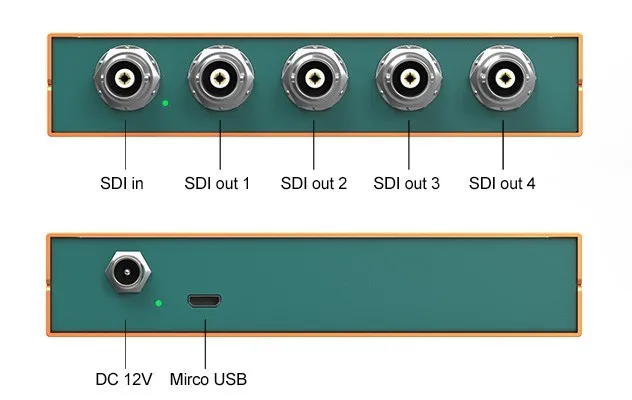

Connection | SDI Video Input | SD/HD/3G-SDI ×1 | ||||
SDI Video Output | SD/HD/3G-SDI ×4 | |||||
FORMATS | SDI Input Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50, 525i 59.94 | ||||
SDI Video Rate | SD/HD/3G-SDI | |||||
SDI Compliance | SMPTE 259M / SMPTE 292M / SMPTE 296M SMPTE 372M / SMPTE 424M / SMPTE 425M DVB-ASI | |||||
SDI Color Space and Precision | RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit, XYZ 4:4:4 12bi | |||||
SDI auto Switching | Auto select SD/HD/3G SDI on input | |||||

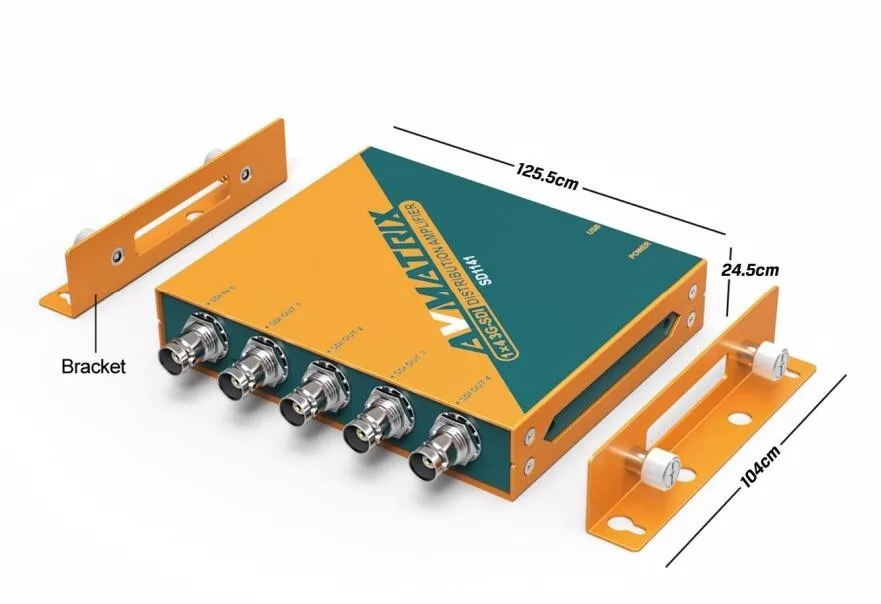

Size | Dimension(LWD) | 125.5mm × 104mm × 24.5mm | ||||
Weight | 512g | |||||
Power | Power Connector | Micro USB, Threaded locking connector | ||||
Power Consumption | 1W | |||||
Voltage Range | USB 5V, DC 5~17V | |||||
Environment | Operating Temperature | -20℃~60℃ | ||||
Storage Temperature | -30℃~70℃ | |||||
Relative Humidity | 0%~90% non-condensing | |||||
Warranty | Warranty | 3 year limited warranty | ||||
