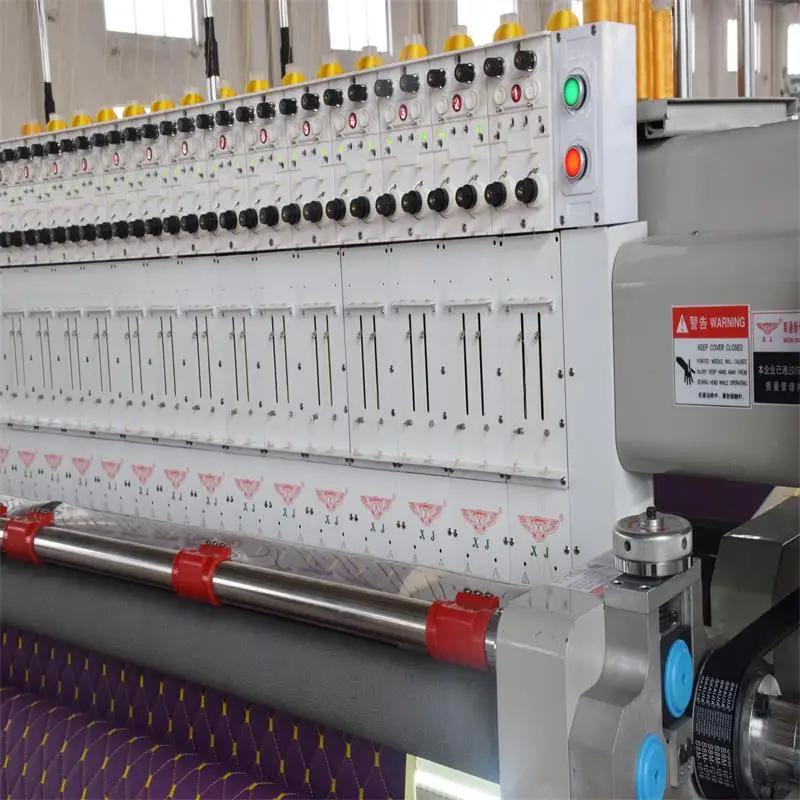

33 heads Flat Embroidery Machine Type and New Conditionquilting embroidery machine

Product Overview

Description

This series accept non-standard number of heads and needle pitch customized



Language: chinese,english and Russian.



The most advanced software, easy to operate, simple, stable. if software updates, we will send you, and all of them are free the whole life.



APPLICATIONS:

Quilting processed goods: clothing,sleeping bags,summer quilts,mattresses,bedspreads,seat cushions,etc.

FEATURES:

1)integrate computerized quilting and embroidery



2)Automatic color change,arbitrary head for quilting and embroidery



3)Continuous quilting of independent pattern,skip quilting function



4)unlimited and contiuous quilting and embroidery in Y direction,front and rear automatic tensioning systems.



5)3.5 inch floppy disk generally used for common embroidery machine,support USB flash memory,readable Tajima, Barudan,ZKS, SWF embroidery format .



6)Independent presser foot operation to make the product have three-dimensional aesthetics

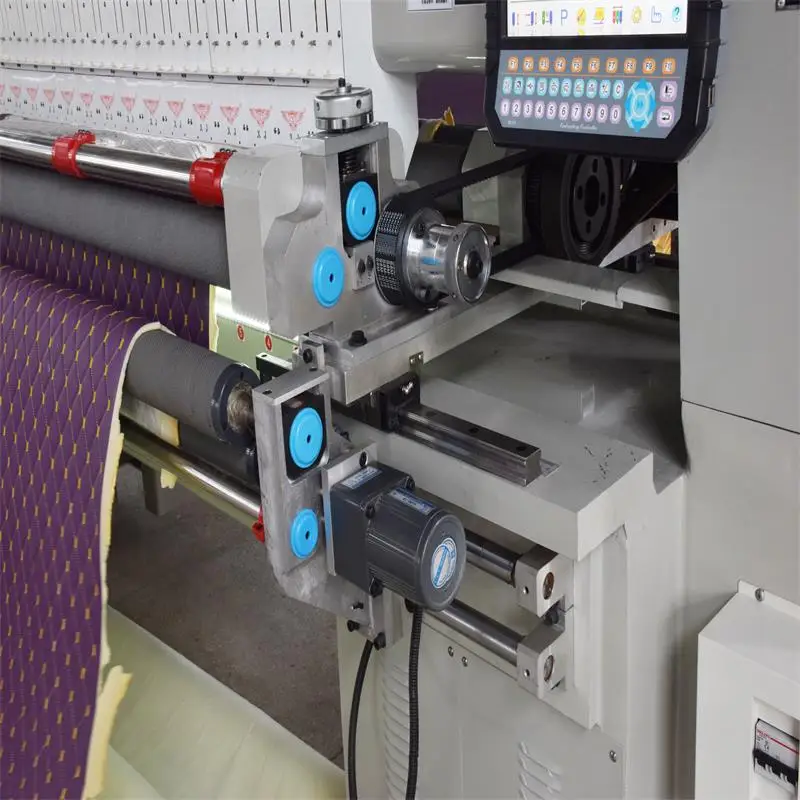

7)Rolling shaft design in Y direction,cloth can be continuously sewn or quilted



8)Simple,convenient and feasible operation



9)Rotating speed control,power-off protection,power-off meoory function



10) Broken line detection,roll back quilting and embroidery function



11)Advance and retreat function at a high or low speed



12) Trimming system,trimming length control,line drawing concentration system,stability and reliability.

Modle	Heads	Head distance	Needle Qty	Quilting Area x direction (1pattern)     face width		Dimensions
233	33	50.8	2	101.6mm	3353	5300x1980x1500mm
225	25	67.5	2	135mm	3375	5300x1980x1500mm

Main shaft motor	Servo motor
X,Y motor	Servo motor
Speed	750 rmp
Needle capacity	12 million pcs
Number of pattern	More than 100 kinds ,By USB also
Shuttle	Big rotary hook
Stich length	0.1-12.7mm
Power	380v/50hz
Power consumption	4.5kw
