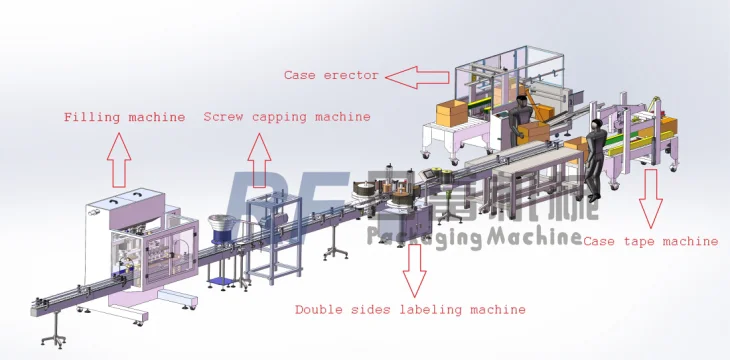

Guangzhou lubricant/shampoo/fertilizer/honey filling production filling line
- Category: >>>
- Supplier: Guangzhou Rifu Packaging Machinery Co. Ltd.
Share on (60737355248):
Product Overview
Description
Product Description

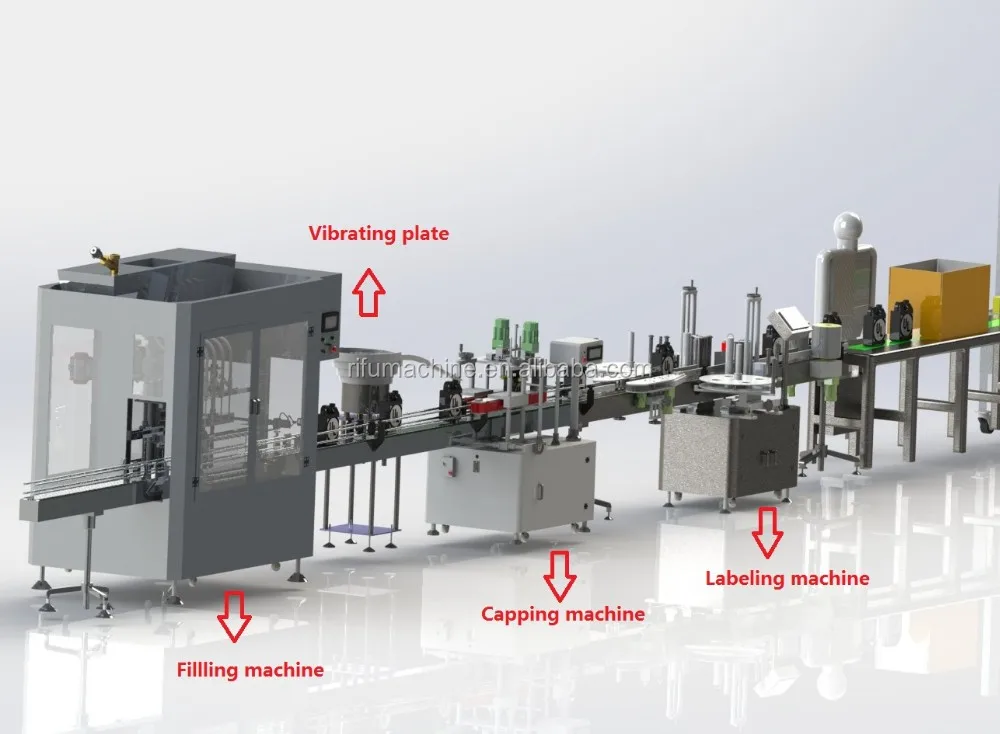

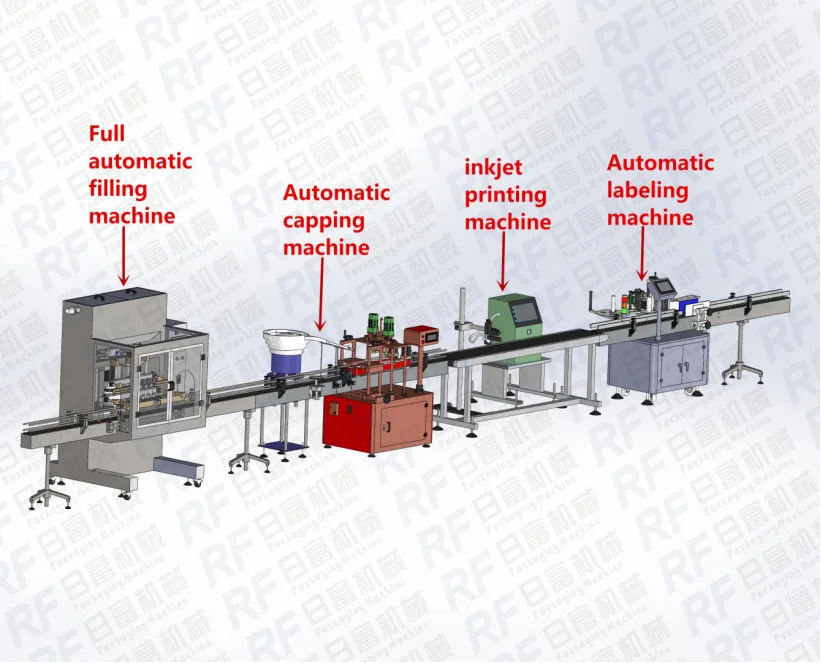

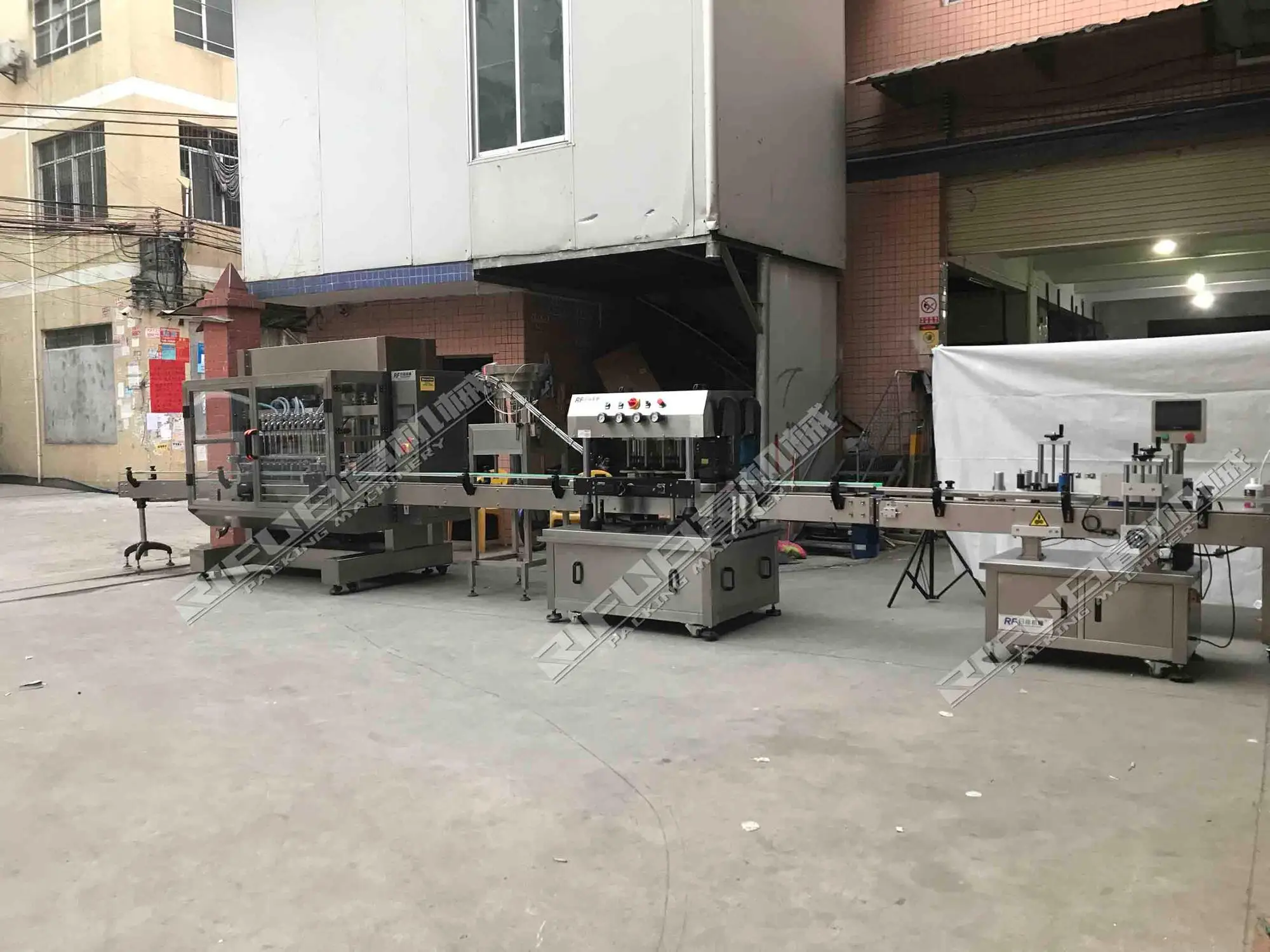

Filling Capping and Labeling Machine
This equipment is set of filling, capping, labeling machine. It is mainly used for filling, capping and labeling various bottled oil type products. Suitable for small-scale and big volume various oil type products production Packaging.Good universality, high stability, durability. It is widely used in various fields, High quality products need high quality packaging.
Main Features
1. Easy to run. It only take a few minutes to change to fill different filling products.
2. Ensure filling products quality.
3. Automatic Feeding Bottles.
4. Automatic Sorting Caps
5. Automatic Feeding Caps
6. Automatic Capping Caps
7.Automatic Labeling bottles
Technical Parameters
Model | GFB-12L |
Filling heads | 12heads(Customizable) |
Filling range | 50～1000ml(Customizable) |
Filling speed | 3000 bottles/hour (take 100ml water as test) |
Measurement accuracy | ±1% |
Power, voltage | 50/60Hz, AC220/380V |
Air consumption | 0.5-0.7Mpa |
Dimension | 2000mm(L) x 1200mm(W) x 2500mm(H) |
Net weight | 850kg |
Detailed Images

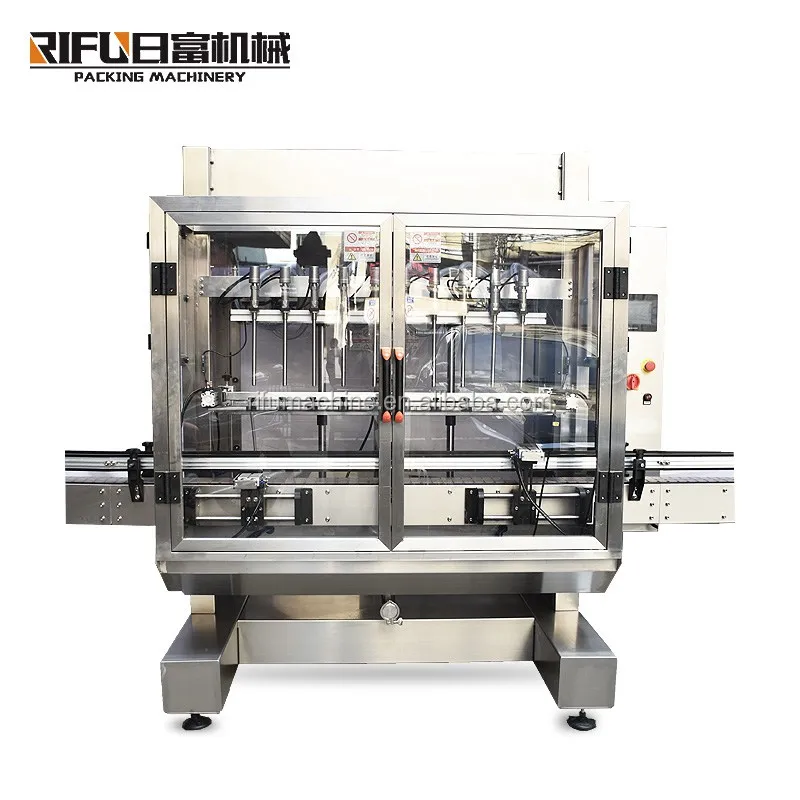

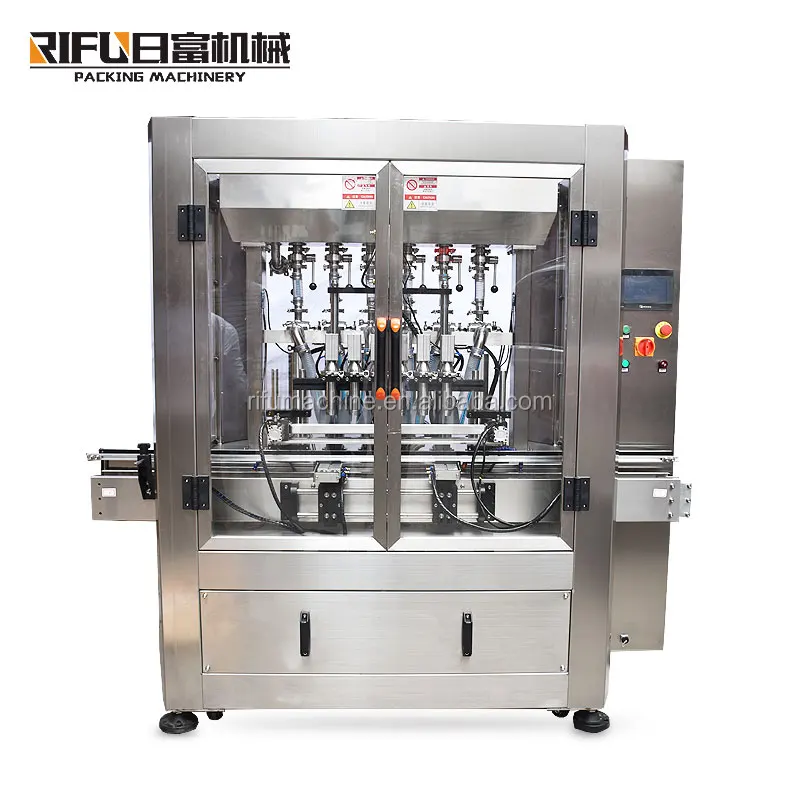

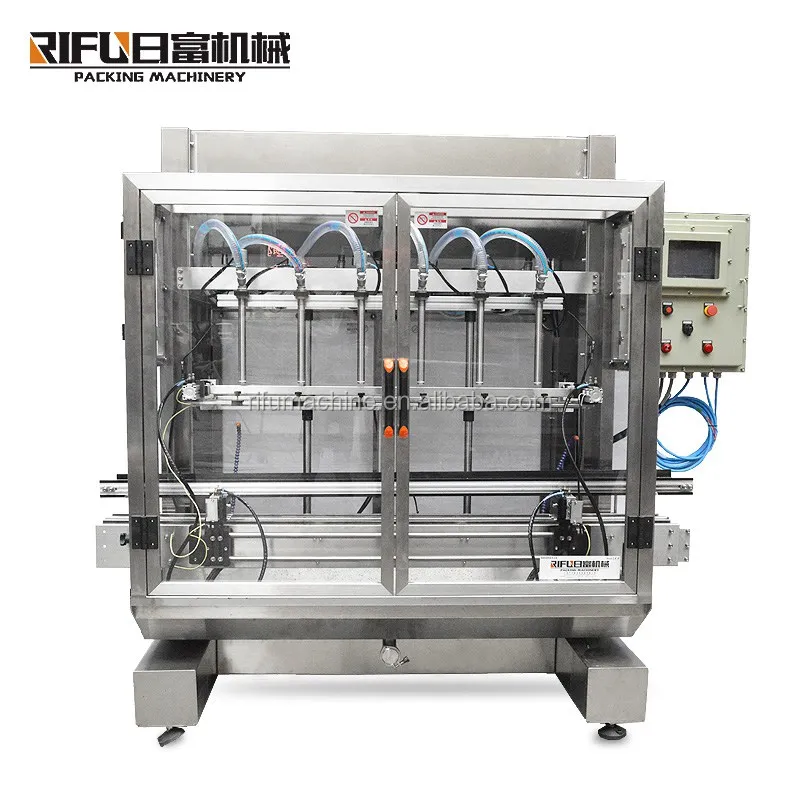

Name | Automatic filling machine |
Filling head | 2,3,4,5,6,8.10,12,14,( can be customized,price is different) |
Filling volume | 100-10000ml |
Measurement accuracy | ≤0.2% |
Voltage | AC220v/380V 50/60Hz |
Power | 1KW |
Name | Automatic capping machine with vibrating bowl |
Production capacity | 2040bpm |
Cap feeding | Automatic feeding |
Bottle and cap size | can be customized and adjustable |
Power | 1.5KW |
Voltage | 220V/50HZ |
Name | Automatic labeling machine |
Supply Power | AC220V 50Hz |
Power | 1.5KW |
Label range | H15-220 L20～300 (can be customized) |
The Application of Products (mm) | W12-230H30-370(can be customized) |
Label Accuracy(mm) | ±1.0 |
Technical support
How to choose filling machine?
There are many different technologies and capacities of filling machines available on the world market. It is possible to fill many products on more than one type of filling machine. Choosing the best liquid filling machine for your application is a complex decision based on a host of factors including product characteristics, container characteristics, fill size, daily production needs, plant environment, regulatory issues and hardware cost versus performance.There are many types of filling machine,piston filling machine,gravity filling machine,weighing filling machine,overflow filling machine and so on.And several factors can help you to judge which filling machine is suitable for your product.
1.Liquid viscosity
2.Corrisive
3.Foamy
4.Explosion proof
5.Silk or drop
You can refer to the following chart.
A=excellent B=good C=fair or unlikely D=poor N/A=not available
Product characteristic | Gravity filler | Overflow filler | Piston filler | Weight filler |
Thin liquid | A | A | A | A |
Medium viscosity | C | B | A | B |
Viscous liquid | N/A | C | A | D |
High viscosity liquid | N/A | D | B | A |
Dry power or granule | N/A | N/A | N/A | A |
Product with particulate | C | C | A | A |
Chunky product | D | C | A | A |
Thin and foamy | A | B | B | B |
Pharmaceutical/Lab use | A | B | A | A |
Hot fill temperature | B | A | A | B |
Food grade | A | A | A | A |
Corrosive product | A | A | A | B |
Corrosive product with fumes | A | A | B | C |
Flammable/combustible | A | A | A | C |
Packing & Delivery

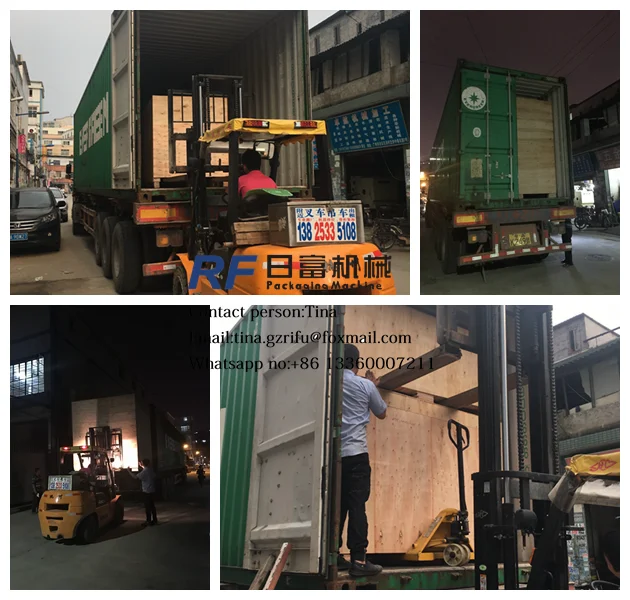

Packaging Detail:
1.Outside package:Standard export wooden cases
2.Inner packag:Stretch film
Our Company
Order guide
There are many types of filling machine,we need to know more details about your products in order that we can recommend the most suitable machine for you.Our questions as below:
1.What's your product?Please send one picture to us.
2.Packaging type?Bottle,pail or bag?Please tell us the size too.
3. What is weight or bulk?
4.Do you have requirement of capacity?
FAQ
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How do you offer technical support?
A4: 1.Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
Q5:How do you work your after sales service?
A5:Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.
