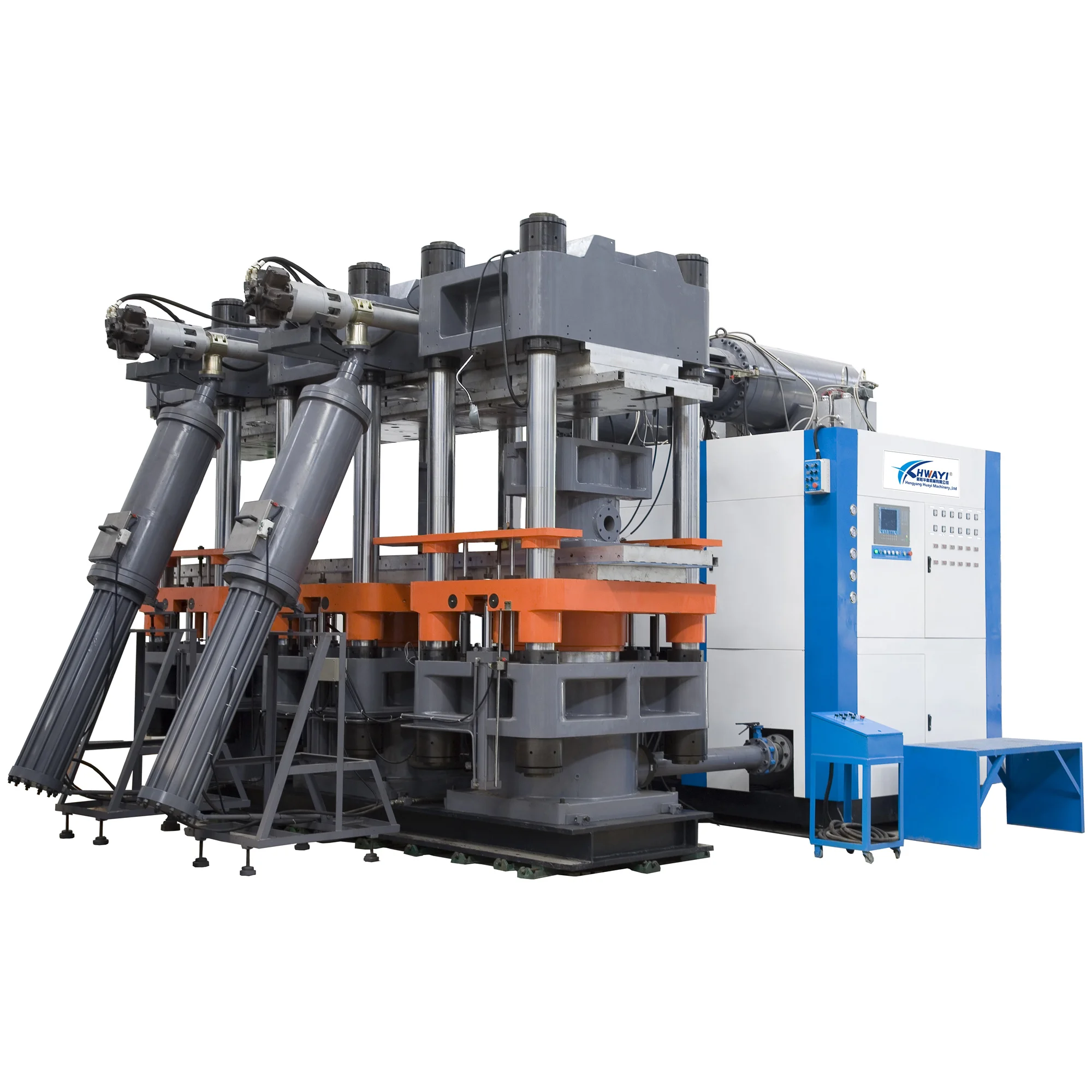

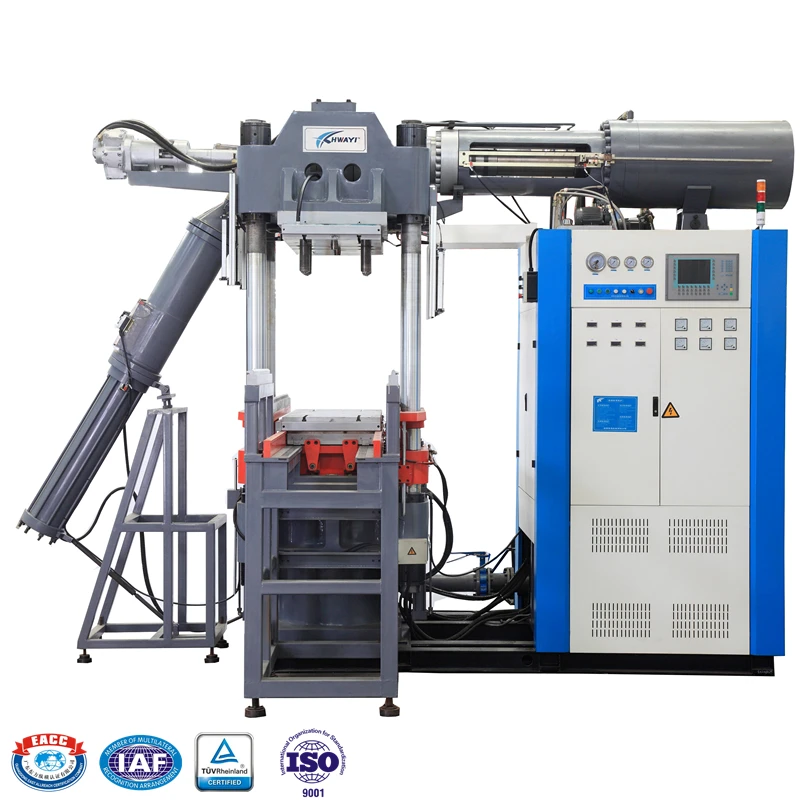

Composite insulators injection machine 650ton for making middle voltage composite insulators
- Category: >>>
- Supplier: HENGYANG HUAYI MACHINERY CO. LTD.
Share on (60737370767):
Product Overview
Description
Product Overviews
| Machine Model: | HYZ-650B | Machine PLC Brand: | SIEMENS |
| Injection Volume(CC): | 20000CC | Other options: | |
| Clamping Force(KN): | 6500 | With Sliding Function(Yes/No): | YES |
| Heating Platen Size(WxL)(MM) | 650X1600 | Sliding Stroke With Sliding Function: | 800 |
| Space Btwn Platens(MM): | 1200 | With Side Ejector(Yes/No): | NO |
| Max.Clamping Stroke(MM): | 700 | With Lower Clapper(YES/No): | NO |
| Min.Mold Thickness(MM): | 510 | With Lower Supporter(YES/No): | YES |
| Heating Power(KW): | 45 | With Tilting(YES/No): | YES |
| Motor Power(KW) | 40 | With Upper Lifter(YES/No): | YES |
| Total Power(KW) | 80 | With Stuffer | YES |
| System Pressure(Mpa) | 17 | ||
| Machine Size(LxWxH)(MM) | 5300X2500X3800 | ||
| Machine Reference Weight(Ton): | 22 |
China biggest rubber injection molding machine maker, focus on rubber injection machine since 2001 !
Package & Shipping
Company Information
Hengyang Huayi Machinery Co., Ltd., a Hong Kong invested high-tech enterprises in Hunan Province, who have been concentrated on rubber injection molding machine R&D since 2001. We are the biggest manufacturer of rubber products making machineswith the excellent R&D and largest production capacity in China
Our main products as below:
1, Rubber Injection Molding Machine(Silicone Rubber Injection Machine, TPE Rubber Injection Machine)
2, Rubber Transfer Press ( Rubber Transfer Molding Machine)
3, Rubber Vacuum Vulcanizing press (Rubber Compression Molding Machine)
4, LSR Clamping Machine&pump machine, rubber jointing machine, and electrical insulators molds.
Now our machines are widely used in electric power, high voltage transmission, automotive rubber parts, railway infrastructure and mechanical seals and other industries.
