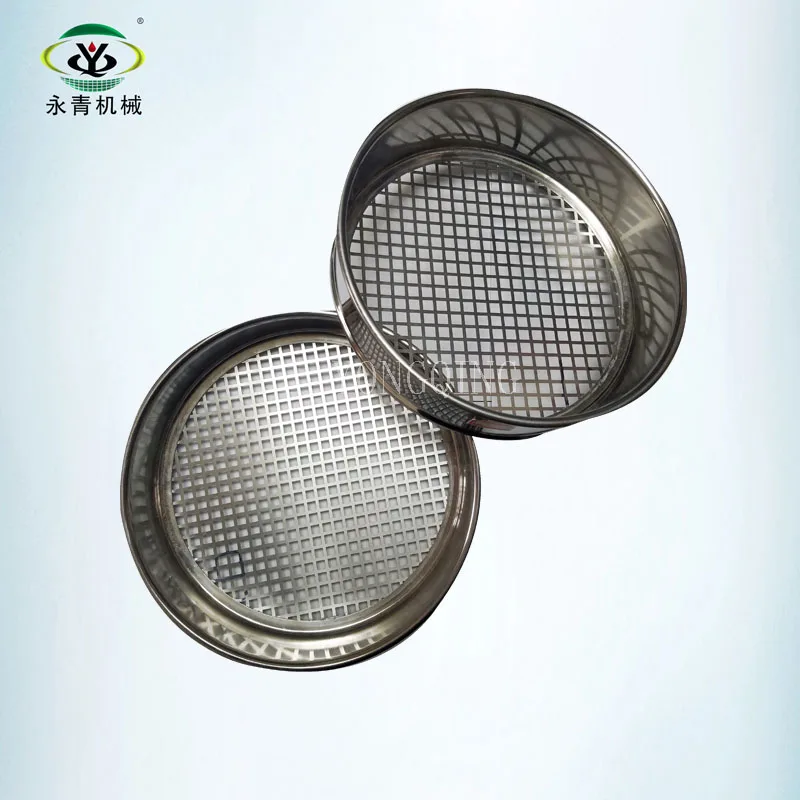

ASTM Standard lab Woven Wire Mesh Copper Test Sieve
- Category: >>>
- Supplier: Xinxiang Yongqing Screen Machine Co. Ltd.
Share on (60737621403):
Product Overview
Description
ASTM Standard lab Woven Wire Mesh Copper Test Sieve

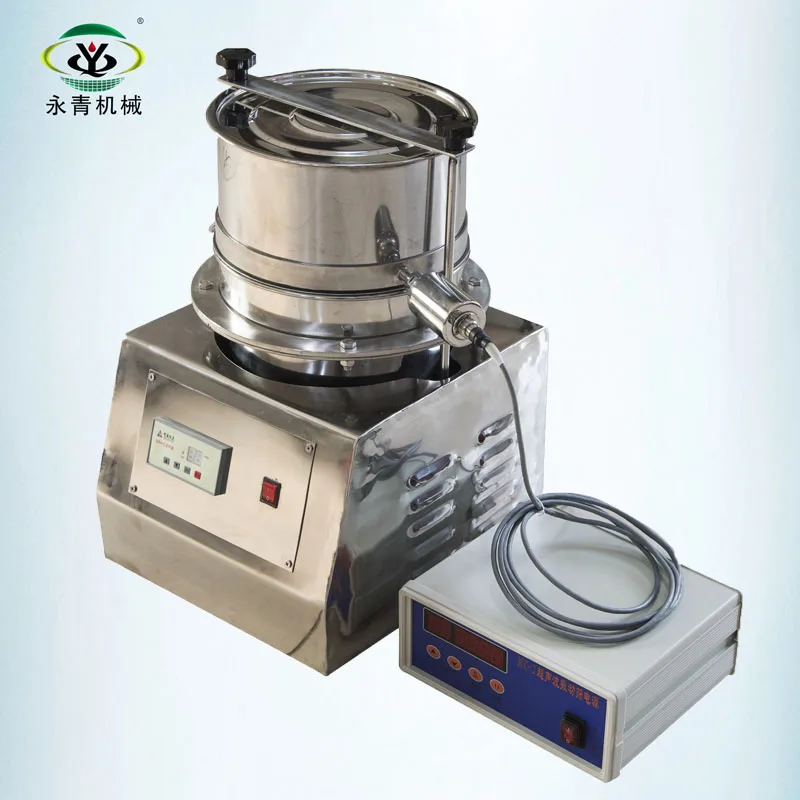

Lab test sieve Introduction:
Our test sieve shaker, as a standard lab sieving machine, can be used for grading powder and granule, and filtering fluid in laboratories and testing rooms. With this filtering device, you can precisely analyze the granularity and powdery materials, and determine the solid content and impurity content in fluids.

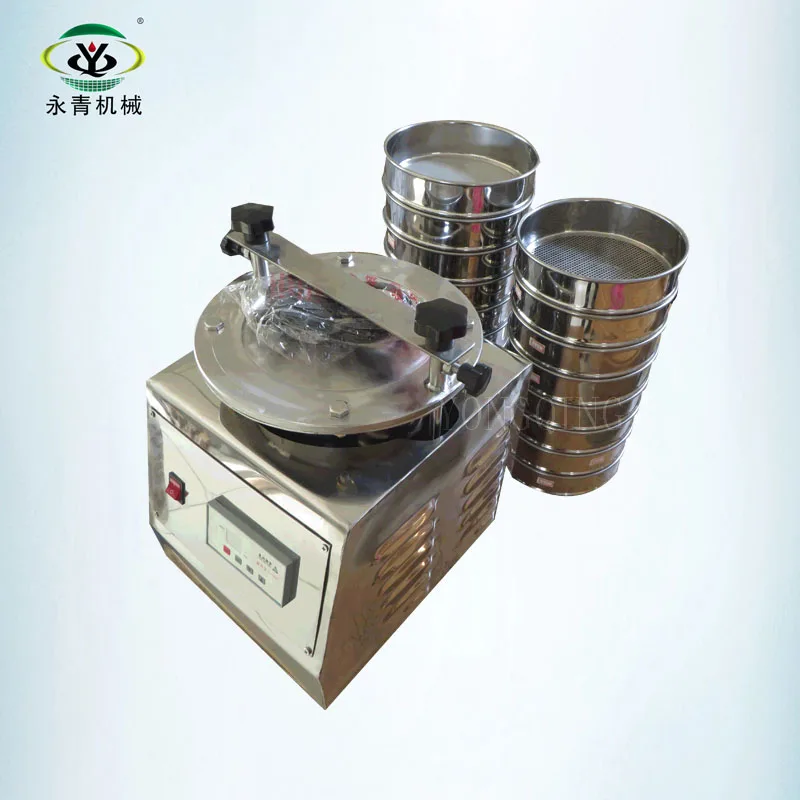

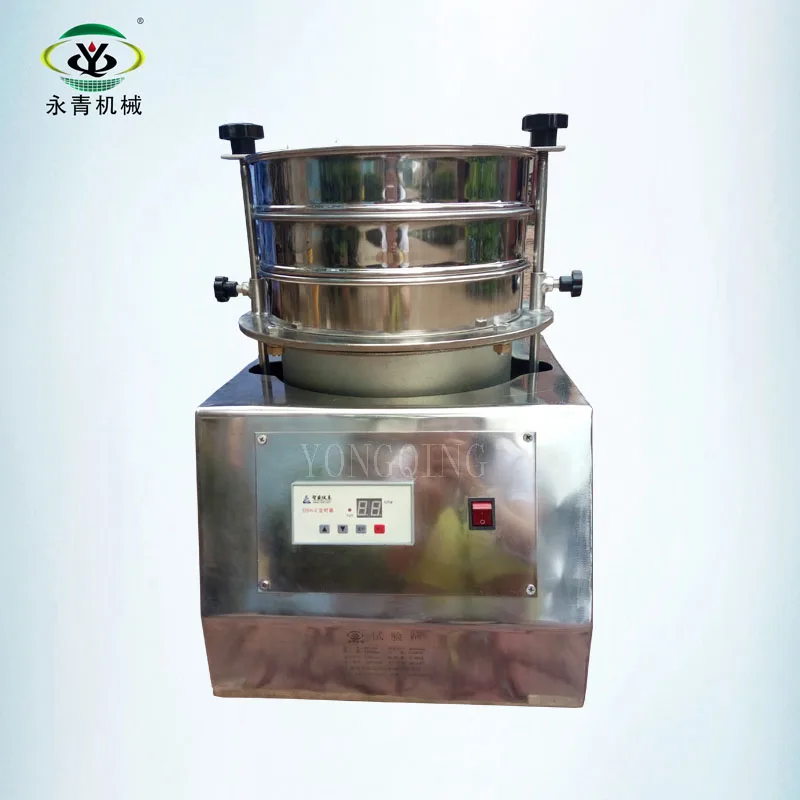

SY-200 vibration sieve analysis equipment | ||
NO | Index | parameter |
1 | Brand name | YongQing (china OEM) |
2 | Model | SY-200 Lab test sieve shaker machine |
3 | Layers | 1-5 layers available |

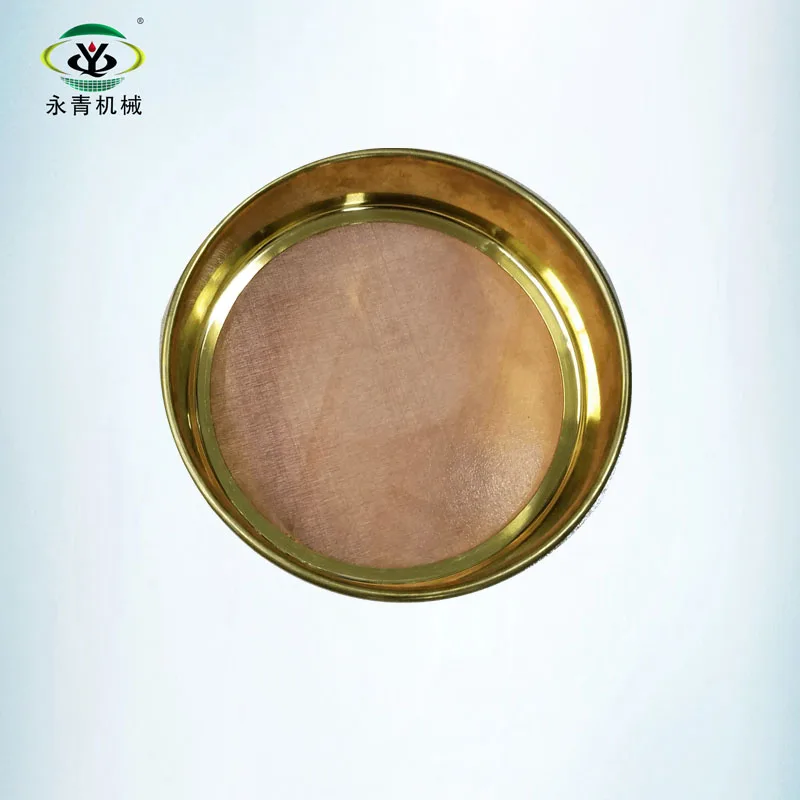

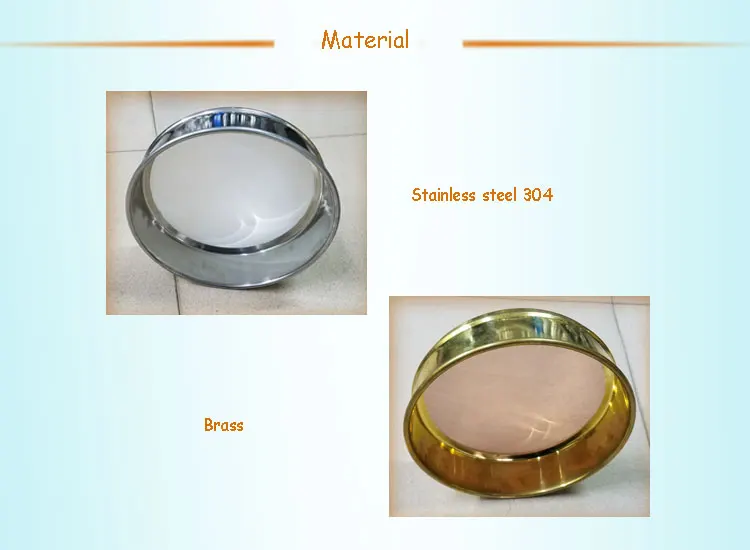

4 | Materials | Stainless steel 304 or 316 or brass |
5 | Voltage | 220/240V |
6 | Power | 0.12KW |
7 | Capacity | ≤2kg per time |
8 | Rotation time | 1440RPM |
9 | Low Noise | 50db |
10 | Dimension | 320*340*400mm |
11 | Amplitude | ≤5mm |

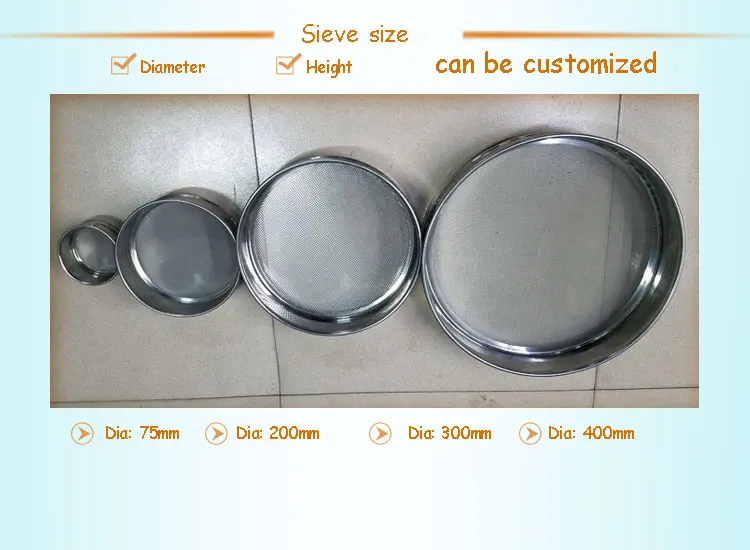

12 | diameter | 200 or 300mm |
13 | Mesh size | 2-500mesh or 0.025mm-20mm |
14 | Weight | 40kg |
15 | Usage | Classification, particle size distribution |
16 | packing | standard export wooden cases |
17 | rotation times | 1440rpm |
18 | vibrating motor | 50or 60hz single or 3 phase |
19 | voltage | 220/240/380/415/450V available |
20 | 2017 repairing ratio | 0.024% |
21 | certificate | CE and ISO |
Screen mesh of SY-300 Laboratory Test Sieve | ||
Screen Mesh | Size(mm) | Screen Frame Diameter(mm) |
7mesh | 2.5 |
Stainless steel 304 material
Diameter: 200mm/300mm |
8mesh | 2.36 | |
10mesh | 2 | |
12mesh | 1.7 | |
14mesh | 1.4 | |
16mesh | 1.18 | |
18mesh | 1 | |
20mesh | 0.85 | |
25mesh | 0.71 | |
30mesh | 0.6 | |
35mesh | 0.5 | |
| 0.45 | |
40mesh | 0.425 | |
| 0.4 | |
45mesh | 0.355 | |
| 0.315 | |
50mesh | 0.3 | |
60mesh | 0.25 | |
70mesh | 0.212 | |
80mesh | 0.18 | |
90mesh | 0.16 | |
100mesh | 0.15 | |
120mesh | 0.125 | |
140mesh | 0.106 | |
150mesh | 0.1 | |
170mesh | 0.09 | |
180mesh | 0.08 | |
200mesh | 0.075 | |
220mesh | 0.071 | |
230mesh | 0.063 | |
250mesh | 0.06 | |
270mesh | 0.053 | |
300mesh | 0.05 | |
325mesh | 0.045 | |
363mesh | 0.04 | |
400mesh | 0.038 | |
| 0.028 | |
500mesh | 0.025 | |
600mesh | 0.02 | |
800mesh | 0.015/0.018 | |
1000mesh | 0.01 | |

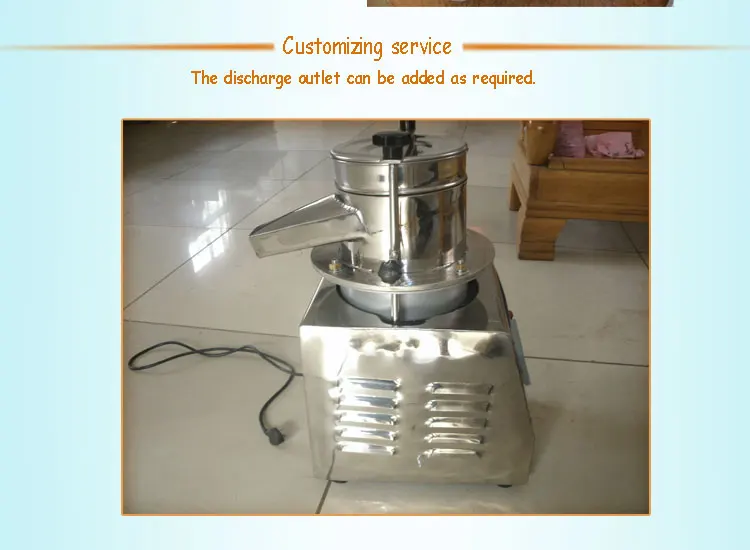

Customizing service is available. | ||
