PV copper nickel one touch air pipe fitting formula 90 degree elbow equal connector
- Category: >>>
- Supplier: Zhejiang Jinzhi Pneumatic Technology Co. Ltd.
Share on (60737631539):
Product Overview
Description
PV copper nickel one-touch air pipe fitting formula 90 degree elbow equal connector
Product Description

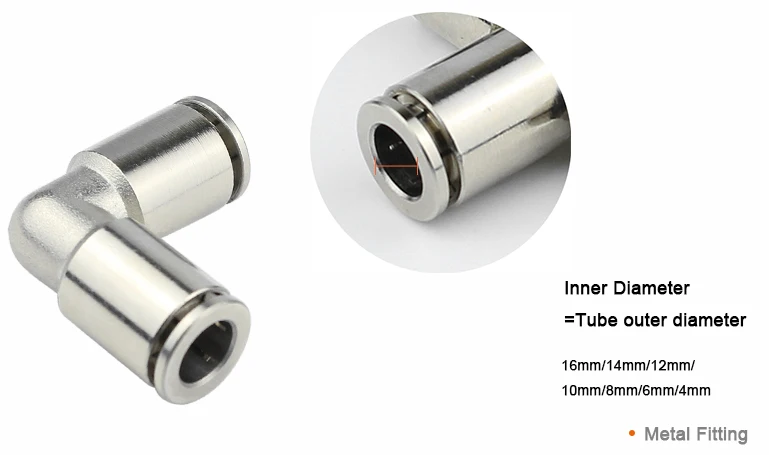

| Tube Diameter | Φ4 Φ6 Φ8 Φ10 Φ12 |
| Working Medium | Air |
| Working Pressure | 0.095-2.5 MPa |
| Proof Pressure | 1.6 Mpa |
| Proof Vacuum Pressure | -100Kpa(10Torr) |
| Working Temp | -30℃~100℃ |
| Material | Brass with nickle plated |

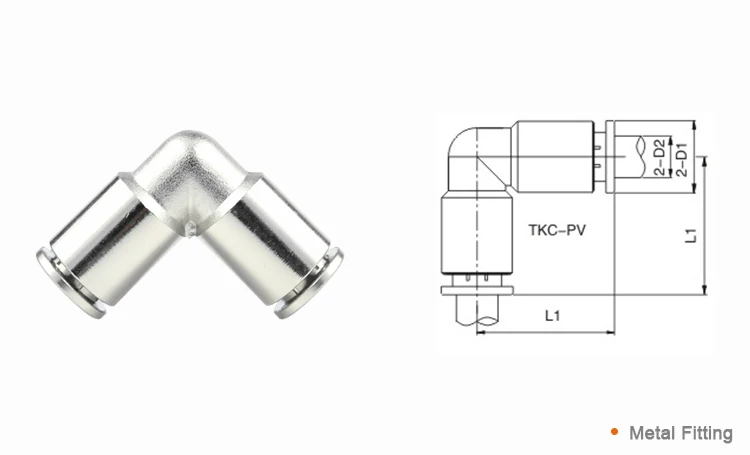

| Model | L1 | D1 | D2 |
| 4 | 17.5 | Φ8 | Φ4 |
| 6 | 24 | Φ12 | Φ6 |
| 8 | 56.5 | Φ14 | Φ8 |
| 10 | 31 | Φ16 | Φ10 |
| 12 | 32.5 | Φ18 | Φ12 |
| 14 | 37 | Φ21 | Φ14 |
| 16 | 37 | Φ23 | Φ16 |
Send inquiry now!
Company Information
Production Flow
Packaging & Shipping
Payment
FAQ
Q1. Are you manufacturer or trading company?
A1. We are the manufacturer mainly producing fitting, cylinder,tube with good quality.
Q2. What’s the delivery time ?
A3. Normal model 1-3days,because we have ability to do the stock.For big order,it takes about 10-15days.
Q3. What is the standard of package?
A4. Export standard package or special package according to customer requirement.
Q4. what kind of product quality your factory offer?
A5. We are the suppliers of the top three pneumatic company.We offer top quality to help client to get more market.
Q5. Do you accept OEM business?
A6. We do OEM .
Q6. Which market do you already sell?
A7. We already ship to Middle East, Asia, South America , Afria etc.
