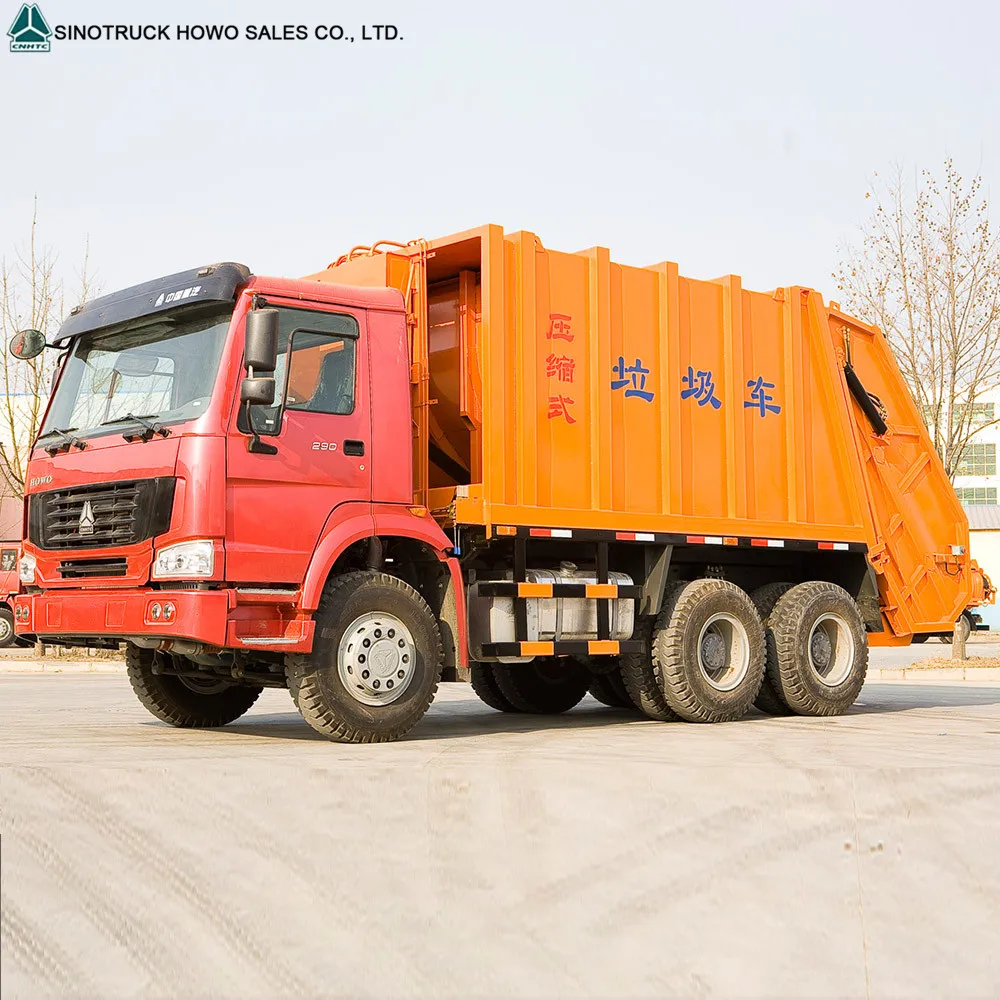

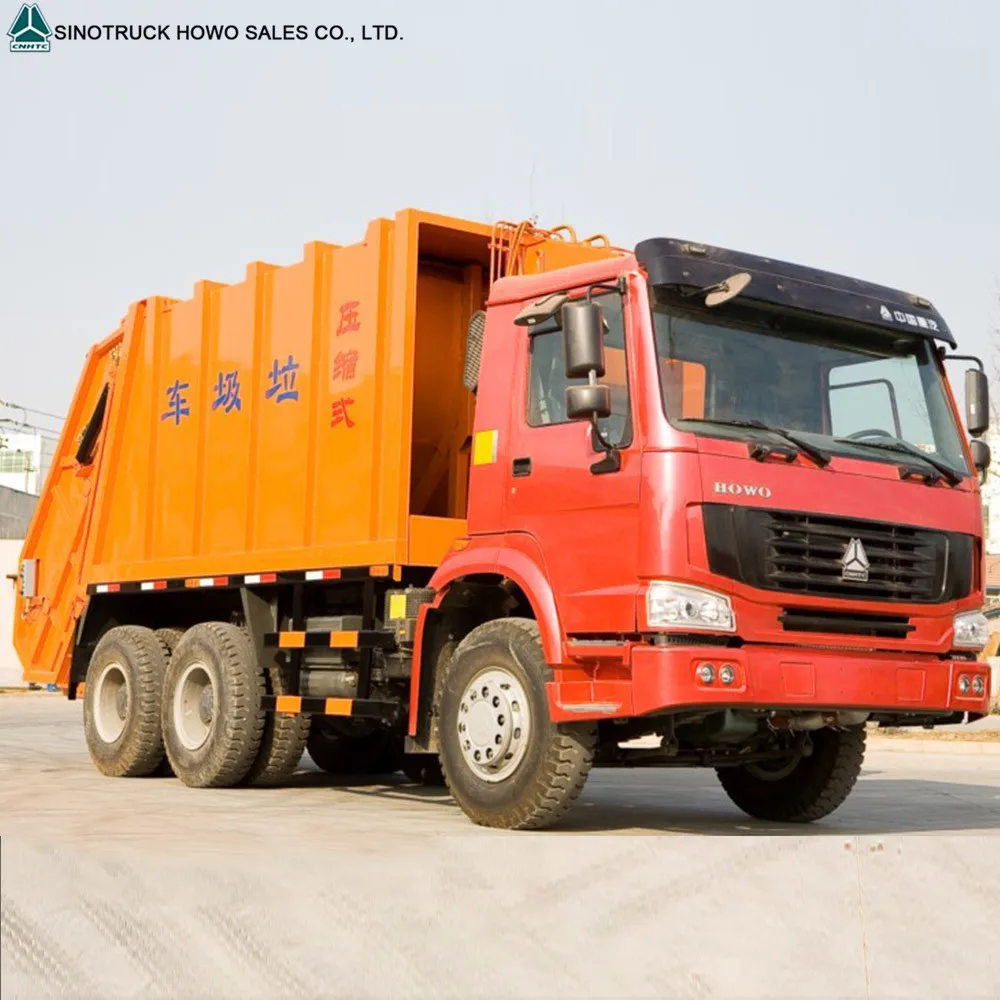

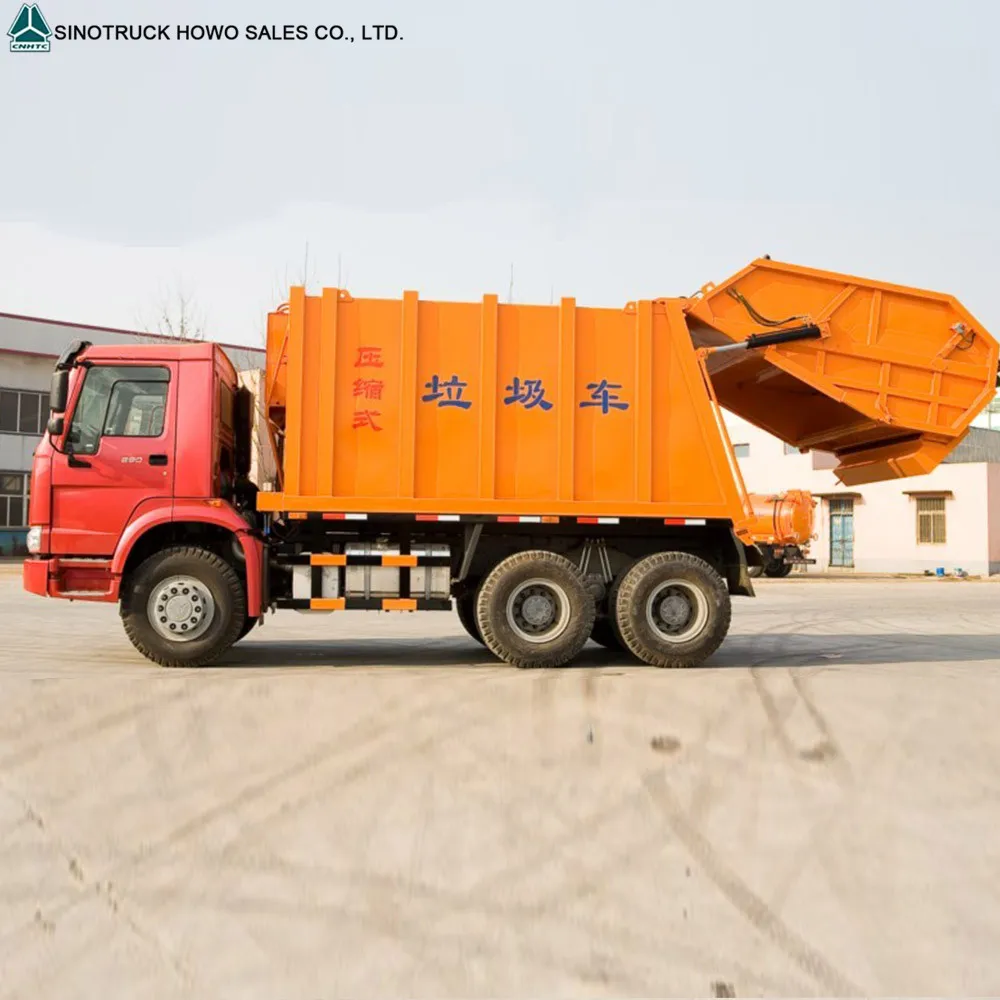

HOWO New Power Wheel Garbage Truck Left Hand Driving 336hp 20 cubic meters Refuse Compactor Truck
- Category: Municipal & Environmental Machinery >>>
- Supplier: Shandong Chengda Auto Sales Co. Ltd.
Share on (60737732747):
Product Overview
Description
HOWO New Power Wheel Garbage Truck Left Hand Driving 336hp 20 cubic meters Refuse Compactor Truck
Product Description
SINOTRUK 6X4 20CBM Refuse Compactor Truck
Truck model | SINOTRUK 6X4 290HP 20CBM garbage truck |
Chassis | ZZ1257N3847C |
Engine
| Make: SINOTRUK Diesel:4-stroke direct injection diesel engine Engine model:WD615.96,EuroⅡemission standard 6-cylinder in-line with water cooling, turbo-charging and intercooling Maximum output:290 hp (276KW)at 2600 rpm Maximum torque:1100 Nm at 1100-1600 rpm Number of cylinder :6 Displacement:9.726 L Bore:126mm Stroke:130mm Compression ratio:17.5:1 Specific fuel consumption:198g/KWh Engine oil filling quantity:19L Cooling system filling quantity(long-term filling):40 L Thermostat with 71℃ opening begin Single cylinder air compressor Rigid fan |
Clutch | 430C Pull type diaphragm spring clutch. Friction disk diameter: 430mm
|
Transmission | HW19710,10 forward & 2 reverse. |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Front Axle | HF9 |
Rear Axle | HC16 Central single reduction, full-floating axle shaft, steel plate press-welding axle housing. |
Chassis | Frame :U-profile parallel ladder frame with section of 300×80×8 mm, all cold riveted cross members Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspention: 15 leaf semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers Aluminum fuel tank: 300 l capacity with locking fuel cap, fitted to the off side of the chassis |
Steering | ZF8098,hydraulic steering with power assistance. |
Brakes | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS |
Wheels & Tyres | Rims:8.5-20,10 hole-steel Tyres:12.00-20 |
Electrics | Operating voltage:24 V, negative grounded Starter:24 V,7.5Kw Alternator:28 V,1500 W Batteries:2×12 V,165Ah Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light |
Dimensions mm | Wheel base: 3800+1400 Front wheel track: 2022/2041 Rear wheel track: 1830/1830 Front overhang: 1500 Rear overhang: 2690 Approach angle(°): 19 Departure angle(°): 15 Overall dimension(L x W x H mm): 9695X2496X3490 |
Weight kg | Dead weight: 10200 Gross vehicle weight: 25000 |
Performance | Maximum driving speed(km/h):90 Maximum gradeability(%):39 Minimum ground clearance(mm):298 Minimum turning circle(m):18.6 Fuel consumption(1/100km):26 |
Body | Volume of body(m3): 20 Volume of filler(m3):2.0 Time of one filling cycle(s):≤25 Lifting time of filler (s):8-10 Time of discharge (s):≤40 Pressure of fluid system (Mpa):20 |

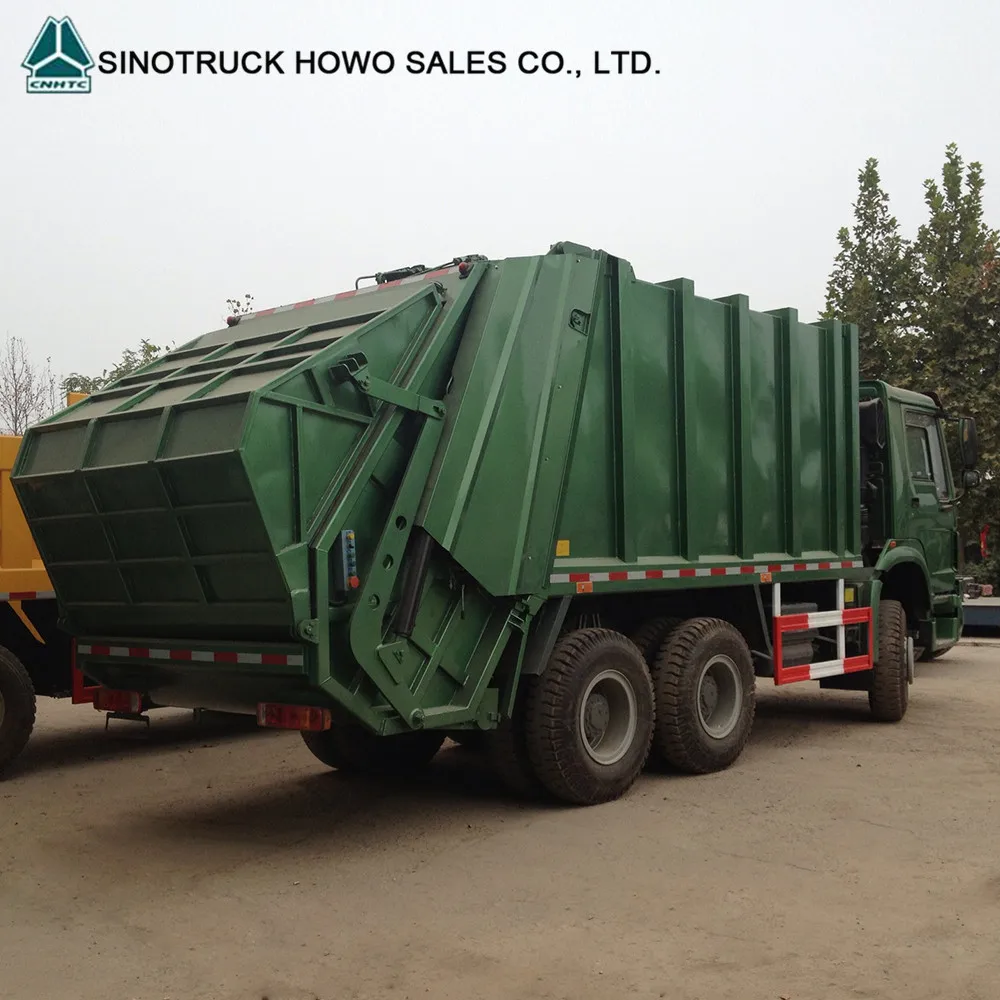

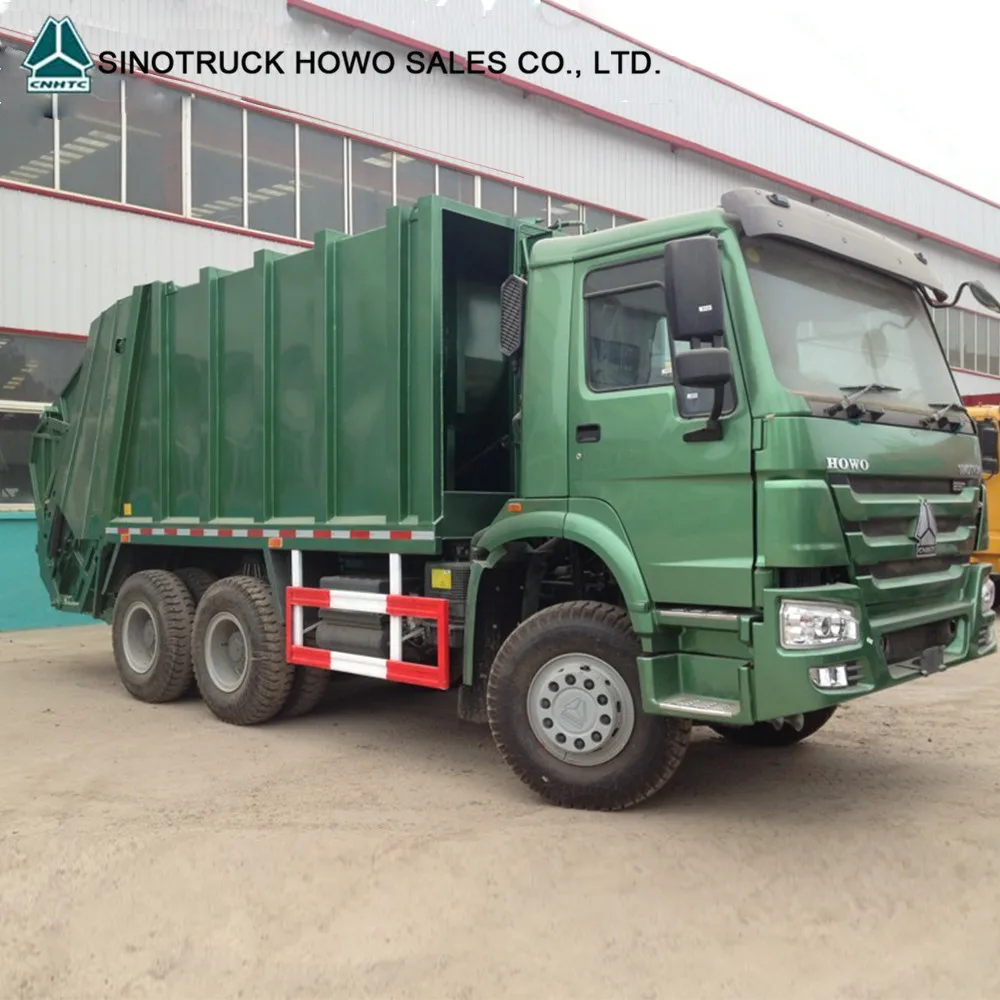

Details of Product
Drawing of SINOTRUK HOWO 4*2 Refuse Compactor Truck
Packaging & Shipping
Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Related Trucks
Our Services
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer’s design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different kinds of semi trailer can be provided with competitive price.
We can supply kinds of service to customers according to customers' request:
1,We Will Check Again Before delivery or Shipping. We must guarantee our trucks or trailers perfect and pictures will taken and sent to our customers.
2,Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, XCMG, ZOOMLION, SHACMAN, SHANTUI, DONGFENG and so on.
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
