plastic 15L 20L liter paint bucket lid cover Servo motor injection moulding molding making machine price

Product Overview

Description

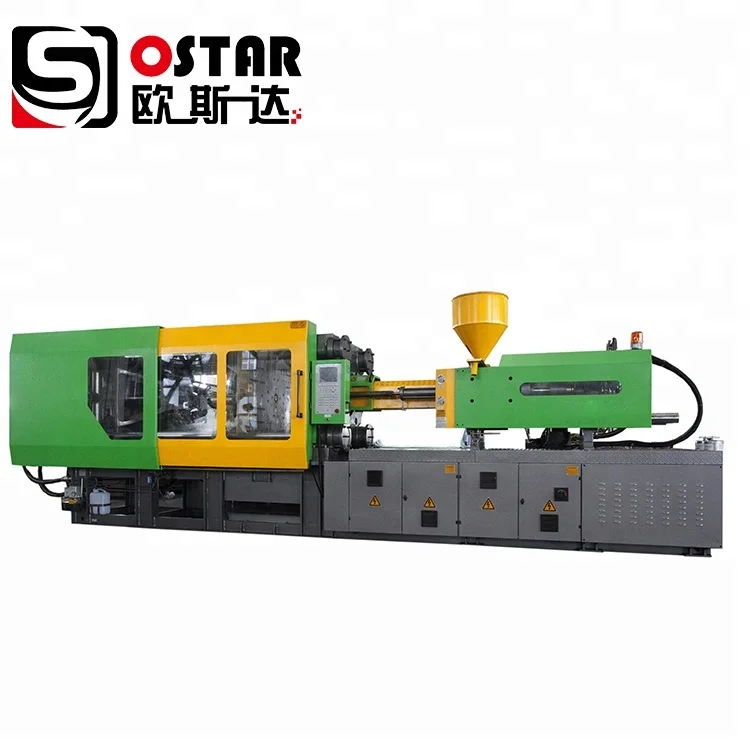

Products Name: plastic crate 20 liter paint bucket injection moulding molding making machine price

Plastic Crate and bucket photos:

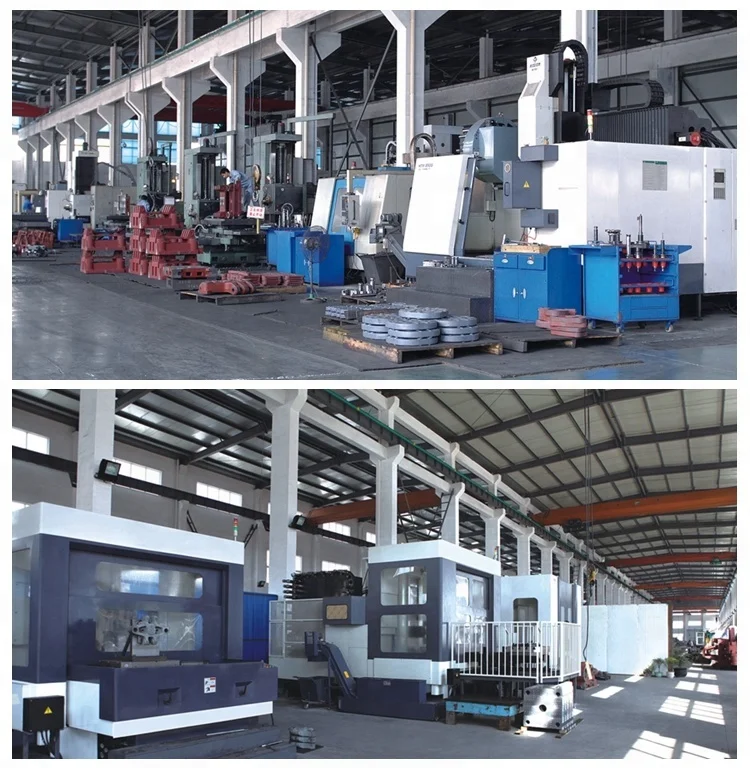

Company Introducation:

Zhangjiagang Ostar Machinery Co. Ltd, one of the professional manufacturer for plastic injection molding machine in China, focus on machine manufacturing, developing and sales. Company founded in 2000, mainly on plastic injection molding machine, mold and related auxiliary, our main purpose is to offer top quality machine, professional service, growing together with our customers.



  Ostar Machinery manufacture machines from 70T to 2000T, injection weight from 50g to 10000g, more than 30 different model machines, over 1500sets machine output ability yearly. Due to continually developing innovation and technological improvement, our machines has exported worldwide, with a good reputation all around world.



Related Products

Machine Features:

1) Precision hydraulic synchronous template adjusting system

2) Optimal design of high-strength precision clamping structure, Clamping unit rigidity and accuracy

3) Large colorful screen high-precision computer system, precision control, easily operation, multi operation language available. High-precision displacement sensor system, temperature control accuracy, big capacity data storage and date protection ability

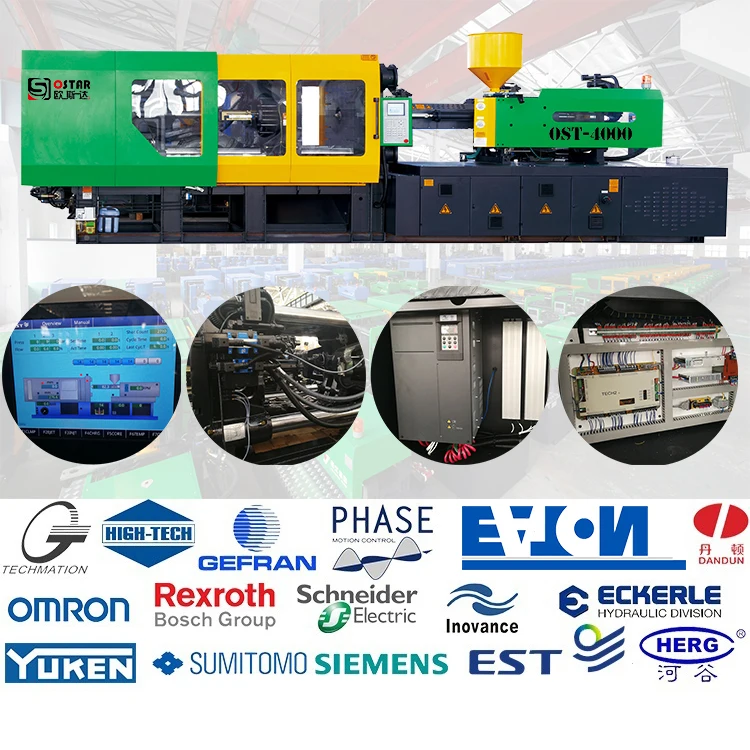

4) World famous brand electrical system

5) Balanced type of double injection cylinder, eliminate oblique torque, diminishes deformation of screw and barrel, extend life of screw and barrel, optimizes plasticizing effect. Machine injection under multi-pressure and at various speed, with big capacity hydraulic motor.

6) Large torque oil motor

7) Highly abrasion resistant alloy sliding block

8) The integrate type oil detachable oil tank, magnetic filter and bypass strainer. Reasonable and highly efficient lubrication system. Modularized energy conservation high response oil system

9) Highly precise transducer, multi-stage control of opening stroke, speed and position. Flexible tie bars nut eliminate fatigue fracture, assure tie bars long working life.

10) Security door fitted with hydraulic, mechanical and electrical interlocking triple safety device, fully protect machine operator.

11) Energy saving system, no extra energy consumption due to output volume changes according to load alteration. During stage of holding pressure, servo motor lower down energy consumption, 0 energy consumption during machine cooling stage, save 20%-80% energy consumption compare with standard machine.

MachineSpecificatio:

MACHINE MODEL	UNIT	OST-4800
INJECTION DEVICE
SCREW DIAMETER	MM	75	80	85
SCREW DOAMETER RATIO	L/D	23.5	22	20.7
THEORETICAL SHOT VOLUME	CM3	1876	2135	2410
INJECTION WEIGHT ( PS)	G	1707	1943	2193
INJECTION RATE ( PS)	G/S	391	445	502
INJECTION PRESSURE	MPA	179	158	140
PLASTICIZING CAPACITY( PS)	G/S	51	57.4	65.4
SCREW SPEED	RPM	120
CLAMPING UNIT
CLAMPING FORCE	KN	4800
TOGGLE STROKE	MM	770
SPACE BETWEEN TIE-BARS	MM	780X780
MIN-MAX MOULD THICKNESS	MM	320-780
EJETION STROKE	MM	200
EJECTING FORCE	KN	110
EJECTOR NUMBER	PC	13
OTHER
MAXIMUM SYSTEM PRESSURE	MPA	16
OIL PUMP MOTOR POWER	KW	45( 23+23)
HEATER POWER	KW	37
OIL TANK CAPACITY	KG	800
OVERALL DIMENSION (ROUGH )	MM	8300X1865X2505
MACHINE WEIGHT ( ROUGH )	TONS	18



Plastic crate making machine, plastic bucket injection molding machine
