19inch transparent lcd display screens interactive freezer transparent lcd panel
- Category: >>>
- Supplier: Shenzhen Yama Technology Co. Ltd.
Share on (60737801990):
Product Overview
Description
transparent lcd display screens interactive freezer transparent lcd panel
Product Description

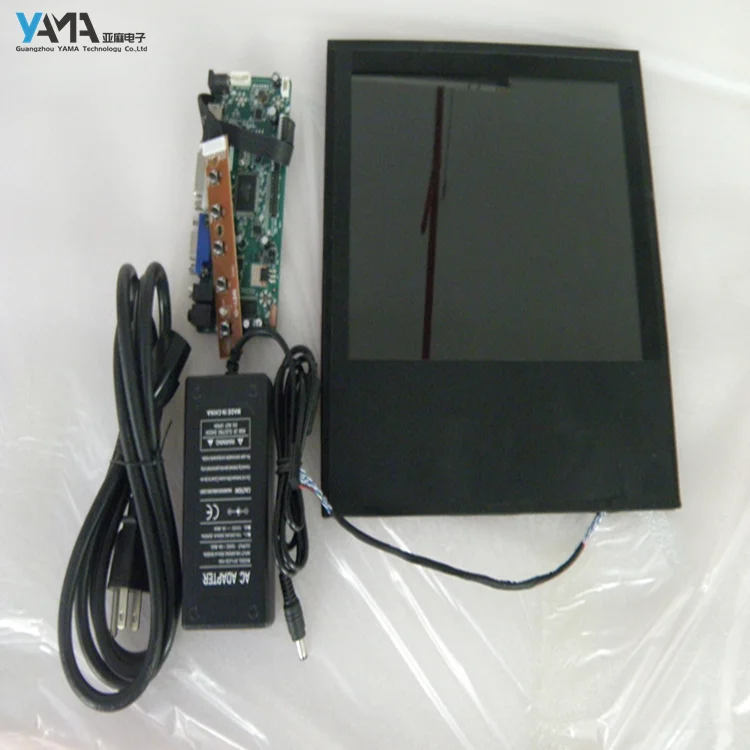

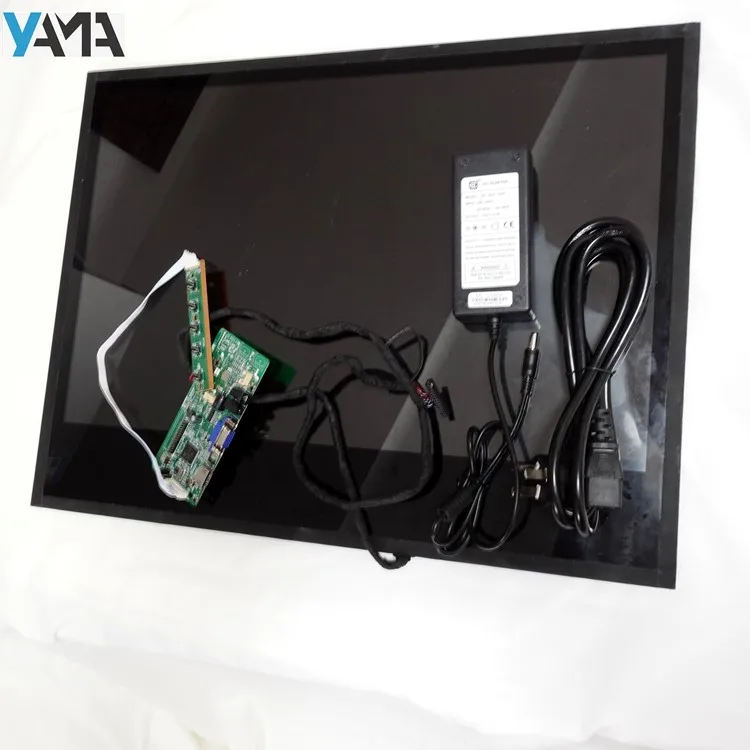

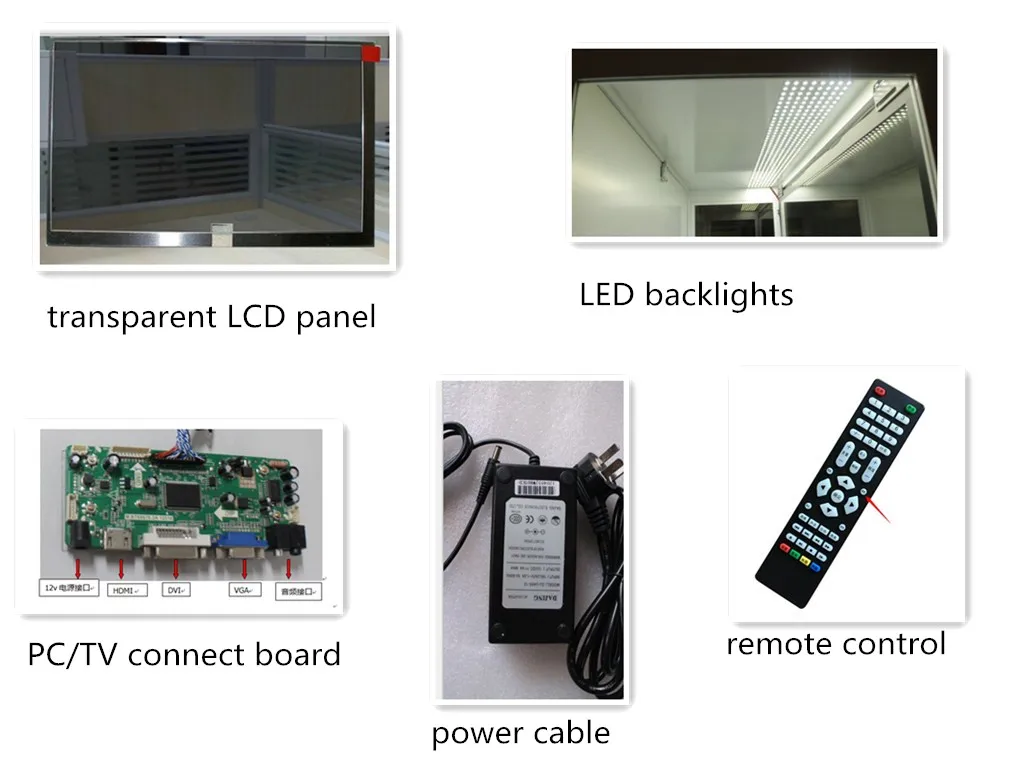

Bare transparent display screen (including all accessories:driver board, power supply, remote control, LED light bar).

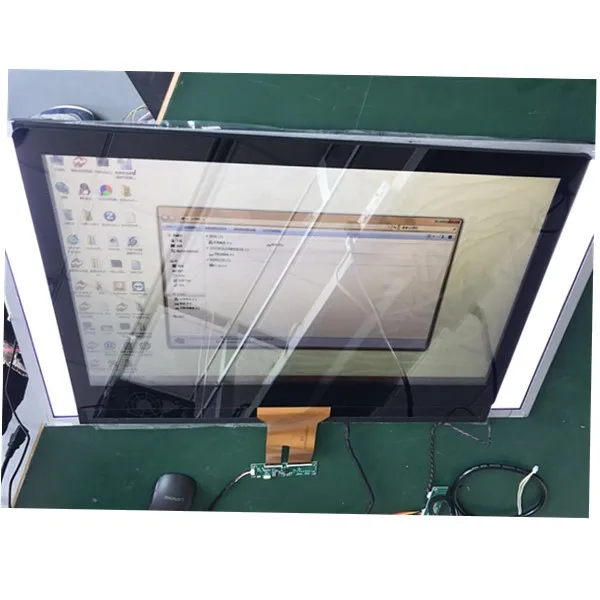

Transparent LCD screen picture(border color can be customized):
It can be dubbed into the whole transparent LCD screen advertising display’s picture(cabinet color can be customized):
transparent LCD panel features:
*lifespan:7years
*Transparent LCD panel size options:
9'', 10.4'',12.1'',15'',17'',17.3‘’,19'', 21.5'',22'',22'',23.6'',27'',32'',42'',46'',50'',55'',65'',70'',82''
*touch options:IR touch or touch foil touch
*structure: Two tempered glass to protect transparent display, the middle is the transparent display
need electricity display
*transparent display doesn’t have brightness for itself, so need electricity to work with LED lights to transparent display, the transparency is 70%~80%, the picture is clear(without LED lights, it can electricity display, but the transparency is only about 10%~20%, the picture is dim and can’t see clearly all )
19inch transparent lcd panel
| 19 inch |
Screen brand | AUO,LG,SHARP |
Panel Resolution | 1440*900(16:9) |
Viewing Angle | 85/85/85/85(L/R/U/D) |
Transparent | 75-85%(Cooperate with LED lamp box) |
Color Gamut | 72% |
Color | 16.7M |
Scan rate | 60Hz-75Hz |
Brightness | 0 cd/m2 |
Signal interface | LVDS |
Lamp type | NO |
Contrast Ratio | 1000:1 |
Response Time | 7.7/10.8ms |
Operating Temp | 0°~50° |

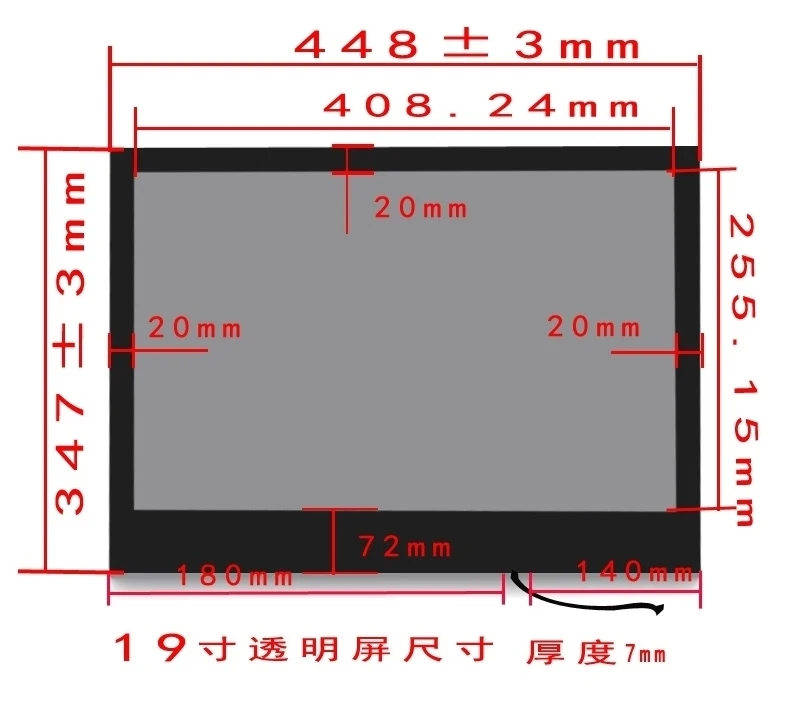

Active Area | 408.24*255.15mm |
Screen size±3mm) | 448mm*347mm*7mm &2.1Kg |
Mains | 12V/ 3.3A |
Accessories connect board options:
1)TV board: LVDS,USB,Power,DVD video interface,TV,audio interface.
2)PC high resolution board:LVDS,USB,VGA,Audio interface.
3)Stand-alone play board: LVDS,CF,USB.
4)Android motherboard:LVDS,USB,CF,VGA,network interface.
TV play board function parameters
Support Audio/Video Coding Format | MEPG4(AVI, DIVX, XVID),MEPG2(DVD, VOB, mpeg), MEPG1(VCD, DAT, MPG),MP3,JPG ,BMP,GIF,PNG |
Slide Show | Support background music when playing picture |
Interface Language | Support different languages(Chinese, English, etc.) |
Play Log | Support the auto-save of all play records and the save time is adjustable |
File Category Play | Support disc repeat, single video file repeat, single picture file repeat, etc. |
Speaker | 2*2Ω2W |
Calendar&Time | Support check calendar, adjust time and display it on the screen on/off |
Support Memory Medium Type | Support memory medium type : USB, update through USB |
Interface | VGA , USB, TV , (ACPI) , (Audio interface) , (DVD interface) |
Picture Play Mode | Support the conventional switching broadcast images |
Accessory | Tele-controller, mains,VGA line |
Detailed Images
Buyer Feedback
Certifications
Transparent LCD Panel Display CE,ROHS Certifications
Company Information
Guangzhou YAMA Electronic Technology Co., Ltd, is a leading company based in Guangzhou, China. With our offices and factory located together for ease of management control, we are one of the biggest manufactures of LCD module display products supporting China and the globe. We dedicate and focus our time on being your professional designer, manufacturer and supplier of LCD digital signage.
