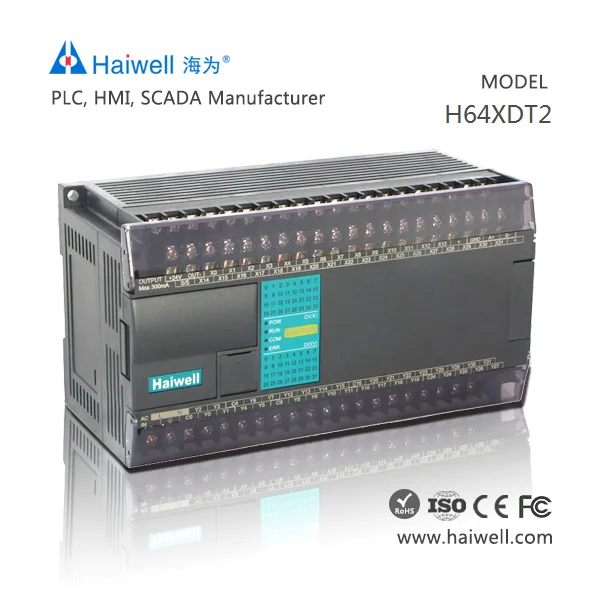

High quality high standard Haiwell H64XDT2 64points transistor output digital module for PLC programmable logic controller
Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.
It is the first PLC (Programmable logic controller) designed with 100% built-in simulator from China.
Very easy to study and use! It is the best choice for small and medium PLC market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.
PLC Model Spec.
PLC Model
Power
DI
DO
Communication
Haiwell series
H64XDT2
220V AC
32
32 transistor
RS485, remote IO module
Digital IO module

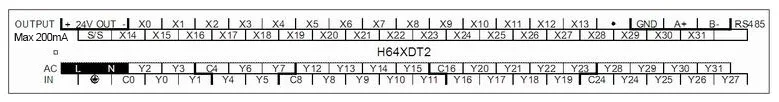

Haiwell H64XDT2 terminal wiring diagram
Haiwell PLC programmable logic controller Digital Input (DI) Specification
Item
Digital InputDI
Input signal
Non-voltage contact or NPN/PNP contact
Action driving
ON: 3.5 mA above OFF: below 1.5 mA
Input impedance
About 4.3KΩ
Input maximum current
10mA
Response time
Default 6.4ms,Configurable 0.8~51.2ms
Isolation mode
Each Channel optical isolation
Input indication
LED light means ON,dark means OFF
Power supply
PLC internal power supply:DC power(sink or source)5.3mA@24VDC
Haiwell PLC programmable logic controller Digital Output (DO) Specification
Item
Relay Output-R
Transistor Output NPN-T
maximum load
Resistance load
2A/1 point,8A/4 point per COM
0.5A/1 point,2A/4 point perCOM
Inductive load
50VA
5W/DC24V
Light load
100W
12W/DC24V
Min. load
10mA
2mA
Voltage specification
Below 250VAC,30VDC
30VDC
Drive capability
Maximum 5A/250VAC
MAX 1A 10S
Response time
Off-on 10ms,On-off 5ms
Off→On 10us,On→Off 120us
Leakage current when route opened
---
Below 0.1mA
Isolation mode
Mechanical isolation
Each Channel optical isolation
Output indication
LED light means ON , dark means OFF
Power supply
PLC internal power supply 24VDC
Programming Software
HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users. All neccessary instructions are highly intergrated, Very easy to study and use.
It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.
Runing with Windows 98, Windows 2000, Windows XP and newer versions.
Totally free PLC software with all features.
PLC advantages
As for PLC advantages, We can visually feel them through the following Haiwell Cloud networking diagram.
Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.
Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.
Factory
Xiamen Haiwell Technology Co,.Ltd was founded in 2005 and has been the global leader in PLC automation control industry. It’s a high-tech enterprise,integrating indendent research and development, production and merchandising. As one of China’s first industrial control market participant, Haiwell has long been committed to the research and development of industrial automation core control system.
At present, the company’s main products include PLC, HMI, Cloud SCADA, intelligent gateway, wireless communication module ect. They are widely used in plastic, packaging, textile, food, medical, pharmaceutical, environmental protection, municipal,printing, construction material, elevator, central air conditioning, precise CNC machines and other industrial control field.
The products are of our own manufacture. We have advanced production workshop and professional team. Beside, Haiwell PLC is authenticated by many certifying agency. Now we have different certifacation such as CE, ISO and so on.
