Product Overview

Description


Product Description

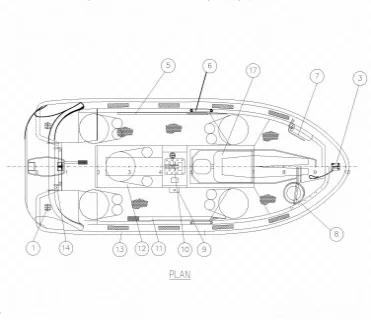

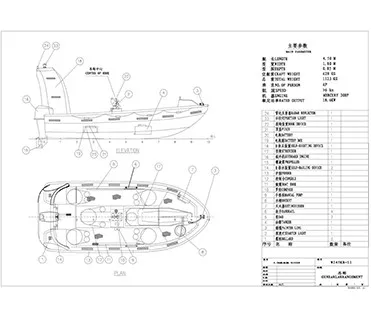

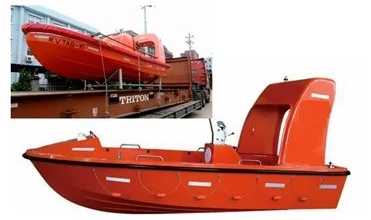

4.5m F.R.P Rescue Boat Description

1.Function:By mean of recovery for persons in water and collect liferaft;

2.Useful confines:Max three class sea state.

3.Main technical data:

  F.R.P length 4.50m   breath 1.80m depth 0.85m

  Capacity 6P
  Empty boat weight 628kg
  Full load weight 1123kg
  Loading temperature -30~65℃
  Working temperature(sea water) -1~30℃
  Speed(full load) 6 knots
  Outside color international orange

4.5m F.R.P Rescue Boat Capacity

1. Comply with the requirements and rules of SOLAS and amendment 1996.MSC.81(70).
2.Fit out the self-righting device. It can self-righting by itself.
3.Stock two buoyant oars. When the engine can’t be used the oars can be used.
4.It is installed the buoyant lifeline at the two side of rescue boat.
5.The tread surface is the antiskid.
6.Equip a manual pump. It used to work off the seeper in the boat.
7.The deck can self-motion drainage.
8.The engine is used outboard. It is mounted on the stem sealed plate.

Parameter List
\t
Model
\t
Dimension
\t
Capacity
\t
Hook Distance
\t
Engine
\t
Total Weight
\t
NM50F
\t
5.00M*2.20M*1.10M
\t
26
\t
4.6M
\t
380-J
\t
4610KGS
\t
JYB57F/C*
\t
5.80M*2.32M*1.15M
\t
33
\t
5.3M
\t
380-J
\t
4602 / 4260 KGS
\t
NM65F
\t
6.50M*2.32M*1.15M
\t
36
\t
6.1M
\t
380-J
\t
5920KGS
\t
NM75F
\t
7.50M*2.78M*1.15M
\t
60
\t
7.0M
\t
380-J
\t
7861KGS
\t
JYB80F/C*
\t
8.10M*2.96M*1.20M
\t
65
\t
7.6M
\t
380-J
\t
9137.5 / 8787KGS
\t
NM85F
\t
8.50M*3.20M*1.25M
\t
85
\t
8.1M
\t
380-J
\t
11667.5KGS
\t
JYB99F/C*
\t
10.07M*3.80M*1.25M
\t
120
\t
9.4M
\t
N485-J
\t
16400 / 159507KGS
\t
NM1170F
\t
11.70M*3.70M*1.25M
\t
150
\t
11.1M
\t
N485-J
\t
20332KGS
Description

Description

Comply with the requirement and rules of SOLAS and amendment 1996,LSA Code,MSC.218(82),
MSC.272(85),MSC.320(89)&MSC.81(70),MSC.226(82),MSC274(85),MS321(89)
It can driven by Outboard Engine and Inboard Engine.
Boat Body material: Fire-Retardant type FRP
It can self-righting by itself when capsized
Rubber Fender is fitted around the boat
The deck can self-motion drainage
Certification: CCS/BV/ABS/EC

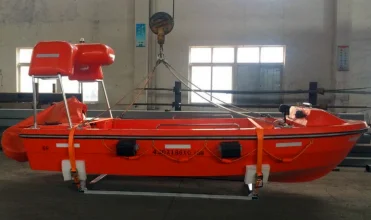

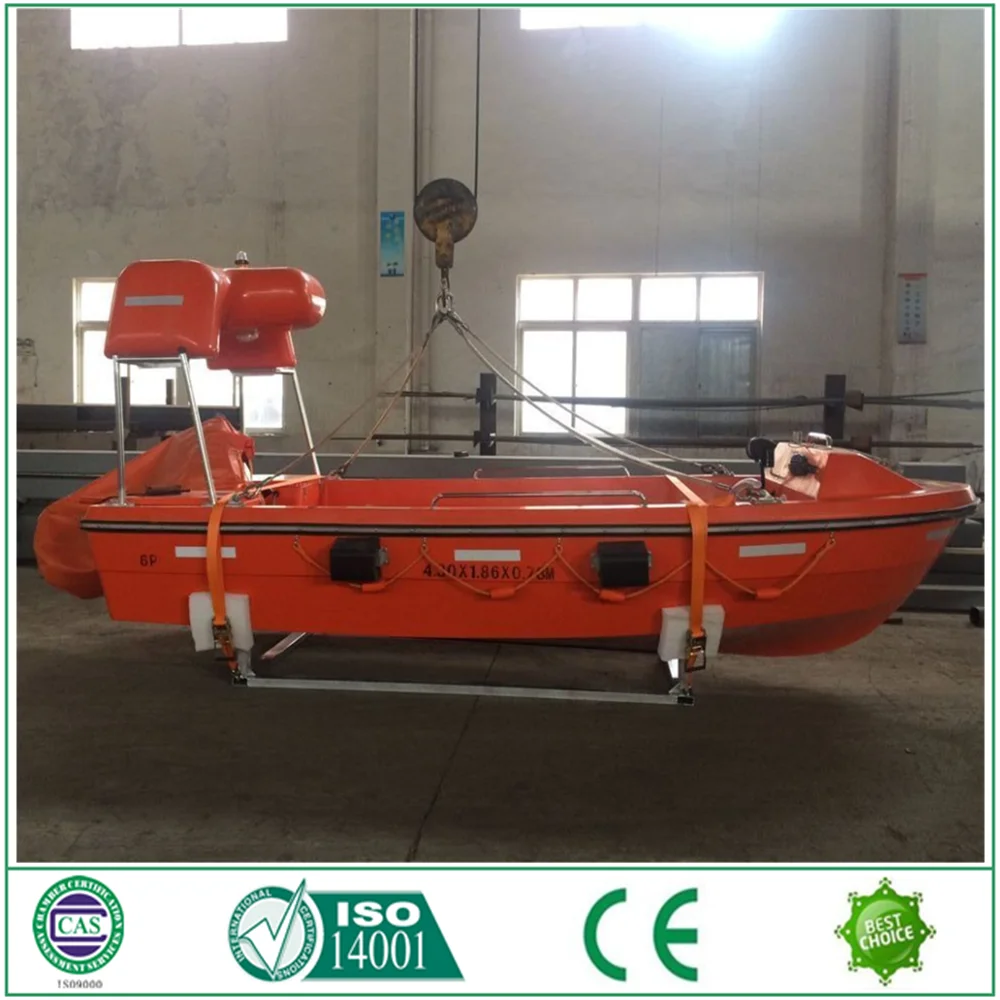

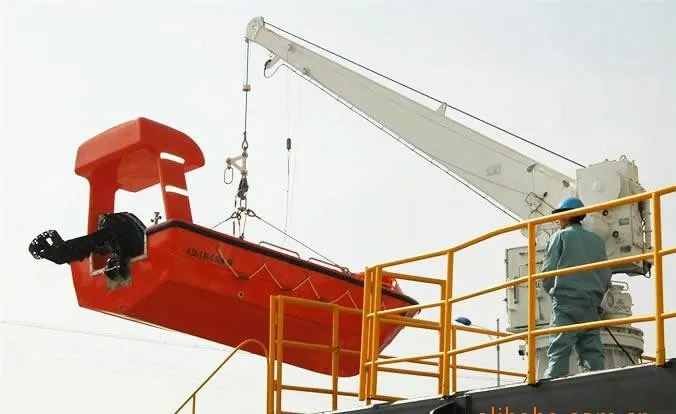

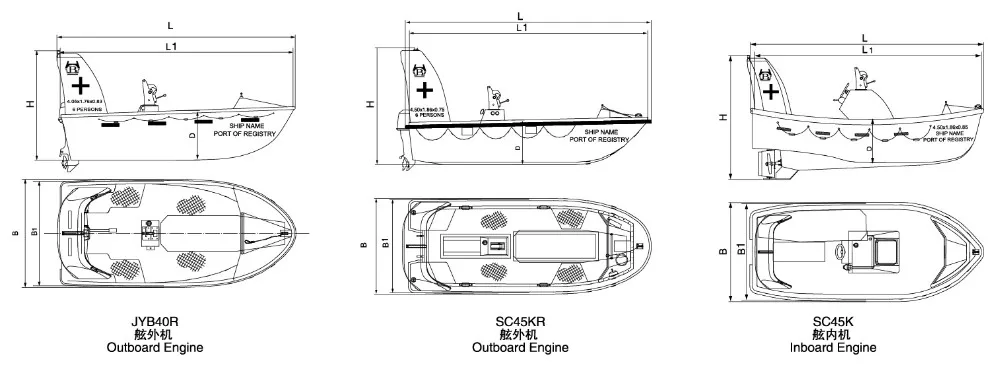

Fast Rescue Boat

The rescue boat is fitted with oil-resistant foam fender with fastening rubber outside.

The handrails are arranged for each side of the boat for passenger embarkation.
The self-bailing deck design makes quick water exhaust.
The self-righting device is installed for fast rescue boat,
Which meet with requirement for use on board the RORO vessel.LSA code and MSC/CIR 809 regulation.

\t
Name
\t
Data
\t
Length of Hull
\t
4.3m
\t
Width of Hull
\t
1.86m
\t
Depth of Hull
\t
0.78m
\t
Occupants (82.5KG per person)
\t
6 Persons
\t
Speed
\t
>6 Knots
\t
Boat Weight(light)Include with engine,fuel and equipment
\t
605KG
\t
Boat Weight(fully loaded)
\t
1100KG
\t
Power of gasoline outboard engine
\t
25HP(18.4KW)
\t
Diameter of Propeller
\t
210MM
\t
Capacity of Fuel oil tank
\t
35L
\t
Material of Propeller guard
\t
SUS.

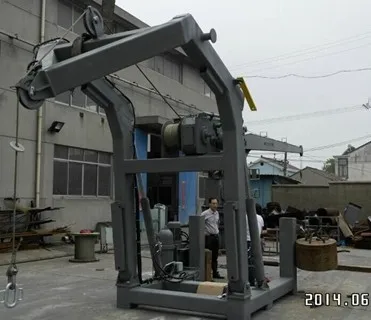

Office and Workshop
