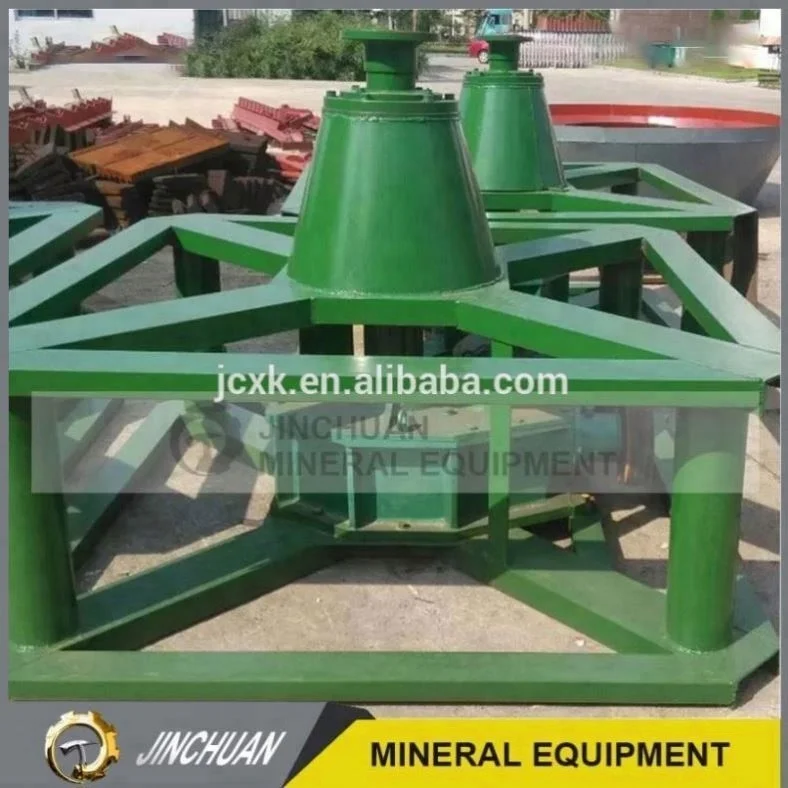

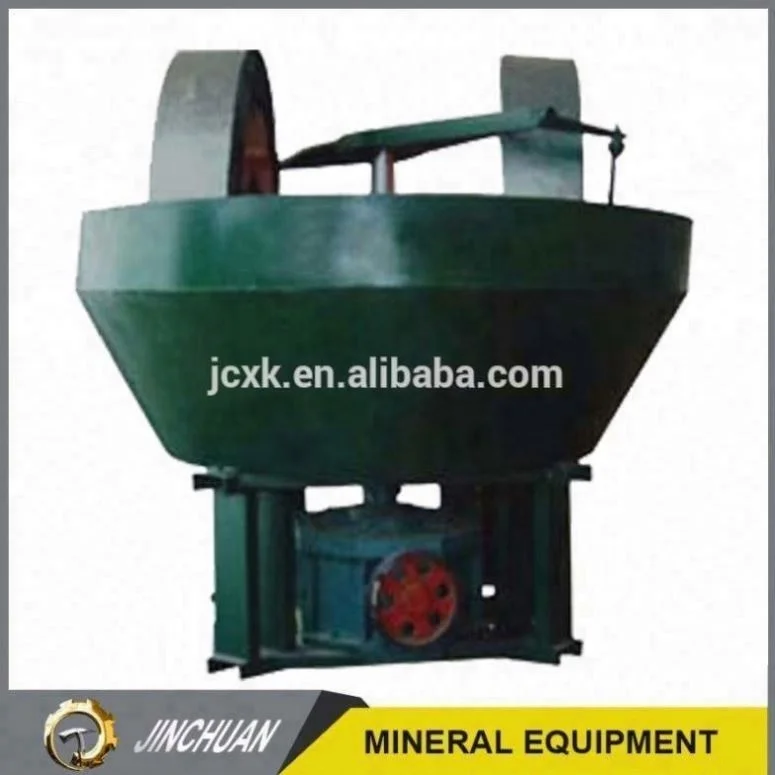

Good performance wet grinding machine for gold

Product Application

Gold grinding machine is mainly used for separation of gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and other minerals selected. With less investment, fast results, small footprint, saving power, sturdiness and durability, ease of maintenance and high return on investment. It is the preferred production for alternative ball mill, is ideal for small and medium enterprises dressing.We use thicken plate on the water tank and improves gear box. Our Manganese steel liner great increases life the machine. The casting parts is joint by small pieces, even without large lifting device, it can finish parts change, this helps to decrease operation cost.

Main Features

1.simultaneously reduce lifting surface area.After grinding wheels rotation, the intensity of pressure on minerals increases, reaching the purpose of increasing output(not less than 150t per 24hrs)

2.On the basis of original equipment,a scraper device is added to keep material layer 4-5 cm.Only under this state,swaying effect is excellent.In addition,fine material can be quickly cleaned away from mill groove.

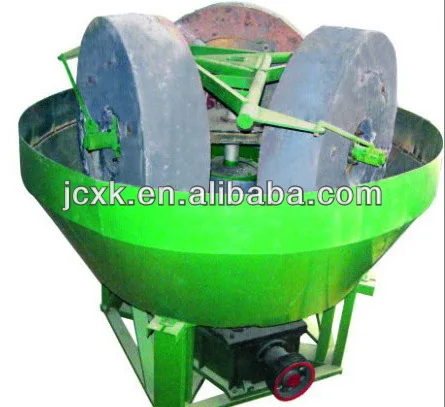

Working principle

After adding into ore,the materials are under the extrusion of grinding roller weight to revoluting and rotating with runner wheels,when twisting that coming into being huge friction force with grinding base,after suffering repeated extrusion,rub,grinding that be crushed thoroughly.

Operations and maintenance

(1)The raw material should be put into the machine after the machine running normally.
(2 )This machine is not allowed to state with the material in the machine. If the machine is stopped
because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
(3)The material should be put into the machine uniformity, not sometimes much sometimes less.
It's better to use a feeding equipment.

Operations and maintenance

(4)The bearing part should be add butter regularly.
(5)Every bolts should be checked to avoid flexible.
(6)The bearing should be changed in time if it is damaged to avoid damage other parts.
(7)While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on.If it happened, you should stop the machine to remedy of the trouble.
(8)The motor V-belt should be removed while examine and repair the machine for your safe.

Application

The gold wet pan mill grinding machine used with gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, all ball mill can be selected grind gold machine can be used. Wet pan mill is belong to prospecting equipment .
