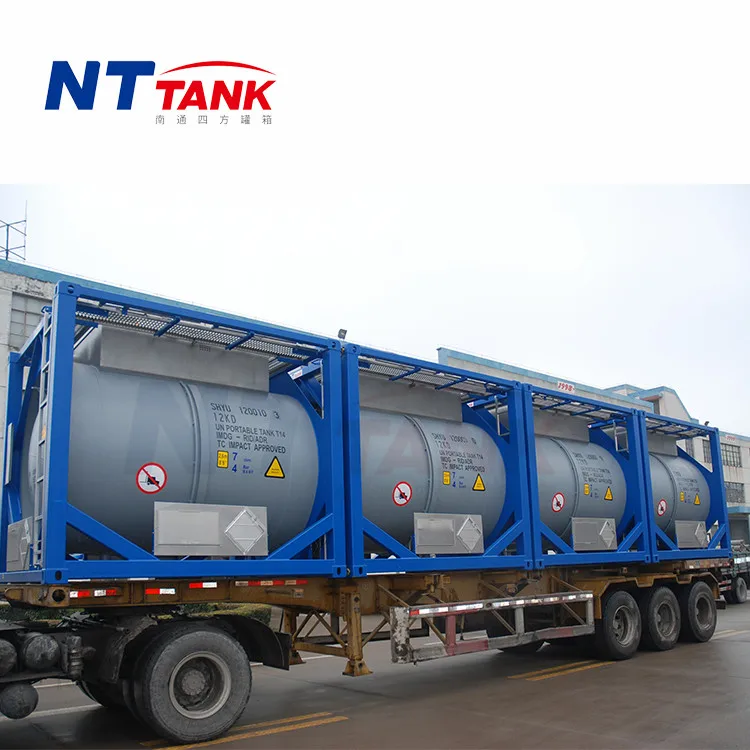

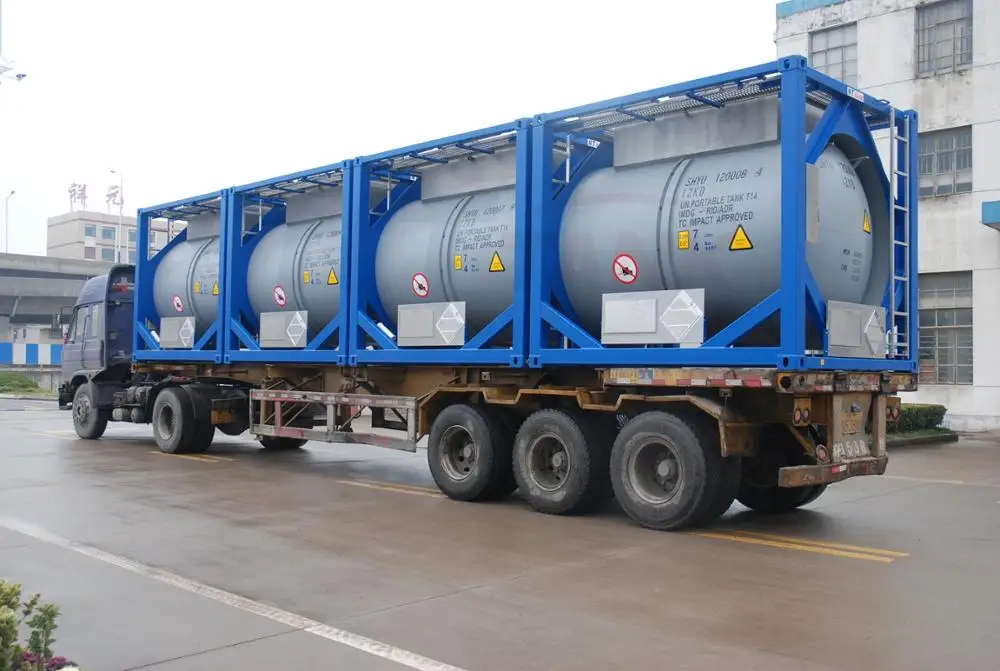

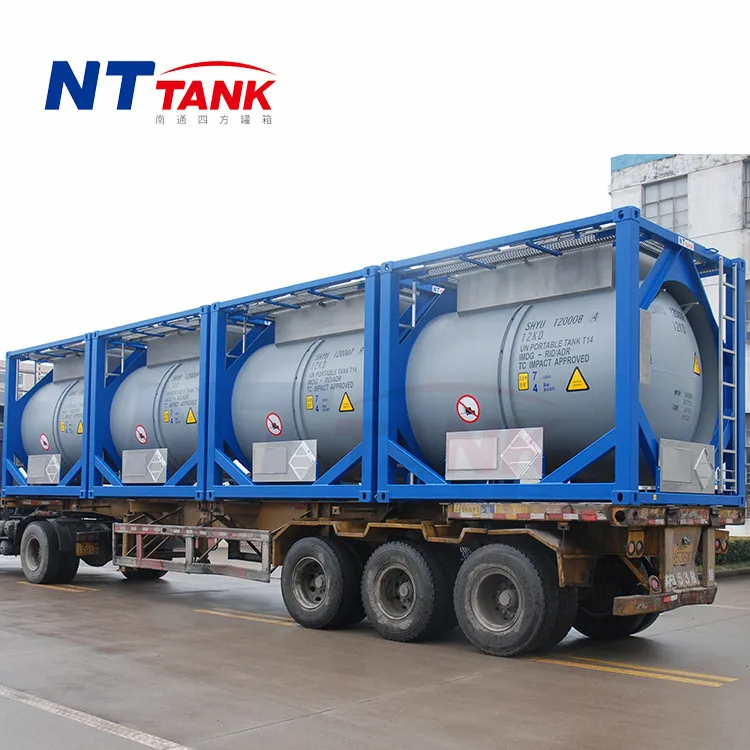

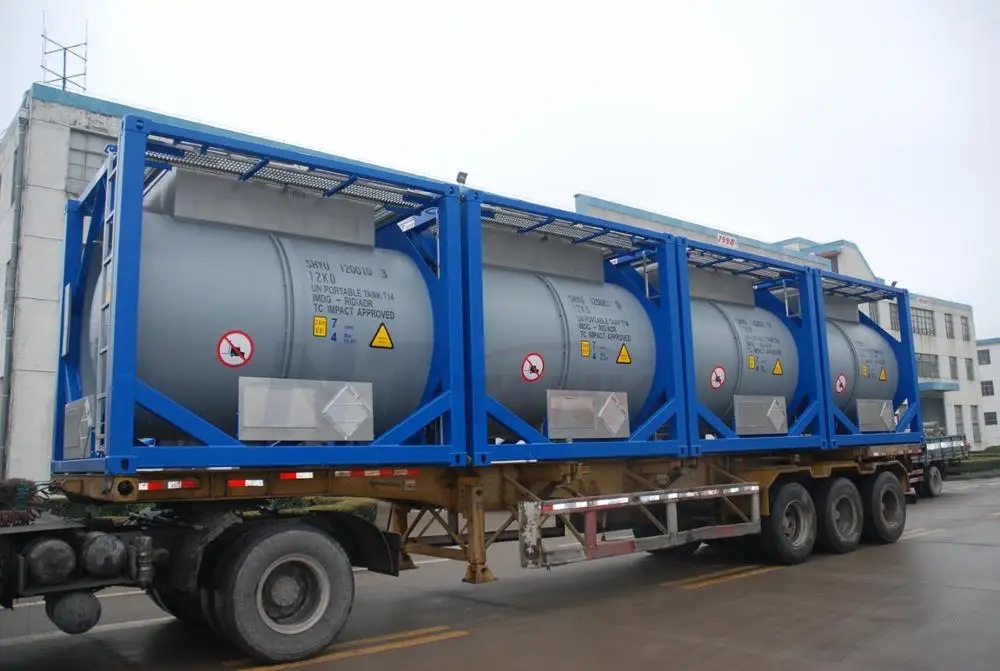

High quality ISO tank 10ft shipping container insulated

Tank Type

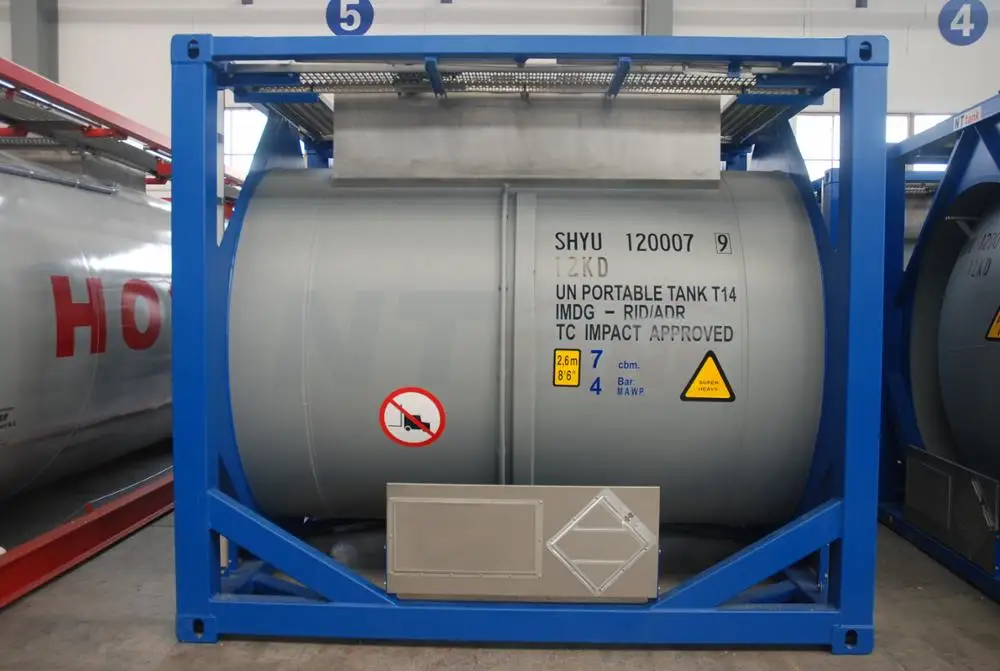

10’ ISO full frame collar tank, Type UN portable Tank Type T14; no-insulated, no-steam heated, top side rails fitted, prepared for lining

Frame Dimensions

2991mm×2438mm×2591mm

Capacity

7,000 Litres +/- 2%

M.G.W.

16,000 kg

Tare (est.)

2,450 kg +/- 5%

Max Payload

13,550 kg

Working Pressure

4 Bar

Test Pressure

6 Bar

Design Temp

-40°C to +65°C

Vessel Material

ASTM A240 304 stainless steel, hot rolled or equivalent

Shell Thickness

5mm nominal

Ends Thickness(B.F)

6mm nominal

Corrosion Allowance

NIL

Lining Material

Supplied by buyer

Frame Material

GB/T 1591-Q345D

Frame to Shell

304 stainless steel

Corner castings

ISO 1161 - 8 off

Vessel Design Code

ASME VIII Div 1 where applicable

Radiography

Shell

Ends

ASME Spot

ASME Full

Inspection Agency

LR

Cargo carried

See dangerous cargo lists for UN Portable T14 tank and compatible with the tank lining material

Stacking

Each container is approved for 9 high stacking

Design Approvals

IMDG T14,CFR 49, ADR/RID, CSC, TIR, ISO
