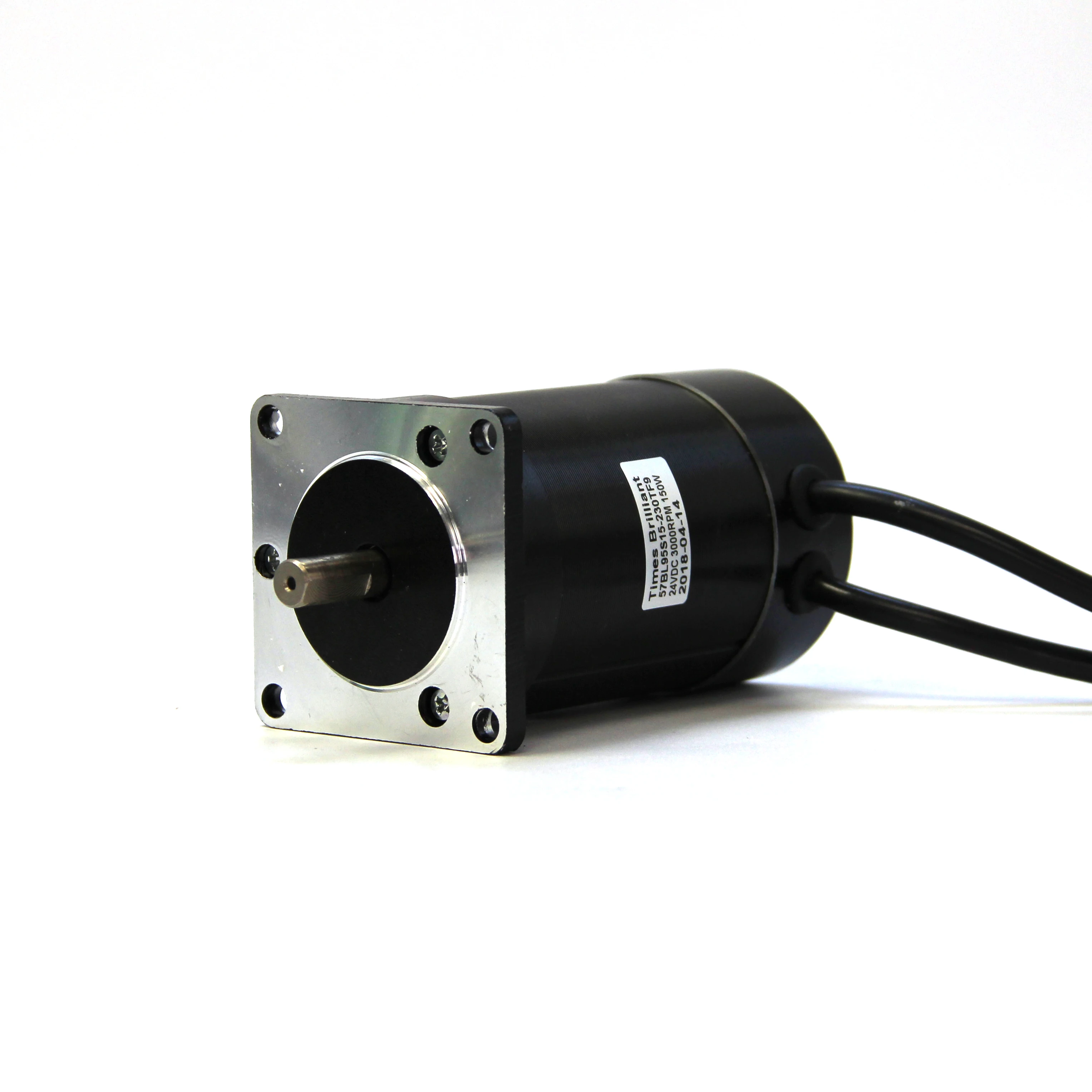

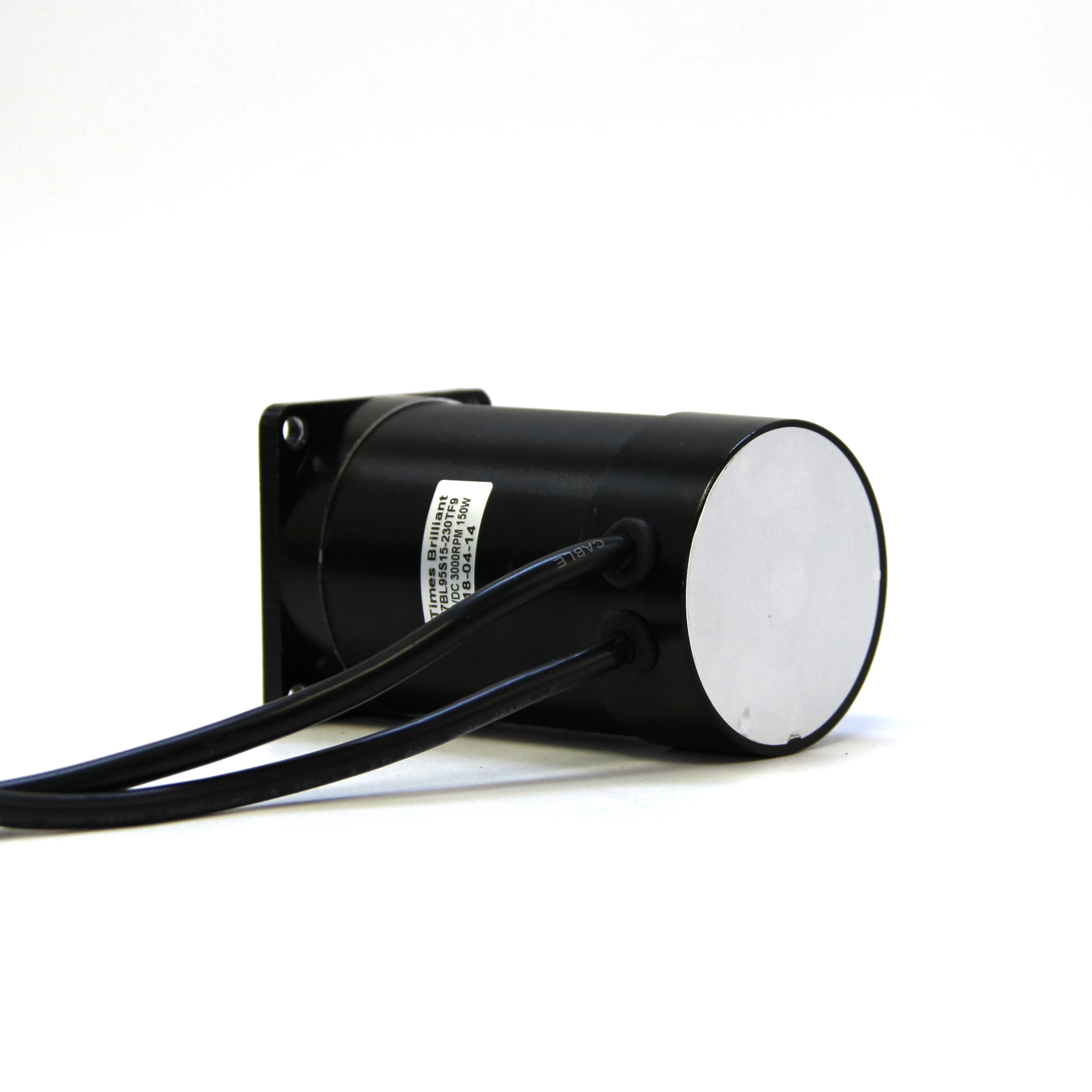

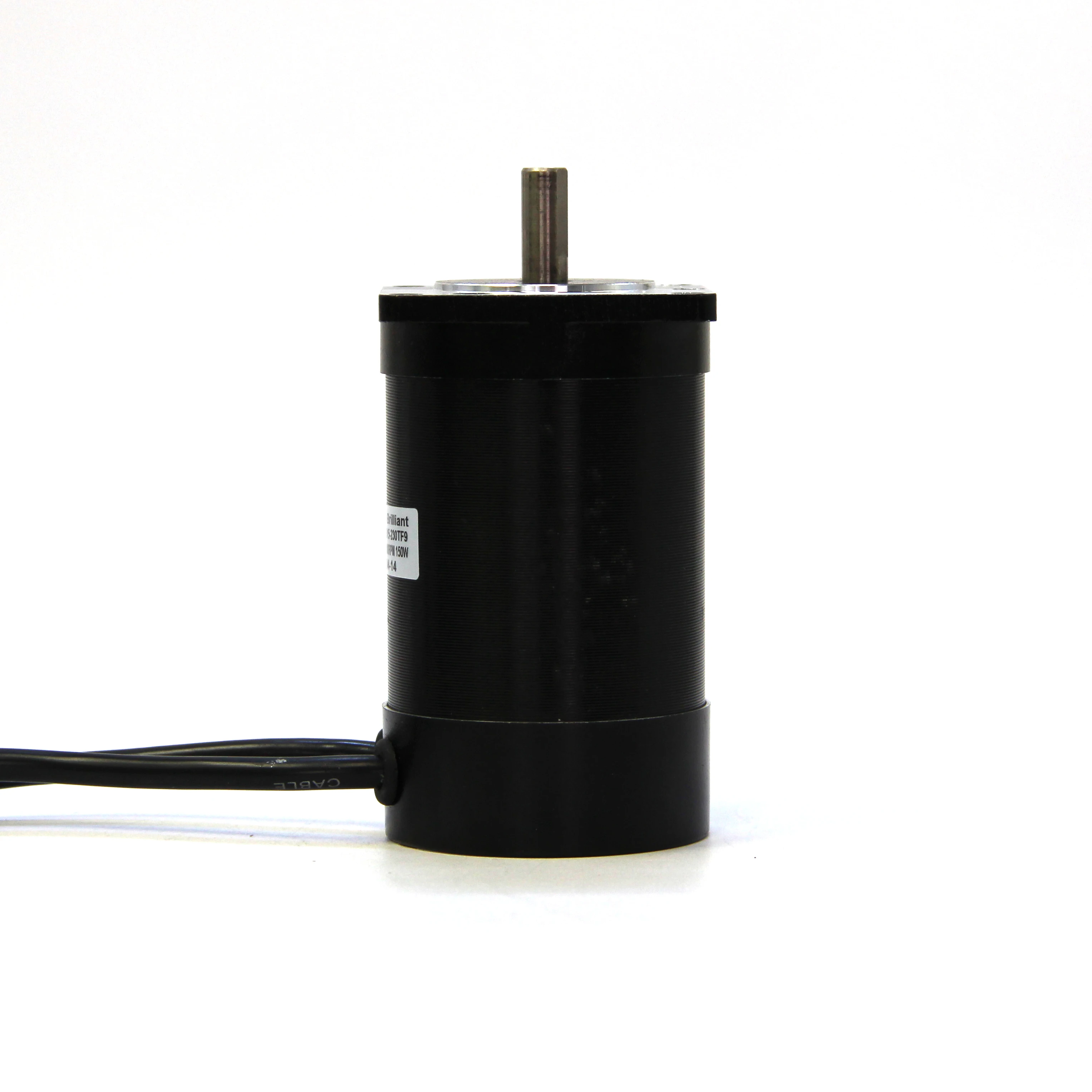

Super September 24V 60W 1000rpp brushless dc Motor with driver
- Category: >>>
- Supplier: BEIJING TIMES-CHAOQUN ELECTRONIC APPLIANCE COMPANY
Share on (60737984359):
Product Overview
Description
new design 24V DC 60W 1000rmp Brushless Motor 57BL95S06-210 0.6NM
Related Products
| Model | Voltage
V | Rated Power W | Rated Torque N.M | Rated Speed rpm | No Load Speed rmp | Rated Current A | No Load Current A | Poles |
| 57BL55S02-212 | 24 | 22 | 0.175 | 1200 | 2000 | 1.4 | 0.2 | 4 |
| 57BL55S06-230 | 24 | 60 | 0.18 | 3000 | 4800 | 3.3 | 0.3 | 2 |
| 57BL75S10-225 | 24 | 100 | 0.38 | 2500 | 3500 | 5.9 | 0.8 | 4 |
| 57BL75S10-230 | 24 | 100 | 0.32 | 3000 | 4500 | 5.9 | 0.8 | 2 |
| 57BL95S06-210 | 24 | 60 | 0.6 | 1000 | 2000 | 3.6 | 0.4 | 4 |
| 57BL95S15-230 | 24 | 150 | 0.5 | 3000 | 4500 | 8.7 | 0.8 | 2 |
| 57BL95S15-230 | 24 | 150 | 0.5 | 3000 | 4500 | 8.7 | 0.8 | 2 |
| 57BL115S18-230 | 24 | 180 | 0.57 | 3000 | 4500 | 10.7 | 1.1 | 2 |
| 57BL115S21-230 | 24 | 210 | 0.7 | 3000 | 5000 | 13 | 1.3 | 4 |
| 57BL75S10-336 | 24 | 100 | 0.265 | 3600 | 4600 | 3.8 | 0.4 | 2 |
| 57BL95S15-336 | 24 | 150 | 0.4 | 3600 | 4700 | 5.7 | 0.5 | 2 |
| 57BL115S30-3150 | 310 | 300 | 0.57 | 5000 | 6200 | 1.3 | 0.2 | 2 |

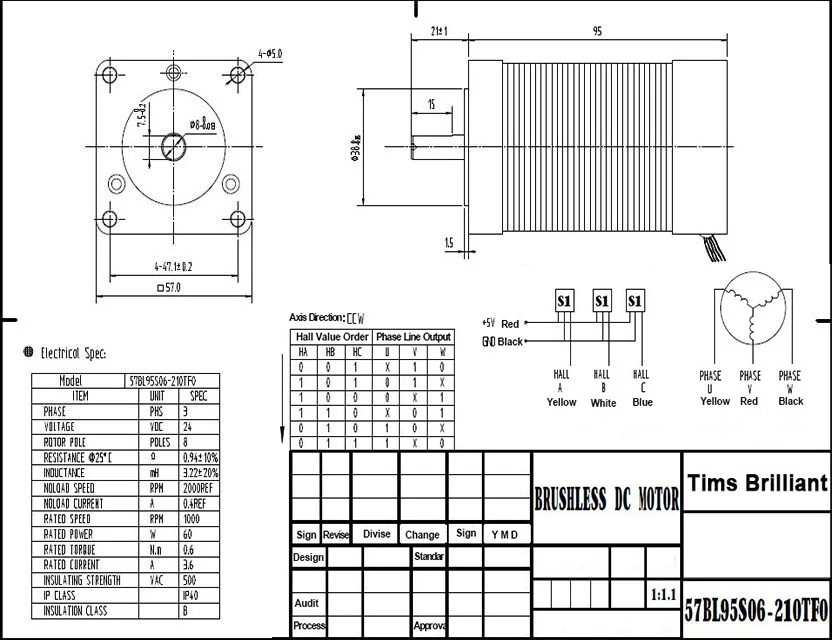

Size
Writing
| Motor Phase Line (Thick) | Hall (Thin) | Hall Power (Thin) | |||||
| W | V | U | Hw | Hv | Hu | H+ | H- |
| Blue | Green | Yellow | Blue | Green | Yellow | Red | Black |
| Black | Red | Yellow | Blue | Write | Yellow | Red | Black |

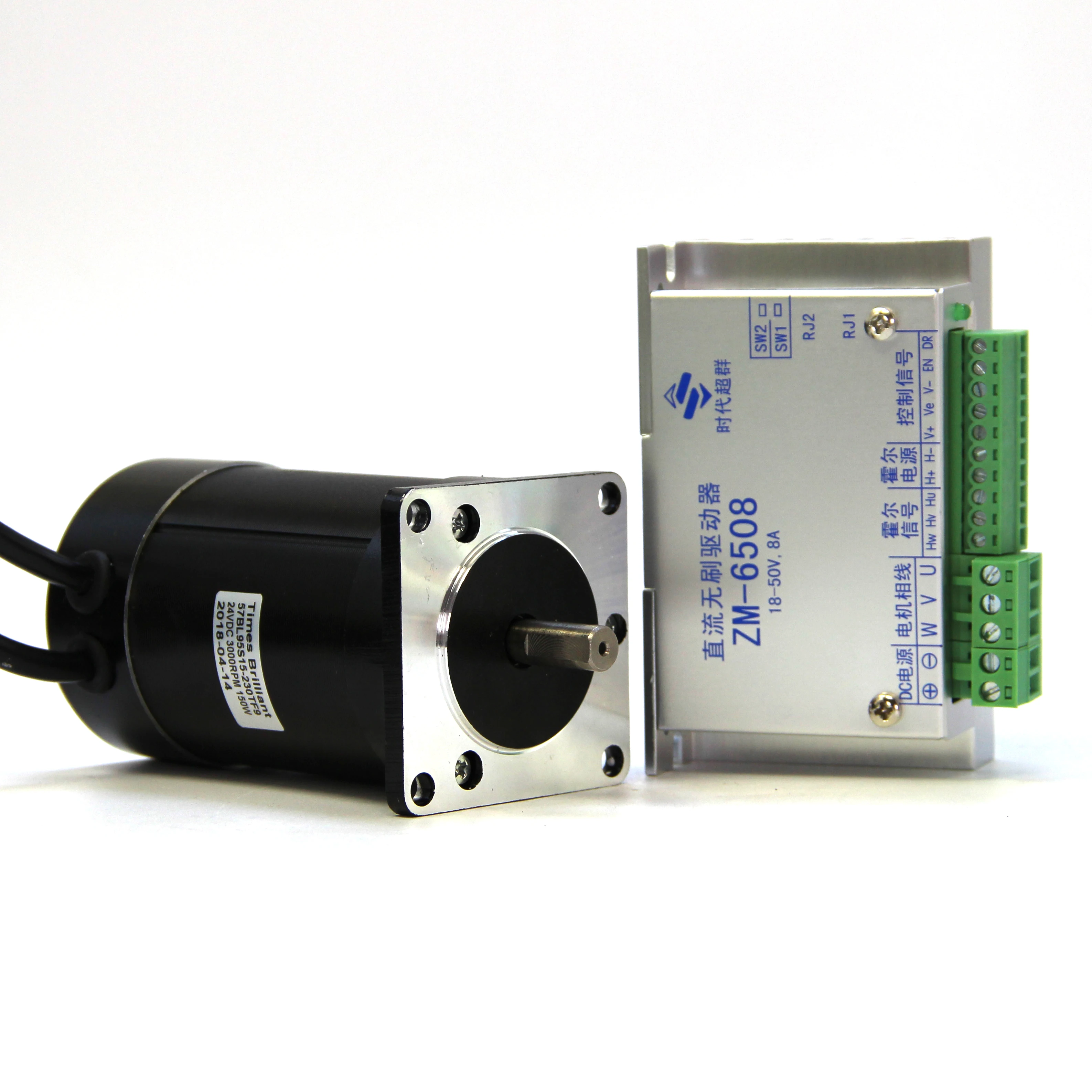

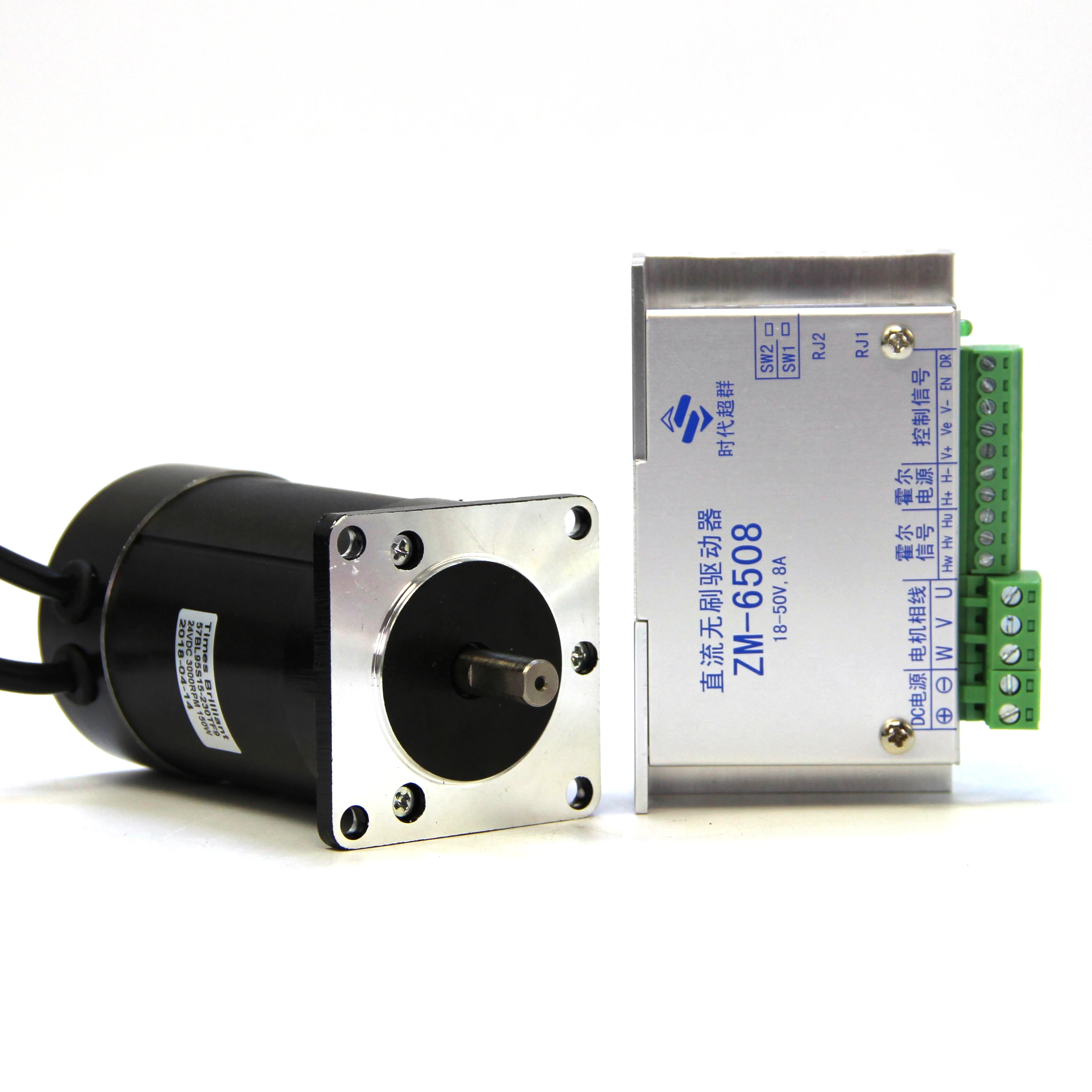

Low sensored brushless system fast test:
Suit ZM-6405E, ZM-6716-V3, ZM-6508, ZM-6615
Suit ZM-6405E, ZM-6716-V3, ZM-6508, ZM-6615
1.Control signal doesn't line (dangling).
2.Turn SW2 to OFF (Put Up) ,Turn SW1 to ON (Put Down).
3.turn RJ1 right to max.
4.Control motor speed by adjust RJ2 after put on power (Turn left to low speed, turn right to fast speed).
2.Turn SW2 to OFF (Put Up) ,Turn SW1 to ON (Put Down).
3.turn RJ1 right to max.
4.Control motor speed by adjust RJ2 after put on power (Turn left to low speed, turn right to fast speed).
