Model:WJ150-1800-II 5 ply corrugated carton production line

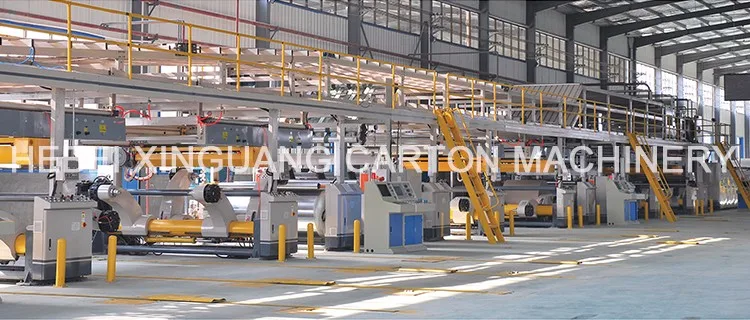

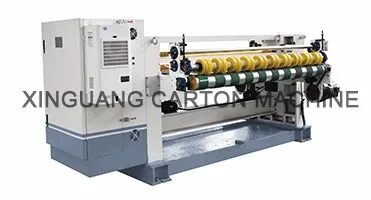

Corrugated Cardboard Production Line is the professional equipment for producing corrugated cardboard.The 3ply,5ply,7ply,and multi-function corrugated cardboard production line mainly consist of the following equipment :Mill Roll Stand, surface paper(corepaper) pre-heater.Single facer, Conveying Span Bridge.Glue Application Machine, Double Facer,Slitter Scorer,Cut-off,Conveyer and Stacker,Steam heating System, Air compression system and Glue Making System, etc.Different models and quantities equipments can compose different models and grades 3ply,5ply,7ply corrugated paperboard production line. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 100-250m/min;the paper width 1400-2500mm and A/C/B/E/F five flutes for customer to choose from,the flute shape is UV shape and more like V shape.

Company Introduction

The Company has more than 30 years of research and development manufacturing experience, the comppany has been adhering to the "quality as the guarantee, service as the purpose, customer first" concept with advanced technology, professional knowledge, and computerized management engaged in corrugated carton machine production equipment development and manufacturing.

Machine Parts

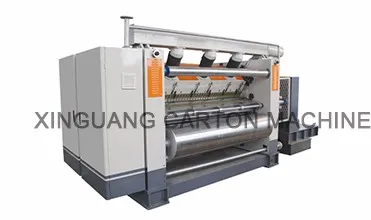

Name: 320C SINGLE FACER

Brand: XINGUANG

Original: CHINA

※structural feature：
★adopt hood suction structure，matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.
★High quality resin sand casting，wall thickness 200mm。Adopt independent gear box, Universal joint transmission structure.
★install the lifting trolley on the conveyor bridge,Need to use the car will tile roll assembly and pressure roller, such as convenient and quick.
★Glue roller unit structure with the overall relocation，Maintenance can sway the machine at the overall maintenance，improve the working efficiency。
★The humidity control apparatus equipped with a spray, so flute type to maintain good stability of deformation, avoid dry。
★Automatic circulation system for glue, two-cylinder pneumatic gluing device, with good cushioning effect.
★Glue department using integrated slide structure，Glue roller surface after grinding engraved with 25 lines and pit-style textured hard chrome plating.
★corrugated roller adopt tungsten carbide dealing，diameter of the main corrugated roller¢ 320mm，Quenched→rough car→bore fine boring→shaft head shrunk-on→welding → tempering to stress→fine cars→coarse grinding→IF quenching→CNC grinding machine grinding→tungsten carbide dealing，hardness of surface is HRC58degrees。
★Active force variable frequency motor drive, energy efficient, low failure rate。
★Glue wide electric adjust to changes in the width of the paper used。
★Amount of glue size with electric adjustment, touch screen display and operation of the encoder transmission coating gap, high accuracy。
★Power and operating parts with a safety net to ensure the safety of personnel in the operation of machinery。

Main Features

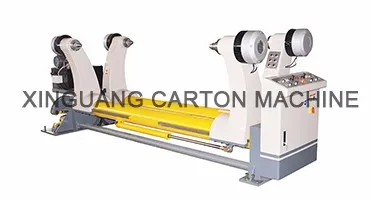

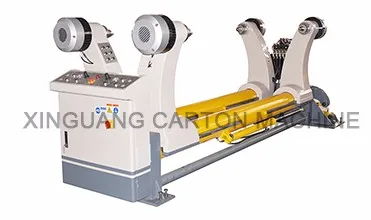

Name: ZJ-V5B HYDRAULIC SHAFTLESS MILL ROLL STAND
Brand: XINGUANG
Original: CHINA
 ※structural feature：

Machine Parts

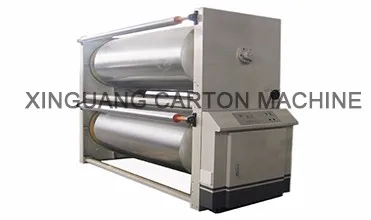

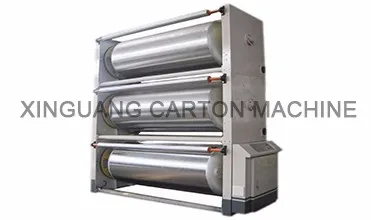

Name: RG-3-900 TRIPLE PREHEATER
Brand: XINGUANG
Original: CHINA
※structural features：
★preheat roller accord with the national standard of the pressure vessal，and enclosed the pressure container certificate and inspection certificate。。
★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable。
★electric adjustable angle, it can rotated adjust the paper preheat area in the range of 360°。

Main Features

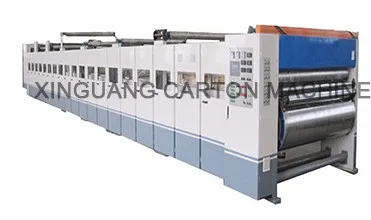

Name: DOUBLE FACER
Brand: XINGUANG
Original: CHINA
※Structural features：
★Heating plate surface by grinding treatment，hot plate width600mm，a total of 16 pieces heating plate,Cooling stereotypes Department 4 m.
★Preheat board is made of contacts board, in accordance with the national standard of pressure container, enclosed the pressure container certificate and inspection certificate.
★Hot plate using the touch plate design structure. Plate movements using pneumatic spring-type structure.
★On both sides about conveyor belt deviation adjustment adopts automatic adjustment，2 sets of the conveyor belt tensioning system，one set is manual（fine tuning）、the other is pneumatic adjustment（high speed）。
★Thermal pipe heating plate temperature control points seven sections with temperature display.
★up cotton belt with double cylinder S cotton belt tensioning device。
★bottom cotton belt with s-shaped correction manually tensioning mechanism, structure simple and practical，under with manual fine-tuning.
★Drive roller coated with attached wear-resistant rubber ，showed a herringbone structure，With a high, ensure smooth cardboard output.
★Main drive motor for frequency conversion motor，low-speed torque，wide speed range ,reliable, and easy maintenance.
★hot plate internal for partition isolation structure,s-shaped flow of steam，Steam, water separation function significantly improves the utilization of steam。
