Product Overview
Description
Wooden handle making machine production line

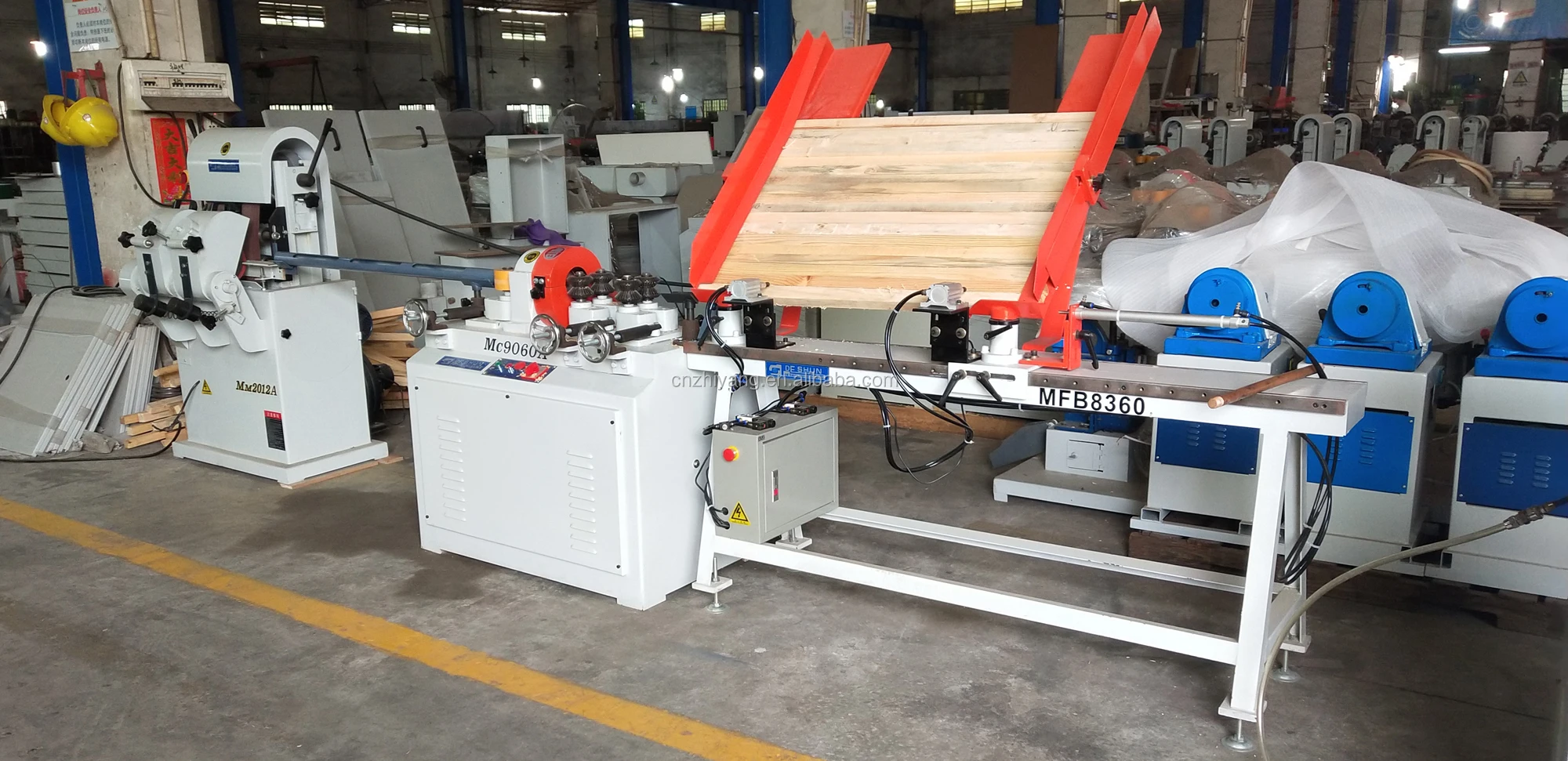

This production line consist of auto feeding machine,round rod cutter machine and sanding machine.Total three parts.
And can save human working.

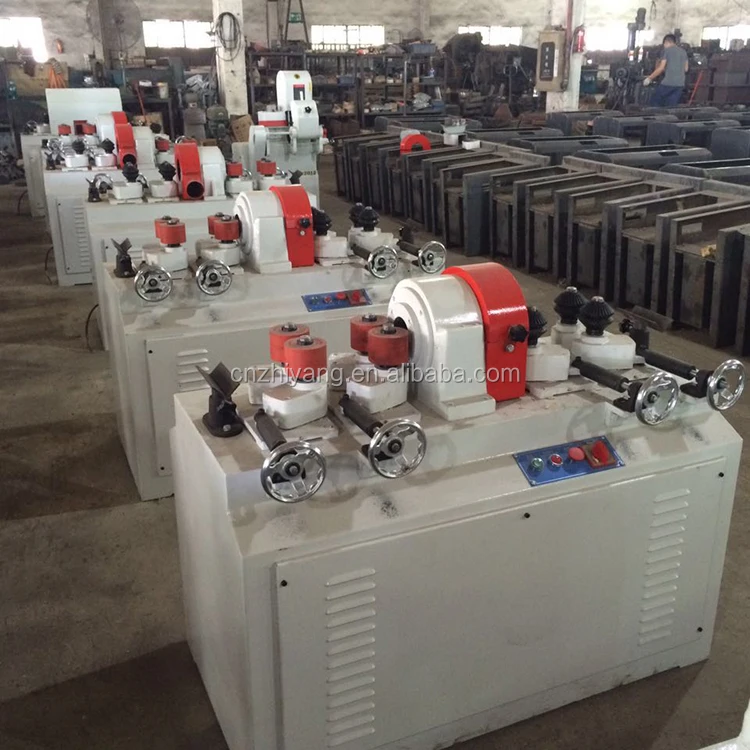

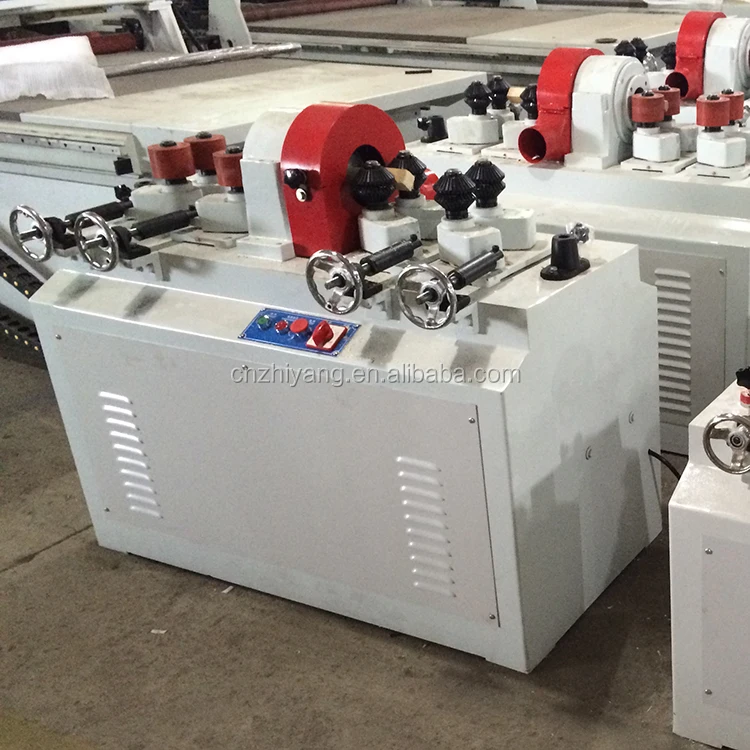

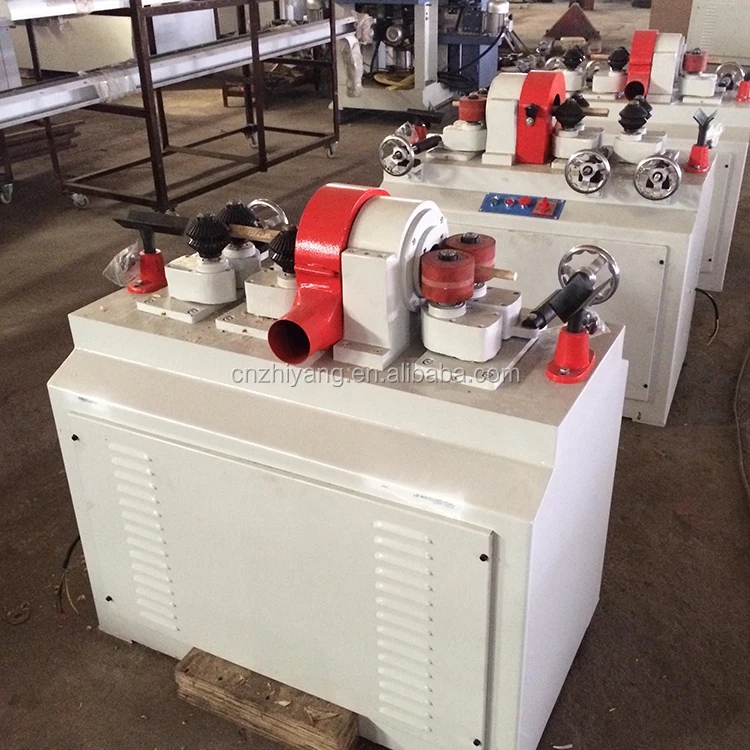

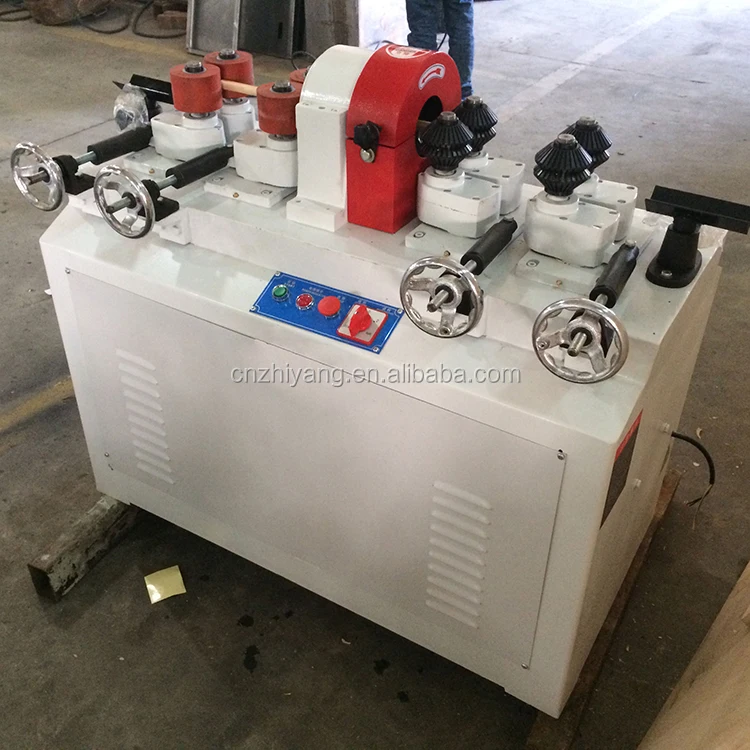

Here is round wood cutter parameter:
Model | MC9050 | MC9050A | MC9050B |
| Single feeding/ single out feed | Double feeding/single out feed | Double feeding/double out feed | |
| Main motor power: | 3kw | 3kw | 3kw |
| Feeding motor power: | 0.55kw | 0.55kw | 0.55kw |
| Spindle velocity: | 4000r/min | 4000r/min | 4000r/min |
| Feeding speed: | 3/5m/min | 3/5m/min | 3/5m/min |
| Cutting diameter: | 15-50mm | 15-50mm | 15-50mm |
| Max.cutting quantity: | 2mm | 2mm | 2mm |
| Min.working length: | 400mm | 500mm | 600mm |
| Overall dimension: | 860x650x980mm | 970x650x980mm | 1100x650x980mm |
| Machine weight: | 250kg | 310kg | 350kg |
| Model | MC9020 Single feedng/single out feed | MC9020A Double feeding/single out feed |
| Main motor power: | 2.2kw | 2.2kw |
| Feeding motor power: | 0.55kw | 0.55kw |
| Spindle velocity: | 5000r/min | 5000r/min |
| Feeding speed: | 3/5m/min | 3/5m/min |
| Cutting diameter: | 6-20mm | 6-20mm |
| Max.cutting quantity: | 1mm | 1mm |
| Min.working length: | 300mm | 300mm |
| Overall dimension: | 720x560x820mm | 870x560x820mm |
| Machine weight: | 170kg | 190kg |
| Model | MC9060A Single feeding /single out feed | MC9060A Double feeding /single out feed | MC9060B Double feeding /double out feed |
| Main motor power: | 3kw | 3kw | 3kw |
| Feeding motor power: | 0.55kw | 0.55kw | 0.55kw |
| Spindle velocity: | 4000r/min | 4000r/min | 4000r/min |
| Feeding speed: | 3/5m/min | 3/5m/min | 3/5m/min |
| Cutting diameter: | 15-60mm | 15-60mm | 15-60mm |
| Max.cutting quantity: | 2mm | 2mm | 2mm |
| Min.working length: | 500mm | 500mm | 600mm |
| Overall dimension: | 970x650x980mm | 970x650x980mm | 1100x650x980mm |
| Machine weight: | 310kg | 310kg | 350kg |

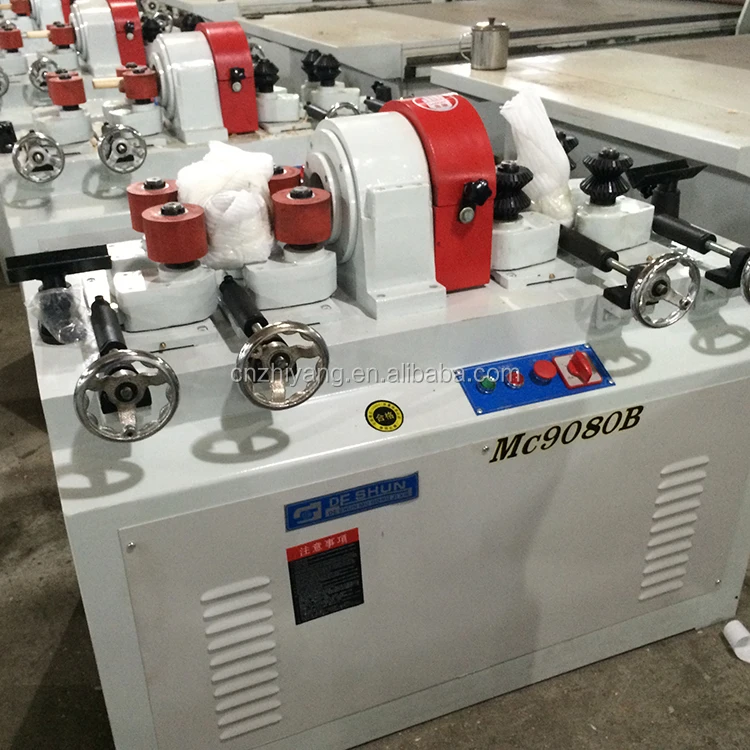

| Model | MC9080A | MC9080B |
| Main motor power: | 4kw | 4kw |
| Feeding motor power: | 0.75kw | 0.75kw |
| Spindle velocity: | 4000r/min | 4000r/min |
| Feeding speed: | 3/5m/min | 3/5m/min |
| Cutting diameter: | 20-80mm | 20-80mm |
| Max.cutting quantity: | 2mm | 2mm |
| Min.working length: | 500mm | 600mm |
| Overall dimension: | 940x610x1100mm | 1200x610x1100mm |
| Machine weight: | 350kg | 420kg |

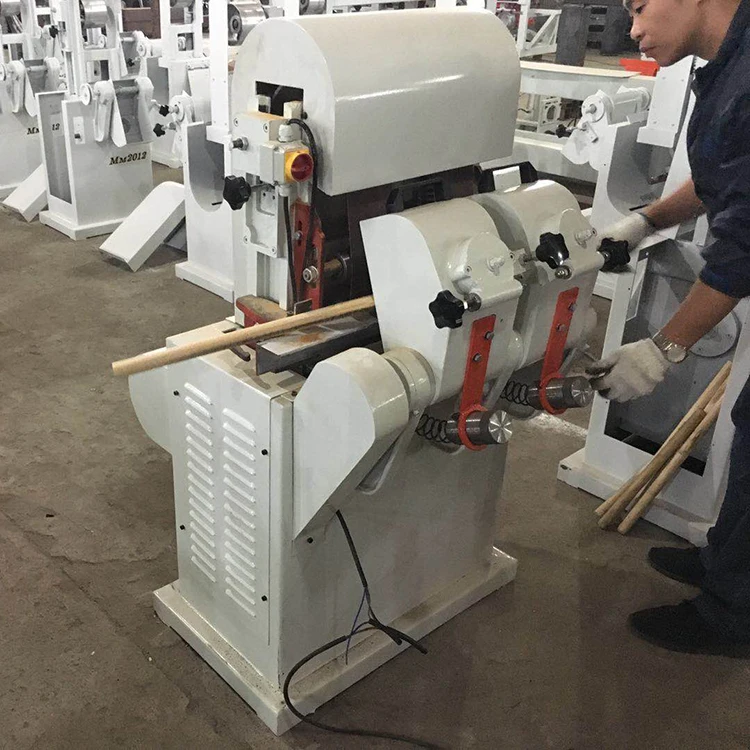

Sanding machine:
