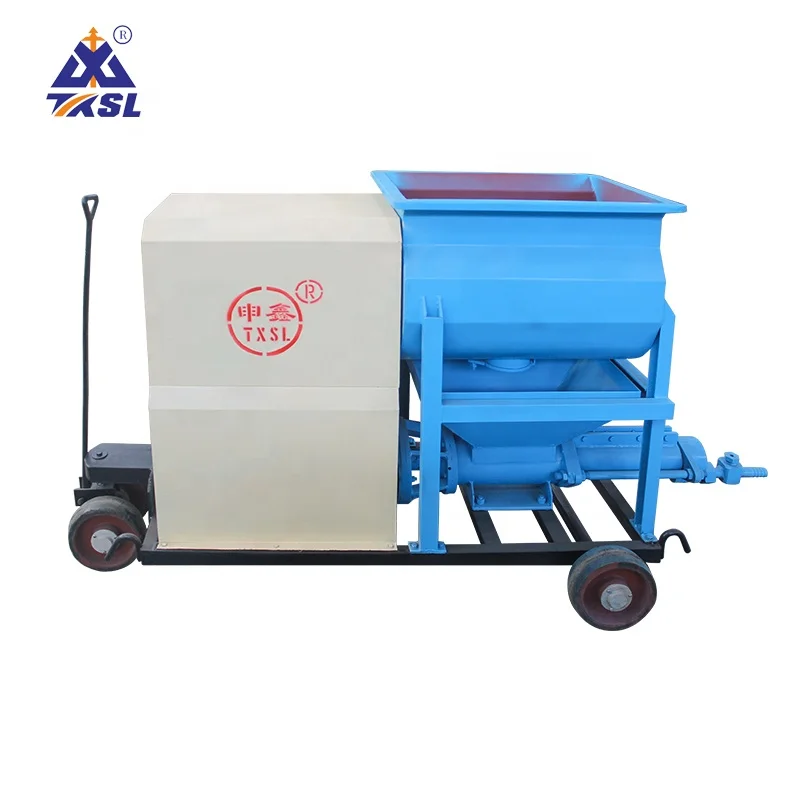

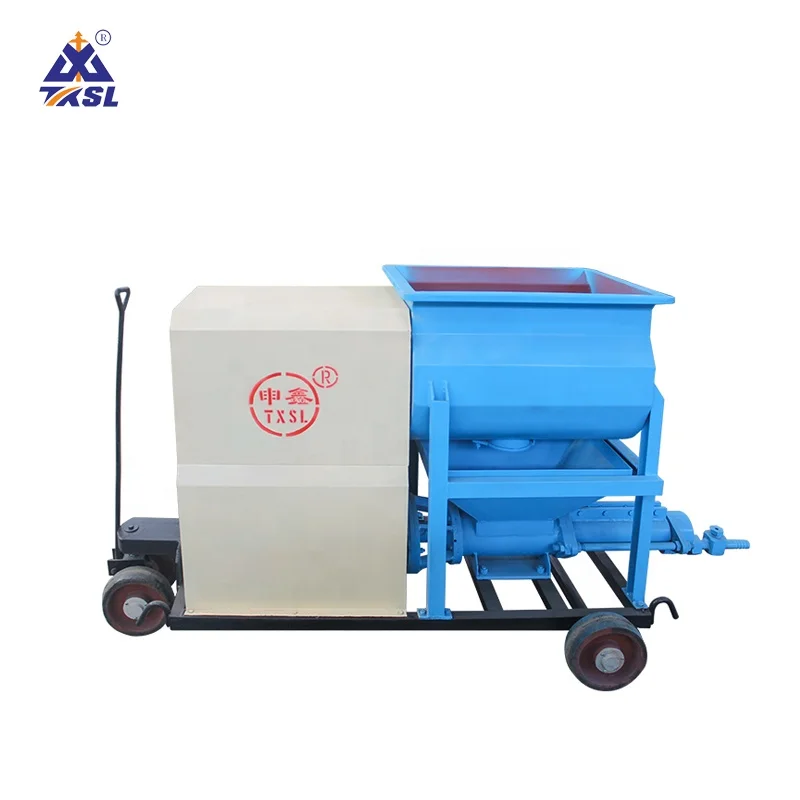

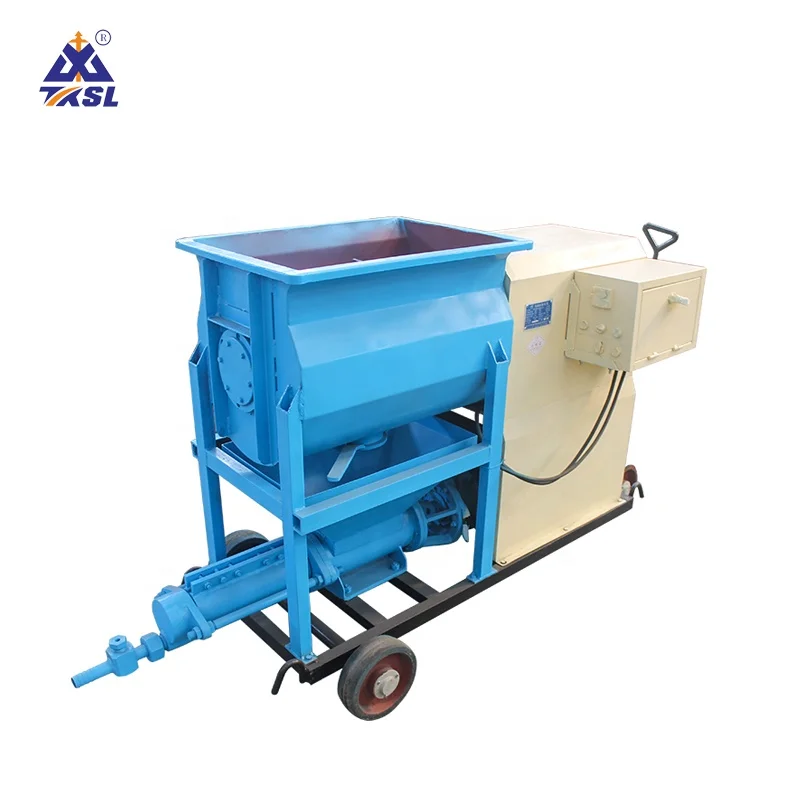

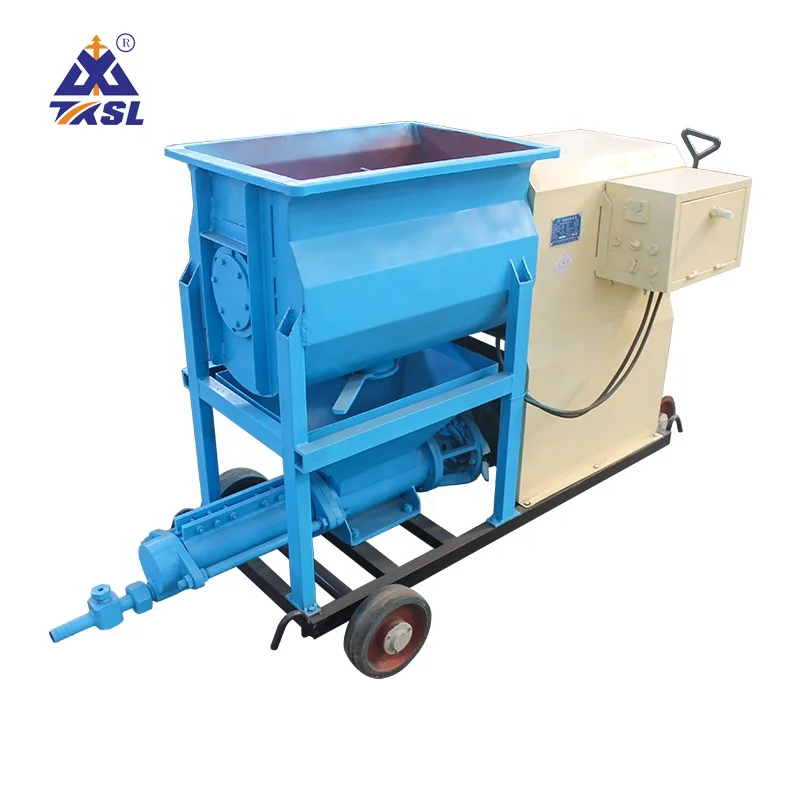

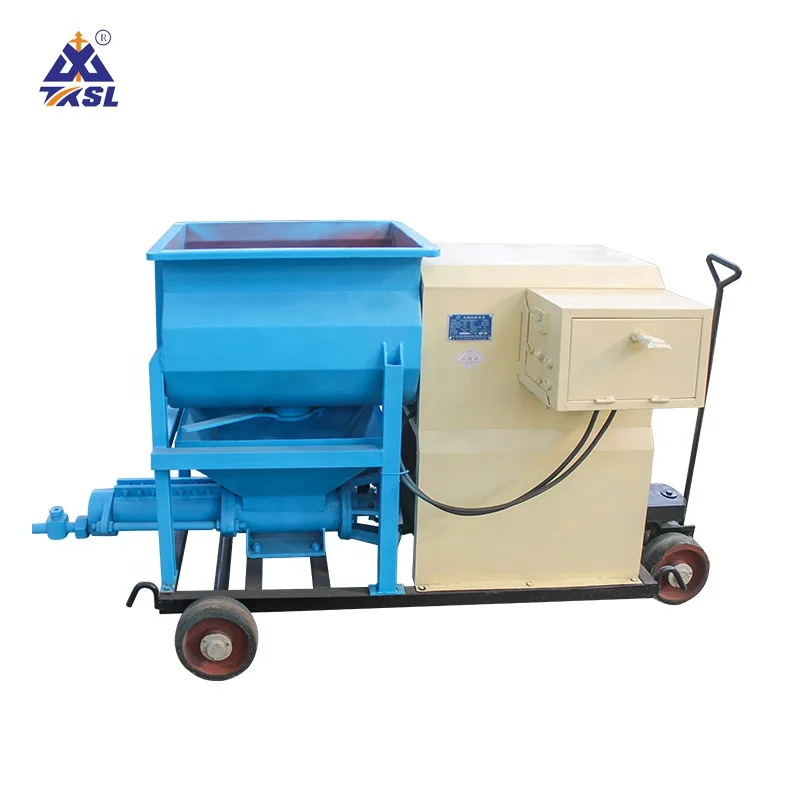

Well Designed cement grout spraying pump for sale supplier
Well Designed cement grout spraying pump for sale supplier
Well Designed cement grout spraying pump for sale supplier
Well Designed cement grout spraying pump for sale supplier
Well Designed cement grout spraying pump for sale supplier
Well Designed cement grout spraying pump for sale supplier
Well Designed cement grout spraying pump for sale supplier

Well Designed cement grout spraying pump for sale supplier

Share on (60738112710):


Price:$1,999.00

Quantity:


Product Overview

Description


Product Description

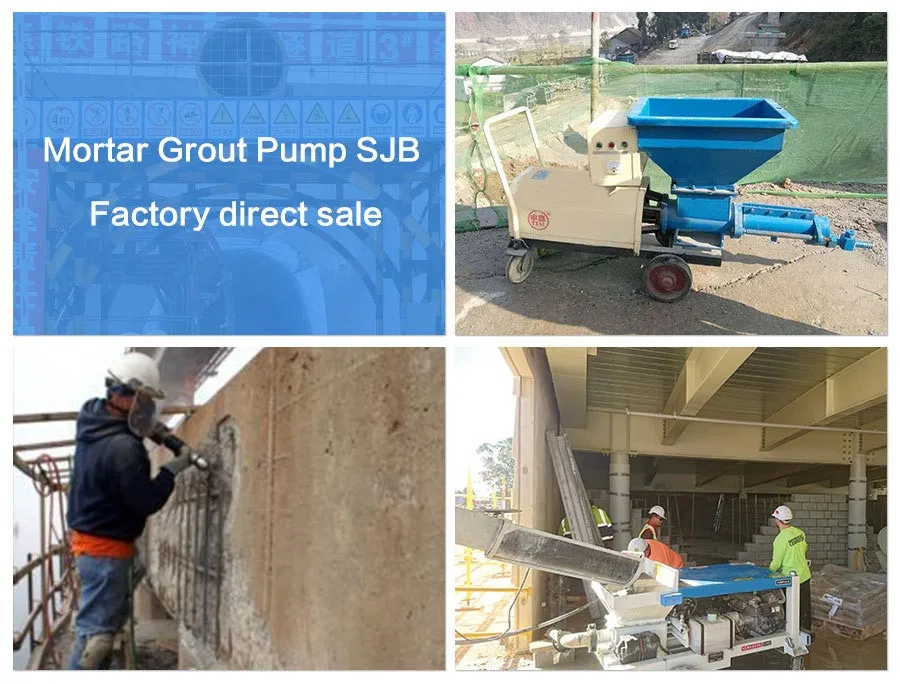

Well Designed cement grout spraying pump for sale supplier is widely used for pressure grouting, including anchor grouting, backfill grouting, consolidation grouting in highway, railway, tunnel, subway, hydropower station, underground chambers, dam, slope, soft rock. In addition, it can also be applied in spraying protection of interior and exterior walls, building surface of civil engineering.

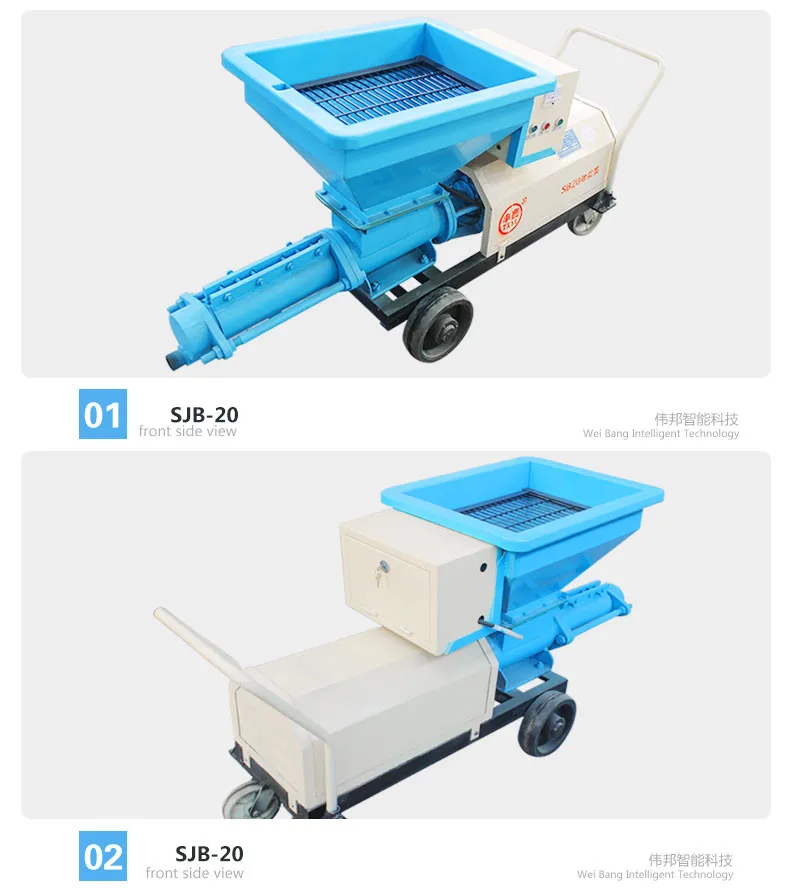

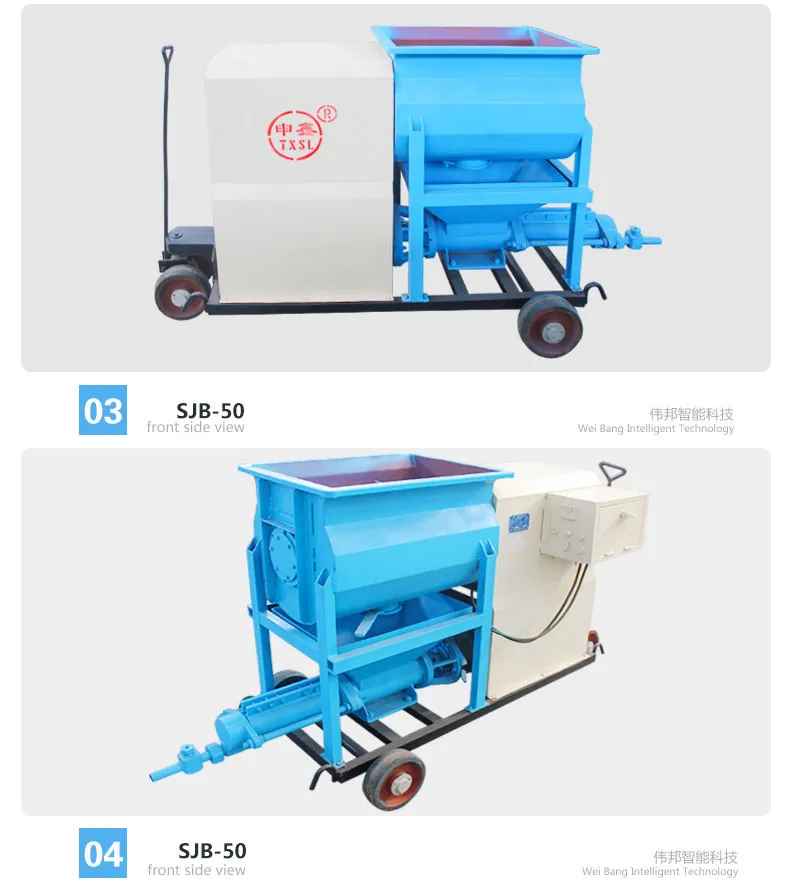

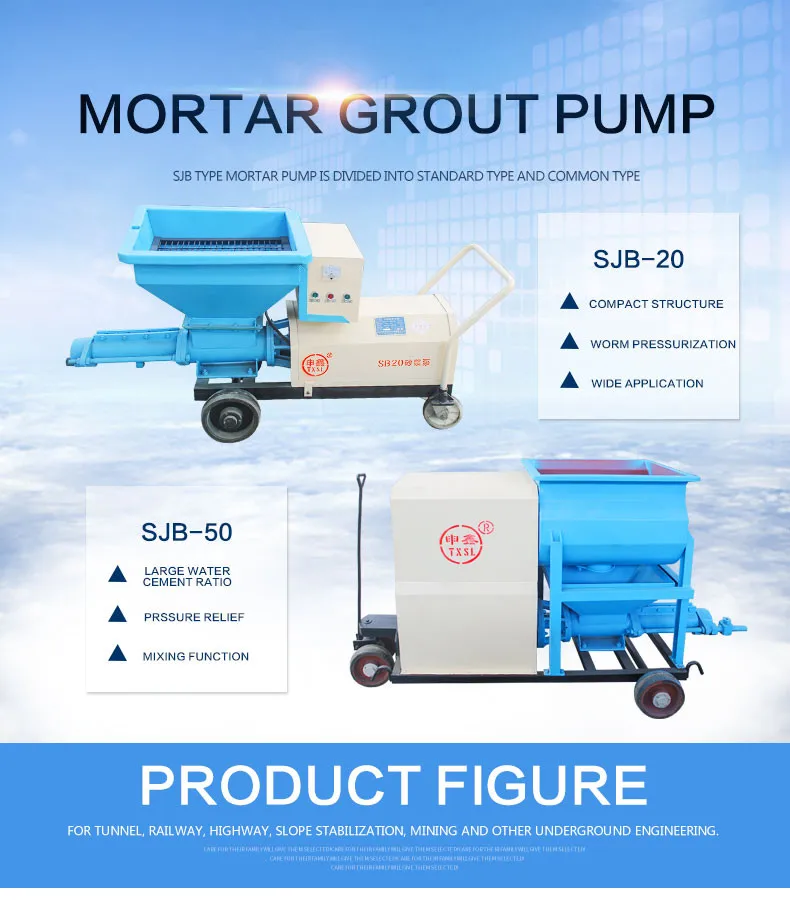

Technical Parameters of Well Designed cement grout spraying pump for sale supplier:

\t
Model
\t
SJB-20 I
\t
SJB-20B II
\t
SJB-50 I
\t
SJB-50 BII
\t
Grouting Capacity(l/h)
\t
2000
\t
2000
\t
4200
\t
4500
\t
Main Motor Power(kw)
\t
4
\t
5.5
\t
7.5
\t
15
\t
Mixing Motor Power (kw)
\t

\t
4
\t

\t
4
\t
Grain size (mm)
\t
≦2
\t
≦2
\t
≦2
\t
≦2
\t
Water Cement Ratio (w/c)
\t
≥0.3
\t
≥0.3
\t
≥0.3
\t
≥0.3
\t
Grout Pressure (MPa)
\t
2
\t
2
\t
2
\t
4
\t
Mixing Volume (l)
\t
-
\t
160
\t

\t
160
\t
Feeding Height (mm)
\t
830
\t
1300
\t
880
\t
1200
\t
Dimension (mm)
\t
1955x550x830
\t
1955x600x1300
\t
1670x600x880
\t
2285x722x1200
\t
Working Air Pressure (Mpa)
\t
0.3-0.6
\t
0.3-0.6
\t
0.3-0.6
\t
0.3-0.6
\t
Air Consumption ( m³/min)
\t
≥3
\t
≥3
\t
≥8
\t
≥8

Main Features of Well Designed cement grout spraying pump for sale supplier:
1, Compact structure and reliable performance.
2, SJBⅠ has the function of mixing, mixing and grouting can be completed synchronously by one machine .
3, Large range of water cement ratio: it is especially adaptable to mortar in high concentration.
4, Continuous grouting avoids instantaneous high pulsation produced by pumping work.
5, Grouting pressure will be released when getting setting pressure.
5, Equipped with air compressor and spray gun, it can be used for spraying protection of interior and exterior walls, building surface of civil engineering.

Detailed Image

        Rotary Screw Propeller

       Mixing Mechanism

        Hopper and Screen

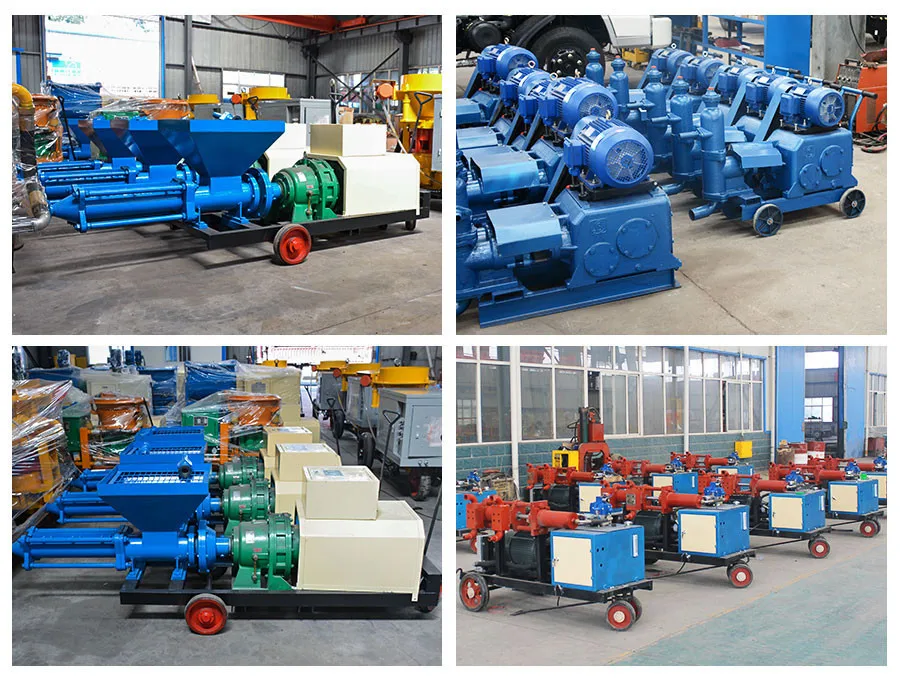

Workshop Images
Related Products

     Cement/Mortar Grout Pump

               Piston Grout Pump

       Hydraulic Grout Machine

    Mortar Mixer and Grout Pump

           Wet Shotcrete Machine

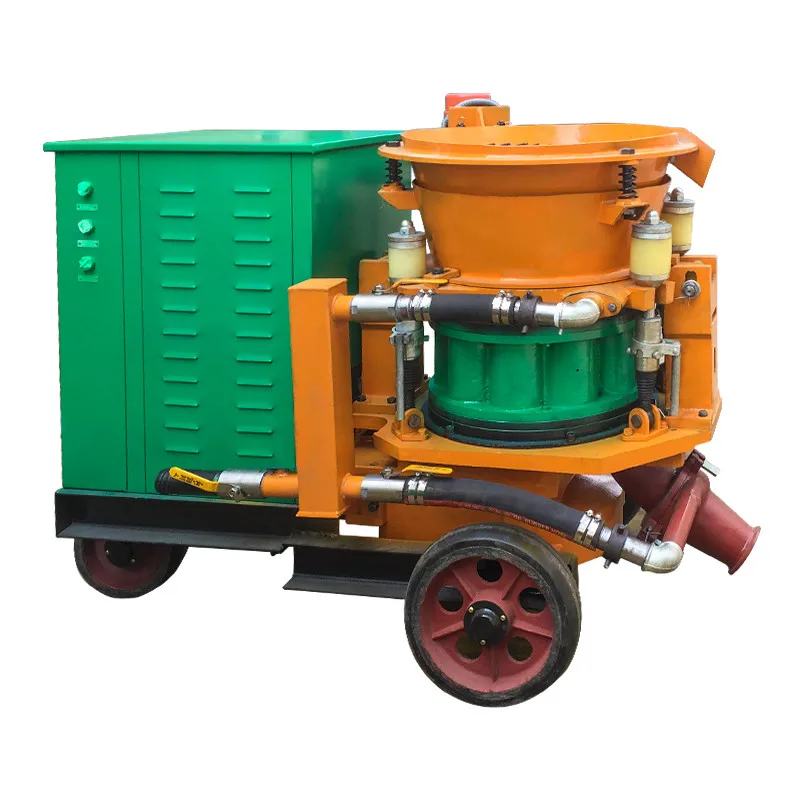

           Dry-mix Shotcrete Machine
