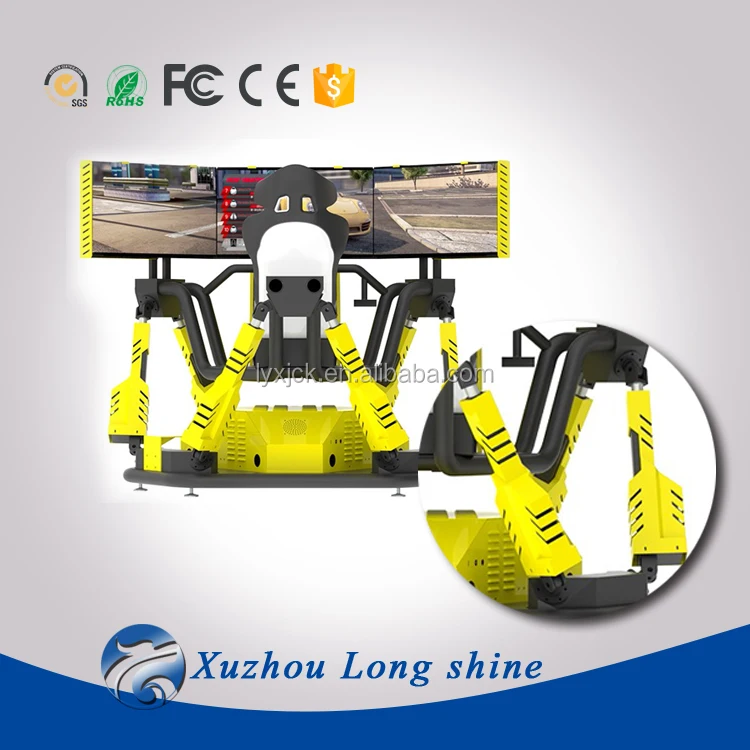

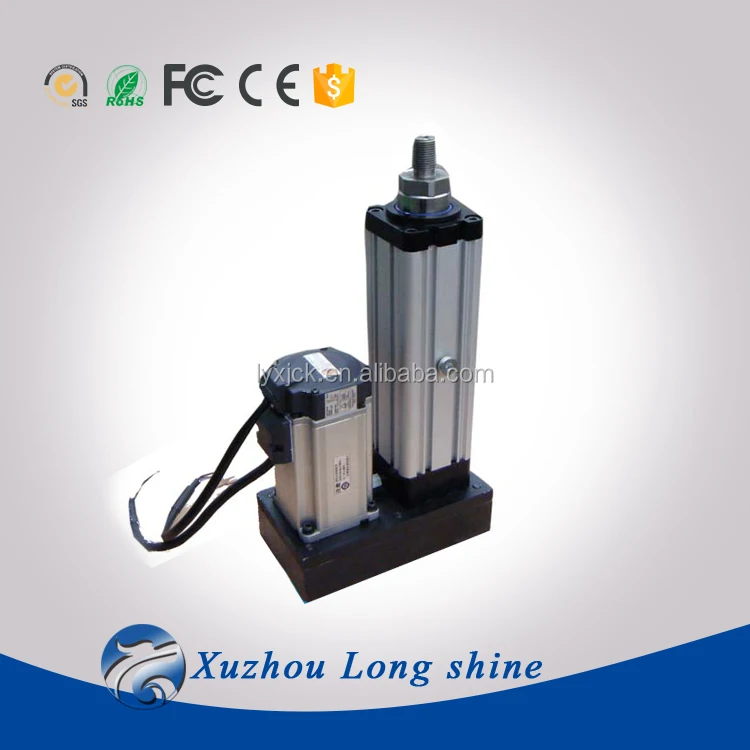

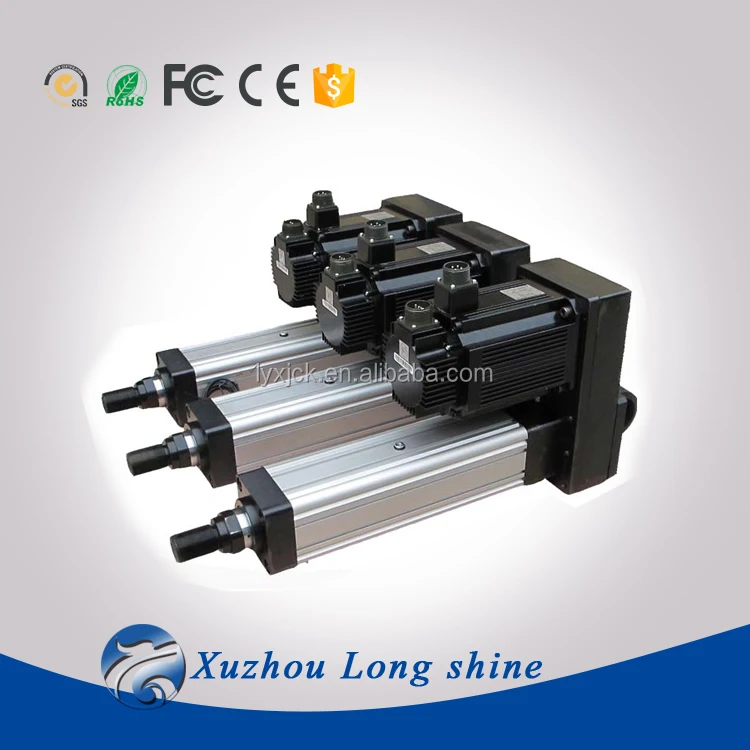

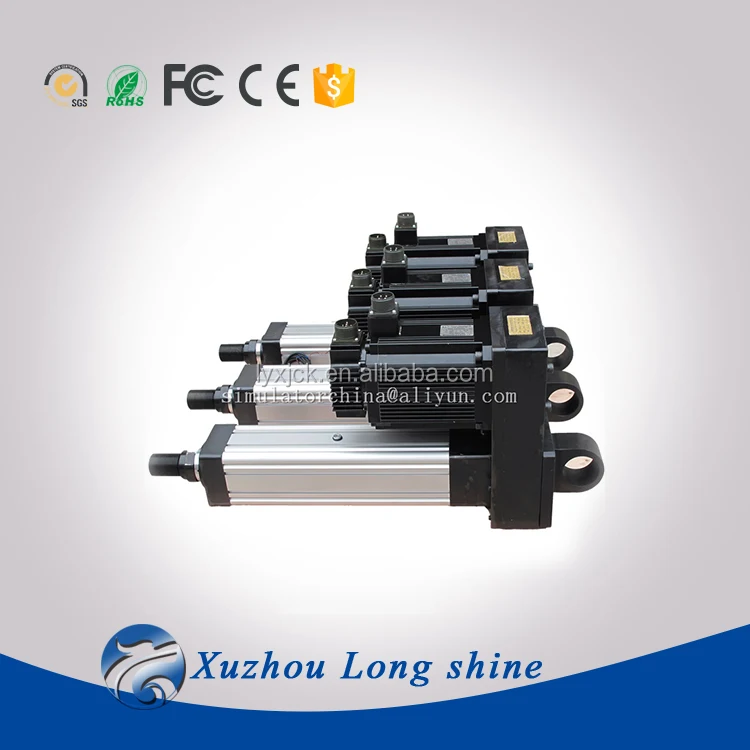

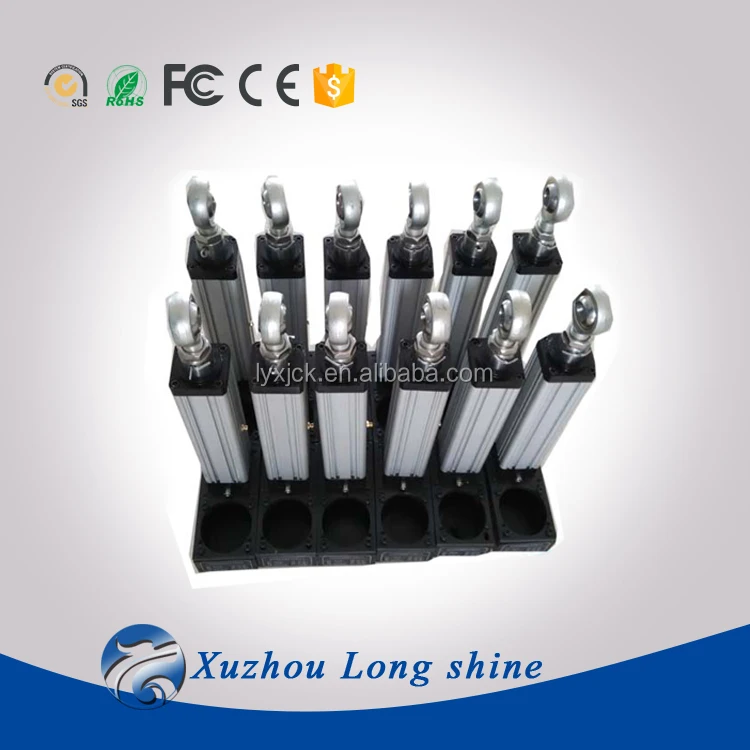

Servo linear actuators for racing simulator

Product name:Servo linear actuators for  racing simulator

Structure, Material and Feature

Compact structure, small size, easy installation and maintenance.

High precision, high efficiency, high performance,low noise, reliable, durable

Cylinder material: aluminium alloy.

*45# steel is optional for excessive thrust cylinder or certain conditions.

Cylinder rod material: high-alloy steel,

surface chrome plating, antiwear, anti-corrosion.

*SUS304 is optional for Cylinder rod.

IP62,IP65

Performance and Configuration

Internal application of ball screw and roller screw.

Repeated positioning accuracy: ±0.01mm

*Applicable to different occasions.

Thrust, speed, stroke and installation can be customized.

*Reducer unit is optional to drive high thrust with small power.

Motor is optional to different requirement.

*AC servo motor, low voltage servo motor, stepping motor, DC motor, variable frequency motor, etc.

Special Process

  Add magnet ring inside, deploy with stroke switch

  Anti rotation mechanism.

  All optional parts can be designated or supplied by customer, for e.g.: servo motor, reducer.

1. Q: Can you produce products according to our requirements?

    A: Yes, we can do customized products according to your detailed requirements if it is not our standard products. We have experienced engineers, they will also give you the most practical suggestions and designs.

2. Q: Do you have the products in stock.

    A: Usually, we have different materials in stock, we can produce them soon after you confirm order.

3. Q: What’s the delivery time?

    A:  If we have stock for your order, we could deliver in 5 to 10 working day after 100% payment received. If there is materials short in stock, we will deliver in 10 to 40 working days after 100% payment received. So please contact us to confirm.

4. Q: Will you deliver the right goods as ordered? How can I trust you?

    A: Yes, we will. We have experienced quality management team and we send out goods outbroad every day. And we can offer goods photos before delivery.

5. Q: Do you offer after-sale service?

    A: Yes. We have experienced engineers, they are ready at any time to answer customer's questions. And for customer's request, our engineers can offer home service. For details service terms, please contact us.
