Gantry moved hypethem system cnc plasma cutting machine
- Category: >>>
- Supplier: Jinan Huafei Cnc Machine Co. Ltd.
Share on (60738234396):
Product Overview
Description
Products Description

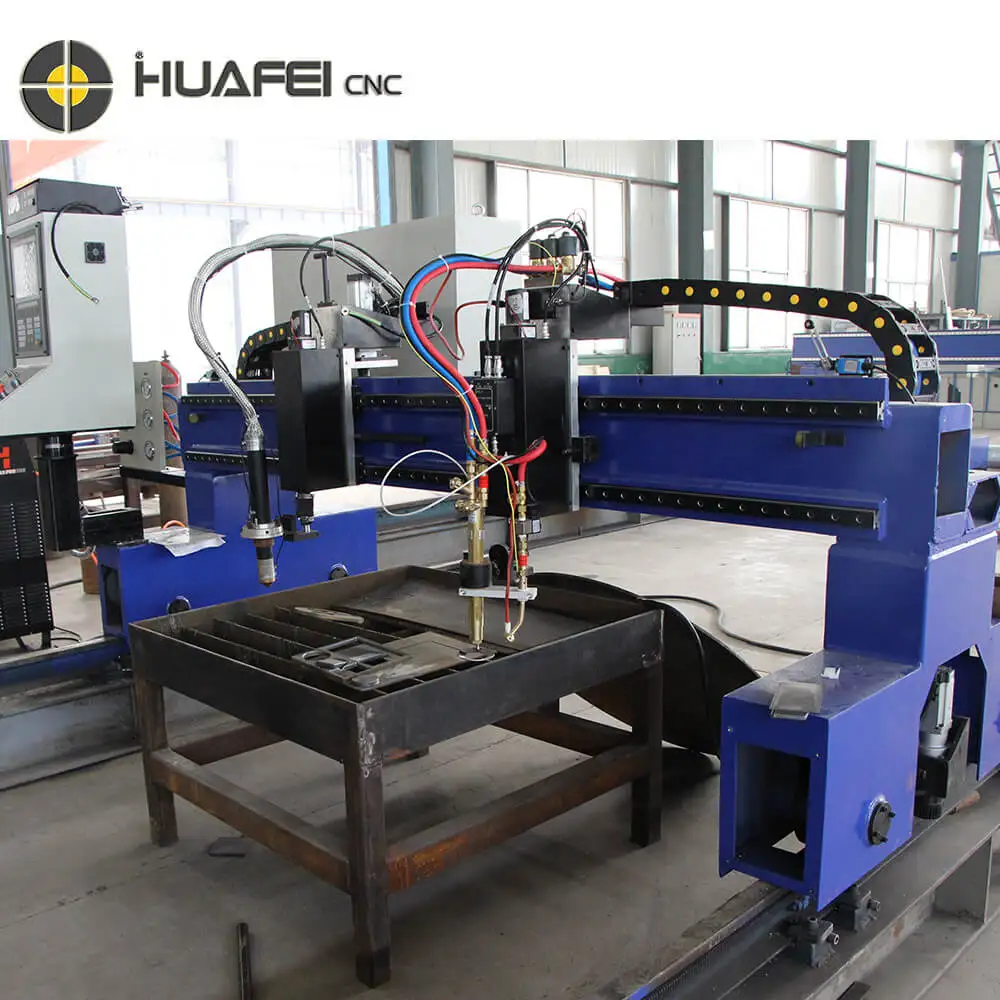

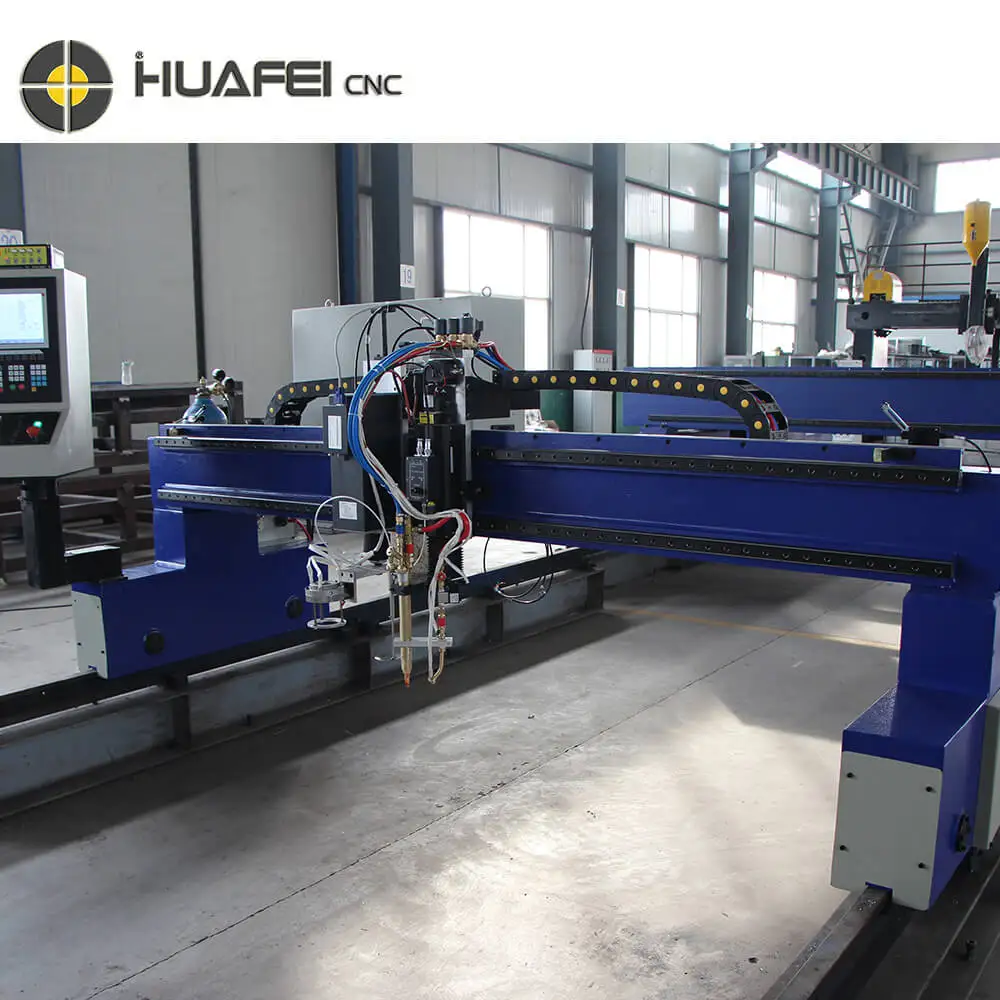

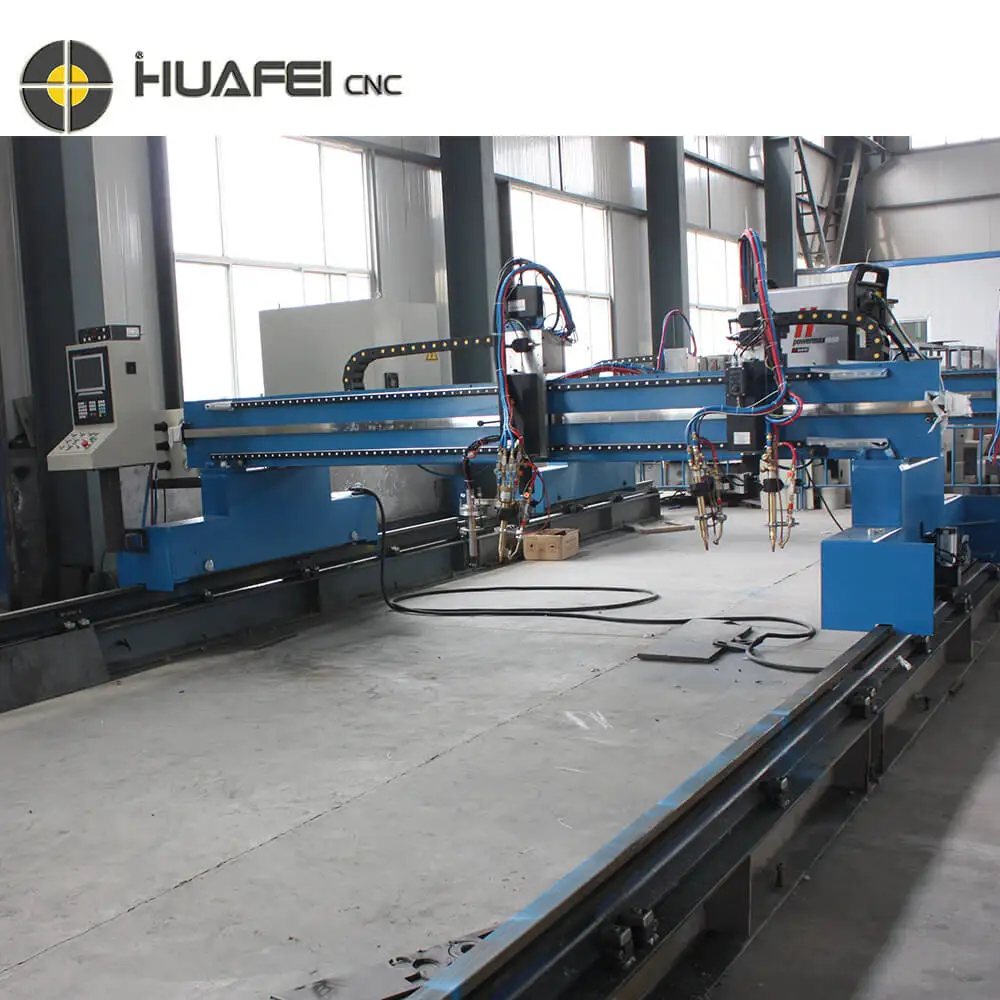

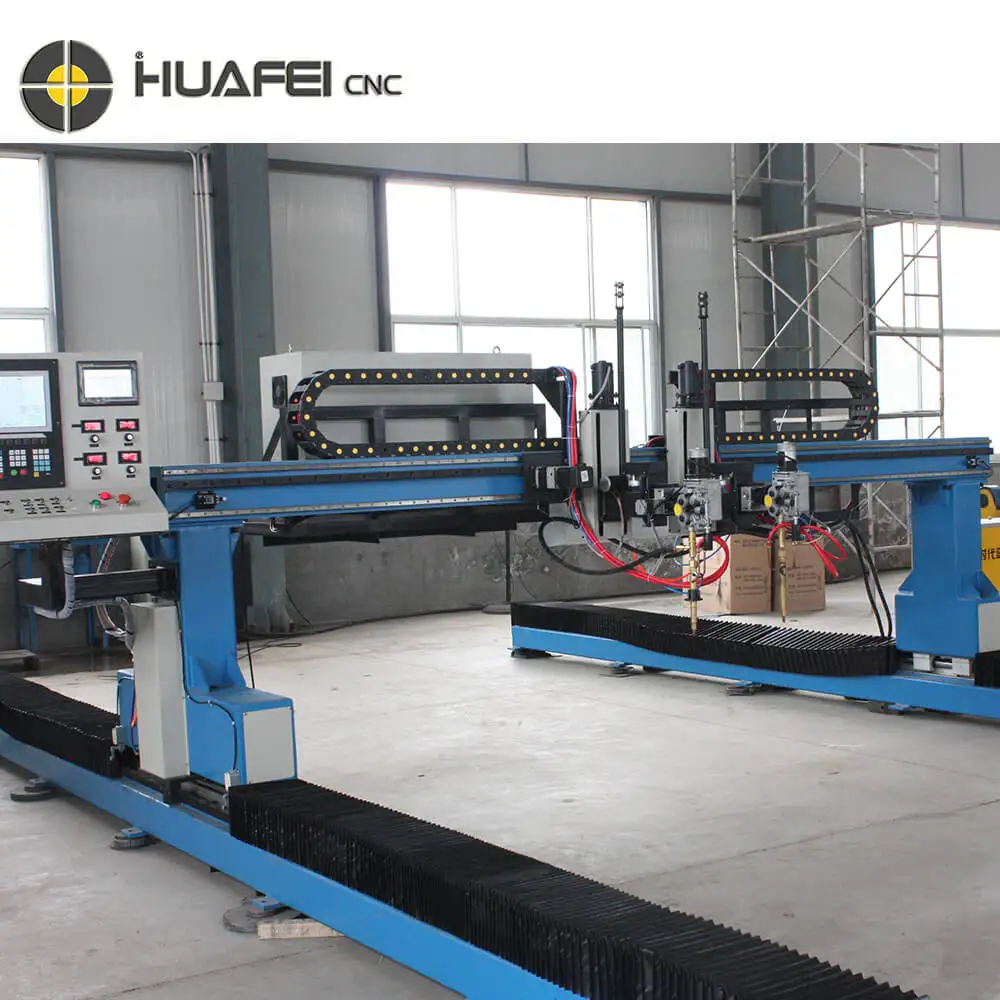

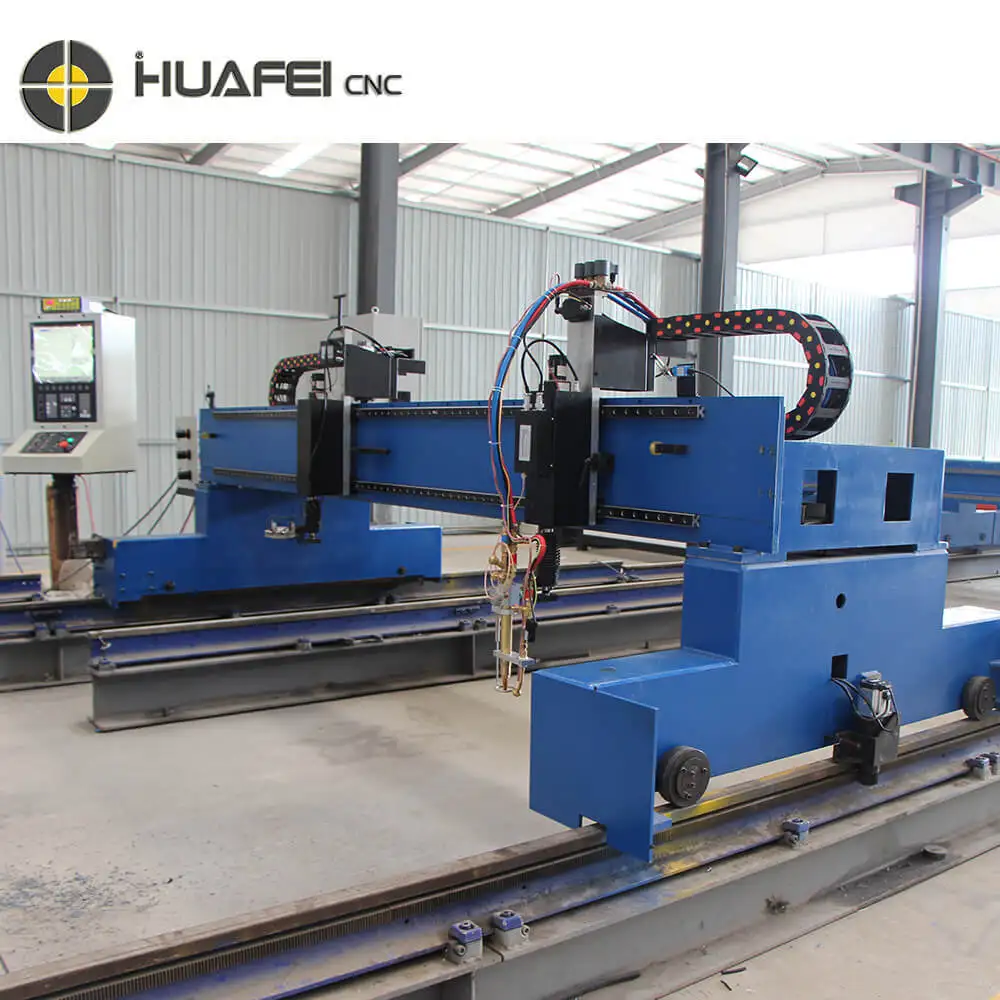

Gantry CNC plasma cutting machine
Heavy-duty gantry-type frame structure, the beam adopts a box-type welded structure, no deformation, high-efficiency bilateral drive, compact structure, overall tempering, fully eliminate welding stress, thick and atmospheric appearance, stable and reliable performance, which is the most standard in the cutting machine industry. A universal CNC cutting machine with lateral spans of 3m, 4m, 5m, 6m|8m and other specifications, both with bilateral drive, double-axis linear guide, standard for lateral gauge 4m, effective cutting range: 3.2m Longitudinal rail length can be customized, single flame or single plasma cutting method with automatic ignition; it can also be added into flame and plasma cutting mode. The length of the longitudinal rail is 2m per section. The lengthening rail can be configured according to the user's requirements and the span of the beam can be widened. Multiple torches or bevels can be cut according to user requirements.
Product Paramenters
Item | Specification | ||||||||
Horizontal track space(mm) | 3000 | 4000 | 5000 | 6000 | 7000 | ||||
Effective cutting width(mm) | 2200 | 3200 | 4200 | 5200 | 6200 | ||||
Overall width(mm) | 3800 | 4800 | 5800 | 6800 | 7800 | ||||
Cutting mode | flame only,plasma only,flame and plasma | ||||||||
Driving method | rack and pinion drive for X and Y axes | ||||||||
Driving mode | double-side driving | ||||||||
Flame cutting thickness | 6-200mm | ||||||||
Plasma cutting thickness | 0-50mm(according to plasma power source) | ||||||||
Cutting speed | 0-6000mm/min | ||||||||
Empty stroke speed | 0-10000mm/min | ||||||||
Automatic height controller | capacitive height control for flame cutting | ||||||||
arc voltage height control for plasma cutting | |||||||||
Applications
This machine is mainly used for precise cutting of large panels. It is a kind of cutting and cutting equipment with high efficiency and energy saving, which can greatly improve the utilization rate and cutting efficiency of steel plates. This machine can work continuously without stopping for a long time. It can cut low carbon steel (flame cutting) and non-ferrous metals (plasma cutting) such as high carbon steel, stainless steel, aluminum, copper, etc. It is widely used in machinery, automobile, shipbuilding, petrochemical, military, metallurgy, aerospace, boiler, pressure vessel, and other industries. EL, locomotive, etc.
All the specifications and components of our CNC cutting machine could be customized upon request. As a CNC cutting machine manufacturer and supplier, we offer CNC cutting machines, flame-cutting machines, underwater plasma cutting machines.desktop CNC cutting machine, and more CNC machines. Our products are ISO9001 and CE certified and exported to many countries in Europe and Southeast Asia. Located in Shandong province, we have access to convenient transportation facilities by land, sea, and air.
All the specifications and components of our CNC cutting machine could be customized upon request. As a CNC cutting machine manufacturer and supplier, we offer CNC cutting machines, flame-cutting machines, underwater plasma cutting machines.desktop CNC cutting machine, and more CNC machines. Our products are ISO9001 and CE certified and exported to many countries in Europe and Southeast Asia. Located in Shandong province, we have access to convenient transportation facilities by land, sea, and air.
Product advantages
Rack structure
The cross beam adopts the German Messel technology and gantry frame, which can eliminate the torsion better. The crossbeam is a non-rectangular tube structure of the box steel structure. After welding, it is annealed entirely to eliminate the internal stress so that it will not deform in long-term use. The stable frame structure makes the cutting precision higher and the cutting speed faster.
Guide
A horizontal guideway adopts a domestic or imported double axle core linear guideway with high precision and good guidance.
Longitudinal guide rail with a grinding surface made of special metal has high mechanical accuracy and wear resistance.
Servo drive system
We use the Panasonic servo drive system, which has the function of character position detection, high precision, and short acceleration time. The drive system adopts the Japanese original planetary reducer, whose input and output errors are only 16 arcs. Meanwhile, in the transverse and longitudinal gear transmission structure, an automatic clearance compensation device is added to enable the transmission structure to accurately execute the instructions issued by the CNC system.
Mechanical transmission device
All the mechanical transmission systems adopt the meshing of the precision gear and rack with the machining accuracy of Grade 7 of the national standard.
Nesting software
Choose common edge, bridge, continuous cutting, micro-connection, and other cutting processes to improve the utilization rate of sheet metal, cutting efficiency.
Operating System
Using the top operating system of Shanghai Jiaotong University or other world-class systems designated by users, it has a multilingual menu function, stable and reliable, high control accuracy, memory protection of power breakpoints, etc.
Cutting Torch Lifting Device
Cutting torch lifting rack is used to realize the automatic lifting of the cutting torch. The lifting body of a heavy cutting torch realizes the upper and lower movement of gauge through the movement of linear bearing between guide axles. The torch seat also has a 360-degree anti-collision function and protects the safety of the torch in the whole working area. The whole heavy cutting torch lifting body has three lifting modes: manual, electric, and automatic.
Pressure gauge and relief valve
The pressure gauge and control valve is installed on the top of the central control panel so that the operator can adjust and check the gas pressure according to the optimum state during cutting. The panel has a switch for operating solenoid valve, which can be adjusted manually and controlled automatically by the numerical control system.
Cutting power supply
Optional plasma power sources for different materials cutting.
Cutting effect
Optional configuration
Bevel cutting device
The infinite rotary groove cutting machine is suitable for cutting V, Y, X, and K grooves of workpieces with various linear or curve combination shapes. Its unique fluid mechanism design brings great convenience.
The straight flame cutting device
A straight flame cutting device can be installed on the back of the gantry CNC cutting machine to complete the straight cutting of carbon steel metal.
Company Profile
Huafei CNC Machinery Co., Ltd. factory
Since established, Jinan Huafei CNC Machine Co., Ltd. has focused on introducing and cultivating high-tech talents and takes it as a development strategy. at present, many professionals have been brought together who specialize in researching and developing of uncoiling and leveling machines, CNC welding, and cutting equipment. technical strength is always cherished as the core competitiveness of our company.
FAQ:
1. When the machine can’t work well, What should I do?
(1)The engineer is online for 24-hours, they can check the problems and then give you solutions in two hours.
(2)our machine is with one’s year warranty, If any problems of machine parts under “normal use”, new machine parts will be sent by air In free.
(3)Please rest assured that operation CD and manual will be offered along with the machine, making you can operate the machine easily.
Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions and solutions according to your requirements, the engineering feasibility and economic benefit, etc.
Provide knowledge of equipment operation and maintenance, Allows you to accurately grasp the characteristics of the machine. one year warranty, life-long maintenance services through email or telephone. Please feel free to use it.
Supply all kinds of accessories and replacements.
Provide knowledge of equipment operation and maintenance, Allows you to accurately grasp the characteristics of the machine. one year warranty, life-long maintenance services through email or telephone. Please feel free to use it.
Supply all kinds of accessories and replacements.
2. Does your company accept the customized offer, we have a special need.
HUAFEI CNC is a company that focuses on research and manufacture of modular CNC machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have a certain amount of needs.
3. What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
4. Does your company accept CIF price?
CIF price includes the shipping cost of the CNC machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such a need.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.
5. What are your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. The exported CNC machine is all be packed by a wooden case which can be fixed into a 40 HQ.
6.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
7. Does MC have a maintenance manual and operation manual?
Each CNC machine leaving the factory will be along with a related series or model the English instructions including maintenance manual and operation manual. Attached documentation may also include CNC controller instruction, parts instruction you bought(like a rotary table, oil cooler).
