China gear pump aluminum small hydraulic gear pump CBT for dump truck
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60738258047):
Product Overview
Description
Product Description

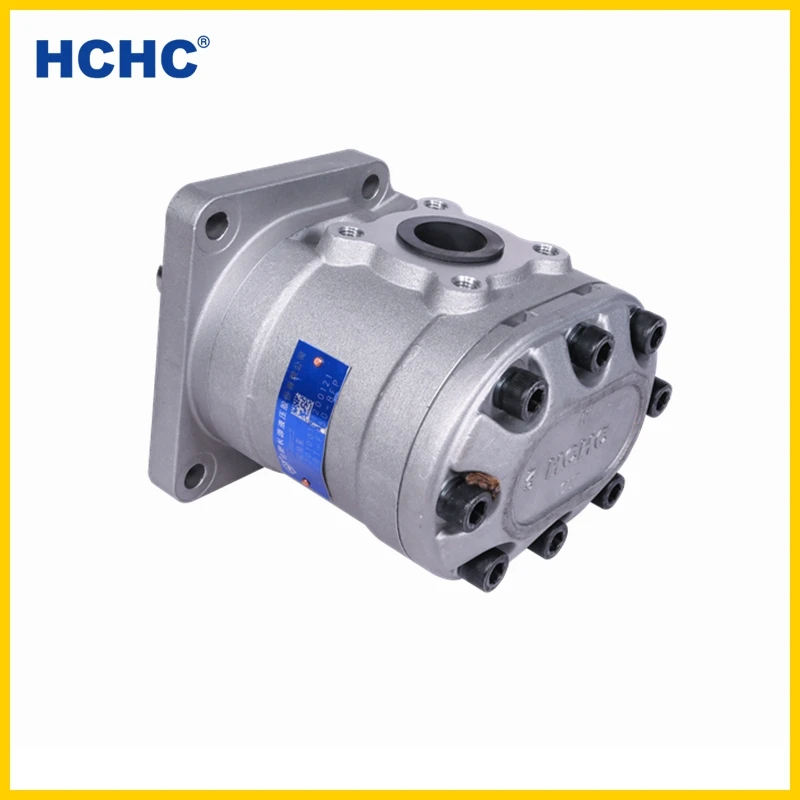

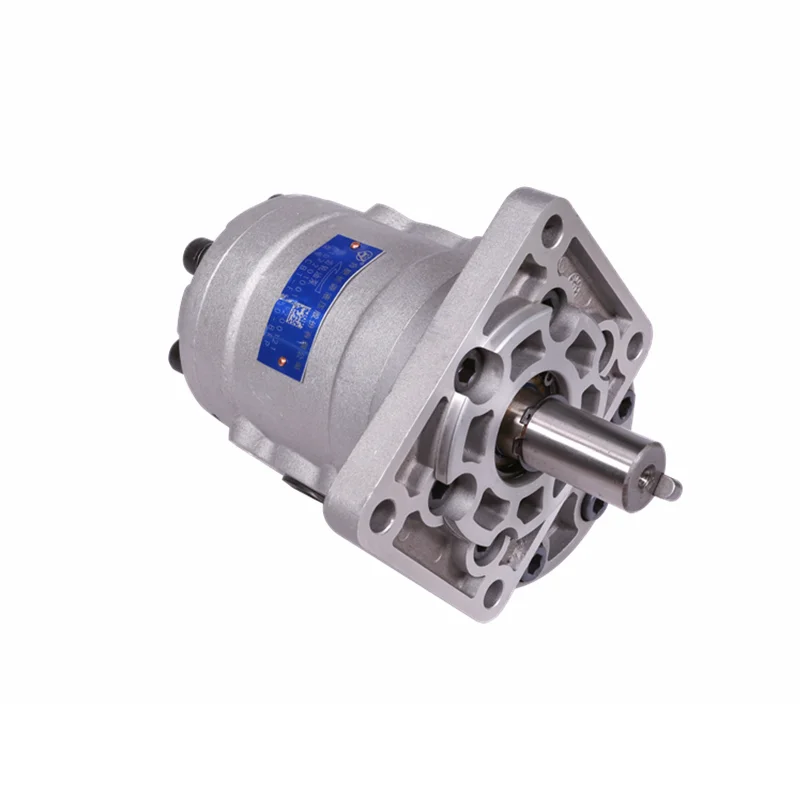

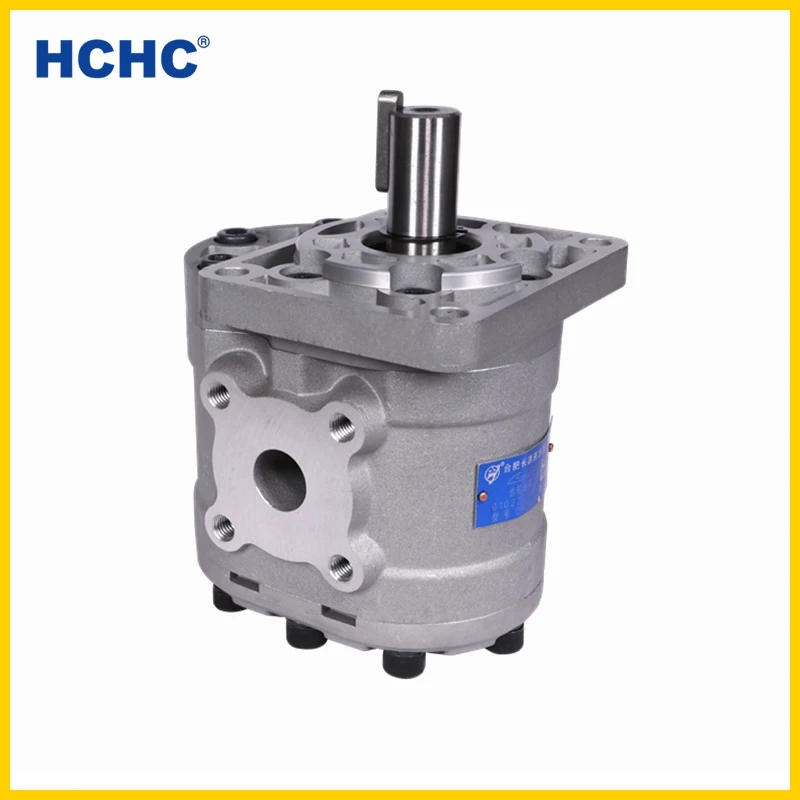

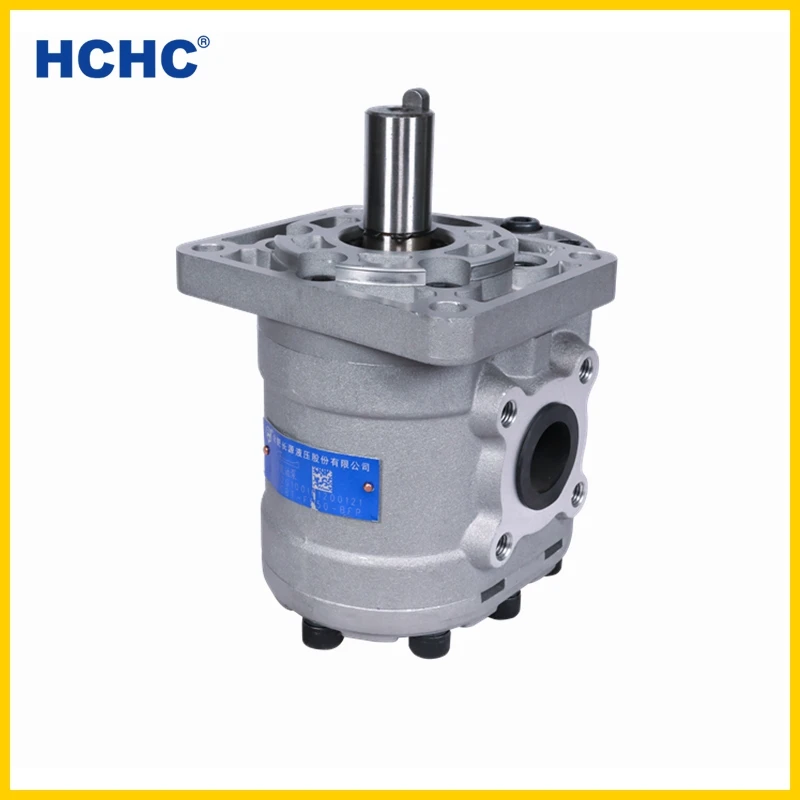

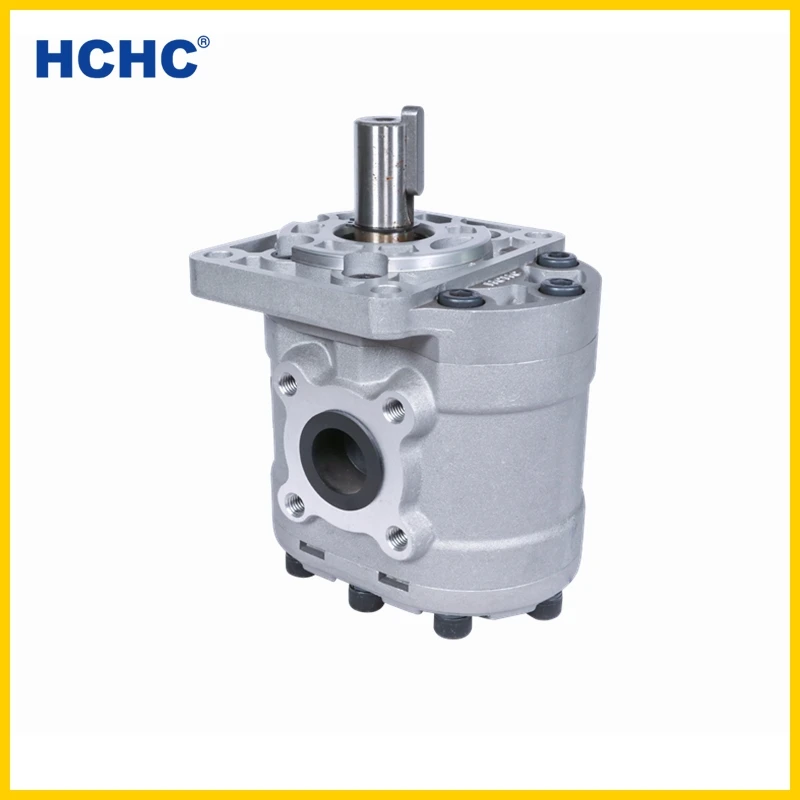

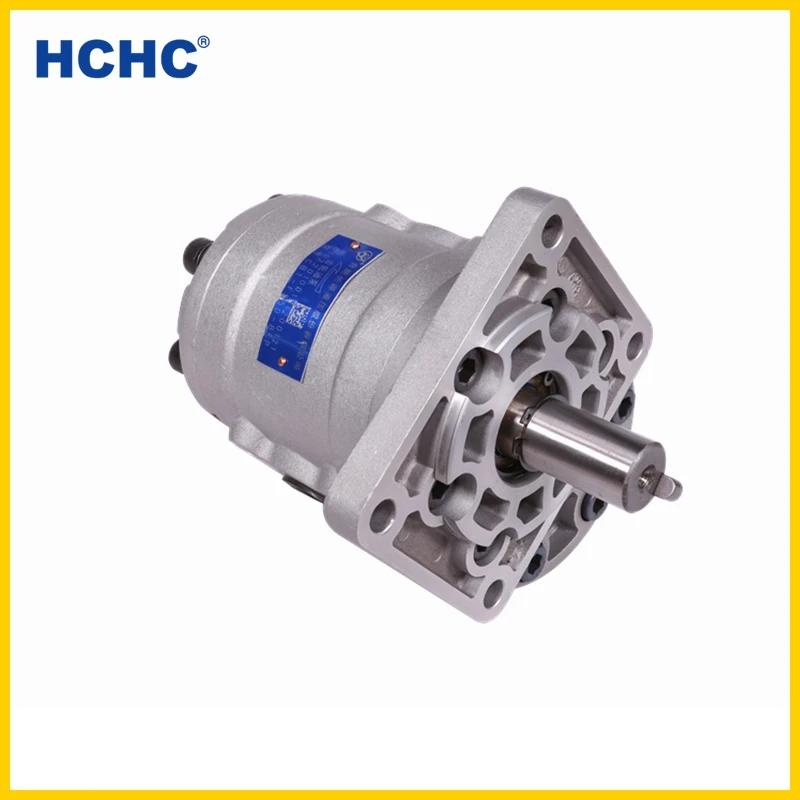

China gear pump aluminum small hydraulic gear pump CBT for dump truck
Performance Characteristics:
★ Pump housing is made of high strength aluminum alloy material.
★ The shaft extension type: plain key (P), rectangular spline (H), involute spline, SAE spline.
★ The joining type of inlet/outlet position is flange (F) or thread (L).
★ The auto-compensation unit of axial clearance ensures the high volume efficiency.
★ Higher working pressure, wider speed range.
★ Keep higher volume efficiency when the speed is 600 rpm/min.

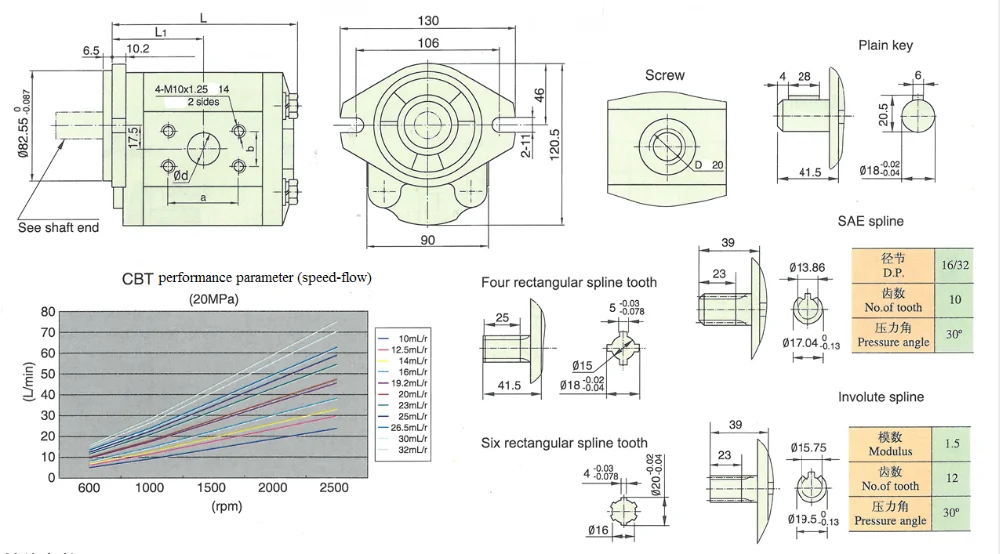

Specification
Model Code
CBT - F 550 - B F P
① ② ③ ④ ⑤ ⑥
①Product code
②Pressure grade: F=200bar
③Gear modulus: 5
④Nominal displacement(mL/r)
⑤Mounting type: B=square flange
⑥Joining port type: F=flange
⑦Shaft extension type: P=plain key
Rotation direction: R=clockwise(omitted)
Model | Nominal Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volume Efficiency (≥%) | ||||||
Rated | Max. | Min. | Rated | Max. | ||||||
CBT-F550-BFP | 50 | 20 | 25 | 600 | 2000 | 3000 | 92 | |||
