Pin type mixer for gypsum board plant /plaster board making machine

Product Overview

Description

pin type mixer for gypsum board plant

 LVJOE MACHINERY brief introduction

1.  established in 1998, over 300 employee, 3 factories

2.  designed first gypsum board (plasterboard) production line of China

3.  one-stop solution service for gypsum industry

If you visit LVJOE MACHINERY, you will see finished machines, sample production line, different model .....

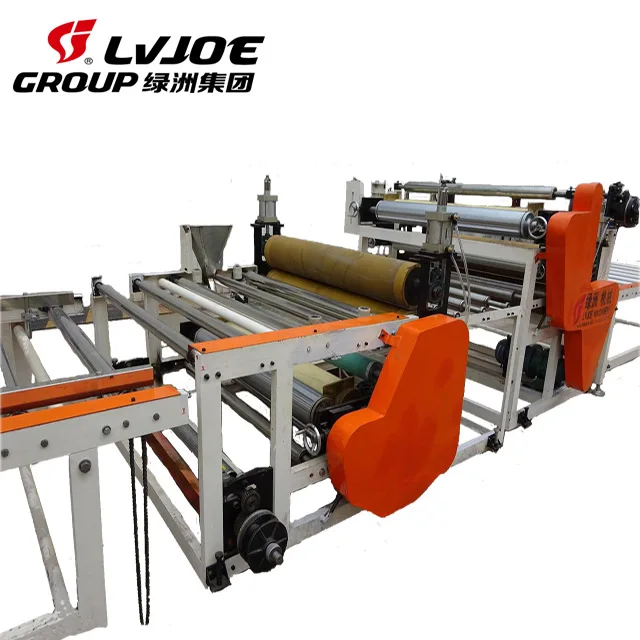

Photo 1/15 Name: forming machine

Application: gypsum board production line, also called plasterboard production line, or drywall production line

Note: 1. finished new machines with different technology

          2. client will visit working plants made by LVJOE MACHIENRY, then know more on difference

          3. client can choose which one he like, then write something on it. we can delivery it quickly



Photo 2/15 Name: screw conveyor     Application: dosing system

Foaming agent

Solid content	≥30%
Active content (petroleum ether)	≤3.0%
Inorganic salt	≤2.5%
PH value	7

Photo 3/15 Name: gypsum board cutter

Application: gypsum board production line, cut wet gypsum board in certain length

Note: 1. normally prepare 5 sets as sample with 3 design

          2. the right one, we amend germany technology. preicision 2mm

          3. the left one, the standard technology. precision 1.5cm

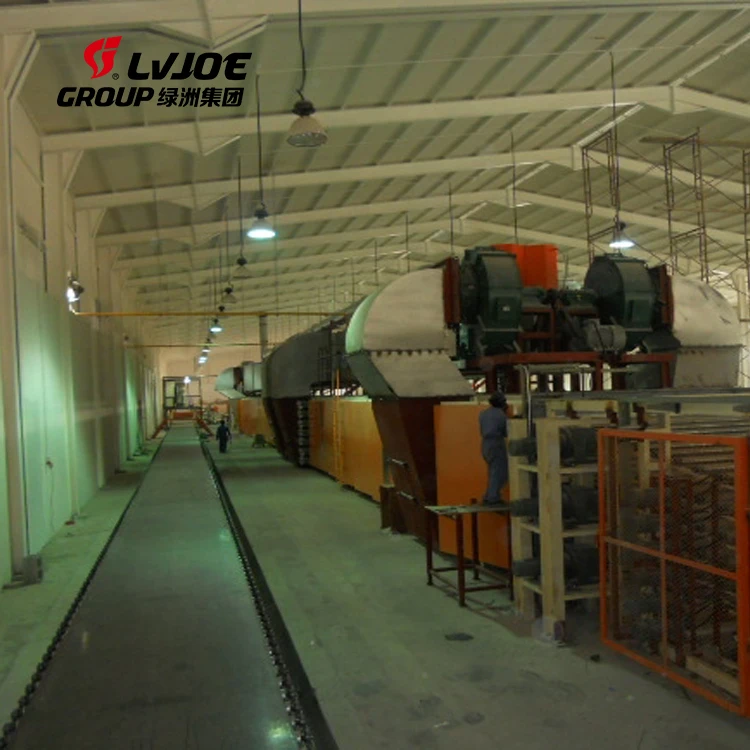

Photo 4/15  Name: whole production line sample

Note: 1. client has an impression on gypsum board plant

          2. client will understand easily when visit working plants

          3. client can buy this production line sample with big discount

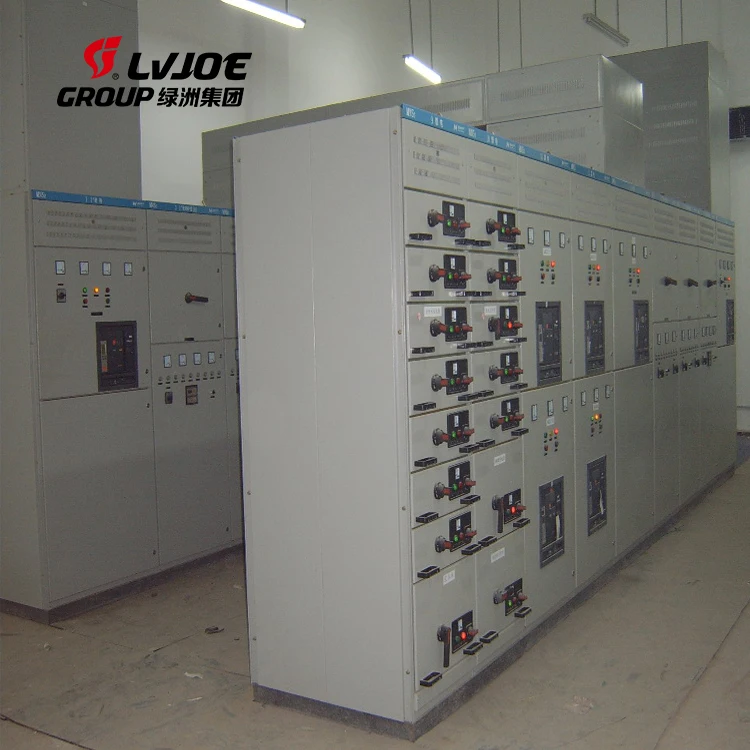

Photo 5/15  Name: electrical system

1. prefer the brand appointed by client

2. more un-finshed electrical cabinet, once get order, we can finish it quickly

3. germany type, USA type both are available

LVJOE MACHINERY apears in many countries, exhibition, google, alibaba etc.

Photo 6/15 Name: Dar es Salaam fair -- Brands of China Africa Showcase 2014

Note: 1. we have booth in overseas exhibition

          2. you can meet us in Canton Fair

          3. LVJOE MACHINERY is hot words by google search

          4. 12 years as golden member in alibaba

          5. our men will do rountine maintenance in different countries each year

          6. many foreign skilled engineers know the name of LVJOE MACHINERY



 Photo 7/15 Name: client visiting

Finally  installation  & erection  & rountine maintenance

 Photo 8/15 Name: installation

Note 1: it is better that buyer choose local workers for doing installation & erection with our engineers together. so that local workers can learn it quickly.

1. local workers and our men will find a name for all the parts. so that buyer can buy it quickly in future. or just mark an item with technical data & area

2. our men will tell local workers which parts easy to be damaged, which parts danger, which parts should be filled with lubricating oil, how to change, where is spare parts

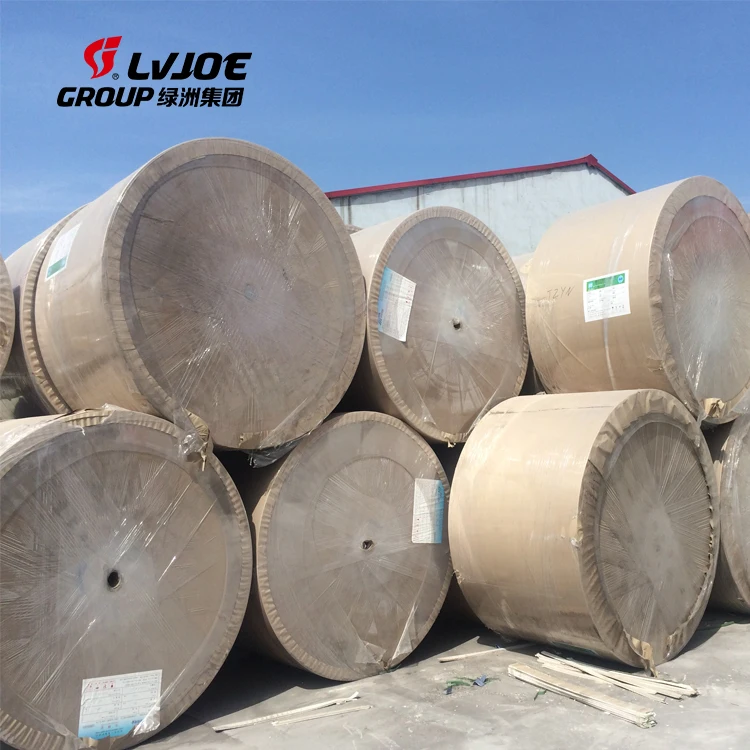

3. the normal problems, how to change paper roll, the skill on mixer, dryer, programme etc.

4. with time passing, the local workers will be skilled men, and all of them will be a big family

5. any problem, or misunderstanding, please tell us directly. normally we always face problem, finally all of us can solve it together. example food, working time, habit, language etc.



 Photo 9/15 Name: performance testing

Raw materials consumption (1200 x 2400 x 9.5mm)

	item	consumption  per sq.m. (kg/m2)
1	gypsum powder	6.00
2	paper	0.440
3	modified starch	0.092
4	foaming agent	0.0117
5	fiber glass	0.083
6	glue	0.0022
7	water	4.50
8	electricity	0.35kWh/ m2
9	gas	~4200Kcal/ m2

Note: please check calorific value of fuel with your supplier.



Photo 10/15 Name: success!    Characteristics of our machines listed below

· Paper edge groove impressing device instead of motor driving saws, energy saving, less maintenance and clean;

  Dynamic foam generating system;

  Wet additives like retarder, silicon oil and water reducing agent all with independent system;

 Altogether 4 powder additives configured with metering feeding devices, ensuring accurate dosing and high potential and flexible technology development; (optional)

Overflow of plaster to weighing belt conveyor and its material internal circulating loop make the belt filling consistent;

 Double screw powder mixer to make plaster and additive homogeneous; (optional)

Most updated German style mixer with dense plaster extraction and foam injection holes; motor driving with frequency invertor;





 Photo 11/15 Name: rountine maintenance, 1 time each year
