Product Overview

Description

strawberry chewing gum making machine with stick gum packing machine



  Chewing gum manufacturing machines mainly consists of :



                                             a) chewing gum cores / slabs production line;

                                             b) chewing gum coating machines;

                                             c) chewing gum packing machines.



A. Chewing Gum Production Line for gum cores / slabs:

1) Mixer:

     Raw materials to be mixed into dough( before mixer, there is a gumbase heater).

2)  Production line:

     Dough to be put into extruder, goes all the way becoming thinner and thinner sheet

    until required thickness ,and then scoring gum cores & cutting at certain length.

    Scored gum core slabs are put onto the wooden trays and sent into a seperate room for aging.



     Alternatively, if you make stick gum, you need to change the gum core scoring & cutting

    machine into stick gum slab scoring & cutting machine; or in other words, both Coating

    gum & Stick gum can share the same production line.



    Capacity : 100kg / h; 200kg/ h; 300kg/ h ; 400kg/ h.



3) Aging room:

      Air conditioner and de-moisture machine are needed in this room in order to reach

     the below condition:

      Temperature: 18-20℃

      Moisture:  50- 55%



4)   Scored gum core separator:

       After aging, the scored gum slabs are sent into the Separator to become

      single and independent gum core .



B. Chewing Gum Coating Machines:



 This process is to coat gum cores and then polish.

 To make quality gum, especially sugar free gum, while coating, the wind into each coating pans

 must be strictly controlled at certain temperature , moisture and enough wind amount.



Advantages of our gum coating machines:

1) Perfect coating quality , making your gum good appearance & good quality ;

2) Coating time shortened , making your production more efficient;

3) Gum coating shell thickness can be easily controlled ;

4) Making your gum longer shelf life.




  As an option, our custom made air con can be equipped with heat recycling system,

  which can save 90% of energy compared with current standard design.

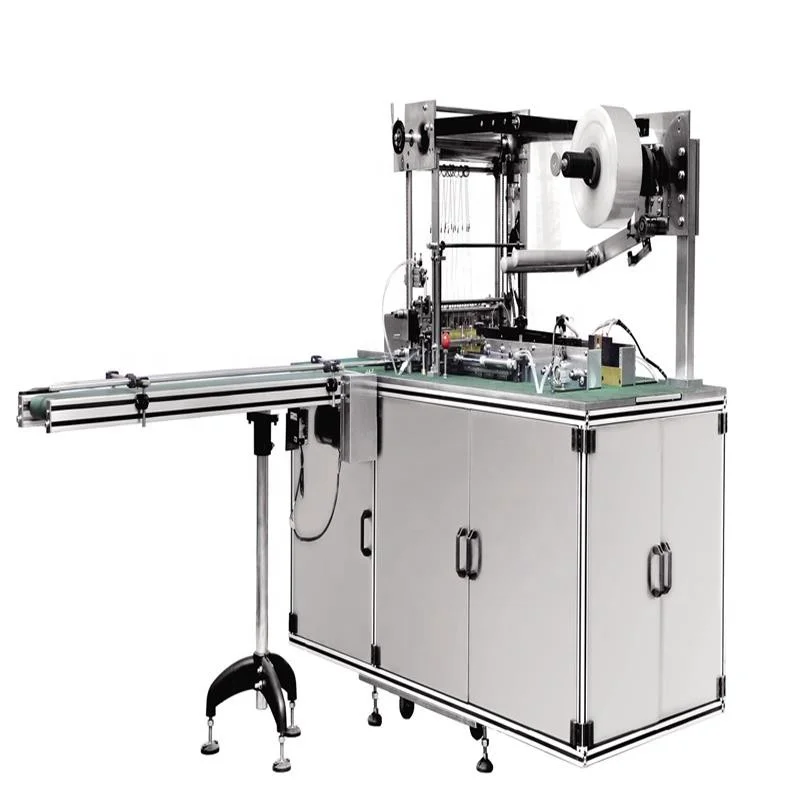

C. Chewing Gum Packing Machines:

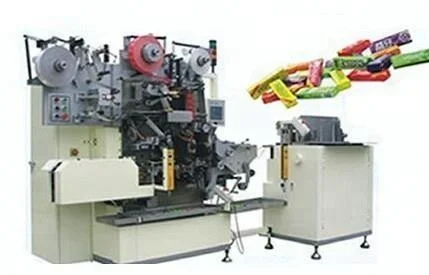

 Stick chewing gum packing machine:
  a) 5 sticks in a pack;
  b) single stick pillow pack;
  c)12 mini pieces in a carton.

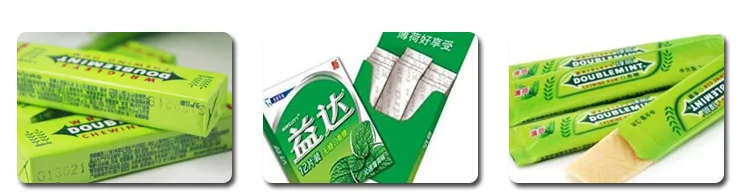

Packing samples :





Stick chewing gum process flow chart:





We provide chewing gum project services from A to Z :

Chewing gum whole plant machines, chewing gum raw materials, chewing gum packaging materials, chewing gum recipe.

For more details, please contact wechat / whatsapp: 0086 138 183 90785.



WHY CHOOSE US?



 1. Customer proved good performance whole plant chewing gum machines;



 2. Unique, high efficiency & labor cost saving gum coating system ;



3. Free consultation service before, during, and after sales;

4. Free project planning and factory layout design services;

5. Gum recipe and production techniques are available upon requirement;



6. Commissioning service and training of engineers at customer factory;

7. Provide 1 year warranty and life-long parts services;



In one word, we have good quality whole plant chewing gum machines with

turnkey services , so it is very easy for you to start this project and achieve

success when you choose to cooperate with SGO^^
