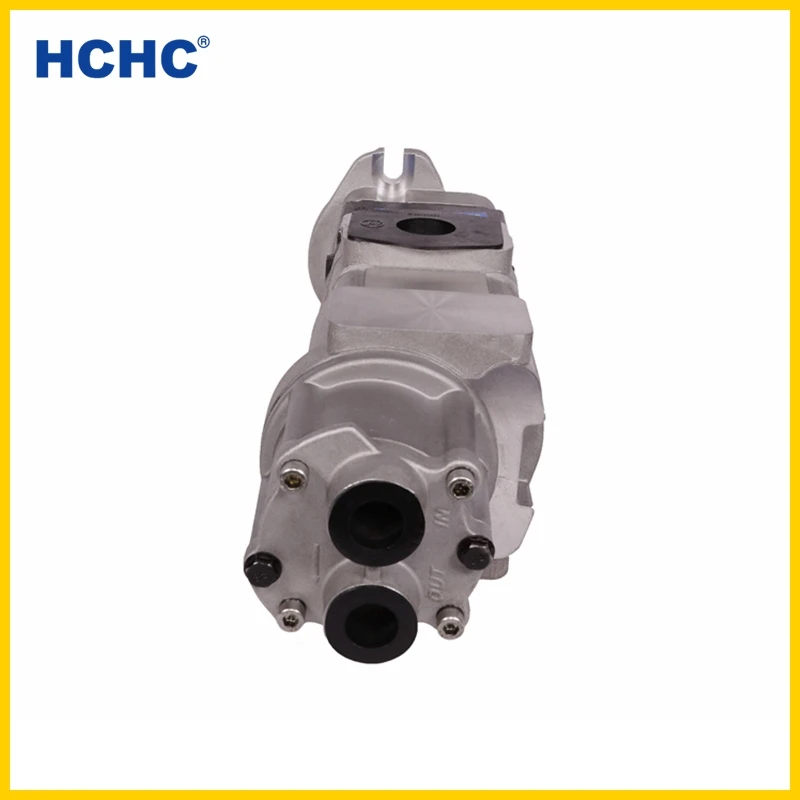

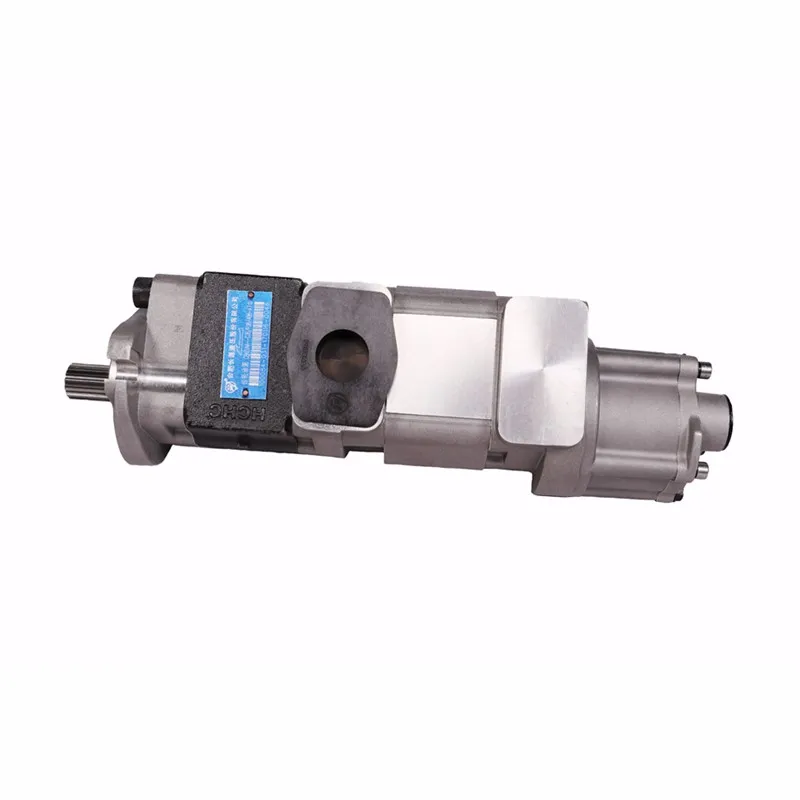

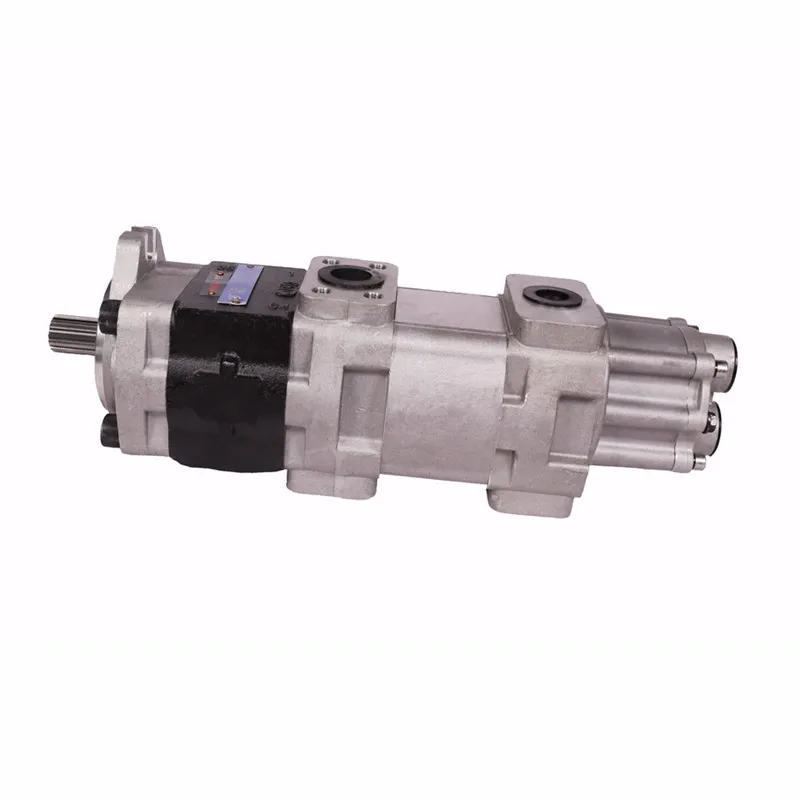

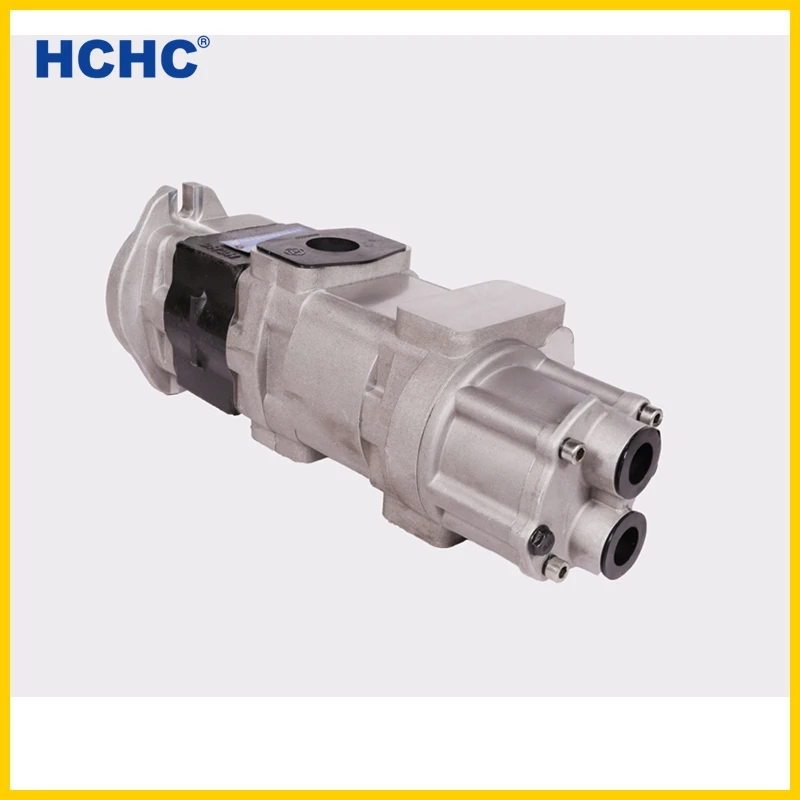

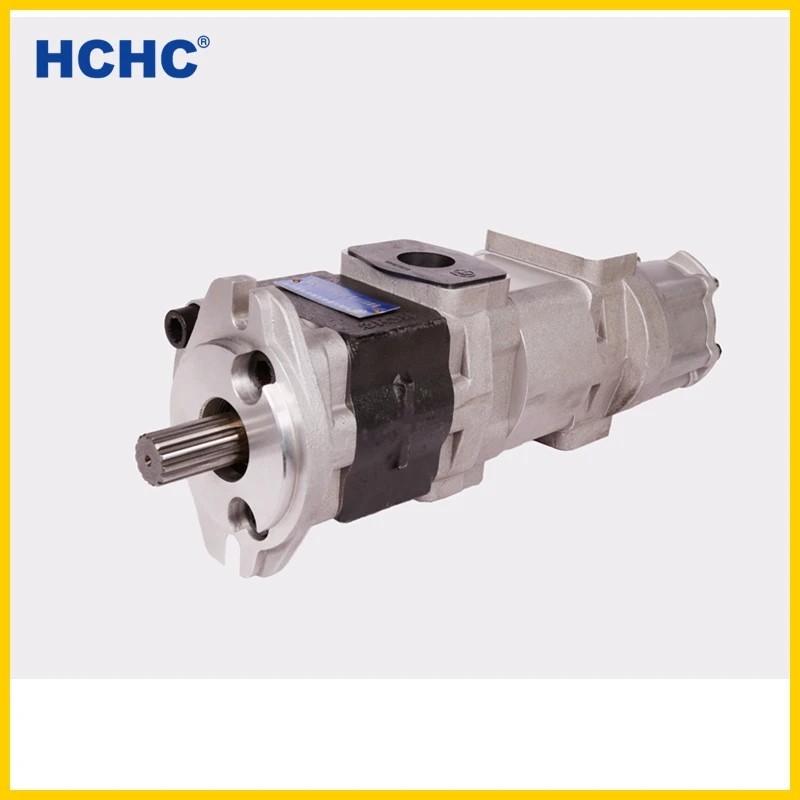

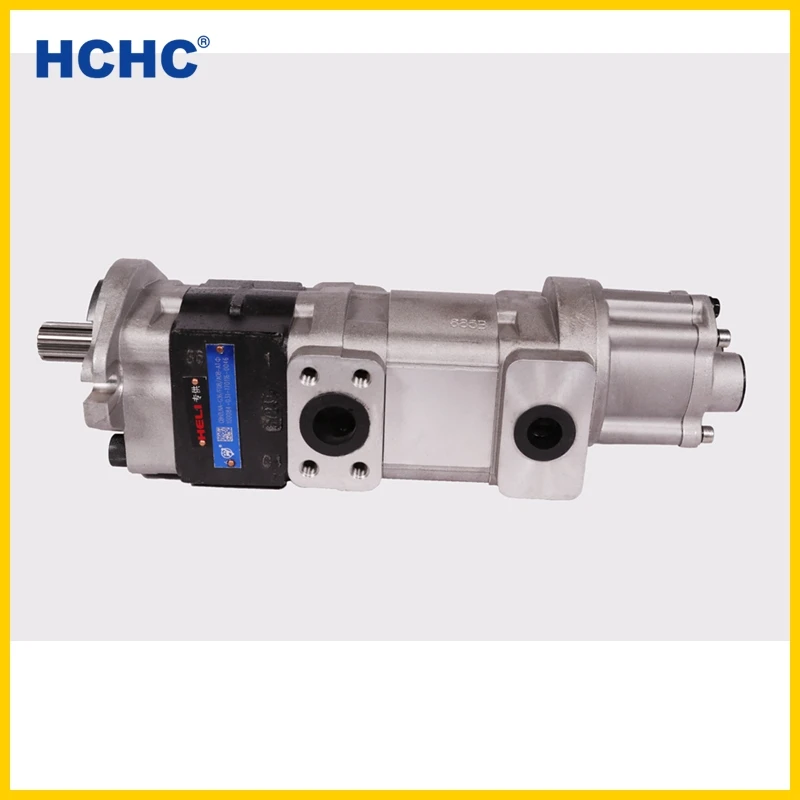

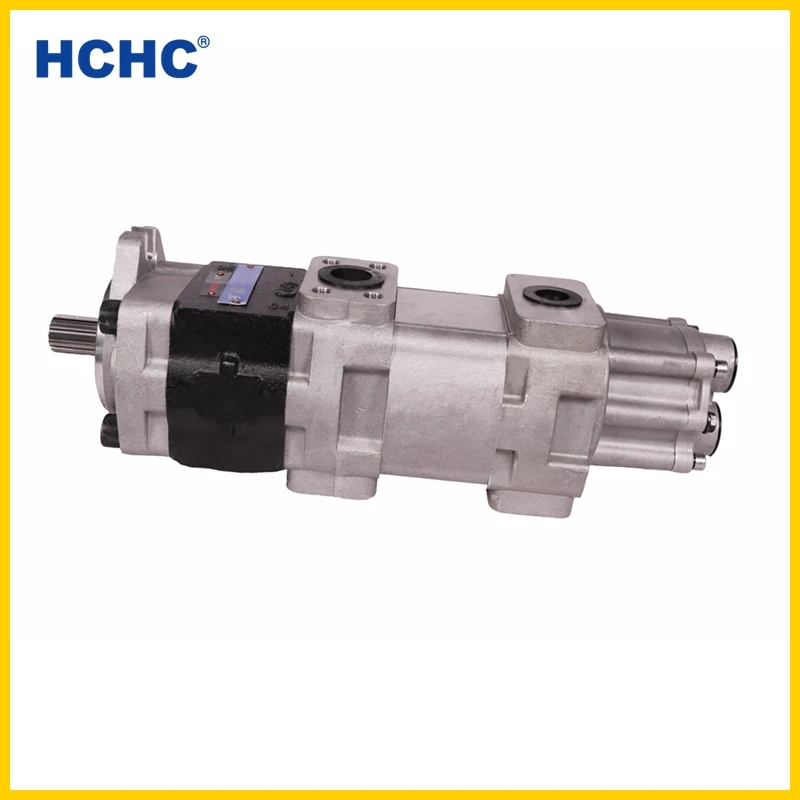

Chinese supplier forklift hydraulic triple gear pump CBHZLNA with low price

★ High strength cast iron housing with strong bearing capacity and high working pressure.
★ Adopting patented design technology to prolong the lifetime of gear pump.
★ Adopting two kinds gear pump of different modules to adapt the combination large displacement and small displacement.
★ The connection form of oil inlet and oil outlet has options of thread and flange.
★ The automatic compensation mechanism of axial clearance enables gear pump to maintain a long-time high efficiency work.
★ The connection form of input shaft includes plain key (P), rectangular spline (H), SAE spline and involute spline.

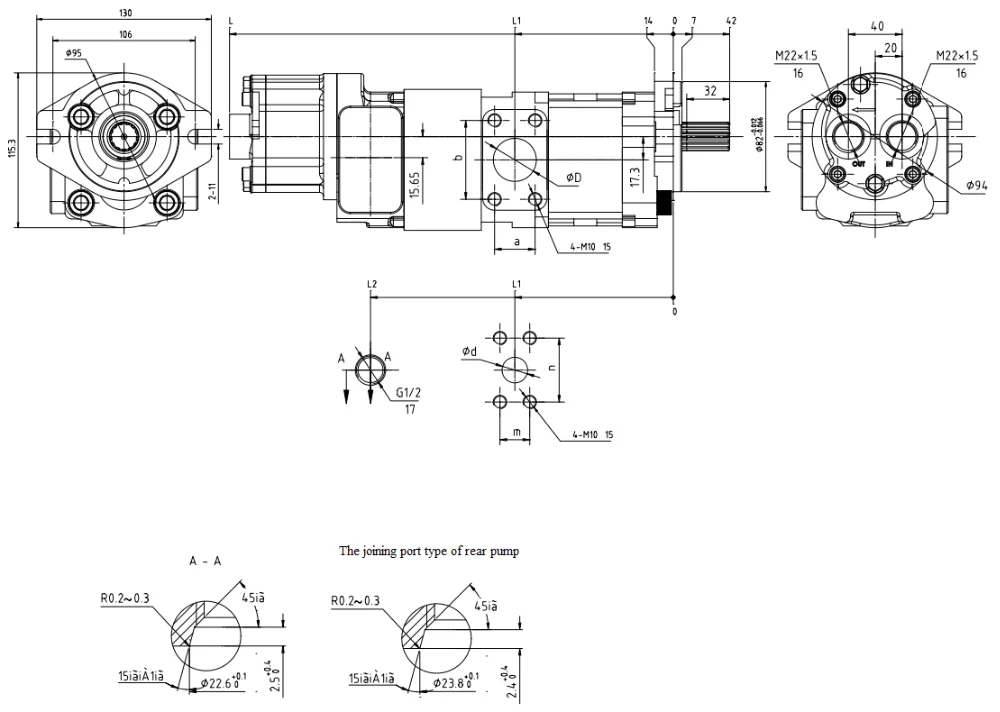

Specification

Model Code

CBHZLNA - G 36 / F 08 / A 08 - A  T  φ

①                ② ③   ② ④  ② ⑤  ⑥ ⑦ ⑧

①Product code
②Pressure grade: G=250bar, F=200bar, A=10bar
③Nominal displacement of fore pump(mL/r)
④Nominal displacement of middle pump(mL/r)

⑤Nominal displacement of rear pump(mL/r)

⑥Mounting type: A=rhombic flange

⑦Joining port type: T=special connection

⑧Shaft extension type:φ=SAE spline

⑨Rotation: R=clockwise (omitted)

Model	Nominal Displacement (mL/r)	Pressure (MPa)			Speed (r/min)					Volume Efficiency (≥%)
				Rated	Max.	Min.	Rated	Max.
CBHZLNA-G36/F08/A08-ATφ	36/8/8	25/20/1	28/25/3.6	800	2000	3000	92
