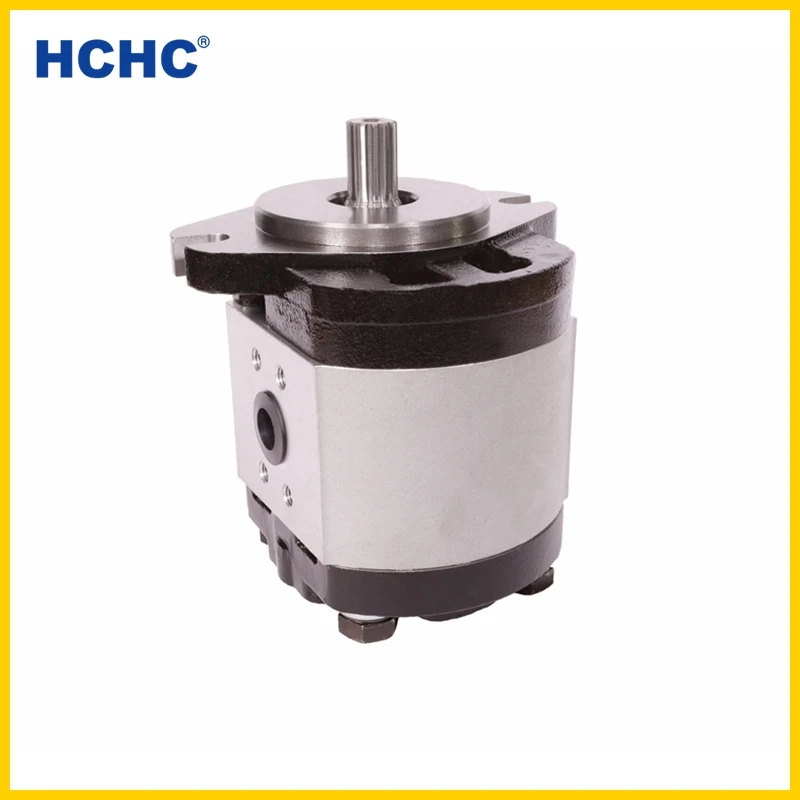

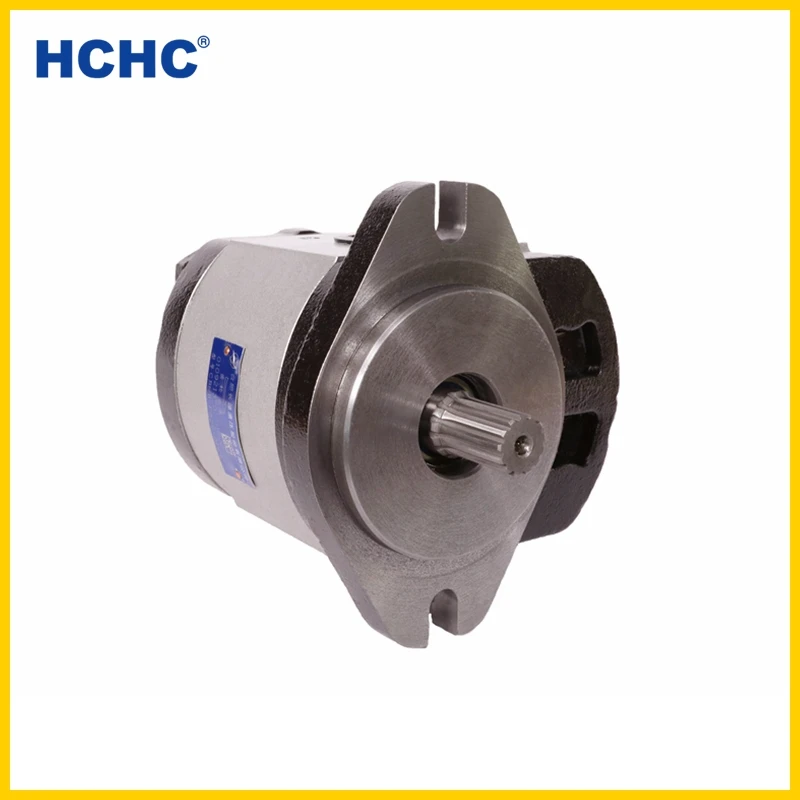

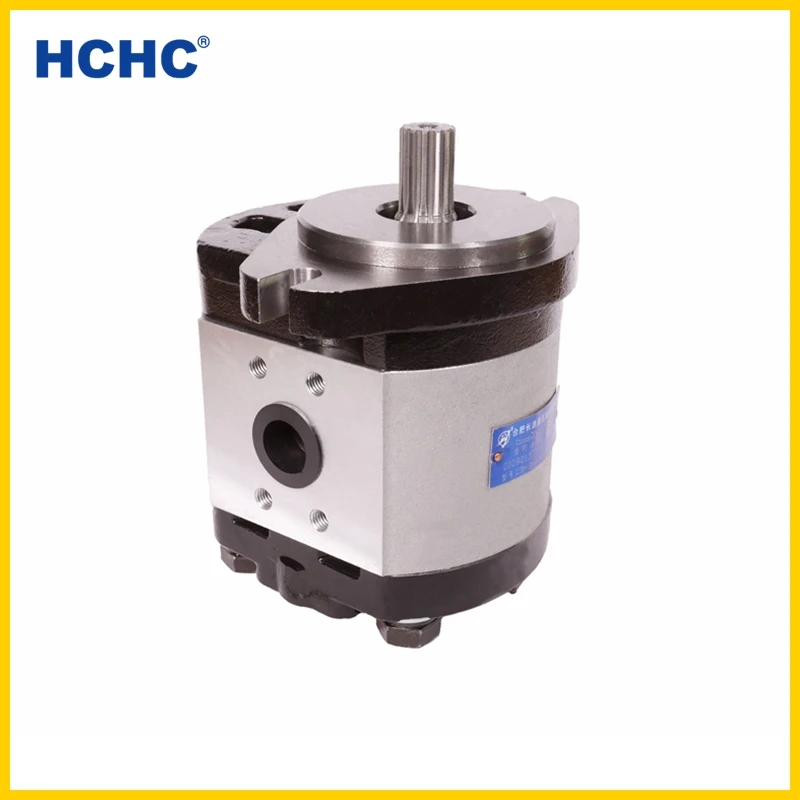

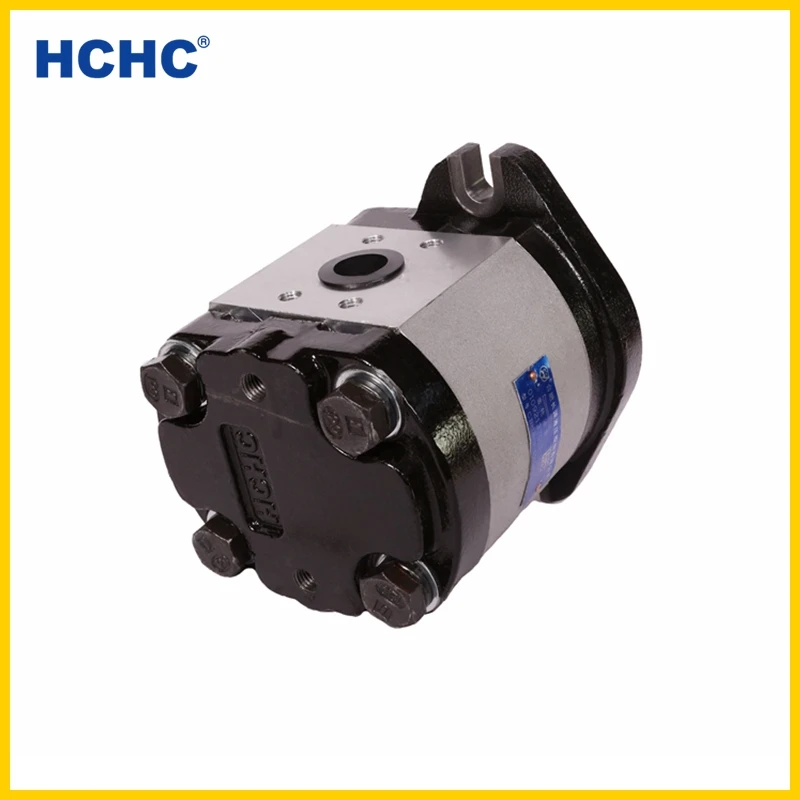

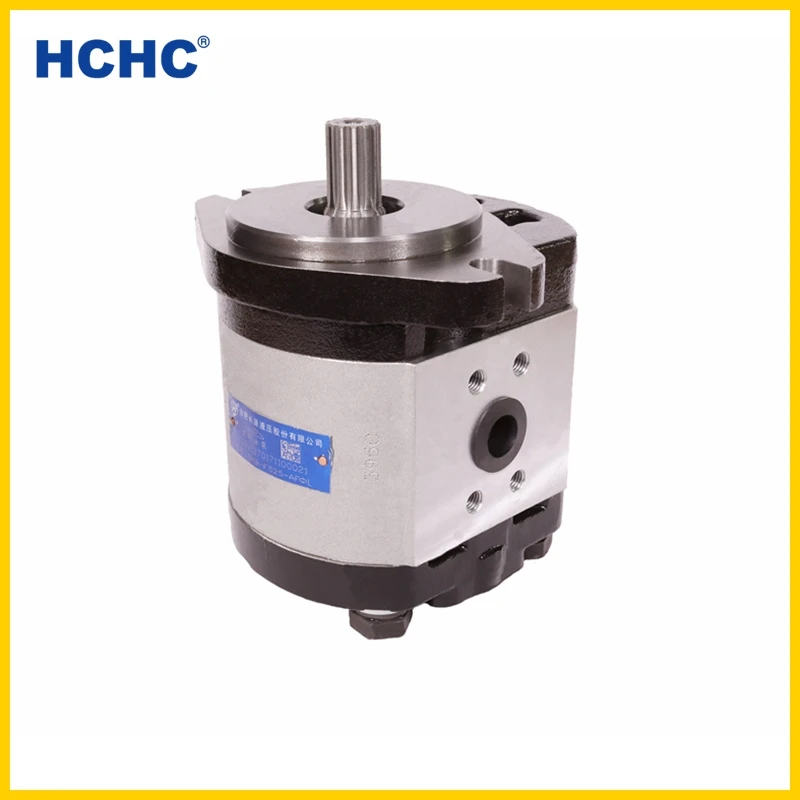

20MPa working pressure low noise small hydraulic gear pump CBHB

★ The continuous working pressure is 20MPa.
★ High strength aluminum alloy housing with cast iron front cover and rear cover.
★ Double lubrication environmental sliding bearing of symmetrical structur.
★ The connection form of input shaft includes flat key and rectangle spline.
★ The connection form of oil inlet and oil outlet has options of thread and flange.
★ The automatic compensation mechanism of axial clearance enables gear pump to maintain a long-time high efficiency work.
★ High working pressure and wide speed range.
★ It can maintain high volume efficiency even at a slow speed of 600rpm.

Specification

Model Code

CBHB - F 525 - A   F  φ  L

①         ②③④ ⑤ ⑥ ⑦ ⑧

①Product code
②Pressure grade: F=200bar
③Gear modulus: 5
④Nominal displacement(mL/r)
⑤Mounting type: A=rhombic flange
⑥Joining port type: F=flange
⑦Shaft extension type:φ=SAE spline
⑧Rotation: L=counterclockwise

Model	Nominal Displacement (mL/r)	Pressure (MPa)			Speed (r/min)					Volume Efficiency (≥%)
				Rated	Max.	Min.	Rated	Max.
CBHB-F525-AFφL	25	20	25	600	2500	3000	93
