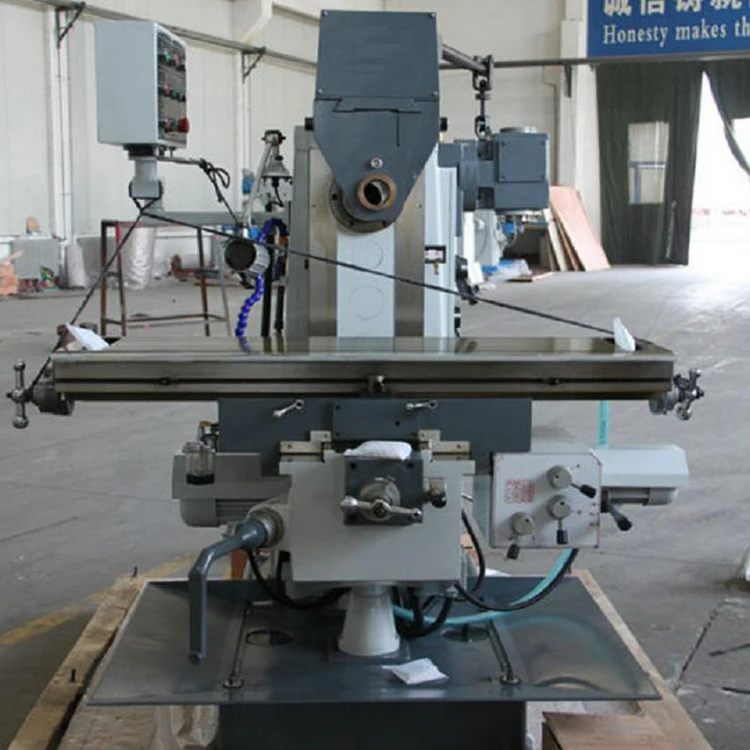

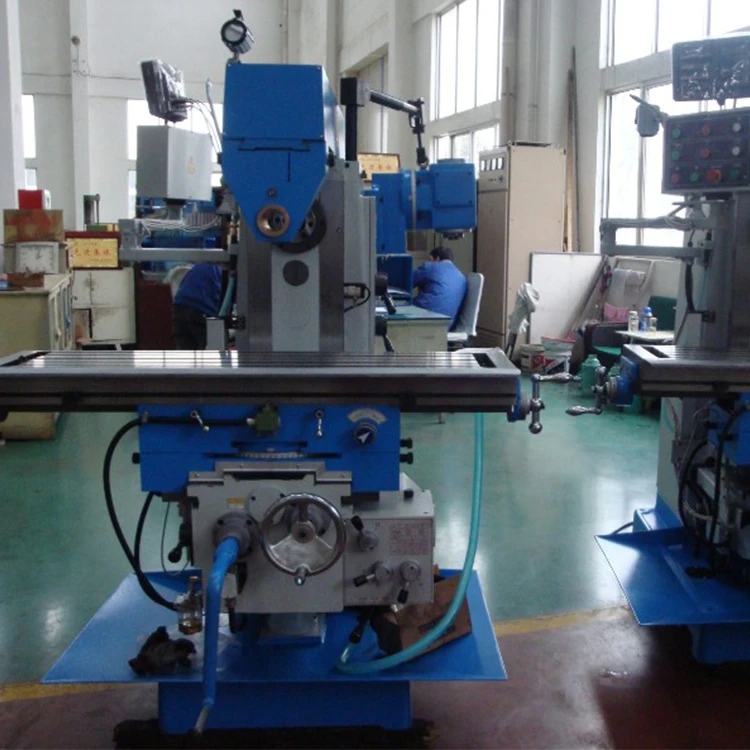

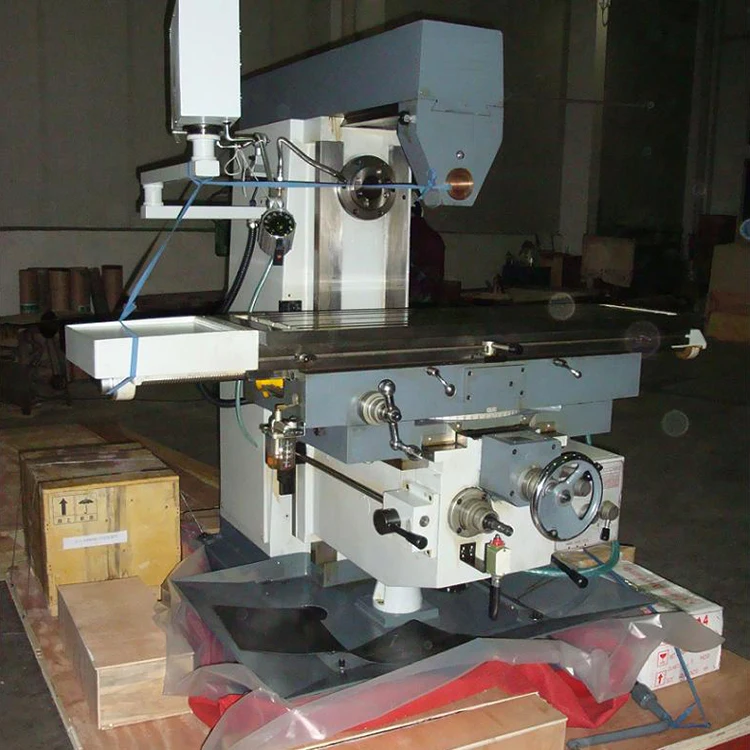

Name: Table size 1320*320mm large weight knee type milling machine XW6032
SKU: 60738444619
Availability: InStock

Table size 1320*320mm large weight knee type milling machine XW6032

XW6032A B Universal knee type milling machine

Specifications	Units	XW6032A	XW6032B
Table size	mm	1320×320	1320×320
Table travel	mm	800(750)×300	1000×30(manual)
Number/Width/Distance of T-slot	mm	5-14-63	5-14-63
Spindle taper		ISO50	ISO50
Distance from spindle axis to table surface	mm	0-400	0-400
Distance between spindle axis and boom	mm	175	175
Spindle speed range	rpm	58-1800	58-1800
Spindle motor power	KW	4	4
Overall dimension	mm	1900×1720×1750	1900×1720×1750
Machine weight	kg	2100	2200

1. XW6032A Universal Knee type milling machine is a horizontal milling machine with vertical milling head

2. Rectangular guideway hardened&ground table surface

3. Power feeds on X/Y,motorized Z

4. X travel is 800mm, table size 1320x320mm

knee type milling machine large weight

2,25-3 $

Table size 1320*320mm large weight knee type milling machine XW6032
