Median Frequency Induction Heating Elbow Machine carbon steel pipe material
- Category: >>>
- Supplier: Dongguang Huawei Hydraulic Pipe Fitting Machinery Co. Ltd.
Share on (60738485922):
Product Overview
Description
High Quality Carbon Steel Hot Forming Elbow Machine
Product Description
Mode No.: GIL219
Workpiece:2inch-8inch Max:SCH80
Material of workpiece: carbon steel, alloy steel
Details of the machine:
a. Ram Cylinder
Piston | Ram | Cylinder | Valid Travel | Max Thrust | Qty |
Φ180mm | Φ140mm | Φ219 | 4000mm | 106.48T | 2 |
b. Pump:
3grade pumpe of integrated connection
1.25SCY—14-1B 1set
CB—50 1set
CB—25 1set
2.Motors:
Y—15kw 1set
Y—7.5kw 1set
Y—5.5kw 1set
3.Operation Platform 1set
d.medium-frequency part: 160KW 1000hz
Main machine one set
Reactor one set
Water cable two pieces
Water pipe two pieces
Heating coils one piece
Machine size(L*W*H):9m*1.2m*2m

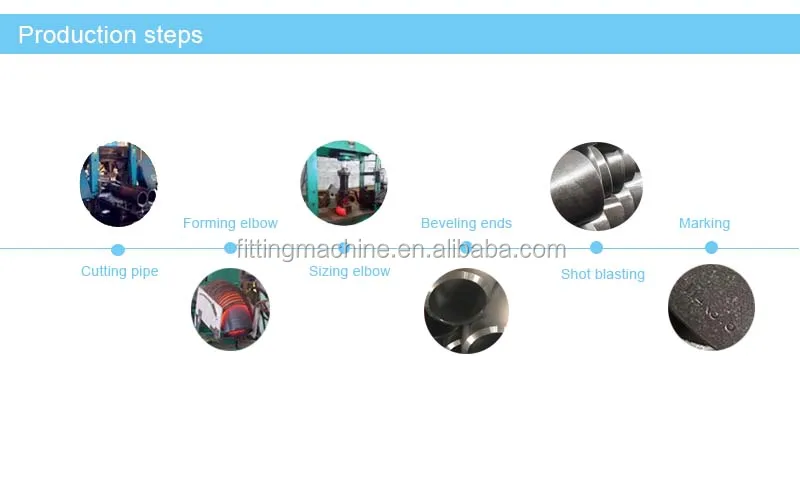

Step
Our Services

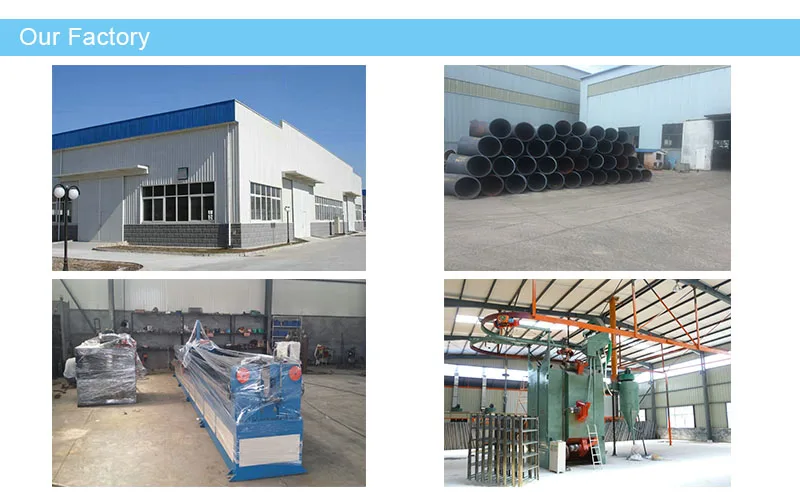

Our factory

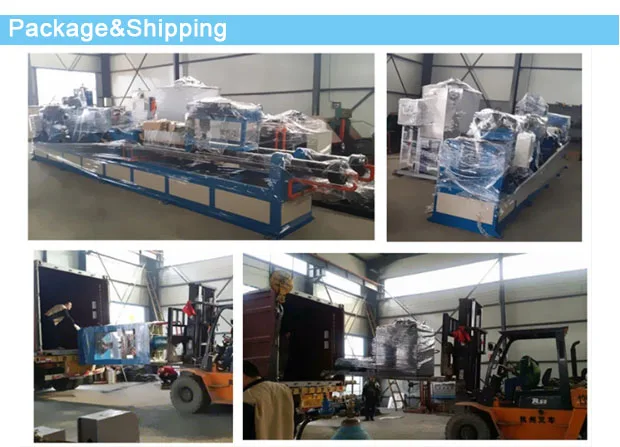

Packaging & Shipping
Contact me
