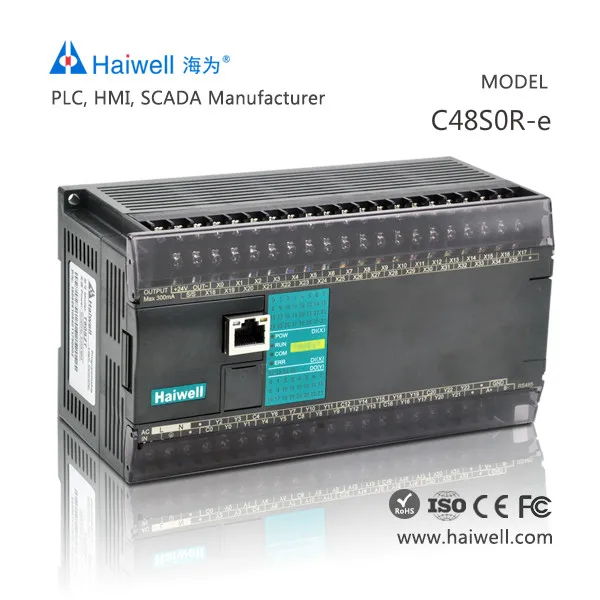

Universal Haiwell C48S0R-e 48points of smart home control system plc controller plc for injection machine
Haiwell PLCEthernet + : Host PLC and remote modules support Ethernet communication, host PLC support Ethernet port and 5 other RS232/RS485 communication ports working simultaniously, support N:N network
type, support remote programming, debug, monitoring and data exchange. Easy to network with other PLC modules,HMI and PC via Ethernet port.
It is the first PLC (Programmable logic controller) designed with 100% built-in simulator in China.
Very easy to study and use!

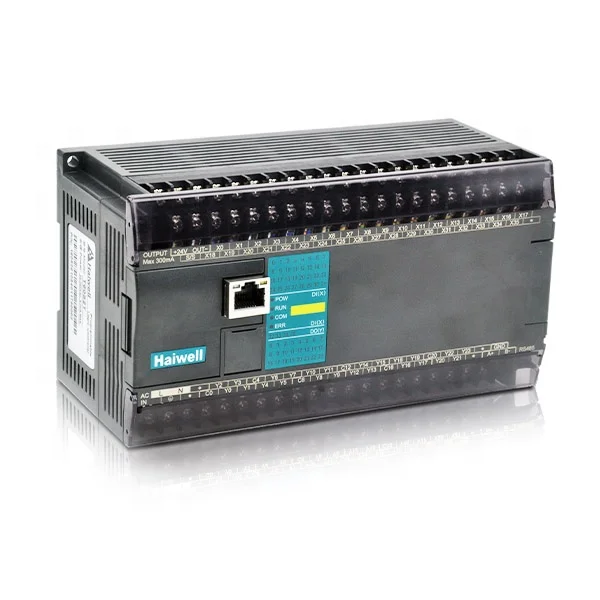

C48S0R-e is a 48 points low cost PLC controller model, widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevator control, central air conditioning, numerical control machine tools and other fields of systems and control equipment.
PLC Model Spec.

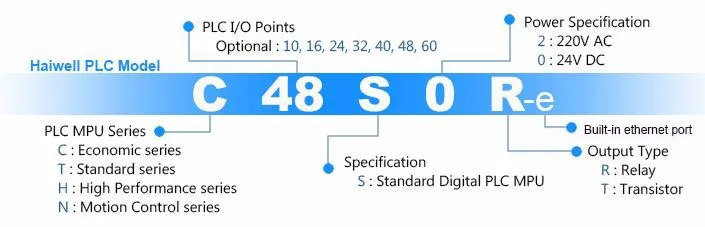

PLC Model
Power
DI
DO
Built-in COM Port
Max Extension Module
C48S0R-e
24V DC
28
20 relay
Ethernet +1*RS232+1*RS485
No

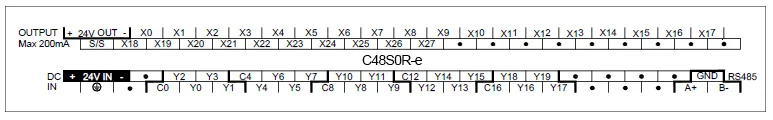

Haiwell C48S0R-e 48points plc for injection machine terminal wiring diagram

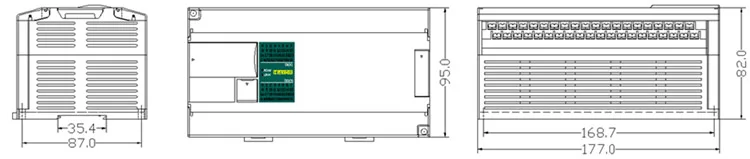

Haiwell C48S0R-e 48points plc for injection machine dimension
Haiwell plc for injection machine technical specification list
Item
Haiwell PLC Specification
Declare
Execution Speed
0.05μs/basic instruction
Programming Language
LD - Ladder diagram, FBD - Function block diagram, IL - Instruction list
Accord with IEC 61131-3
Program Capacity
48K
Storage Way
Flash ROM permanent storage, dispense with backup battery
X
External Input
X0~X1023
Support edge catch and signal filtering set
Y
External Output
Y0~Y1023
Power-off preserve output can be configured
M
Auxiliary Relay
M0~ M12287
Power-off preserve area can be set freedom
(default power-off preserve) M1536~M2047
T
Timer (Output Coil)
T0~T1023
Power-off preserve area can be set freedom, time base: 10ms, 100ms, 1s be set freedom, T252~T255 1ms
(default power-off preserve) T96~T127
C
Counter (Output Coil)
C0~C255
Power-off preserve area can be set freedom
(default power-off preserve) C64~C127
S
Step State Bits
S0~S2047
Power-off preserve area can be set Freedom
(default power-off preserve) S156~S255
SM
System State Bits
SM0~SM215
LM
Local Relay
LM~LM31
AI
Analog Input Register
AI0~AI255
Support quantities convert, sample times and zero point correct
AQ
Analog Output Register
AQ0~AQ255
Support quantities convert, power-off preserve output can be configured
V
Internal Data Register
V0~V14847
power-off preserve area can be set freedom
(default power-off preserve) V1000~V2047
TV
Timer (Current Value Register)
TV0~TV1023
Power-off preserve area can be set freedom, time base: 10ms, 100ms, 1s can be set freedom,T252~T255 1ms
(default power-off preserve) TV96~TV127
CV
Counter (Current Value Register)
CV0~CV255
Power-off preserve area can be set freedom, CV48~CV79 are 32 bits, Other are 16 bits
(default power-off preserve) CV64~CV127
SV
System Register
SV0~SV900
LV
Local Register
Lv0~Lv31
P
Indexed Addressing Point
P0~P9, use for indirect addressing
I
Interrupt
I1-I52
LBL
Label
255, use for program skip
Communication Port
MPU built-in 2 communication ports (RS232+RS485), Max 5 communication ports (RS232/RS485) extension
PLC communication address can be set external set, Max 254. Supports 1: N, N: 1, N: N networking
Real Time Clock(RTC)
Display: year/month/day/hour/minute/second/week
built-in battery
Float Point Arithmetic Instruction
support within 32 bits float point arithmetic, integer/float point convert arithmetic
Password Protection
Support 3 levels password protect functions (program file password, program block password, PLC hardware password) and upload prohibited function
Programming Software
HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users. All neccessary instructions are highly intergrated, Very easy to study and use.
It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.
Runing with Windows 98, Windows 2000, Windows XP and newer versions.
Totally free PLC software with all features.
PLC advantages
As for PLC advantages, We can visually feel them through the following Haiwell Cloud networking diagram.
Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.
Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.
