Product Overview

Description


Product Description

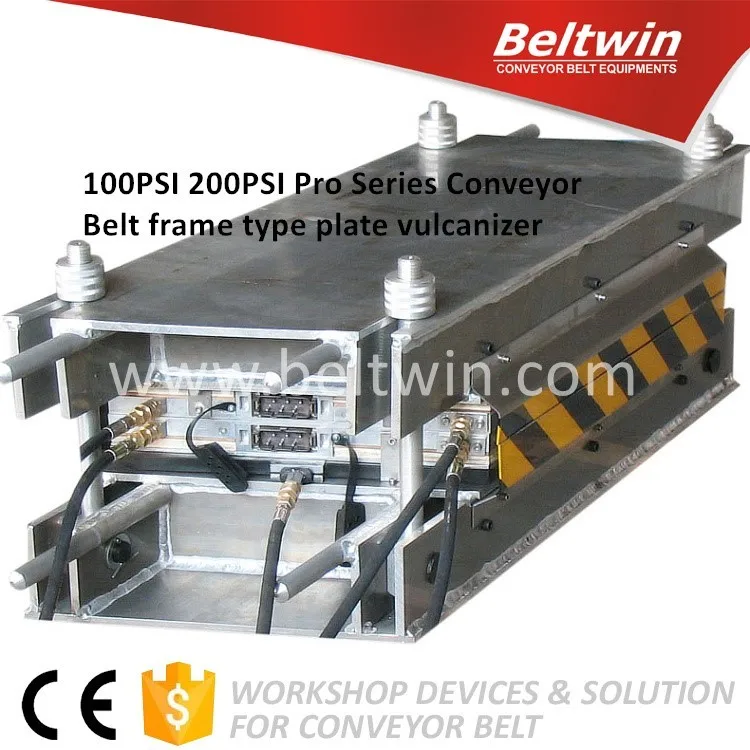

Sectional Vulcanizing Press DSLQ-S

New type Vulcanizing Press, one kind of heavyweight vulcanizer, use new design components, include pressure bag, traverse bars with standard heating platen and controller. Beltwin Quick Heating Hot Splicing Platen Vulcanizing Press Rubber Machinery

\t

Usage
\t
Fabirc
\t
100 p.s.i. (7 kg/cm sq.)
\t
Steel cord
\t
200 p.s.i. (14 kg/cm sq.)
\t
Max Belt width
\t
From 650mm to 3000mm
\t

Pressure system
\t
Waterbag (also can use air pressure) Press for 100PSI, 200PSI etc. surface pressure for textile and steel cord belts, Up to 1.8Mpa.
\t
Vulcanizing temperature
\t
Vulcanizing temperature:145℃ (adjustable 0~200℃)
\t
Cooling system
\t
Pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)
\t
Degree of the heating platen
\t

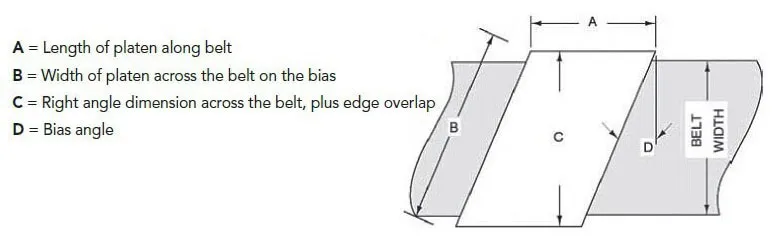

 22 degree bias angle or 17 degree, 20 degree, rectangle and other degree is optional.
\t
Power voltage
\t
380V. 660V. 480V. 440V. 415V. 400V or 220V

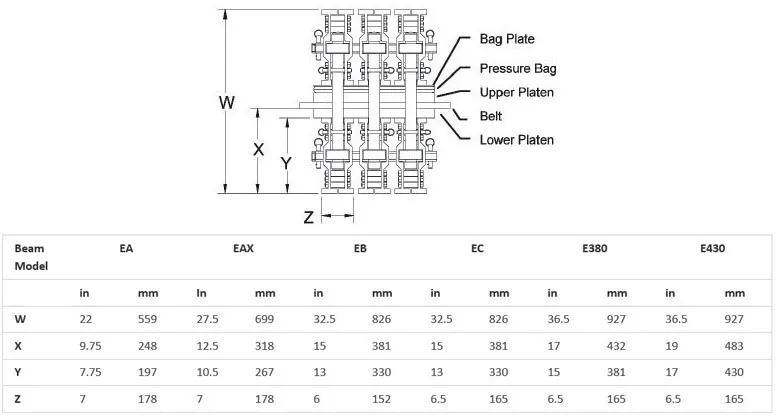

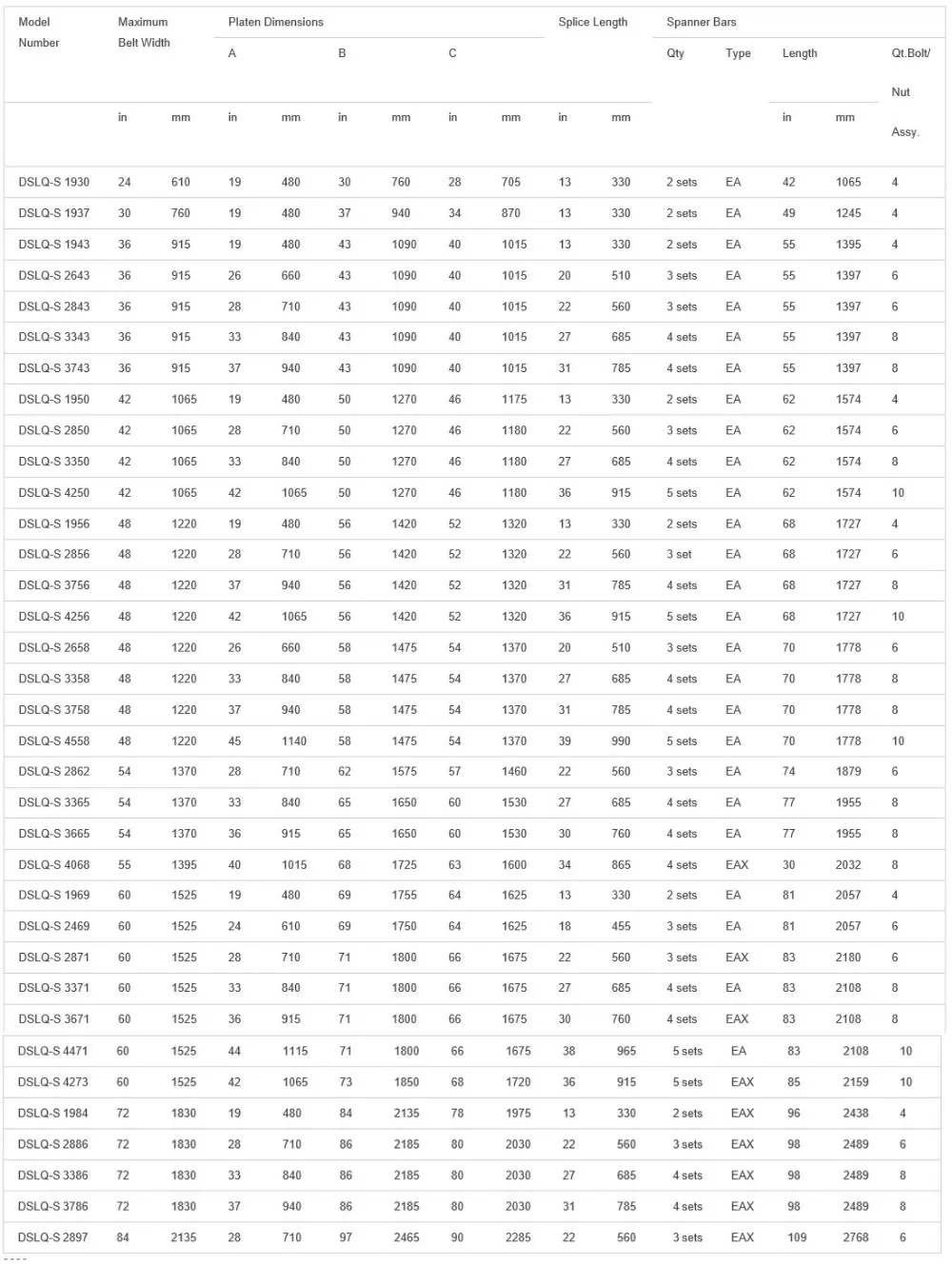

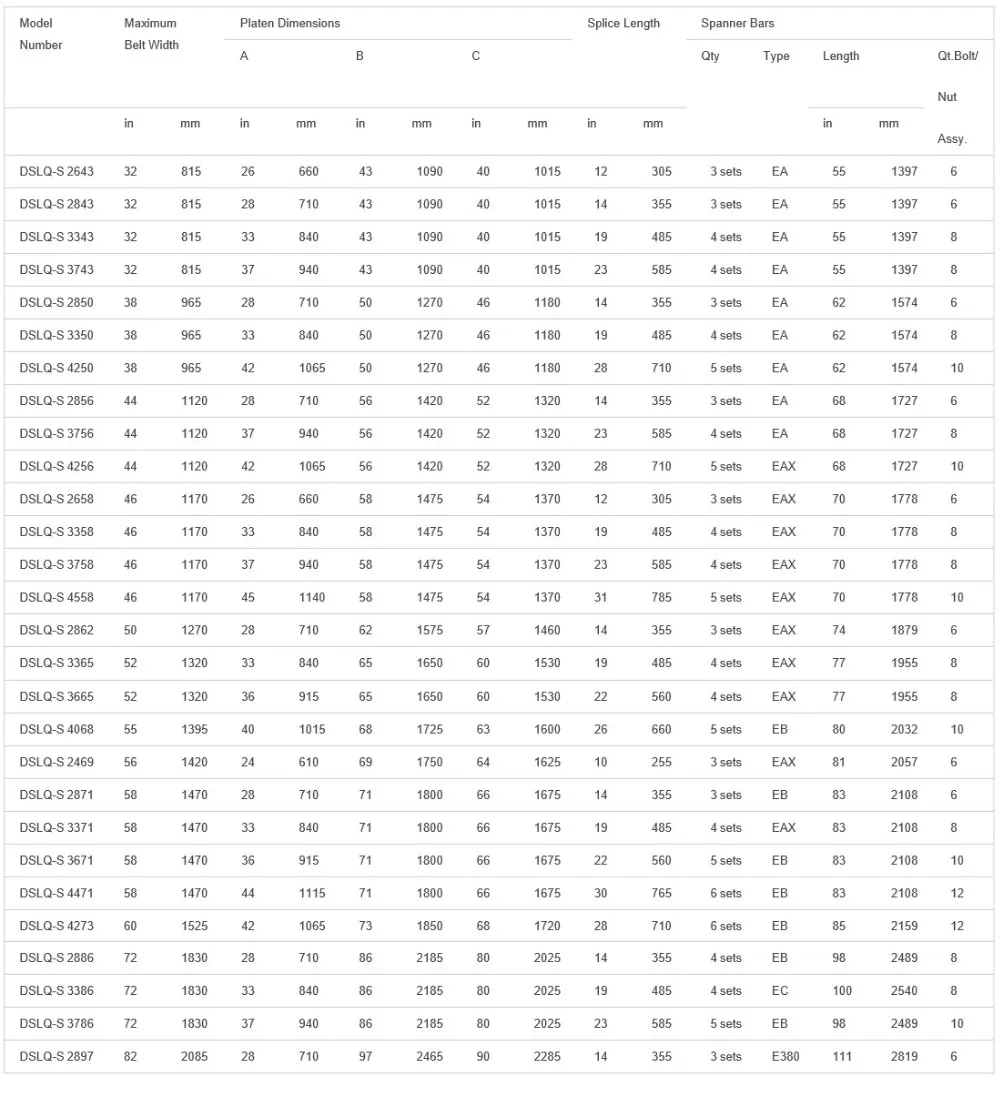

Common Size Tables:

Detail Image

1. 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting.

2. 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting.

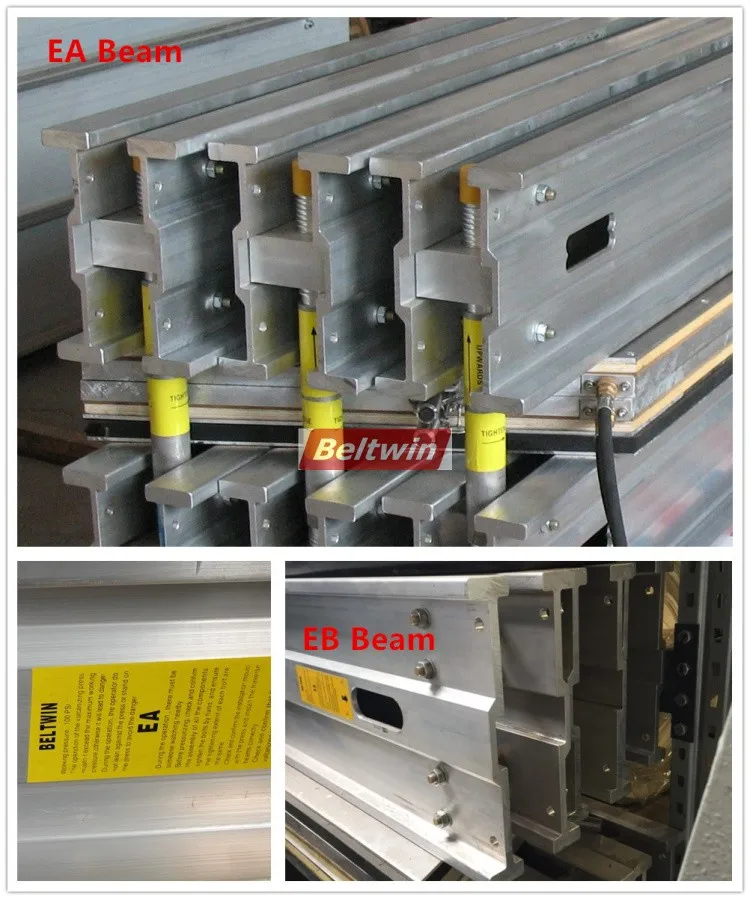

3.Main Componets:

4. High tensile steel bolt and nut assemblies are recessed in the bar.

 (For low pressure requirements, also have light weight aluminum material)
Improved restraining system is simple and easy to use, protect against hazards that might result in the event of a bolt failure.

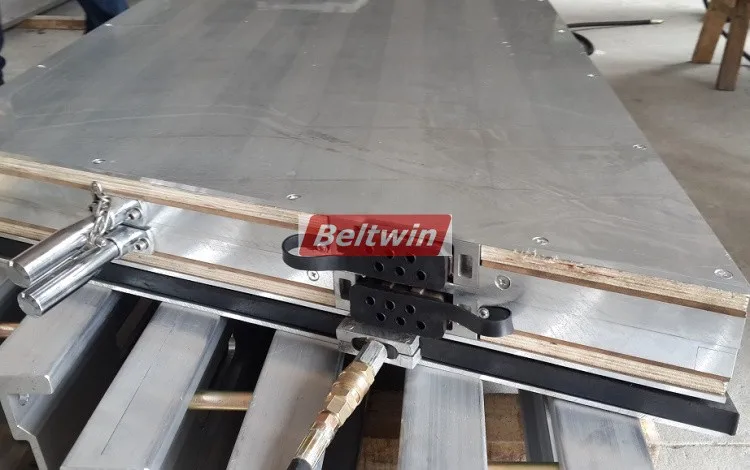

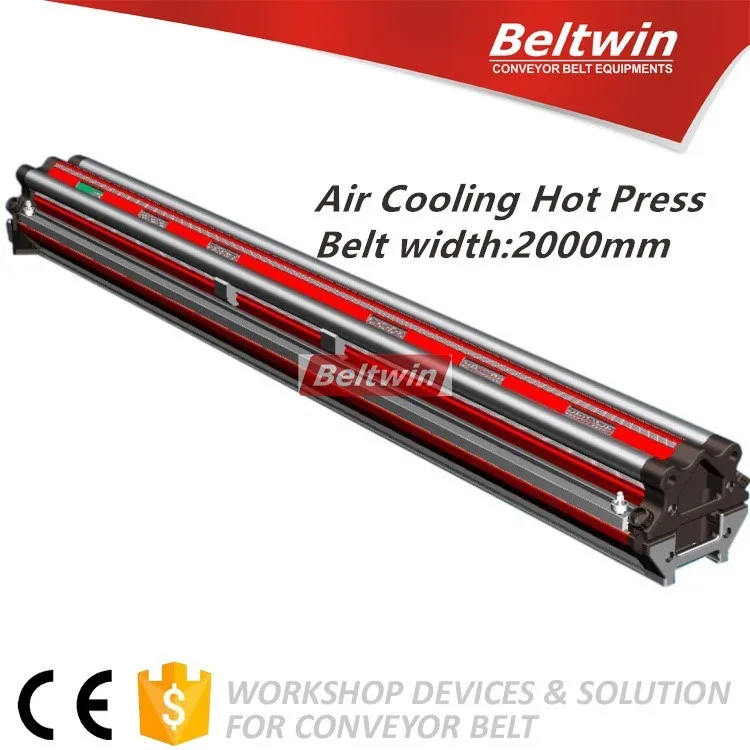

5. Lightweight aluminum platens use new rapid cooling system within platens.

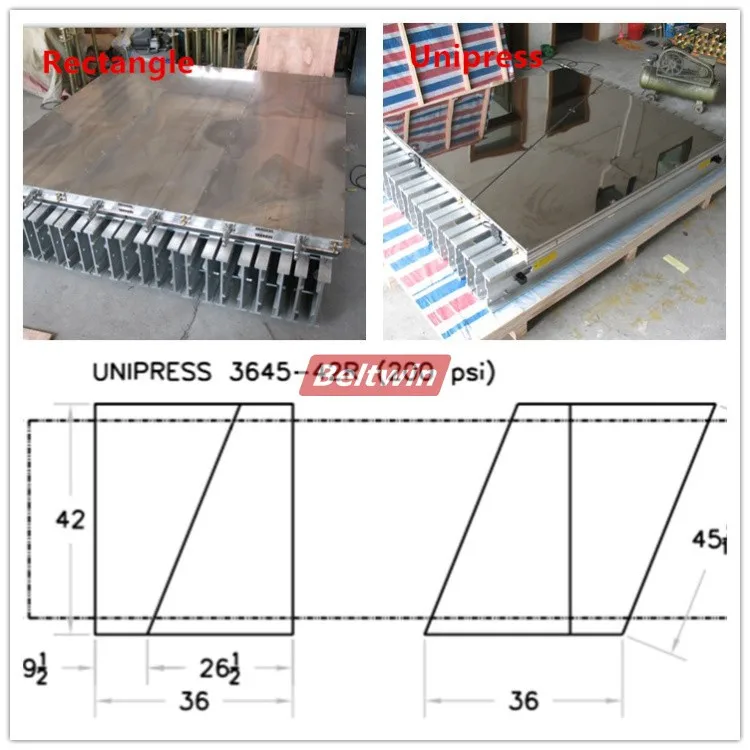

6. Custom sizes: rectangular configurations and multiple platen arrangements are also available on request.

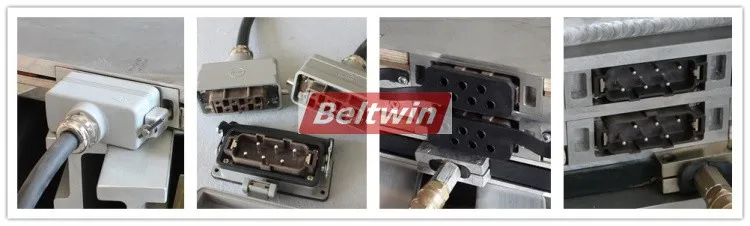

7. New electric connect system :Old design plug & socket, is flat plug, the plug pins easy broken.

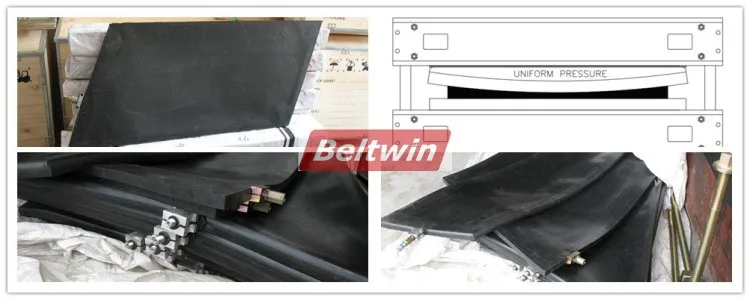

8.Pressure bag system:
Can used for both water and air, one time molding, without metal frame, light weight, testing pressure out of our factory is 2.5MPA (old design pressure bag fixed with metal frame and bolts, heavy weight)

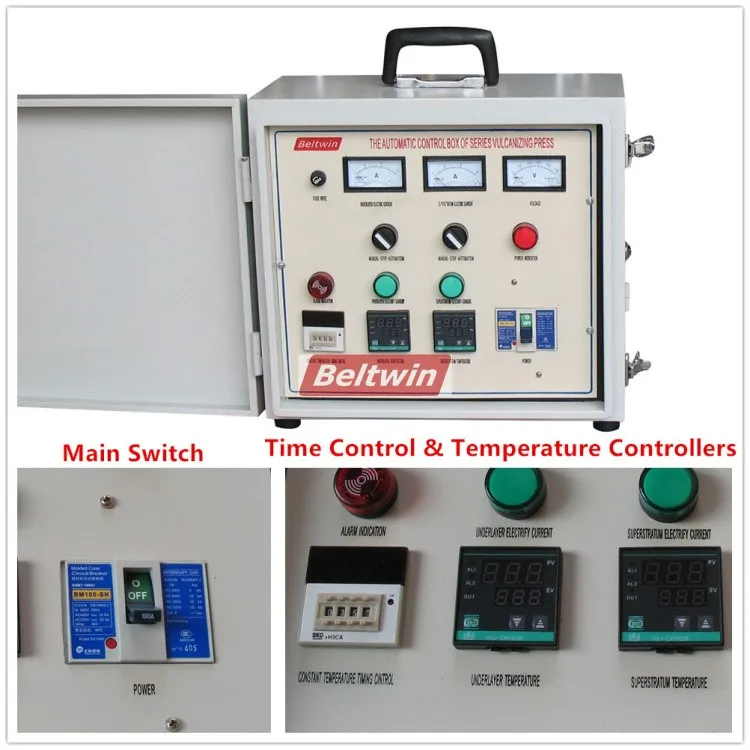

9. Automaitc control panel:
With time control and digital temperature control. All the parts use high quality electric devices with CE certificated.
In case of electronic controller failure, manual operation is possible as well

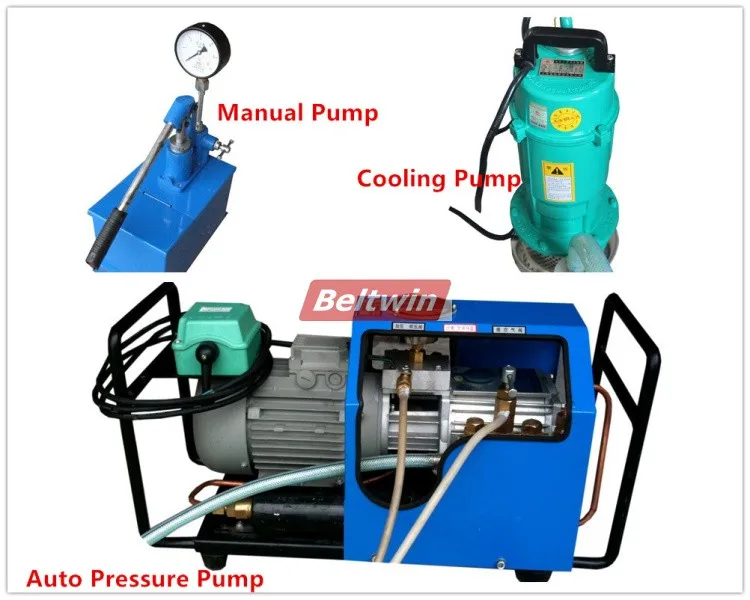

10. Pressure:
A. Automatic pressure pump with pressure gauge, allows easy application of pressure up to 200PSI. For steelcord belting, standard will be auto pressure pump. After use new cooling system in the heating platen, now also use pressure pump for cooling.
B. Cooling pump , when work with air compressor, air pressure, no pressure pump, such cooling pump can used for cooling. (Pls note that, if have any special requirements of the cooling pump working voltage, pls inform us before order, standard voltage is 220V single phase)
C. Manual Pump: manual water pressure

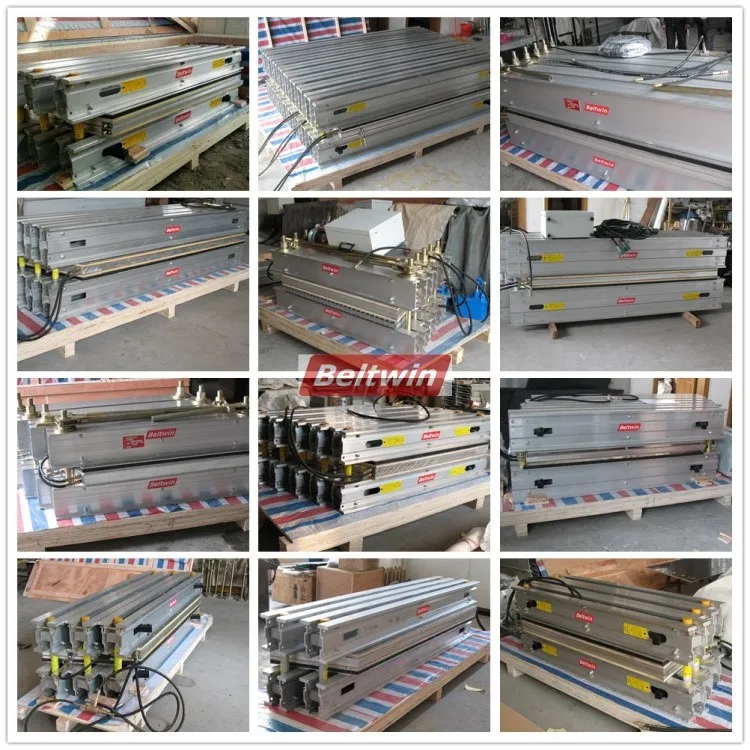

11. Sufficient Machines are Distrubuted Throughout the World

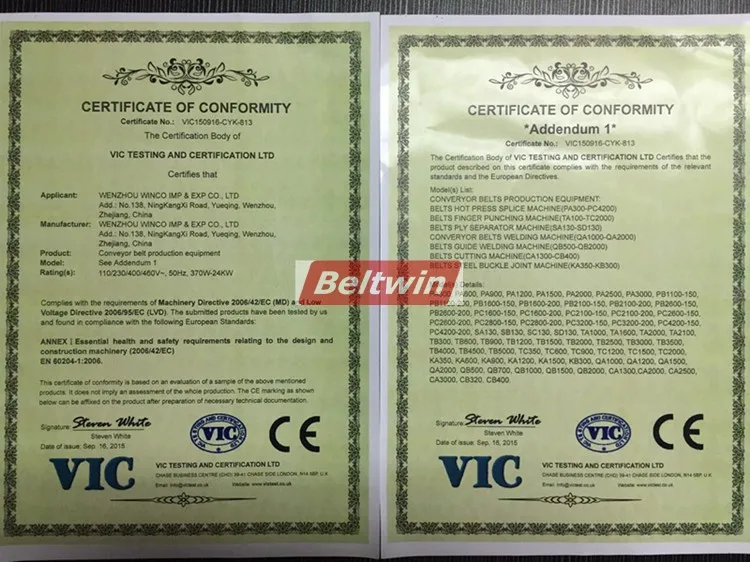

Certifications
