Cti600 Hr 4600 Copper Clad Laminate Epoxy Fiber Glass Sheet Ccl For Pcb
Cti600 Hr-4600 Copper Clad Laminate Epoxy Fiber Glass Sheet Ccl For Pcb

Cti600 Hr 4600 Copper Clad Laminate Epoxy Fiber Glass Sheet Ccl For Pcb

Share on (60738545203):


Price:RUB 2,274.54 - RUB 6,065.44

Quantity:


Product Overview

Description

Single and double side epoxy resin fiberglass sheet for copper clad laminate

Product Description

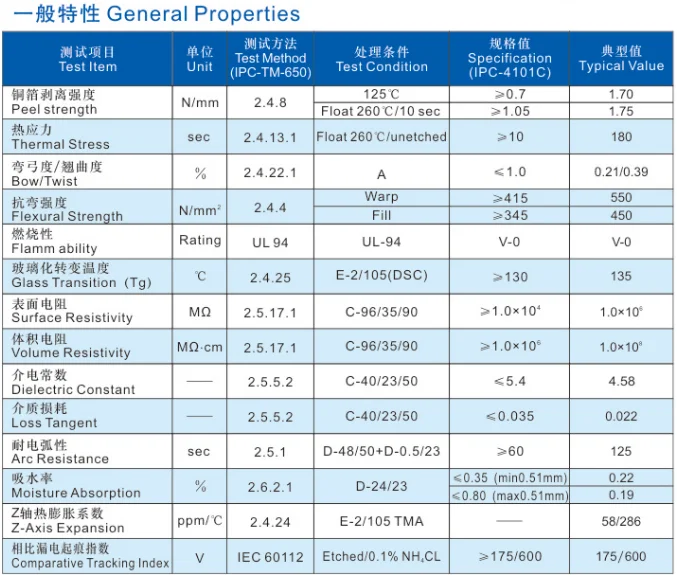

Features
1. Halogen-free , Br/CI content below 0.09%
2. Excellent Resistance to tracking
3. Excellent PCB process ability
4. Excellent dimensional stability
5. UV Blocking and AOI compatibility
6. Comform to claim of ROHS
7. IPC-4101 specification is applicable



Product Name
Single and double side fr4 copper clad laminate sheet for pcb factory
Material
Glass fabric, Epoxy resin, copper foil
Base Color
Yellow
Grade
A
Used
PCB
Application
Computer, VCR, Instrument, Communication equipment, etc.
Size
37''×49‘’, 41''×49'', 43''×49'', or customized
MOQ
250 pcs
Sample
Sample aviliable
Delivery time
7-14days
Packing
Kraft paper + pallet or customized
