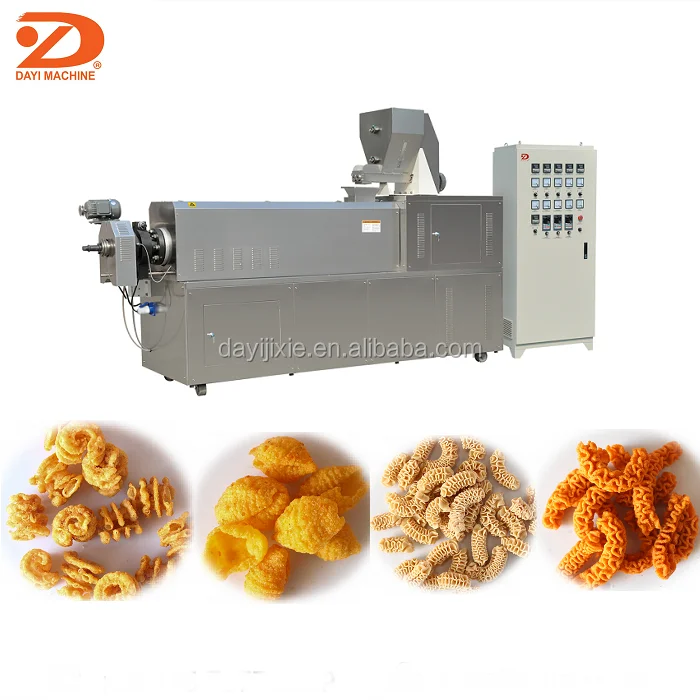

Pizza Rolls Crispy Shell Processing Line Fried Snack Food Wheat Flour Bugles Chips Making Machine
- Category: >>>
- Supplier: Jinan Dayi Extrusion Machinery Co. Ltd.
Share on (60738590320):
Product Overview
Description
Product Description
Product Application

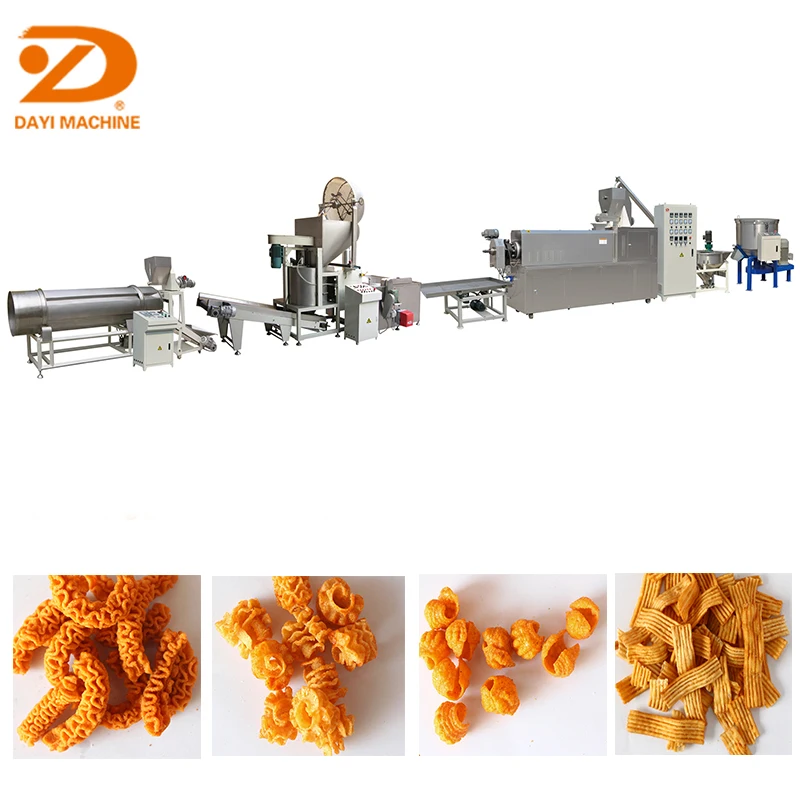

This Double-Screw Fried Wheat Flour Snack Process Line uses double-screw extruding technique to replace the traditional steam boiling process with high efficiency and no pollution without a boiler. The raw material can be total wheat flour , or mixing with corn powder, rice powder, or others. By changing the molds, the product can be in different shapes. After fried and flavored, the final snacks will be crispy and tasty. This line has features of continuous working ,stable performance, and reasonable design.
Model | Installed Power | Power Consumption | Capacity | Dimension |
SLG65-C | 40.75kw | 26kw | 100~150kg/h | 16500*2250*2900mm |
SLG70-A | 76.05kw | 54kw | 250~300kg/h | 2000*2250*2800mm |
SLG85-A | 121.05kw | 91kw | 350~400kg/h | 20800*3000*3000mm |
Main Features
1) Belt transmission between motor and gear box,reducing energy consumption.
2) Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3) Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products
4) Automatic lubrication system can lower down power consumption and prolong the life.
5) Double screws feed equal materials forcibly.
6) Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.
Detailed Images
Machine Features
Name: Flour Mixer
Model:BF-I
Capacity:25kg/batch
Motor:3kw
Brand: Jinan Dayi Extrusion Machinery Co.,ltd
Original: Jinan,Shandong,China
Mixing up raw material equally.
Main Features
Name: Screw Extruder
Model:ZLSJ
Motor:1.85kw
Brand: Jinan Dayi Extrusion Machinery Co.,ltd
Original: Jinan,Shandong,China
Conveying the raw material from Flour Mixer to Extruder.
Machine Features

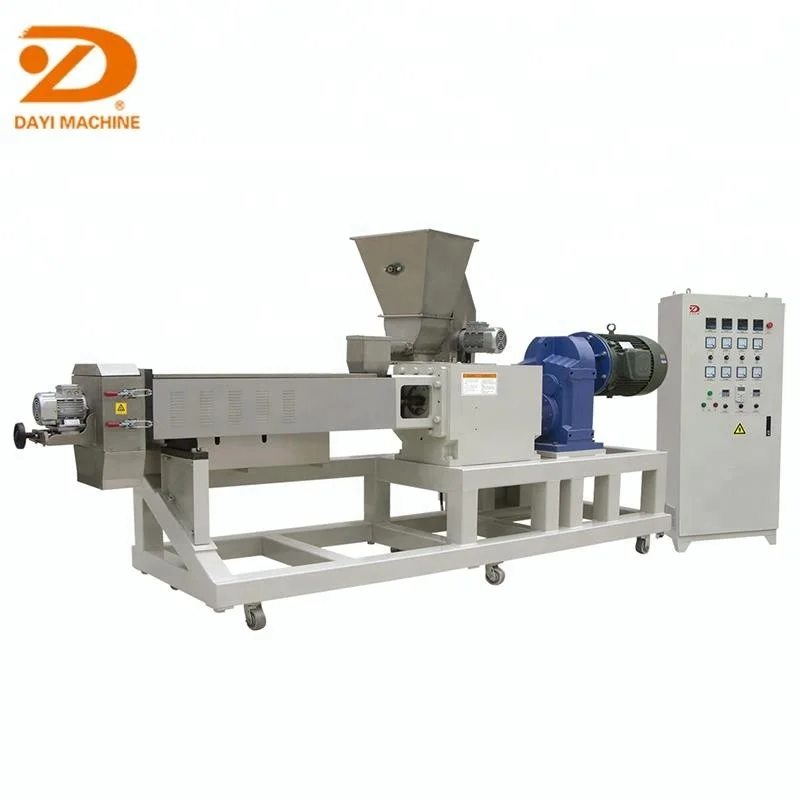

Name: Twin Screw Extruder
Model:SLG65-C
Capacity:100-150kg/h
Installed Power:30.45kw
Brand: Jinan Dayi Extrusion Machinery Co.,ltd
Original: Jinan,Shandong,China
Make Fried Bugles,Cone,Triangle,stick shape snack by high temperature and high pressure.
Main Features
Name: Pulling&Cutting Machine
Model:90FQ
Capacity:100-250kg/h
Installed Power:0.92kw
Brand: Jinan Dayi Extrusion Machinery Co.,ltd
Original:Jinan,Shandong,China
To make fried stick, salad shape snack food.
Main Features
Name: Automatic Fryer
Model: ZYG
Brand: Jinan DAYI EXTRUSION MACHIENRY CO.,LTD
Power:5kw
Voltage:380V/50Hz or Customized
Capacity:150~250kg/h
Applied to fry Triangle Cone Stick Salad Shape snack food with function of frying,de-oil, and conveying in compact structure.
Main Features
Name: Flavoring Line
Model: PG-PF
Brand:Jinan DAYI EXTRUSION MACHIENRY CO.,LTD
Voltage:380V/50Hz or Customized
Capacity:150~250kg/h
This process line is composed of Elevator, Roller Seasoner, and Powder Sprayer. The elevator transmits the dried extrusion snack to the rotary Roller Seasoner, and at the same time, powder seasoning is sprayed into it. In the Roller the snacks are flavored equally.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company Introduction
Jinan Dayi Extrusion Machinery Co., Ltd. was established in 1996 and has always been a professional manufacturer and leader of advanced and efficient extrusion food machinery in this field in the world. The freshman company has gathered a team of experts with over 20 years of experience in the extrusion machinery industry, striving not only to continuously research extrusion technology, but also to explore food processing processes to benefit our customers who produce creative food.
A corner of the factory area
After years of exploration and research, our screw extrusion technology has been widely used in the production of the following products: casual snacks, breakfast cereal and corn flakes, fried flour food, granular food, bread crumbs, soy protein and vegetarian, pet food, etc. More than 20 production lines can be selected. We can also provide customized services for special requirements.
Customer testing
Many influential large food companies and agent have chosen us as and set up worthy fellowship with us over 20 years, especially Oishi Foods Company in Japan, Ai Nasim food industries Co.,LTD in Jordan, Pt mayora indah tbk in Indonesia, Kinh Do Corporation in Vietnam, Universal robina corporation in Philippines, and the many agents like Vs tecnologia industrial in Brazil, Pakistan etc. Meantime.
Typical Client
Acecook Company in Vietnam
Typical Client
Shanti Foods Co.,LTD in India.
Typical Client
Mitsuwa Co.,LTD In Japan
Attending Fair in Thailand
Attending Fair in Canton
Certifications
Packing&Shipping
1.Wooden Case or Wooden Pallet
2.Fumigation wooden cases, which are well sealed and strong enough for long-term trip, and suitable for multi-times loading &
unloading by forklift.
Contact Us
FAQ
Are you manufacturer or trader? | Certainly we are manufacturer. Welcome to visit us to check it！ | ||||||
Do you supply formula to buyers? | Yes, we provide free basic formulas to buyers. | ||||||
What kind of fuels we can choose? | You can choose gas, diesel, electricity, steam as fuels, but please tell us when you ask for quotation. | ||||||
What is the size of your company's machines? How to solve the problem if it's not suitable? | We can customize it for you,the best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space. | ||||||
If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine? | Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZand so on. | ||||||
Do you supply packing machine? | Yes, we can provide you with a packaging machine. | ||||||
