Corn Puff Snack Food Extruder/Corn Curls/Cheese Ball Process Machinery Making Machine
Raw Material
Wheat Flour, Corn Flour, Grain Flour, and Other Addictive.
Flavors
Spicy, Sweet, Creamy, Chocolate, Muti-Flavored, etc.
Electricity Power
40-125KW/H
Stainless Steel
Stainless Steel 201 or 304
Snack Shapes
Cheese Ball, Corn Stick, Moon,Star, etc.

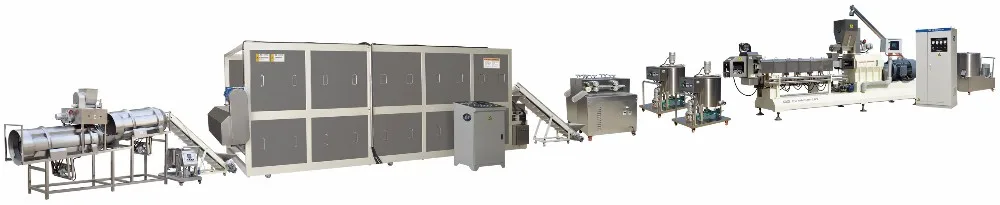

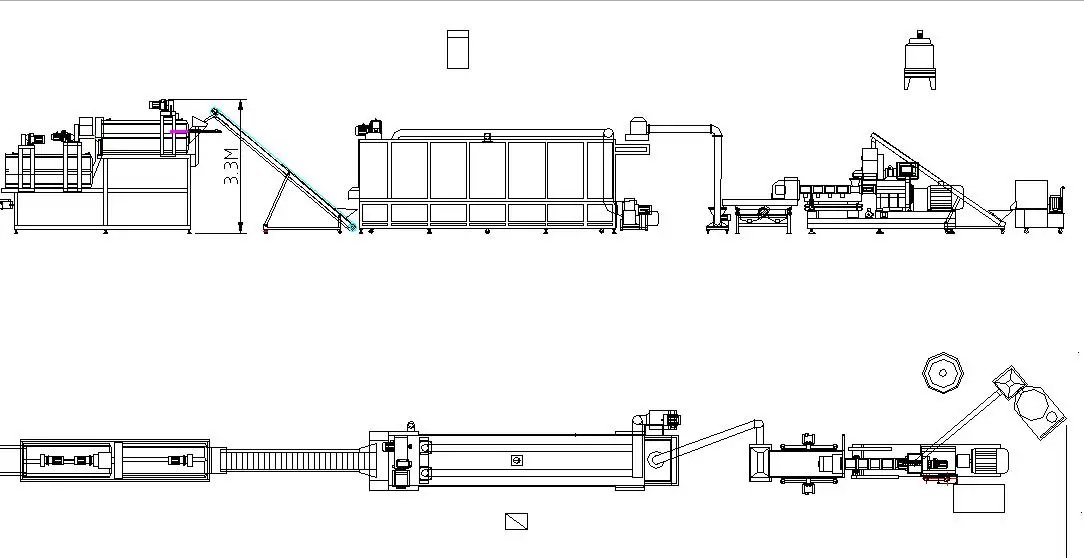

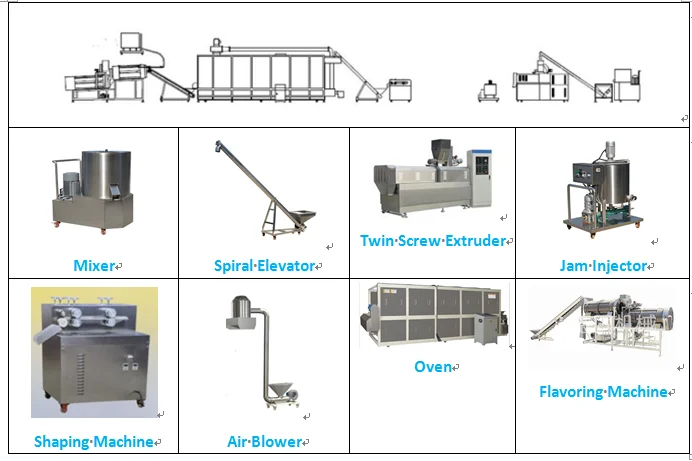

1. Mixer : Mix the raw material equally 2. Spiral Elevator : Elevate the raw material into the extruder 3. Extruder : Cook the raw material with high temp and pressure to make them puffed 4. Injector : inject chocolate / jam/ butter to the center of the snacks 5. Shaping Machine: Cut the core-filled snacks into certain length 6. Air Blower : Take the snacks to the oven 7. Oven : Bake the snacks to be crispy 8. Flavoring line : Spray oil and powder type seasonings to make different flavors
Model
Installed Power
Consumption Power
Dimension
Capacity
Application
DG65
50KW
38KW
25500×3000×3000mm
100~150kg/h
Core filling snack Puffed snack
DG70
83KW
62KW
27400×3200×3100mm
200~300kg/h
Core filling snack Puffed snack
DG85
122KW
91KW
27900×3000×3500mm
350~500kg/h
Core filling snack Puffed snack
Main Features
1. Swiss Technology,made in China; 2. PLC touch screen for Centralized ,accurate,convenient control 3. Fully automatic control system for heating and circulated cooling accurately 4. Direct transmission of motor and distribution box reduces energy loss. 5. Imported bearing group with higher bearing capacity 6. Equip with water injecting device on barrel to meet require of various raw material and quality. 7. High-speed tool steel with hardness HRC≥62 to ensure a longer service life. 8. Modular combination of screws at will to meet require of different raw material. 9. Suspension type rotary cutter with bearing adjusting device to ensure quick,safe and accurate 10. All barrels inlaid alloy sleeve, easy to replace and extend the life span of screw. All barrels inlaid cooling water through, spread around alloy sleeve, and can accurate constant temperature required 11. All screw sleeves is kneading, ensure that not accumulate material. The screw is installed by blocks, and can be replaced optionally ratio to achieve requirements for product. Screw sleeve is installed by spline, and it is convenient and efficient. Quality of screw sleeve according to different prices is divided into: Cr12MoV, 38CrMoAl38, W6Mo5Cr4V2. 12. Applied to make all kinds of extrusion products such as corn flakes , cereal snacks ,puff snacks ,wheaten snacks , 2d /3d snack pellets , pet food ,fish feed ,soya protein ,nutritiobal powder ,modified starch and so on.

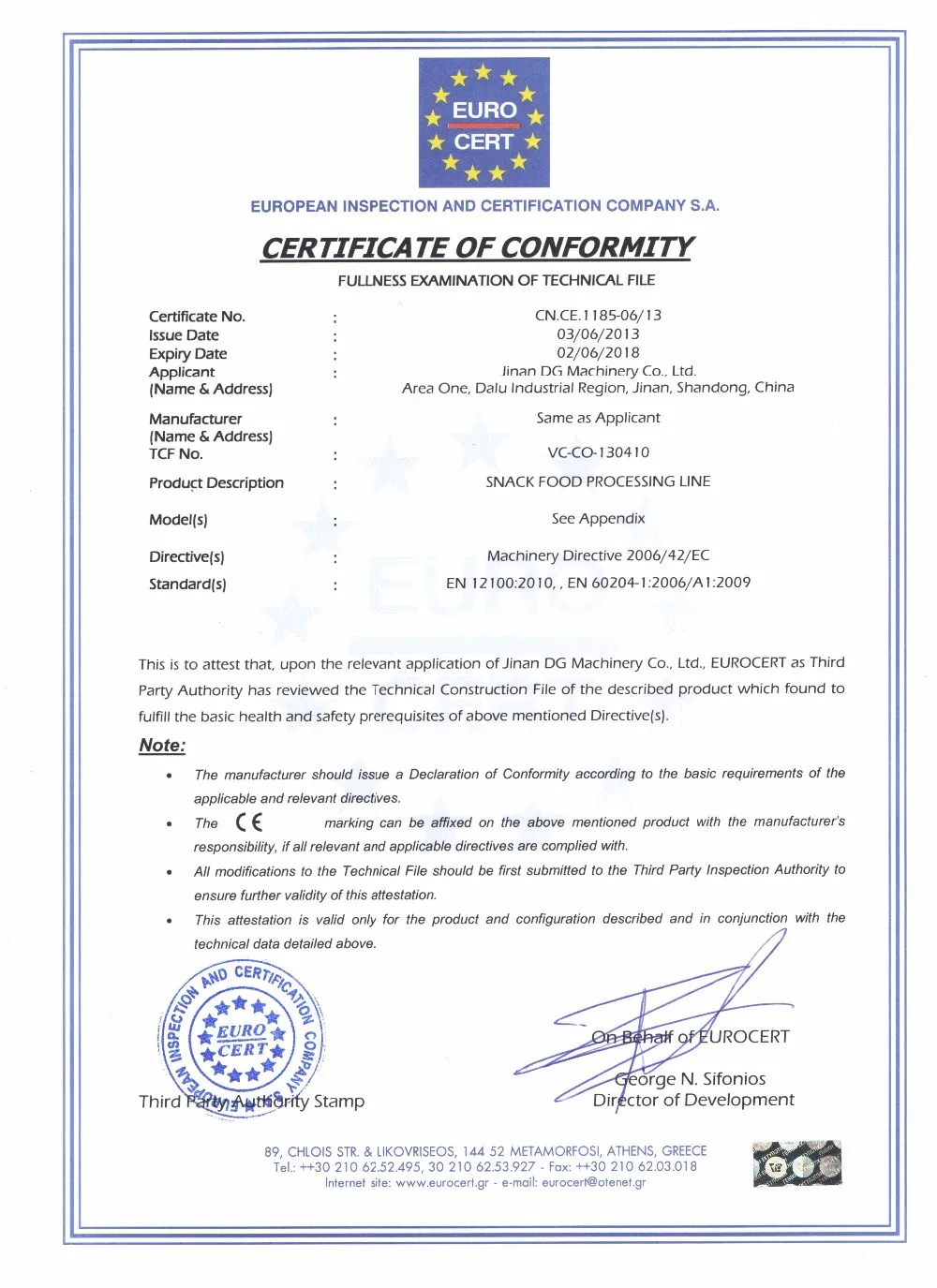

Certifications
Detailed Images

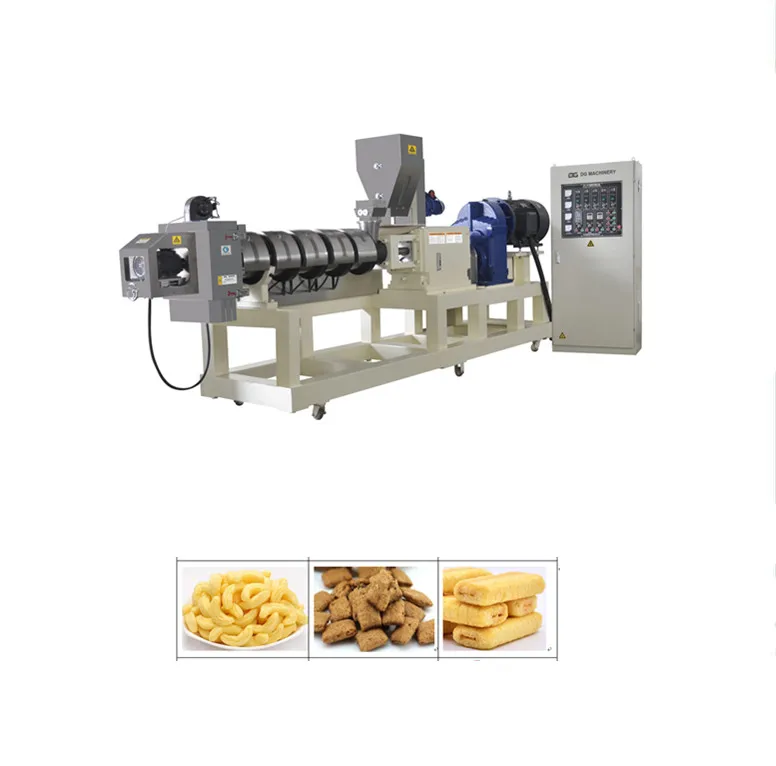

Machine Parts

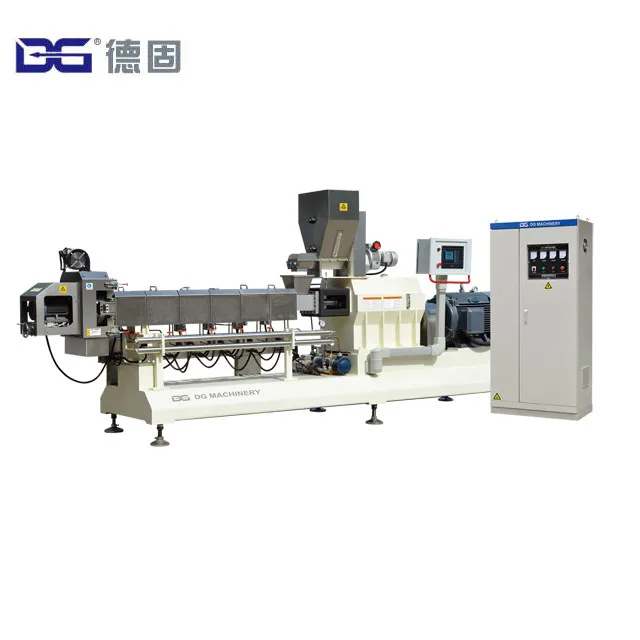

Name: DG75 Brand: DG Extruder Original: China 1. Advanced European technology 2. PLC touch screen control system 3. Flexible screw combination. 4. Material of screw: Cr12MoV 5. Material of Alloy 6. NSK Bearings 7. Barrel: Alloy Steel 8. Automatic cooling system
Main Features

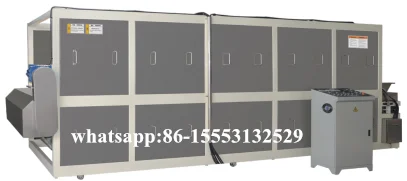

Name: Single Layer High Temperature Oven Brand: DG Original: China
1. Capacity: 300-400kg/h
2. Heating Manner: Gas Type
3. Gas Consumption: 5-18 Cubic Meters/H
Dimension:6.2*1.8*2.4m
Machine Parts

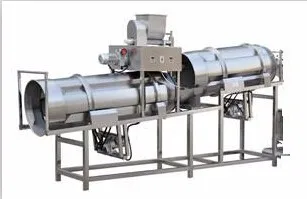

Name: Double Tank Flavoring Machine Brand: DG Original: China Spray oil and powder type seasonings to make different flavors
Our Service
Pre-Sales Service
* Consultation service before, during, and after sales; * Project planning and design service; * Debugging of equipment until everything is functional; * Management of equipments' long distance shipping from seller's factory to the named place by buyer; * New production techniques and formulas; * Provide 1 year complete warranty and life-time maintenance service.
After-Sales Service
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.
Our Factory
Our Reception Office
Packing & Delivery
Packaging
Size
Based on actual need
Weight
Based on actual machines
Packaging Details
The normal package is plastic film. We can also make normal wooden packages or fumigation wooden packages according to customers special request.
Packaging
Size
Based on actual need
Weight
Based on actual machines
Packaging Details
The normal package is plastic film. We can also make normal wooden packages or fumigation wooden packages according to customers special request.
Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time? A: Generally we custom the machines based on clients' requests, and normally it will be 20-60 days based on the machines' quantity after receiving prepayment
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the food sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ? A: TT, LC, West Union
