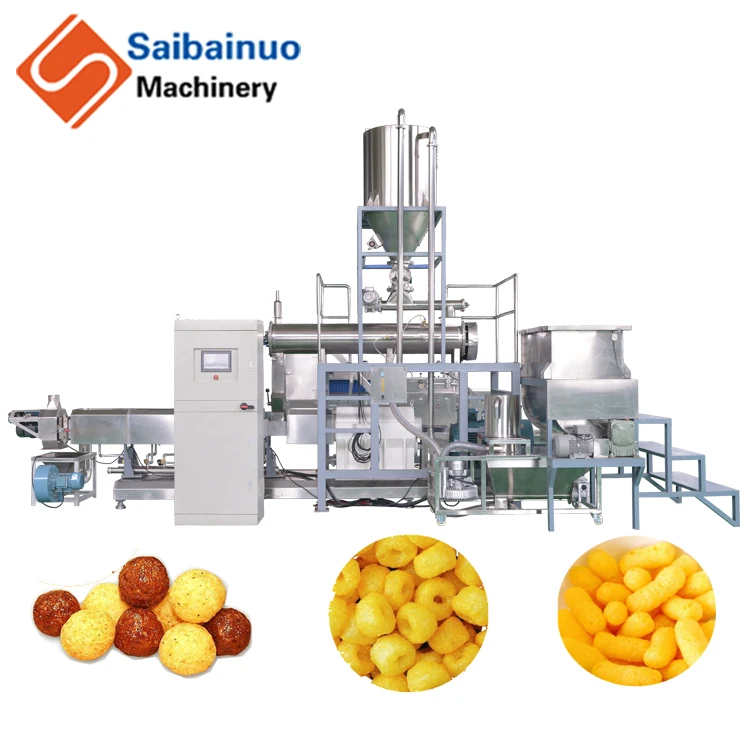

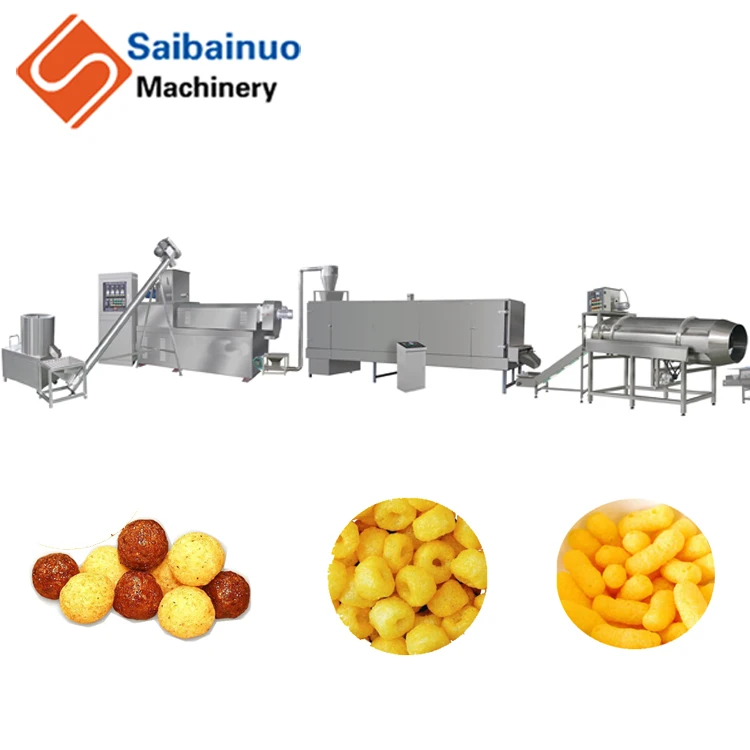

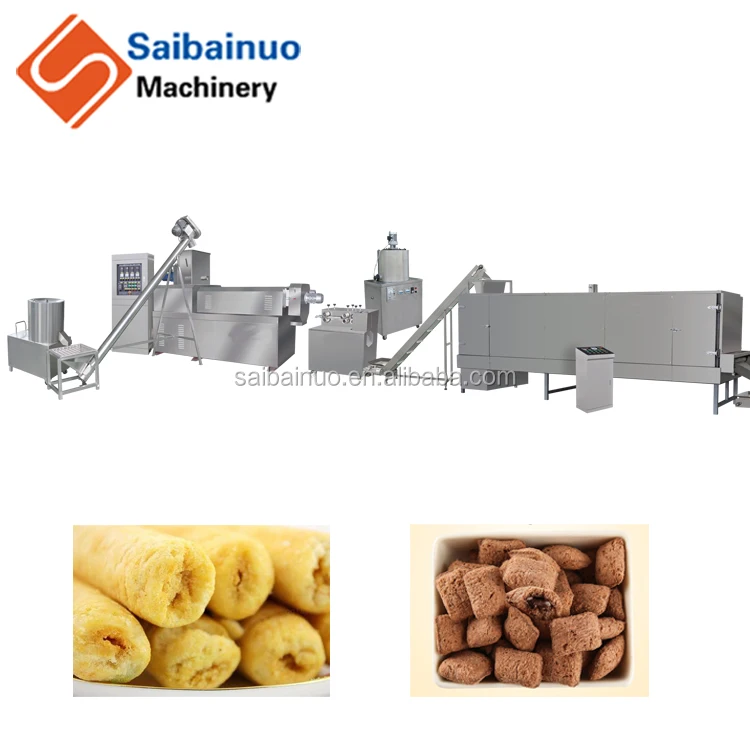

1.The brief description of china popular extruded chocolate core filling snack making machine:
1).Automatic core filling snack food production line,making machine, snack food manufacture used advanced extruding technology, through changing moulds and products technics to produce many kinds of popular snack food in the market.It has a agility scheme,strong adaptability."Low cost, high profits" is the suitable generalization of Snack food production line.
3. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
4.Machines Materials: All the machines are made by stainless steel.
5.Specification of the China popular extruded chocolate core filling snack making machine.
Model
SLG65
SLG70
SLG85
Install Power
65KW
110KW
190KW
Consumption Power
42KW
77KW
133KW
Output
120-150KG/H
220-260KG/H
500-600KG/H
Dimension
19000×1300×2200M
22000×1300×2200M
30000×1300×2500M
Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, offer competitive advantage machines, so with us your money in safe, your business in safe.
The spare parts.
Our screw extruder details.
Detailed Images
Name: high speed mixer
Dimension(m): 1.1×0.8×1.4 Motor Power: 4KW Speed: 400rpm Throughput: 30kg per loading (5-6 minutes per loading) Functions: Mix powder raw material with water Features: 1. stainless steel material(1.5mm). 2. new handle-opened design of discharge holes,no material leak 3.High speed can mix material better than other slow mixer.
Name: screw conveyor
Dimension(m): 3.2×0.6×0.7 Motor Power: 1.1KW Screw speed: 300rpm convey height range:1.5~2.5M barrel diameter: Φ141mm Function: Power material can be conveyed in the stainless steel roller to the feeder machine of Extruder without leaking, dust and pollution; feeding speed is even and stable.
Name: twin screw extruder
Dimension(m): 2.6×1.0×1.3 Total power: 37kw Main Motor Power:22KW Feeder motor:0.75kw Cutting motor: 1.5kw Heating power:10kw Extruder diameter:Φ65 mm Function: Extrude and cook raw material into different size and shapes Features: Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC. The gear box has forced lubrication system. All motors can be adjusted the speed by Inverter. The Extruder can change different molds to produce different shapes product.
Name: multi-layer dryer
Dimension(m): 5.4×1.3×1.8 Heating Power:27kw Motor power:0.75kw Belt speed:0.1-10M/minute Temperature: 20-200℃ Function: There are Three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food. Features: The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer. Heating adopts the electric heat tube. It has automatic temperature Control system. The belt and the cover are all stainless steel.
Name: flavoring line
Dimension(m): 3.8×0.8×1.8 Motor Power: 1.5KW Function: Scatter the powder seasoning on the food, The roller will mix the fat and seasoning powder evenly. Make food nice taste. Feature: Stainless steel material(1.5mm thickness)
Name: cooling conveyor
Dimension(m): 5.0×0.7×1.1 Motor Power:1 KW Function: Cool the pet food after flavoring ,make the pet food suitable for packing. Feature: Stainless steel material Have fan and baffle,better cooling and no leakage.
