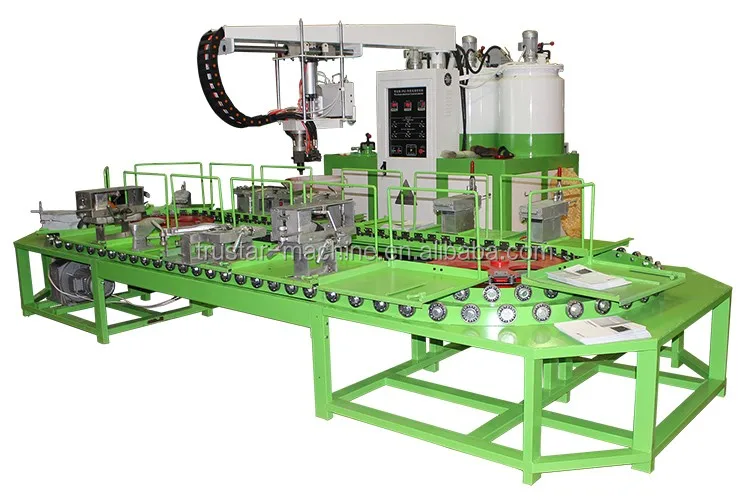

2018 pu safety shoes making machinery

 Productd Overviews

Features
1:uesd for shoes
2 Simple operation
3:bulk supply
4:factory price
5:soon delivery
6:sample available
7:customer design can be done
8.high quality and reliability
9.auto/by hand
10.convenient maintenance

Use:
1. Well configured system and ease maintenance.
2. Used for making safety shoe, leisure shoe, casual shoe, sandal, etc in double density.
3. Suitable for direct soling injection of single PU or colorful PU.
4. Each injection unit is equipped with two colors with accurate measurement of painting.
5. Automatic cleaning
6. Low noise and low energy consumption
7. Stable rotation and accurate positioning.
8 High mold clamping force
9. Independent PLC control for each station with multi-function
10 :any colors can be made.

Parts imported:
Electric control:Chnt china
Switch: France:Schnnider
Plc: Siemens
Touch screen: Siemens
Motor: Japan

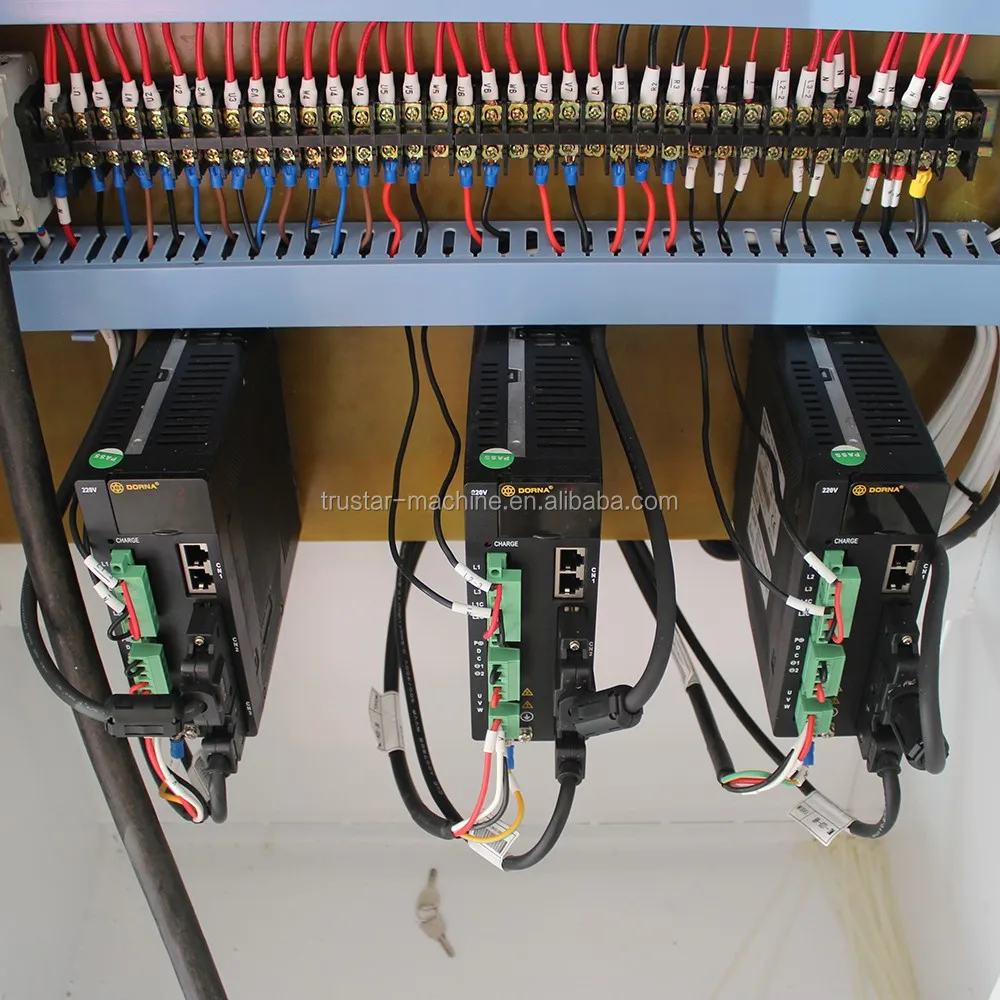

Control system:
1, With the state of the art computer controlled system to gain the machinery more efficiency and reliability.
2, Self-diagnosis, alarming and monitoring functions and multi-language alternatives.
3, Preset technical parameters.
4, Reserve electrical interface for mechanical arm
5, PID closed-loop and self-regulated injection program
6, Automatic PID temperature control
7, Emergent halt protection device.

Specifications
With 5*250L material tank, single pouring head,
can make four color four density polyurethane shoe sole.

Characteristics:

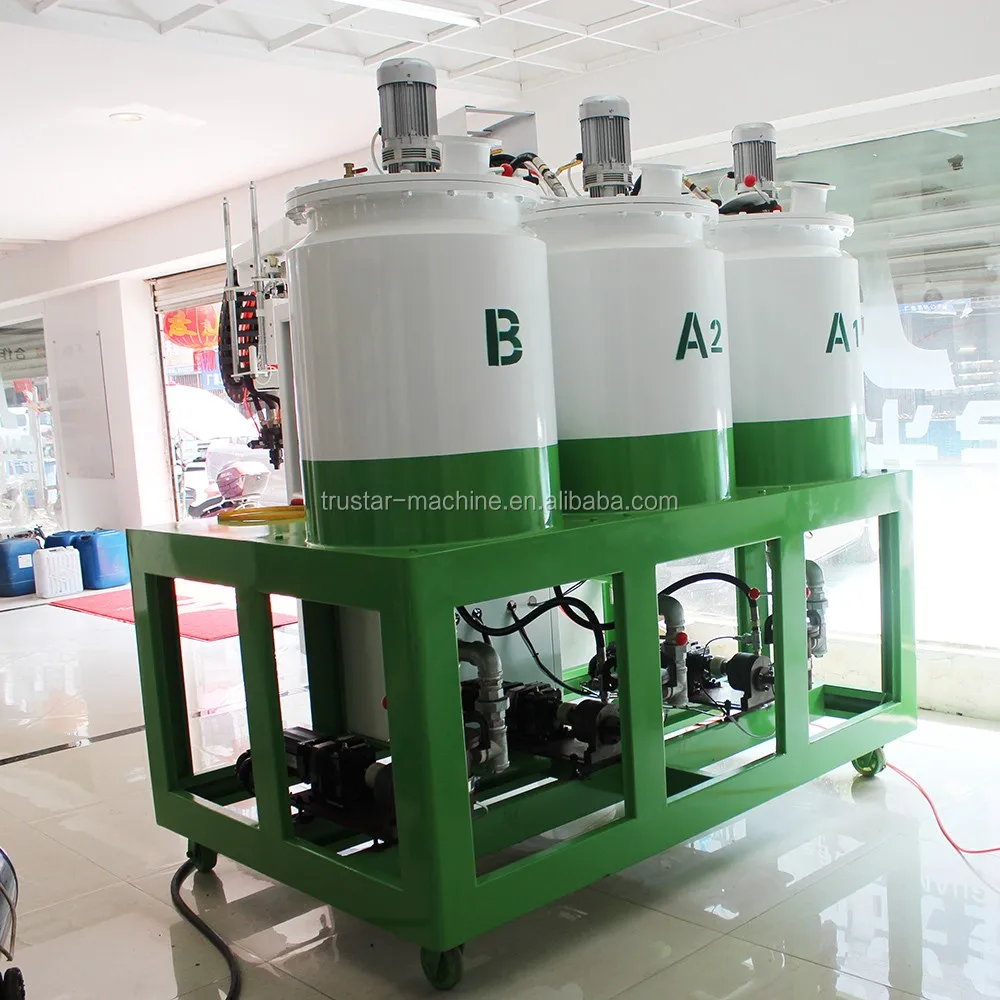

1. Have four A tank and one B tank, can make different density and different color foaming outsole by mix each A and B under requirement.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material.The mix head with six needle which can work independently.
3. Heating system with oil circulation, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.

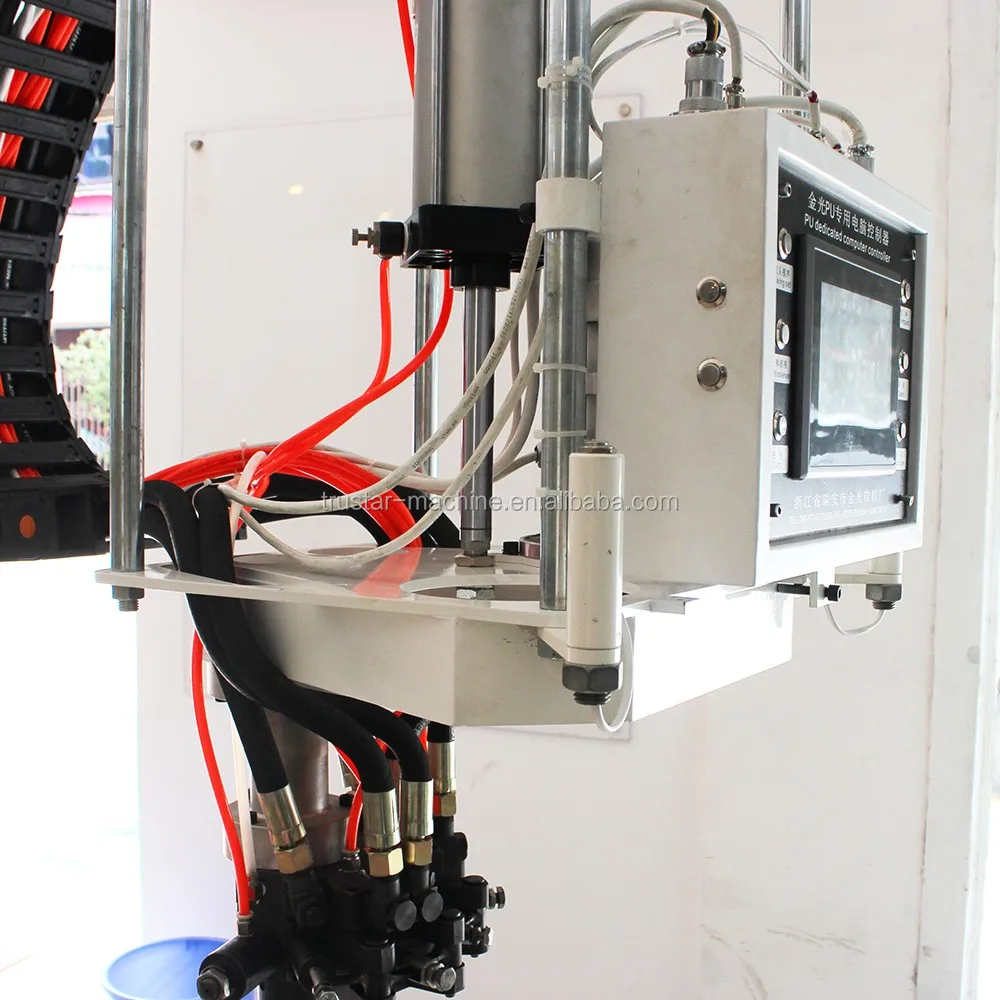

6. The speed of mix head can reach 9000r/min, it can obtain the most homogeneous material.

Technical Parameter:

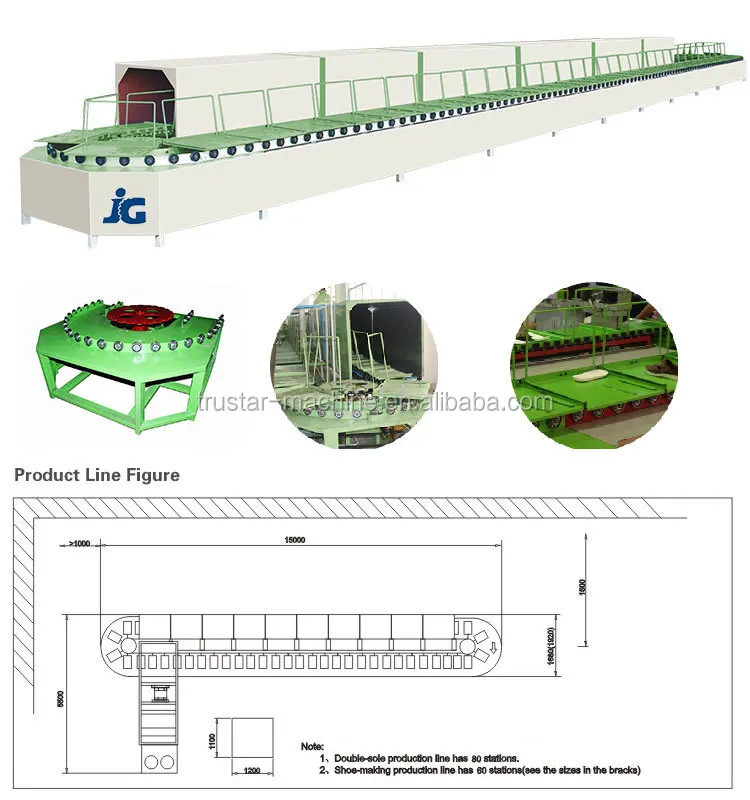

The whole producing line include one main machine, one 60 station convey, one oven

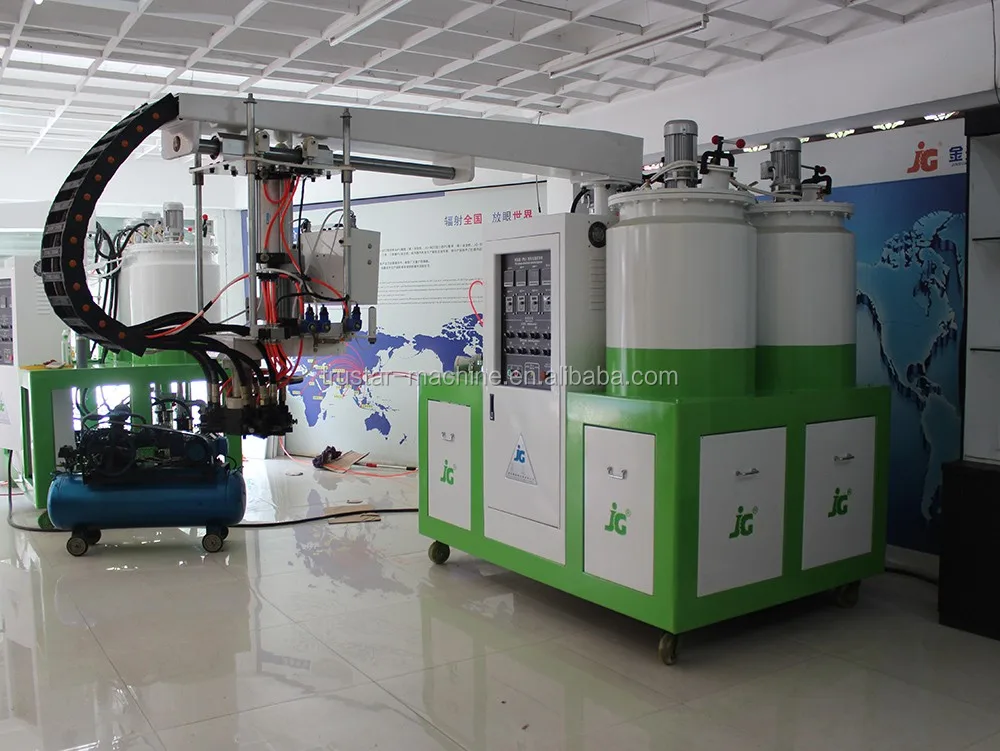

1.main machine

2.  60 station producing line(conveyor)

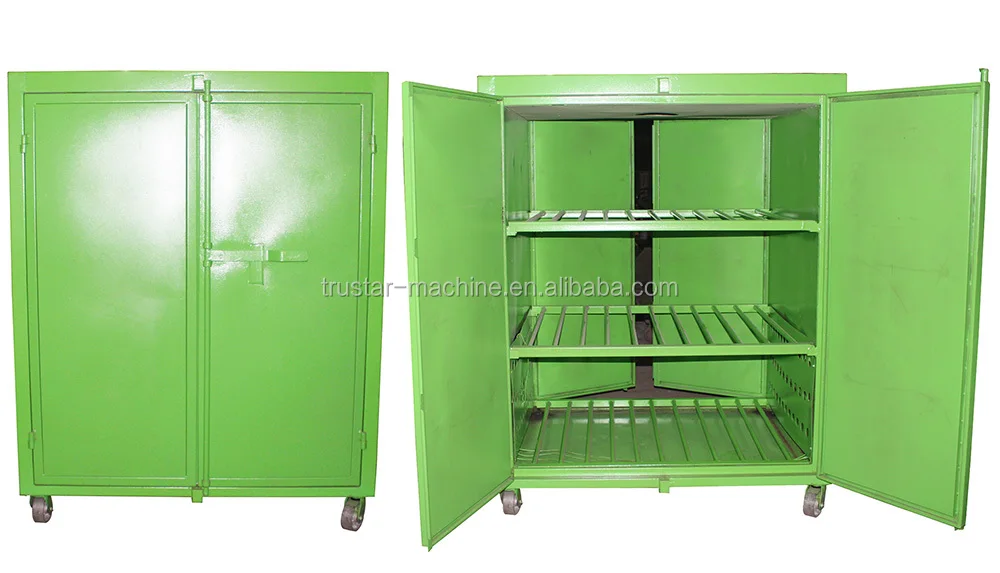

3. The raw material oven

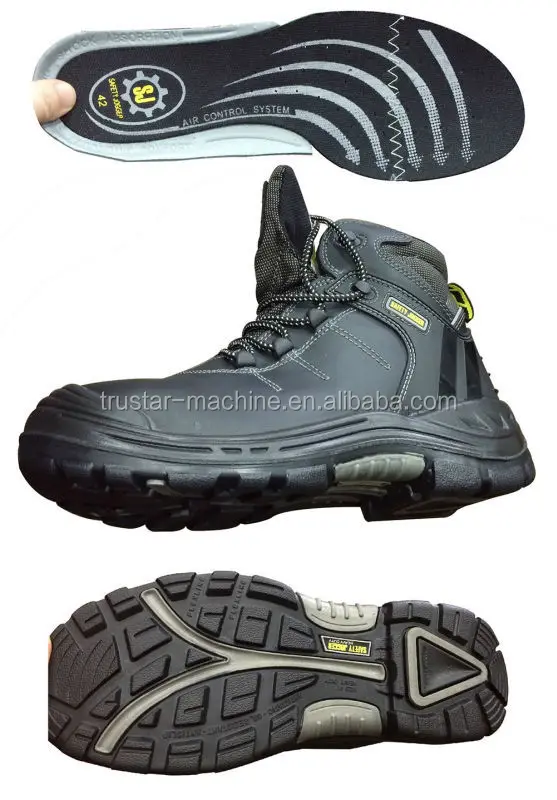

Can produce safty shoes, leathe shoes, sandal shoes etc.

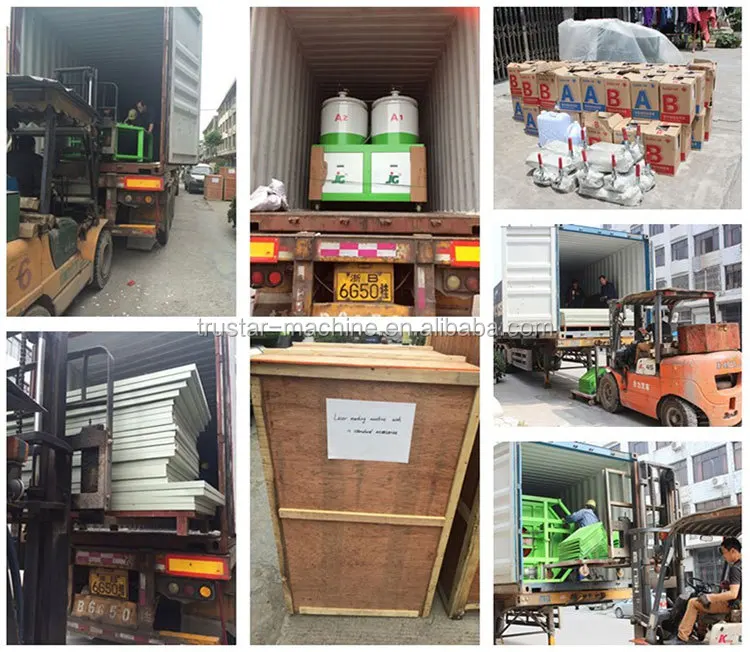

The packing and shipping

The production workshop

Attend trade shows

  Some spare parts
